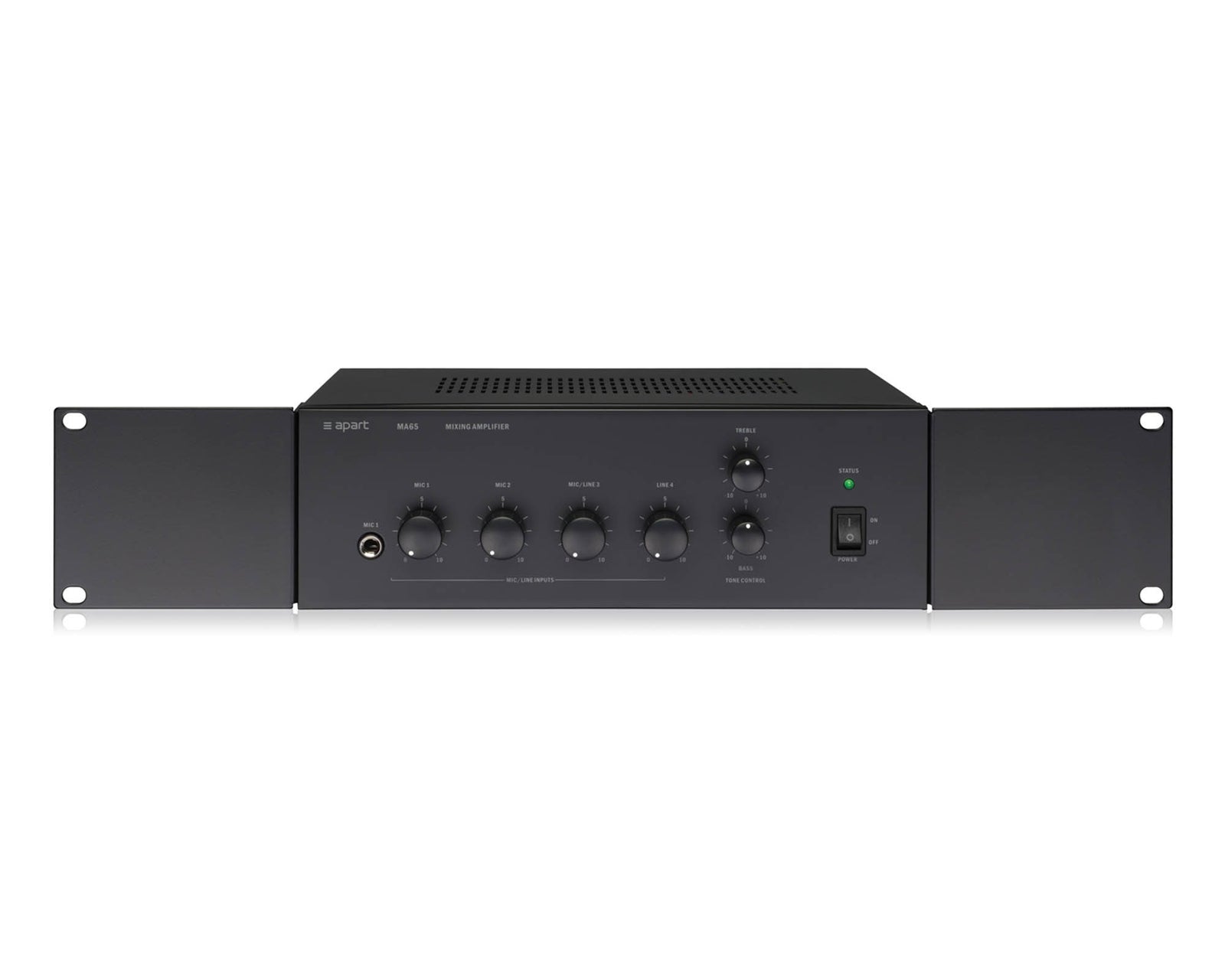

BIAMP MA65 Compact Mixing Amplifier, 65W @ 100 volt
MA65 is probably the most compact and complete 65 watts 100 volt mixing amplifier. No doubt this product can be the heart of many small installation projects where priority or mixed microphone calls and background music dispersion are needed. On top of that this amplifier can also be used in mobile applications as the MA65 functions with 24 volt (truck, autobus, emergency power supply).
The MA65 has 4 inputs: 2 MIC, 1 MIC-Line and 1 line input. A two step priority system is standard: MIC1 can have voice activated priority (VOX) that mutes all other inputs. This VOX mute can be switched off via an internal jumper. The contact closure (via DIN5 on MIC1 or Euro block on MIC1-2) will activate the chime and will mute input 3 (MIC3/LINE3) and 4.
The pre-amp out, power-amp input allows you to insert extra signal processors or to link the signal to other power amplifiers. Furthermore the MA65 is equipped with a bass – treble tone control, a record output and limiter circuit on the output to avoid clipping.
The MA65 has been build into a compact and sturdy metal housing. A 19” mounting bracket (Ref: MA35-19) is available as an option for rack mounting.
A comparable product is the MA35: a 35 watts 100 volt mixing amplifier.
-
Specification |
Value |
Height - Rack Units (1U=44 mm) |
2 U |
Depth (incl. Front) in mm |
297 |
Emergency Power Supply |
24 VDC |
Output Power RMS 100V in Watts |
65 |
Dynamic Output Power 100V in Watts |
65 |
Output Power Tappings |
100V, 70V, 8 ohms |
MIC Inputs Balanced |
3 |
Line Input Unbalanced |
2 |
Priority Switch |
1 |
Chime |
Yes |
Priority Output |
0 |
Frequency Response (in Hz) |
60 - 18 kHz |
Applicable in 100V |
Yes |
Net Weight Product (kg) |
6.40 |
Depth (Build-in) in mm |
278 |
Power Supply |
115 - 230 VAC |
Power Consumption (Max) in Watts |
170 |
Output Power RMS 8 ohms in Watts |
65 |
Minimum Impedance Load in Ohms |
8 |
Zone Outputs |
1 |
Inputs with Phantom Power |
3 |
Tone Control |
Yes |
VOX Mute |
Yes |
Emergency Input |
0 |
Priority Levels |
2 |
Cooling System |
Convection |
Applicable Low Impedance |
Yes |
