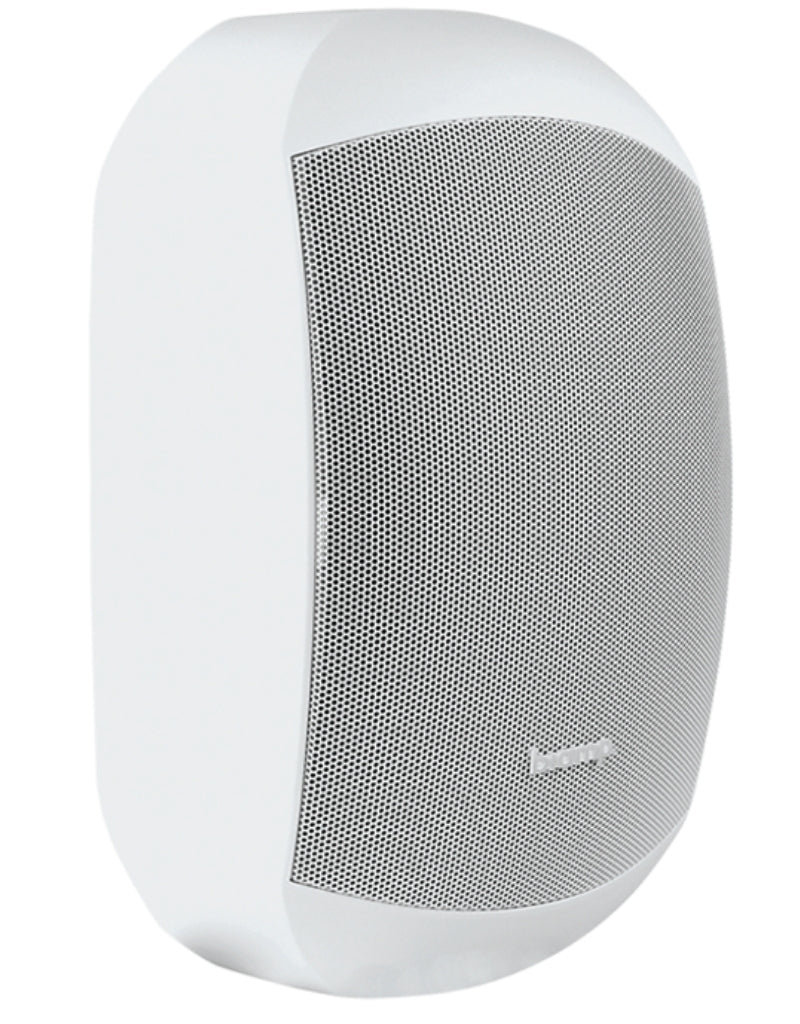

BIAMP MASK6C-W Two-Way 6.5" Surface Mount Loudspeaker
FEATURES
• IP64 rated for outdoor applications such as patios or concourses
• Waterproof connector sealing for outdoor applications
• Innovative ClickMount™ bracket allows all audio connections to be made at the bracket
• Integrated spirit level for fast, hassle-free positioning and mounting
• Loudspeaker overload protection for 24/7 failsafe operation
APPLICATIONS
· Bars and Restaurants
· Hotels
· Casinos
· Retail Outlets
· Health and Fitness Clubs
· Houses of Worship
· Exhibit Halls
· Corporate Meeting Rooms
DESCRIPTION
The Desono MASK6C two-way, 6.5" surface mount loudspeaker delivers crystal clear sound for all your public address and background music needs. Available in black or white, its 6.5” coated paper cone woofer and a 1” silk dome tweeter results in a high SPL and extremely low distortion, ensuring unprecedented clarity over the entire frequency spectrum.
Designed with the installer in mind, the MASK6C ships with the patented ClickMount bracket, enabling all audio connections to be made at the bracket itself. Pre-defined horizontal and vertical notches in the bracket make loudspeaker adjustments fast and repeatable. To complete the installation, simply ‘click’ the loudspeaker in place.
The Desono MASK6C is designed for outdoor applications such as patios or concourses, and an ideal choice for both indoor and outdoor distributed audio applications that demand superior speech intelligibility and full range music reproduction.
-
Feature |
Specification |
Operating Mode |
Passive |
Operating Environment |
Indoor/Outdoor |
Operating Range (-10dB) |
65 Hz to 22 kHz |
Nominal Beamwidth (H x V) |
100° x 50° |
Transducers |
LF: 1 x 6.5" (165 mm) coated paper cone |
|
HF: 1 x 1" (25 mm) soft dome |
Continuous Power Handling @ Nominal Impedance |
35V 150W @ 8Ω (600W peak) |
Nominal Sensitivity @ 1m |
@ 1W: 89 dB |
|
@ 2.83V: 89 dB |
Nominal Maximum SPL @ 1m |
Peak: 117 dB |
|
Continuous: 111 dB |
Protection |
3-step self-resetting protection |
Recommended Amplifiers |
150W - 300W @ 8Ω (35V - 49V) |
Input Connection |
Audio connections made at the ClickMount bracket; lever-action input and output terminals accept up to 16 AWG conductors |
Mounting Provisions |
ClickMount bracket |
Environmental |
IP64 per IEC 60529 |
Dimensions H x W x D |
328 mm x 198 mm x 190 mm (12.9" x 7.8" x 7.5") |
Weight |
4.4 kg (9.7 lbs) |
Finish |
Refer to the Technical Drawings (page 3) |
Accessories (included) |
ClickMount bracket; safety cable |
Accessory (optional) |
MASKCL(-BL/-W): 90° mounting bracket, available in black or white |
|
MASKCV(-BL/-W): 2-cluster mounting bracket, available in black or white |
|
MASKCW(-BL/-W): 4-cluster mounting bracket, available in black or white |
