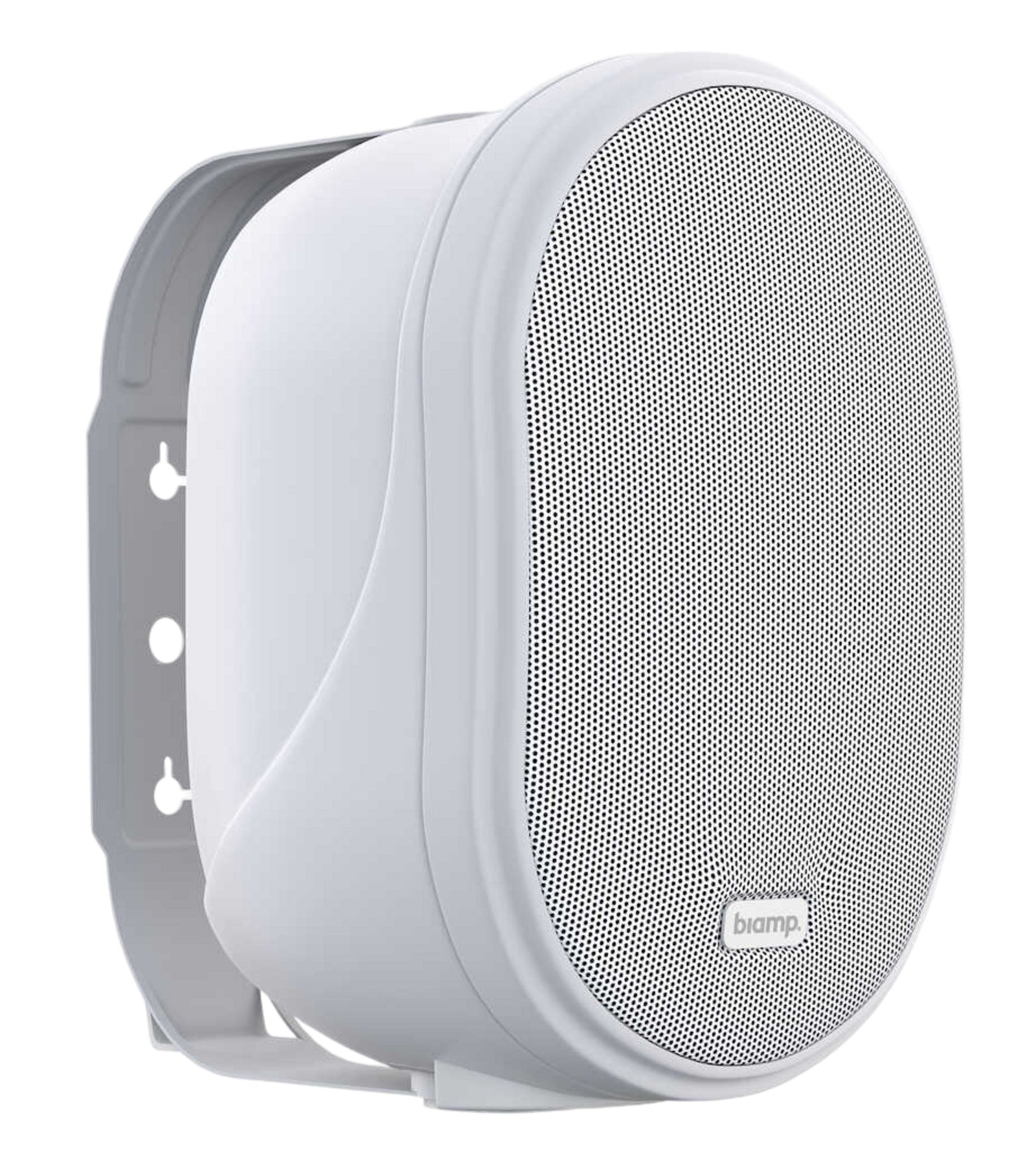

The OVO5T-W is a white 5.25-inch, design two-way 70V/100V or low impedance surface mount loudspeaker that can be used for background music and paging purposes in a wide variety of applications. An easily accessible switch on the rear of the enclosure allows selection of 16 ohm or 70V/100V operation.
The OVO5T is an ideal speaker for large projects like company buildings, neighborhood centers, commercial applications, shopping centers and hotels. Thanks to the contemporary design this speaker fits into any space, whatever its décor or interior style.
The rugged ABS enclosure guarantees years of trouble-free operation and is paintable to match any interior. The 5.25-inch paper cone woofer and 1-inch silk dome tweeter provide high output and wide dispersion, making it ideal to cover large spaces while maintaining project budgets.
OVO5T can be mounted with the included wall bracket. The spring-lever wiring terminals ensure quick and easy mounting in a wide range of orientations, and the included input cover ensures a clean, finished look once installed.
Key Features
Contemporary design, small, budget-friendly
High output and wide coverage pattern are ideal for larger spaces
Full-range, 2-way design ideal for background music and voice paging
Integrated pan and down-tilt U-bracket included
Included input wiring cover
5-year warranty
| Height | 10.1 inches (256 mm) | Width | 6.6 inches (167 mm) |
| Depth | 7.4 inches (189 mm) | Weight | 6.8 lbs (3.1 kg) |
| Finish | RAL 9003 White | Operating Environment | IP40 |
| Power | 40W continuous | Loudspeaker Type | 2-way 5.25" 70V/100V surface-mount loudspeaker |
| Operating Range | 74 Hz – 20 kHz | Transformer | 70V: 30W, 15W, 7.5W, 3W, 1.5W 100V: 30W, 15W, 6W, 3W |
| Sensitivity | 89 dB (1W/1m) | Dispersion | 130° x 100° |
| Drivers | LF: 1 × 5.25" coated paper cone HF: 1 × 1" silk dome |
Impedance | 16Ω |
| Maximum Output | 102 dB (112 dB peak) |
| Description | Downloads |
|---|---|
| BIAMP OVO5T-W 5.25" Two-Way Surface Mount Loudspeaker | 910.0151.900 DataSheet | Download |
