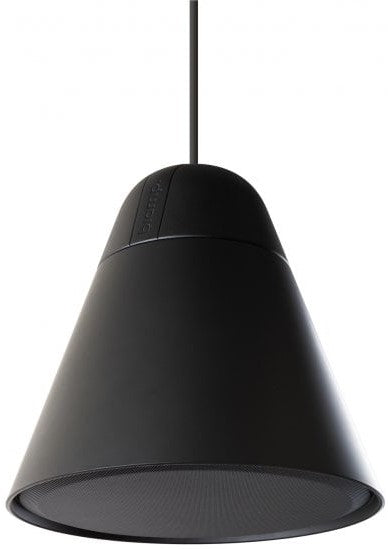

BIAMP P30DT Two-Way 4.25" Pendant Mount Loudspeaker
FEATURES
• Installer-friendly end cap with cut-out slot and integrated magnetic closure; hides the tap selector
and all cable connections
• Two tooless Gripple® cable fasteners are provided for a safe, secure, and fast installation
• Euroblock connector with permanent pass-through
• Tap switch allows for 70V/100V or 16 ohm low impedance operation
• Tuned bass reflex port for optimized low frequency performance
• Loudspeaker overload protection for 24/7 failsafe operation
• ETL listed to conform with UL Std 1480A; Certified to CSA C22.2#62368-1
APPLICATIONS
· Bars and Restaurants
· Hotels
· Casinos
· Retail Outlets
· Health and Fitness Clubs
· Houses of Worship
· Exhibit Halls
· Corporate Meeting Rooms
DESCRIPTION
The P30DT two-way, 4.25" pendant loudspeaker brings exceptional dispersion to areas with open ceilings, while offering clear speech and musical purity. Available in black or white, the P30DT is suitable for a wide range of background and foreground audio applications.
The Gripple cable fasteners, Euroblock connector, and 70V/100V tap switch can be hidden after installation by the innovatively designed end cap. The attractive aesthetics and ease-of-installation make this product an industry standard.
-
| Feature |
Specification |
| Operating Mode |
Passive |
| Operating Environment |
Indoor |
| Operating Range (-10dB) |
75 Hz to 20 kHz |
| Nominal Beamwidth (H x V) |
120°, conical |
| Transducers |
LF: 1 x 4.25" (108 mm) coated paper cone |
|
HF: 1 x 1" (25 mm) soft dome |
| Continuous Power Handling @ Nominal Impedance |
28V 50W @ 16 ohms (200W peak) |
| Nominal Sensitivity @ 1m |
Passive @ 1W: 87 dB |
|
@ 2.83V: 84 dB |
| Nominal Maximum SPL @ 1m |
Passive Peak: 110 dB |
|
Continuous: 104 dB |
| Transformer |
70V: 30W, 15W, 7.5W, 3.75W, 1.75W |
|
100V: 30W, 15W, 7.5W, 3.75W |
| Protection |
Self-resetting loudspeaker protection |
| Recommended Accessories |
75 Hz, 12dB/Oct High Pass |
| Recommended Amplifiers |
50W - 100W @ 16 ohms (28V - 40V) |
| Input Connection |
4-way Euroblock connector with permanent pass-through |
| Controls |
Power tap / low impedance selector switch |
| Mounting Provisions |
Two 5m (16.4 ft) wire suspension cables (primary and safety), high tensile galvanized steel wire rope with integrated spring clips and Gripple cable fasteners |
| Compliance |
ETL listed to comply with UL Std 1480A, Certified to CSA C22.2#62368-1 |
|
Suspension system and Gripple cable fasteners listed per UL1598 and UL2239, TUV and CSA Class 3426-01 and Class 3426-81 |
| Dimensions H x W |
223 mm x 233 mm (8.78" x 9.17") |
| Weight |
2.6 kg (5.7 lbs) |
| Finish |
Refer to the Technical Drawings (page 2) |
| Accessories (included) |
Two wire suspension cables; Two Gripple cable fasteners; End cap and cable cover |
| Accessory (optional) |
MC-PHK16-12PK: Pendant Hanging Kit with twelve (12) 5m (16ft) lengths of Magic Cable and the connectors to suspend snap-hook-mounted pendant loudspeakers. Available in White or Black |
- 911.0904.900 : Datasheet
