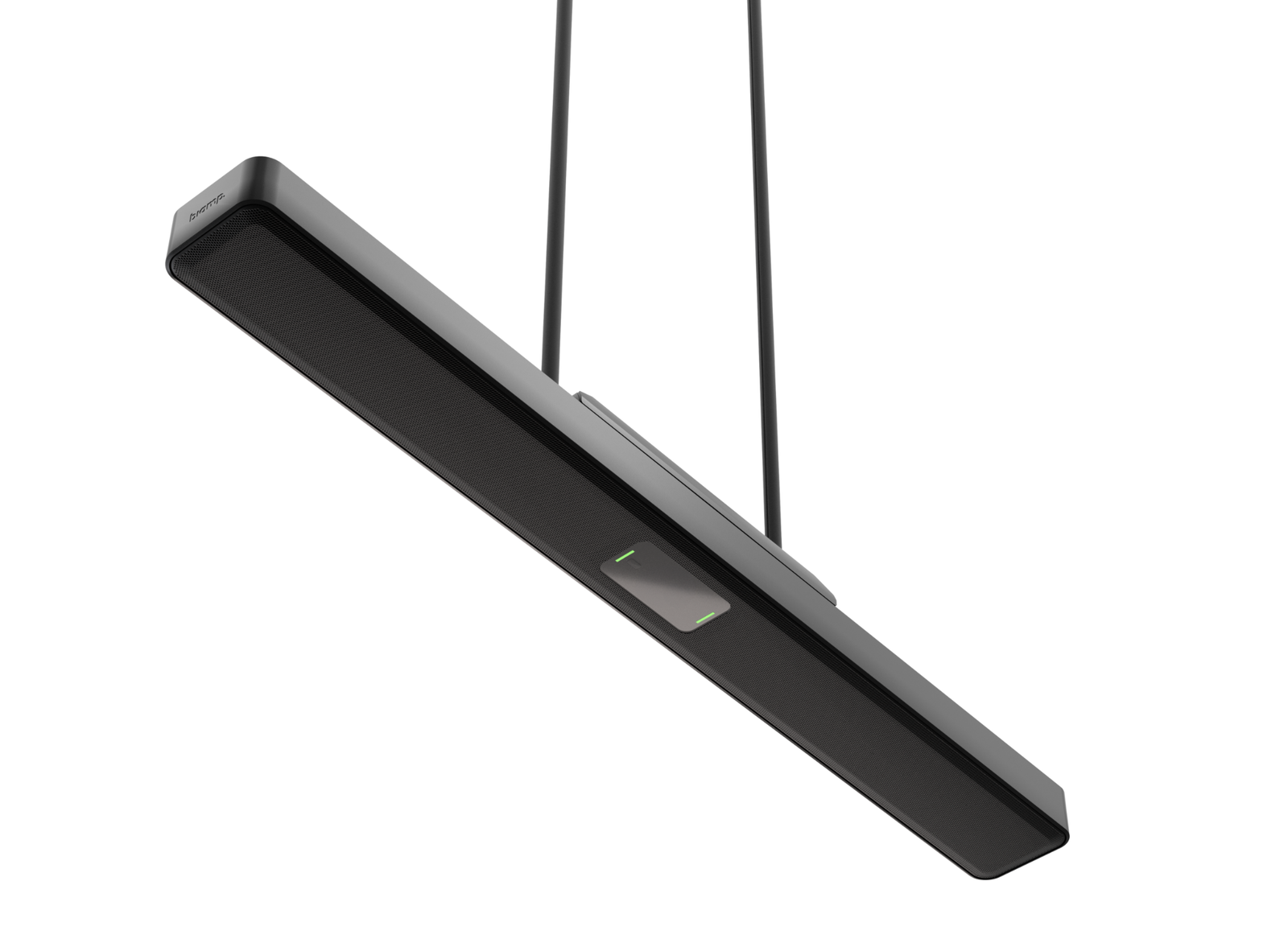

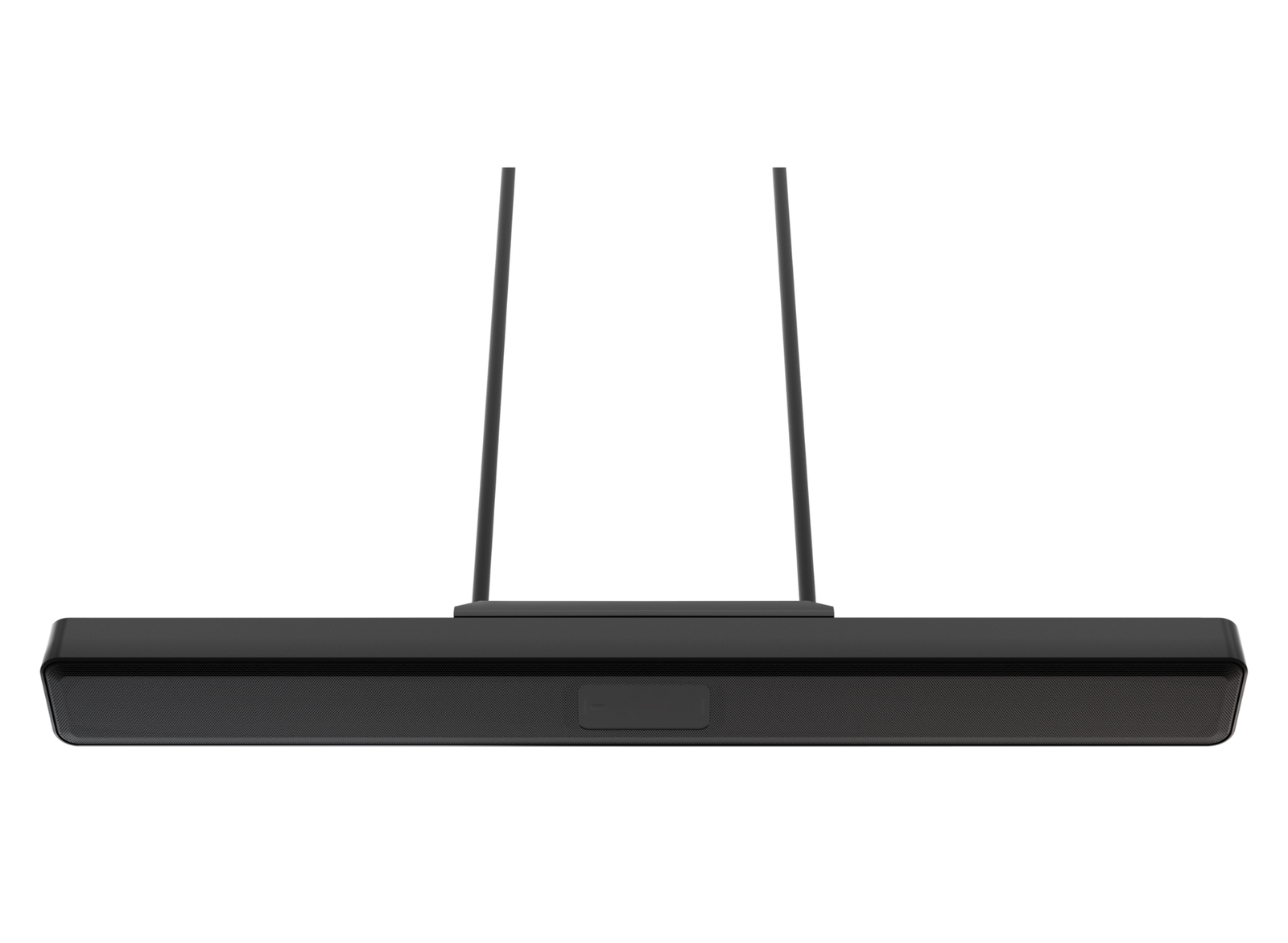

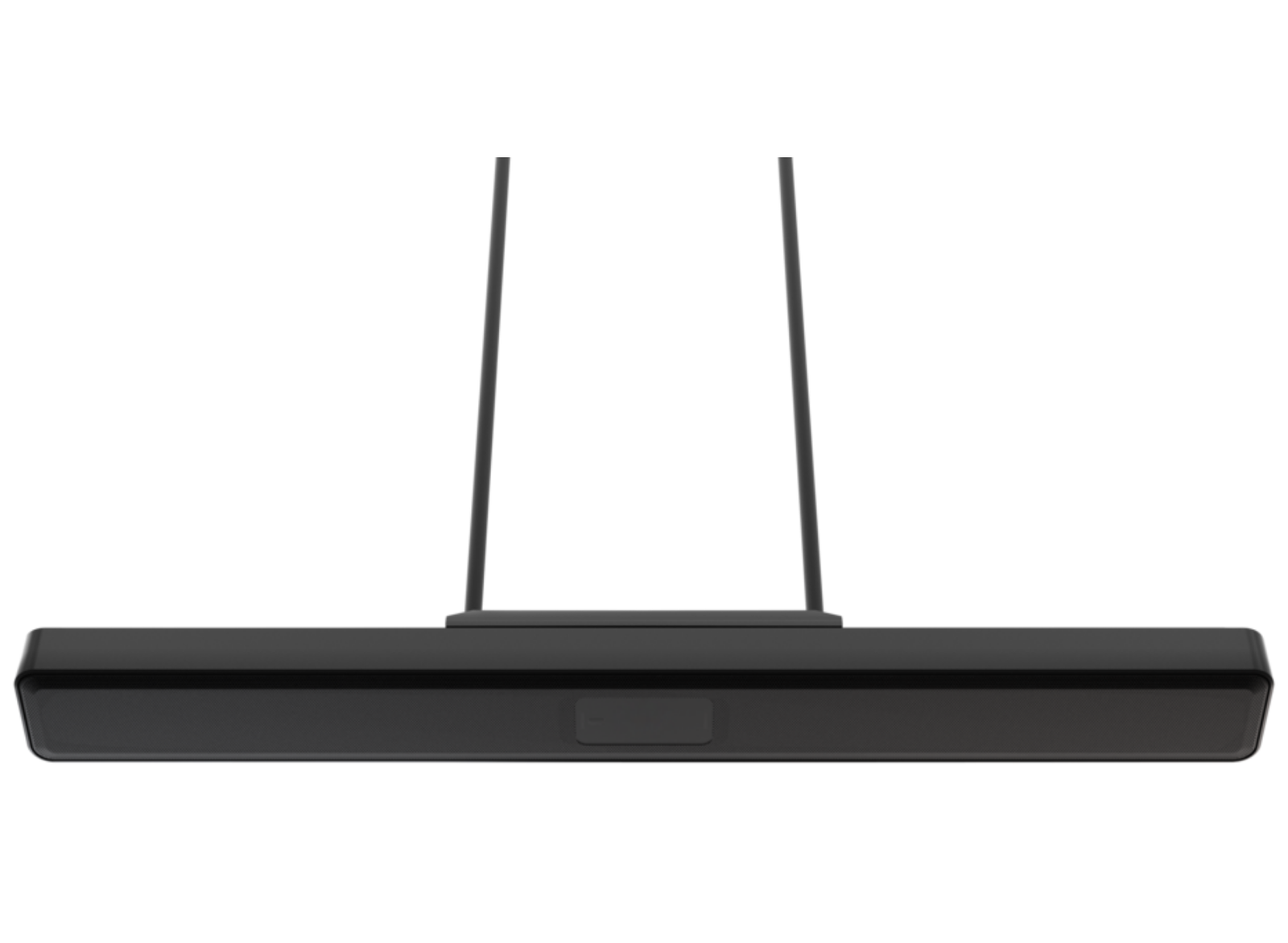

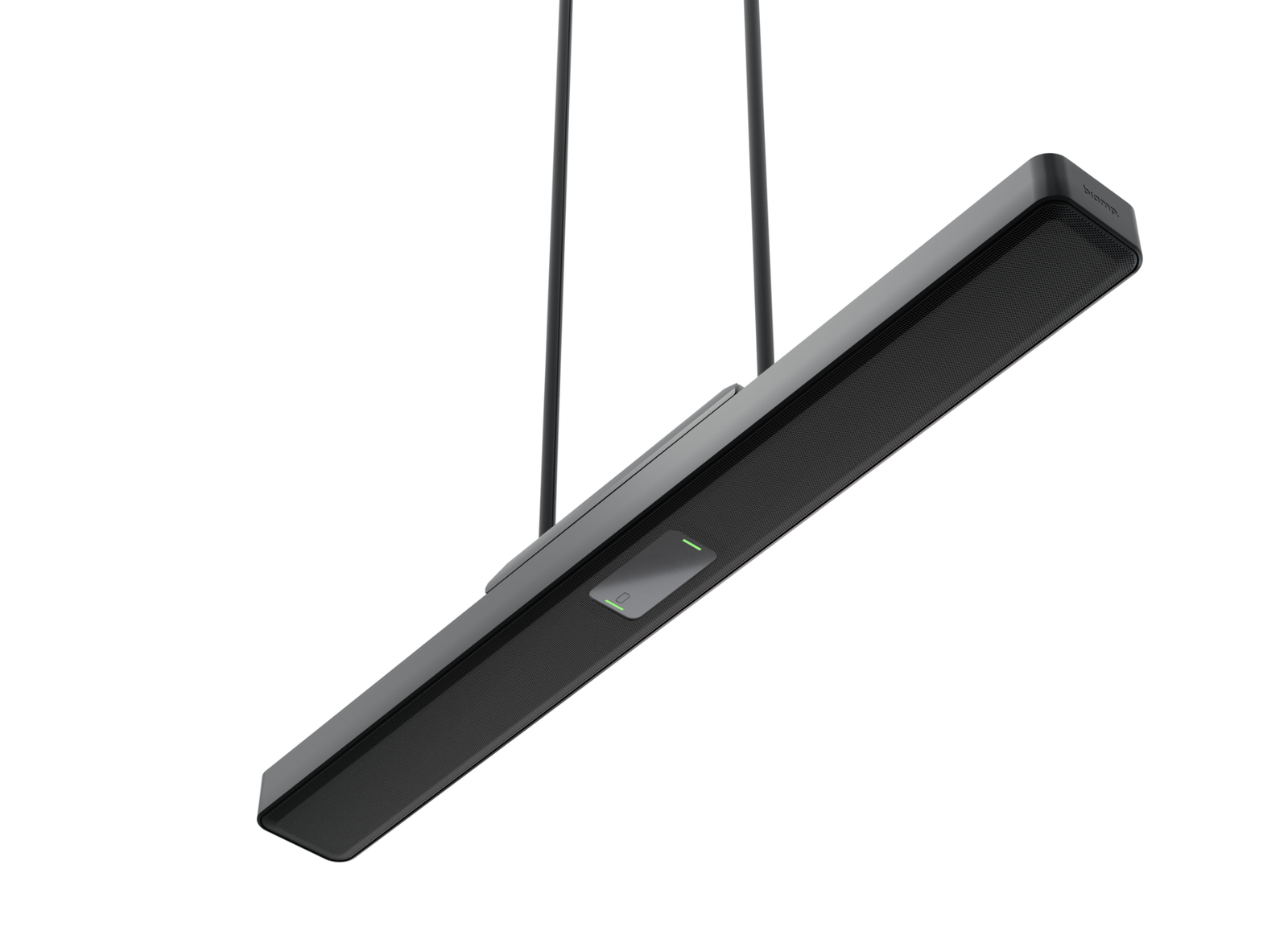

The Parlé CBC 2500 CM is a ceiling mounted, all-in-one conferencing bar for collaboration spaces where wall mounting might be difficult. Featuring a sleek design that hangs from any open plan ceiling with two discreet cables, the CBC 2500 CM kit is quickly and cleanly installed with two easy connect mounting points and decorative covers.
With integrated Acoustic Echo Cancellation (AEC) and AI Noise Reduction, the CBC 2500 CM uses a 27-element mic array and Biamp Beamtracking™ technology to actively track and intelligently mix conversations from around the room. Two smart speakers use distortion compensation and dynamic bass enhancement technology to create room filling audio with superior speech reproduction.
The CBC 2500 CM also features Biamp Launch, an automated tuning system that optimizes the audio to each unique conference space.
| Height | 3.9 inches (100 mm) | Width | 37 inches (940 mm) |
| Depth | 2.5 inches (64 mm) | Weight | 9.6 lbs (4.4 kg) |
| Kit Contents | (1) Parlé ABC 2500 Bar, (1) Mounting plate with center plug, (2) Decorative cable covers 39" (1m) | Additional Kit Items | (2) Aircraft Cables 10' (3m), (2) Cable grippers with quick connect, (2) Eye bolts (Lag Screw), (1) USB 3.0 cable 33' (10m), (1) Power extender 33' (10m) |
| Ambient Temp Range | 32 - 104°F (0 - 40°C) | Humidity | 0-90% (non-condensing) |
| Altitude | 0-10,000 ft (0-3000m) MSL | Power | USB-C: 60W, External Power Supply: 100-240VAC 50/60Hz (12VDC, 4.74A) |
| Beamwidth | 180° x 180° (H x V) | Transducers | 2x 2.5 in (60 mm) full range |
| Sensitivity | 84 dB (@ 1m, 2.83V) | Microphone | 27-Element Digital Array, FR: 100 Hz - 8 kHz, Polar Pattern: Beamformed, Pickup: >23 ft (7m) |
| SNR | 69 dB (@1kHz, 94dB SPL, A-Weighted) | Max SPL | 130 dB (@1kHz, THD <10%) |
| Indicators | Mute Indicator (Green/Red/Off LEDs) | Mic Sensitivity | > -37dBFS ± 1dB (@1Pa) |
| Mic Output Rate | 48 kHz | Audio Processing | AEC, AI Noise Reduction |
| Interfaces | USB 3.0 Type C, 3.5mm mono balanced assistive listening | Impedance | 4Ω nominal |
| THD+N | <0.2% (@1kHz) | Frequency Response | 57 Hz - 20 kHz (-10 dB) |
| SPL | 90 dB continuous, 96 dB peak (@1m) | Microsoft Teams | Certified |
| Zoom | Certified | Certifications | FCC Part 15B (USA), CE (Europe), UL & C-UL (USA/Canada), RoHS (Europe) |
| Description | Downloads |
|---|---|
| Datasheet | Download |
