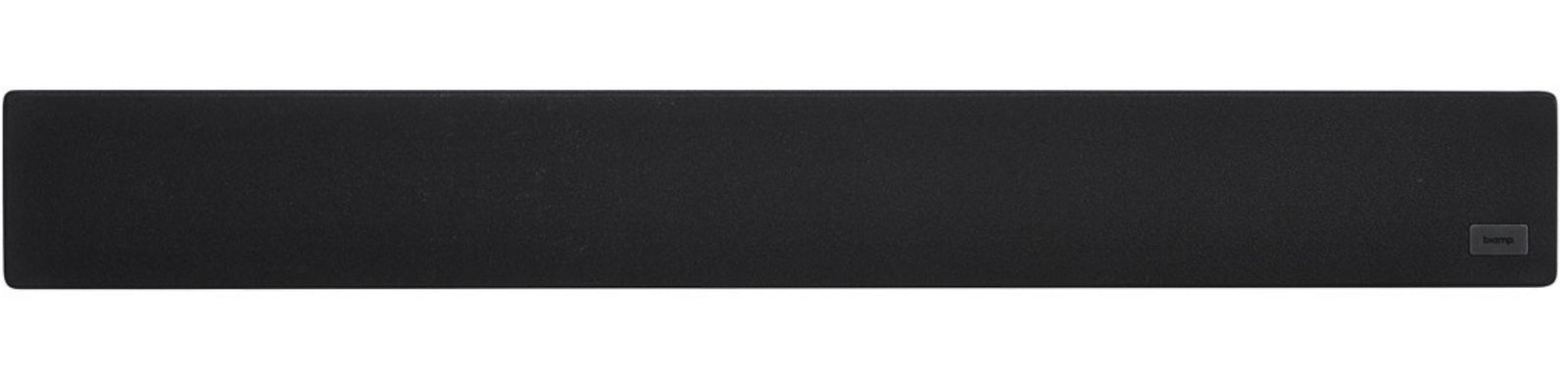

The Parlé SBC 2 is a high fidelity speaker bar for use with conferencing systems. Intended for huddle rooms
or small conference rooms, the SBC 2 is equipped with two 4” woofers and two 1” tweeters. It can be
table- or wall-mounted. The SBC 2 supports several different options for audio input and can be integrated
with a control system through an RS-232 port. It has three built-in EQ presets (Music, Video Conference,
Presentation) switchable on the back of the speaker bar to provide clear and precise audio in different
application settings.
FEATURES
• Equipped with two 4” woofers and two 1” tweeters
• Four audio input options: HDMI ARC, USB,Euroblock, and RCA
• Can be integrated with a control system via RS-232
• Includes wake-on-signal capability
• 3 built-in EQ presets
• Covered by Biamp Systems’ five-year warranty
ARCHITECTS & ENGINEERS SPECIFICATIONS
The speaker bar shall be designed to work with conferencing systems. The speaker bar shall be equipped with two 4-inch (102 mm) treated paper low frequency transducers (“woofers”) and two 1-inch (25 mm) high frequency transducers (“tweeters”). The high frequency transducer shall be physically separate from the low frequency transducer. The speaker bar shall have a nominal impedance of 8 ohms. The speaker bar shall be equipped with a five-position, 5.08 mm (0.2 inches) pluggable Euroblock connector, a USB 2.0 type-B connector, and two RCA connectors for audio signal connections. The speaker bar shall be equipped with one High-Definition Multimedia Interface (HDMI®) port with integrated support for Audio Return Channel (ARC). The speaker bar shall be equipped with a bi-directional RS-232 port. The speaker bar shall be equipped with wake-on-signal functionality. The speaker bar shall be CE marked, UL listed, and compliant with the RoHS directive. Warranty shall be five years. The speaker bar shall be the Parlé™ SBC 2.
| Feature | Specification |
|---|---|
| Unbalanced Input | |
| Number of Inputs | 1 (stereo) |
| Connector | RCA |
| Input Impedance | < 20kΩ |
| Max Input Level | 1 Vrms |
| Wake on Signal | Yes |
| Output | |
| Rated Power | 4 x 20 Wrms |
| THD+N (20 Hz - 20 kHz, @ 1W) | < 0.1 % |
| Frequency Response (50 Hz - 20 kHz) | ± 3 dB |
| Maximum SPL | 106 dBA |
| HDMI | |
| Supported Version | 1.4 |
| CEC Support | Yes |
| Codec | 24-bit PCM stereo |
| Sample Rate | 44.1/48 kHz |
| RS-232 | 19200/8-N-1 |
| USB | |
| Connector | USB 2.0 Type-B |
| Codec | 24-bit PCM stereo |
| Sample Rate | 44.1/48 kHz |
| Power Consumption (100-240VAC 50/60Hz) | < 60W |
| Overall Dimensions | |
| Height | 5.1 inches (130 mm) |
| Width | 40.1 inches (1018 mm) |
| Depth | 3.0 inches (75 mm) |
| Weight | 9.9 lbs (4.5 kg) |
| Compliance | |
| CE Marked (Europe) | |
| RoHS Directive (Europe) |
| Description | Downloads |
|---|---|
| BIAMP Parlé SBC 2 Speaker Bar | 913.1869.900 DataSheet | Downloads |
