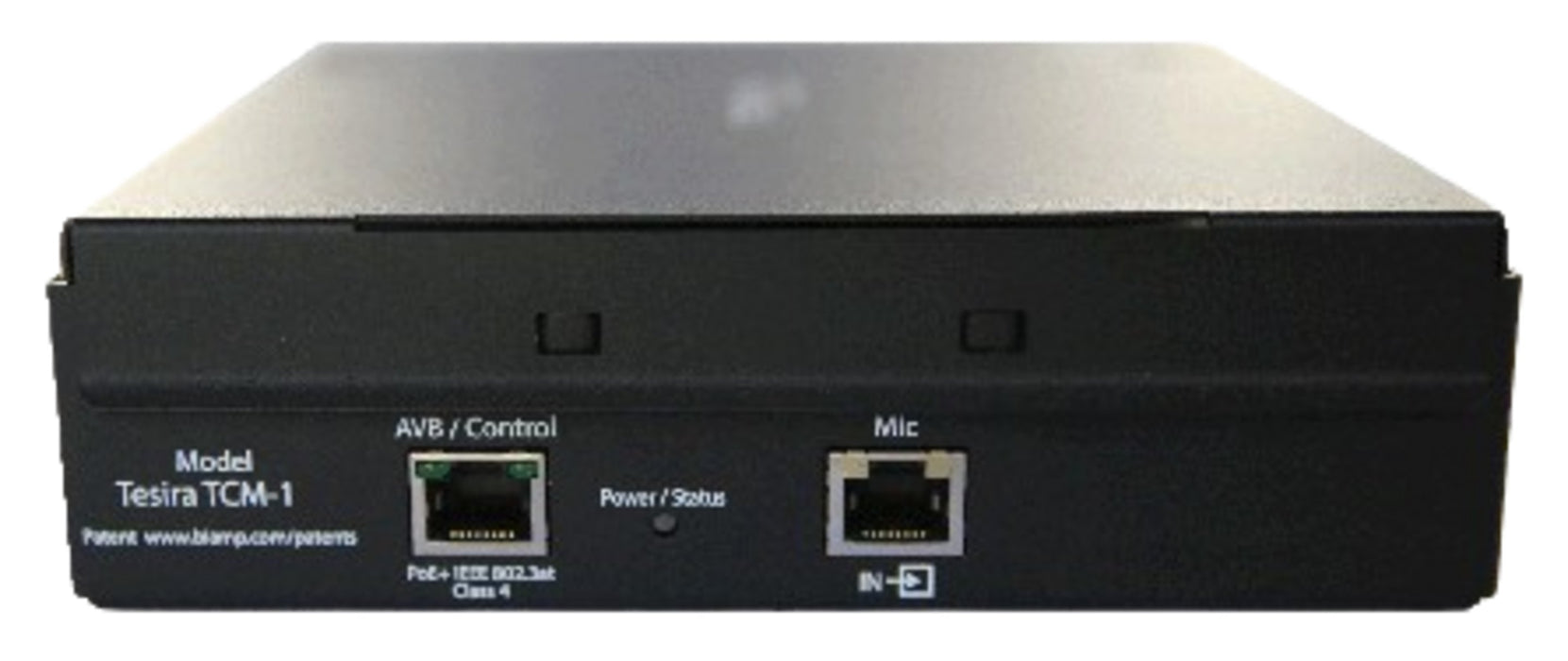

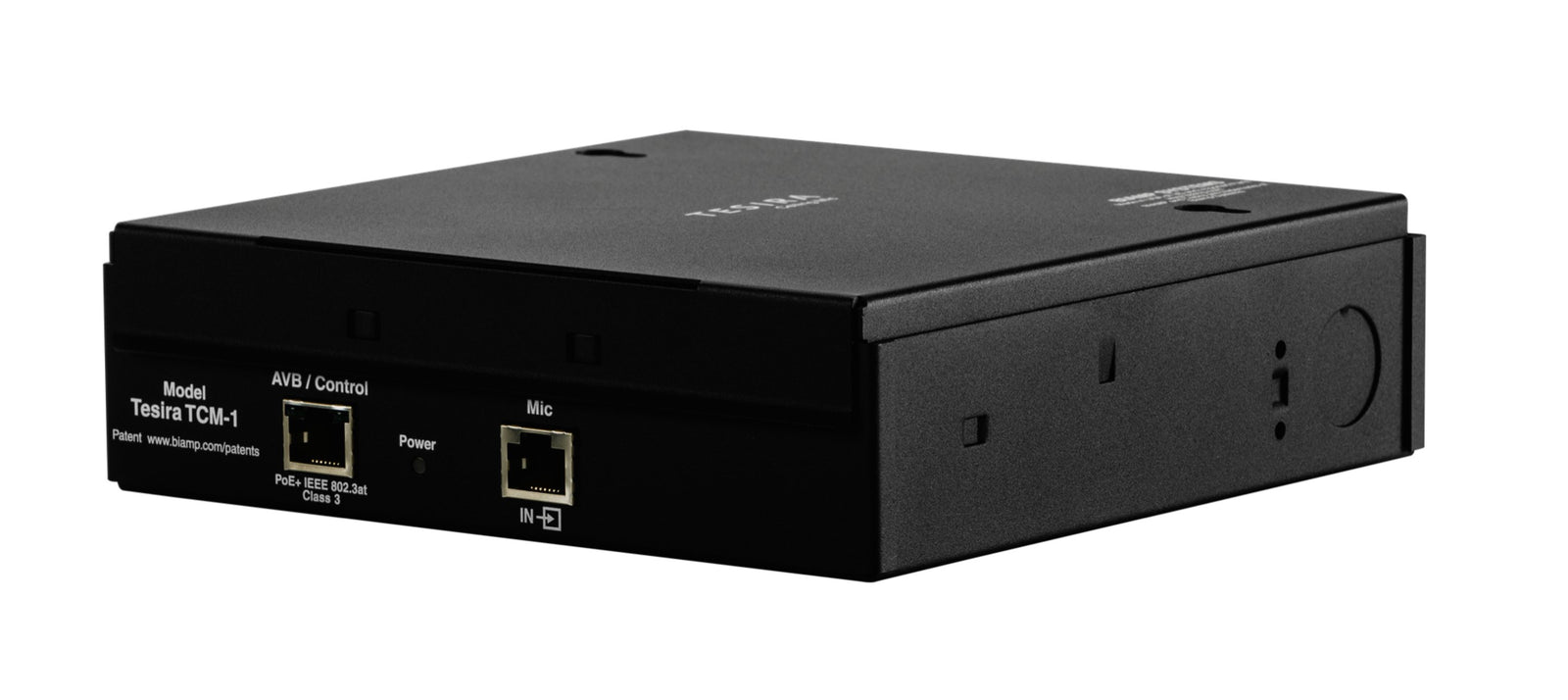

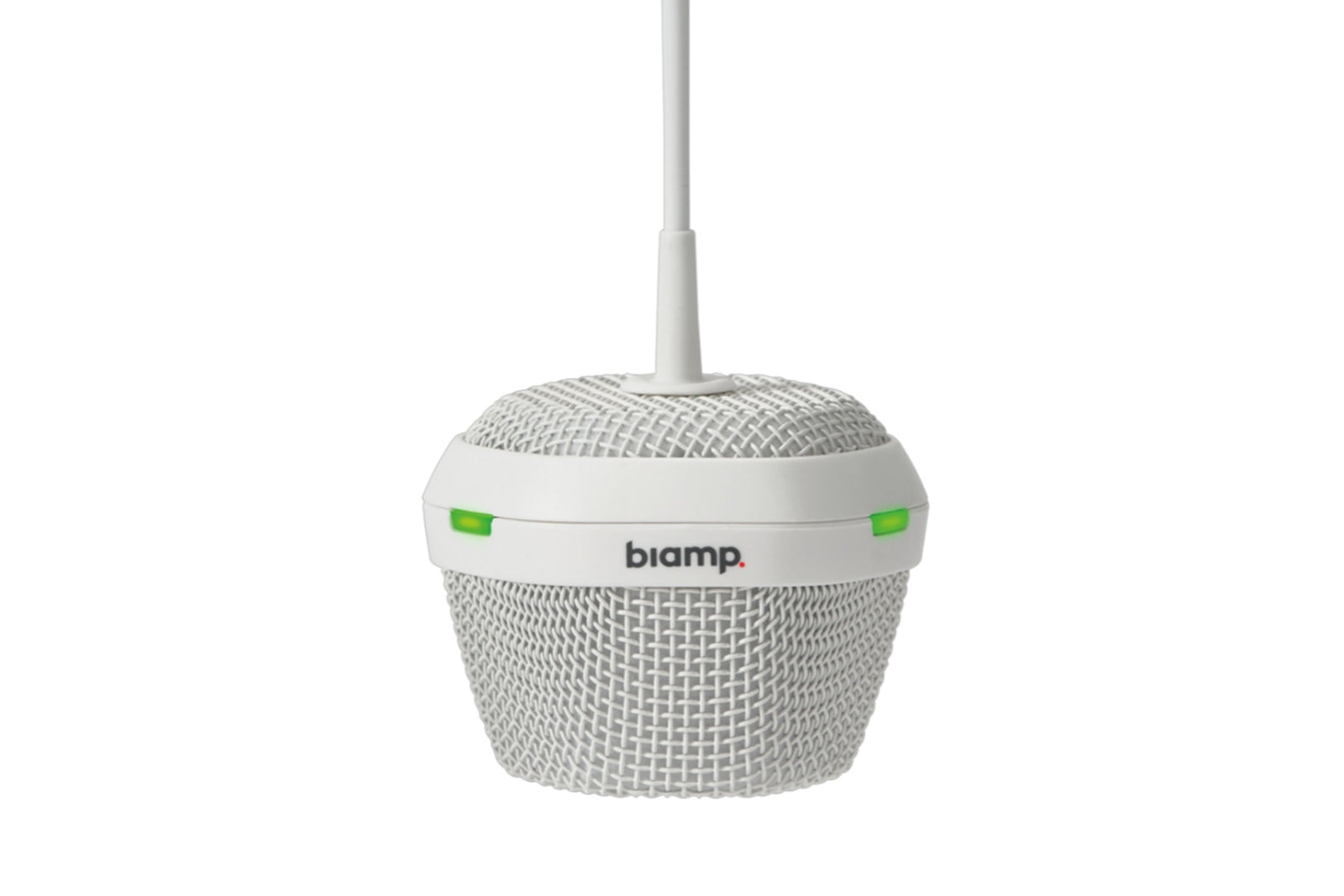

The Parlé TCM-1 is an AVB pendant microphone and plenum box. Each microphone includes Beamtracking technology with three 120-degree zones, providing full 360-degree coverage of the meeting space. The plenum box is equipped with an additional RJ-45 connector for daisy-chain connections; a maximum of three microphones are permitted per daisy chain (one TCM-1 or TCM-1A required, plus up to two TCM-1EX).
Conference Room Designer Classroom Designer
The Parlé TCM-1 Black & the Parlé TCM-1 White comply with the United States Trade Agreement Act (TAA), allowing it to be included in GSA Schedule contractors’ sales bids for the U.S. federal government.
Key Features
Beamtracking technology actively tracks and intelligently mixes conversations
Three 120-degree zones for 360-degree coverage
Plenum box includes DSP for Beamtracking
LED mute status indicator
User-adjustable microphone height

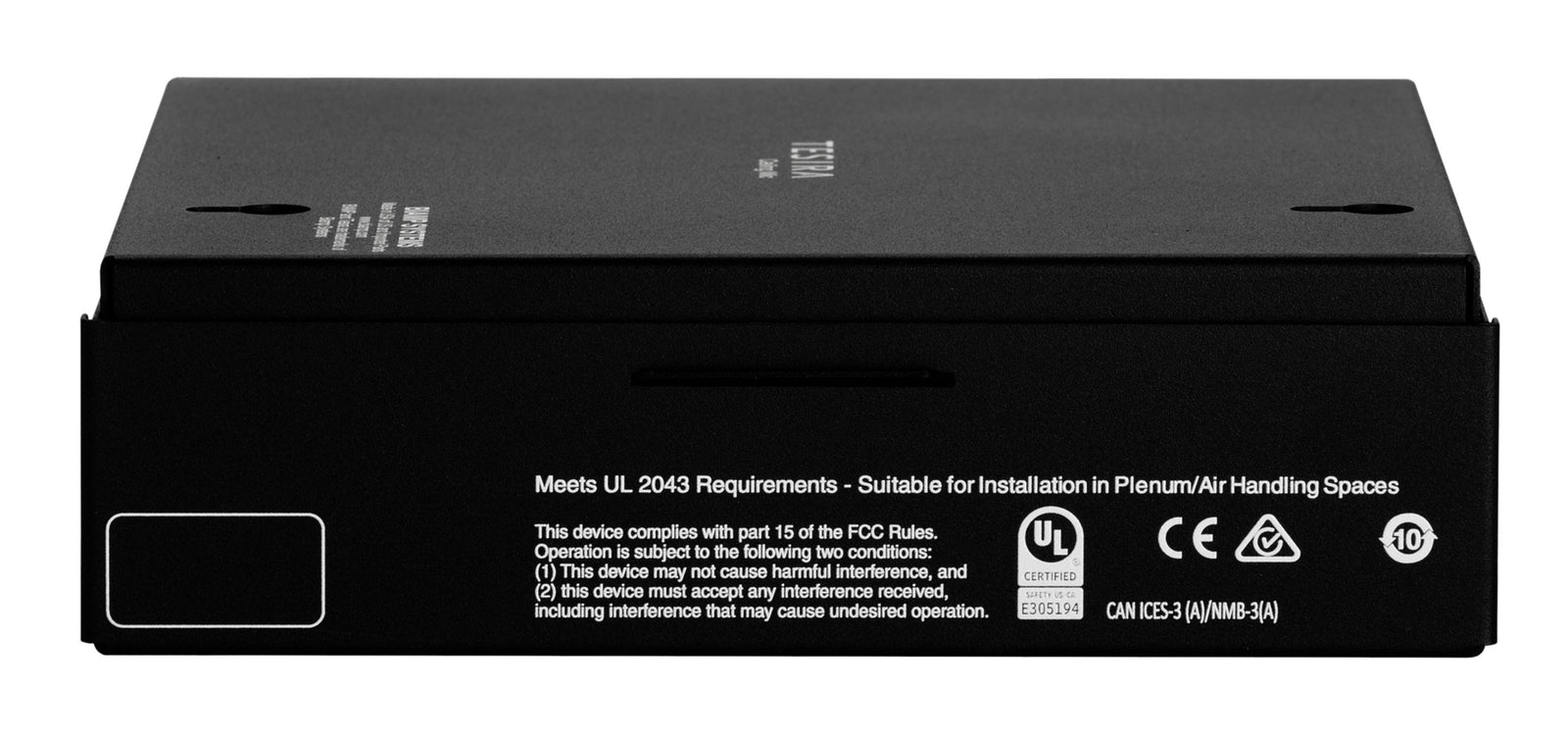

Evaluated to the requirements of UL 2043 and is suitable for use in air handling spaces
Pendant microphone available in either white or black
Optional tile bridge mounting accessory available
Additional RJ-45 for daisy-chain connection to a TCM-1EX microphone (maximum of three microphones per daisy chain)
CE marked, UL listed, and RoHS compliant
5-year warranty
Compliant with the US Trade Agreement Act (TAA)
| Height | Microphone: 2 in (51 mm) Plenum Box: 2 in (51 mm) |
Width | Microphone: 2.5 in (63 mm) Plenum Box: 7 in (178 mm) |
| Depth | Microphone: 2.5 in (63 mm) Plenum Box: 7.125 in (181 mm) |
Weight | Microphone: 0.4 lbs (0.2 kg) Plenum Box: 2.4 lbs (1.1 kg) |
| Included Accessories | Plenum Box (included): Two RJ-45 connectors (TCM-1 to switch and to TCM-1EX), 2-pin 3.5 mm Phoenix connector to microphone. Digital Interface: Custom/Proprietary. Max Distance: 100 m from switch to plenum box; 10 m between daisy-chained plenum boxes. |
||
| Power | PoE (IEEE 802.3at Class 3, 15.4W) | Power Indicators | Plenum Box: Green/Yellow/Red LED Microphone: Mute Indicator (Green/Red) |
| Microphone Type | Pendant, 8-Element Digital Array | Polar Pattern | Beamformed |
| Sensitivity | > 70 dB (94 dB SPL, 1 kHz) | Dynamic Range | 92 dB (THD+N < 10%), A-Weighted |
| Frequency Response | 150 Hz – 16 kHz (±3 dB) | Maximum SPL | 106 dB (at 0.5% THD) |
| Connector | Custom 2-pin (10 ft / 3 m cable) | Digital Interface | Custom / Proprietary |
| TAA Compliant | Yes | Certifications | FCC Part 15B (USA), CE (Europe), UL & C-UL Listed (USA/Canada), RoHS (Europe), UL 2043 (Air Handling Spaces) |
| Description | Downloads |
|---|---|
| BIAMP Parlé TCM-1 Pendant Microphone | 911.0485.900 DataSheet | Download |
