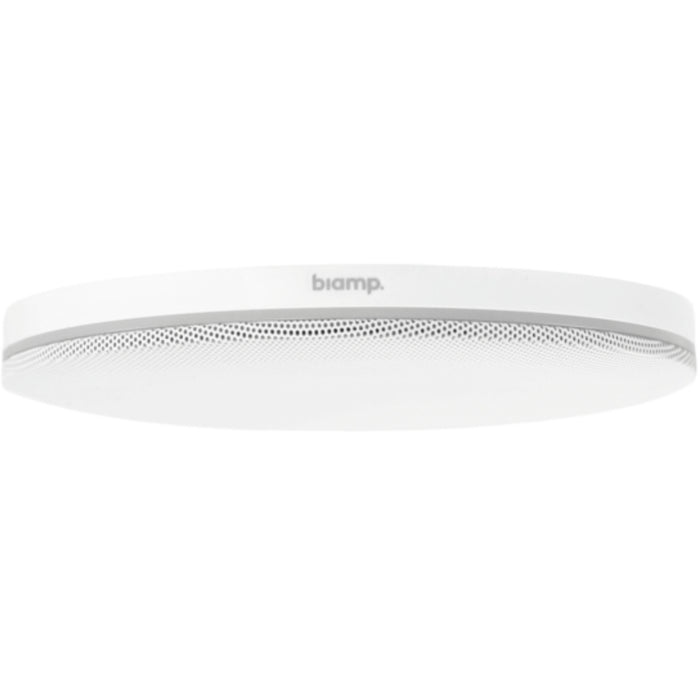

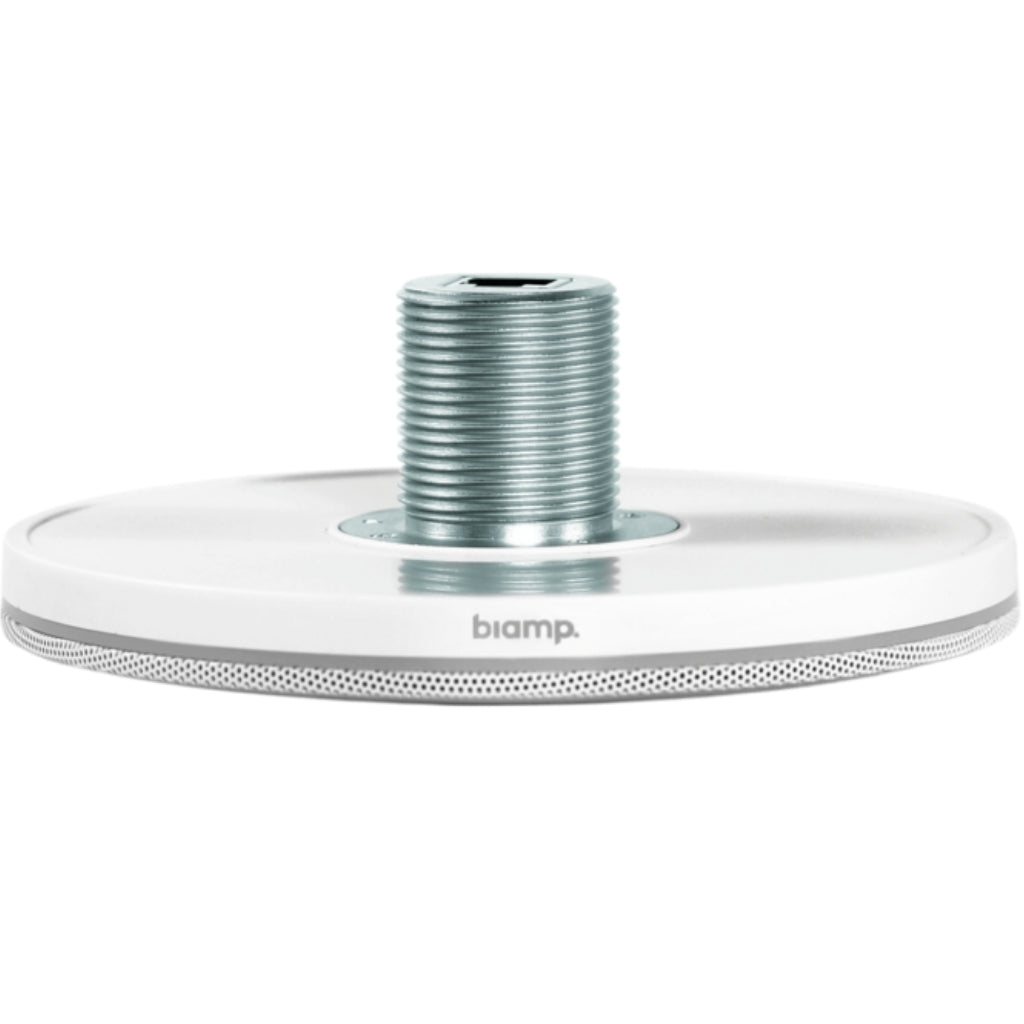

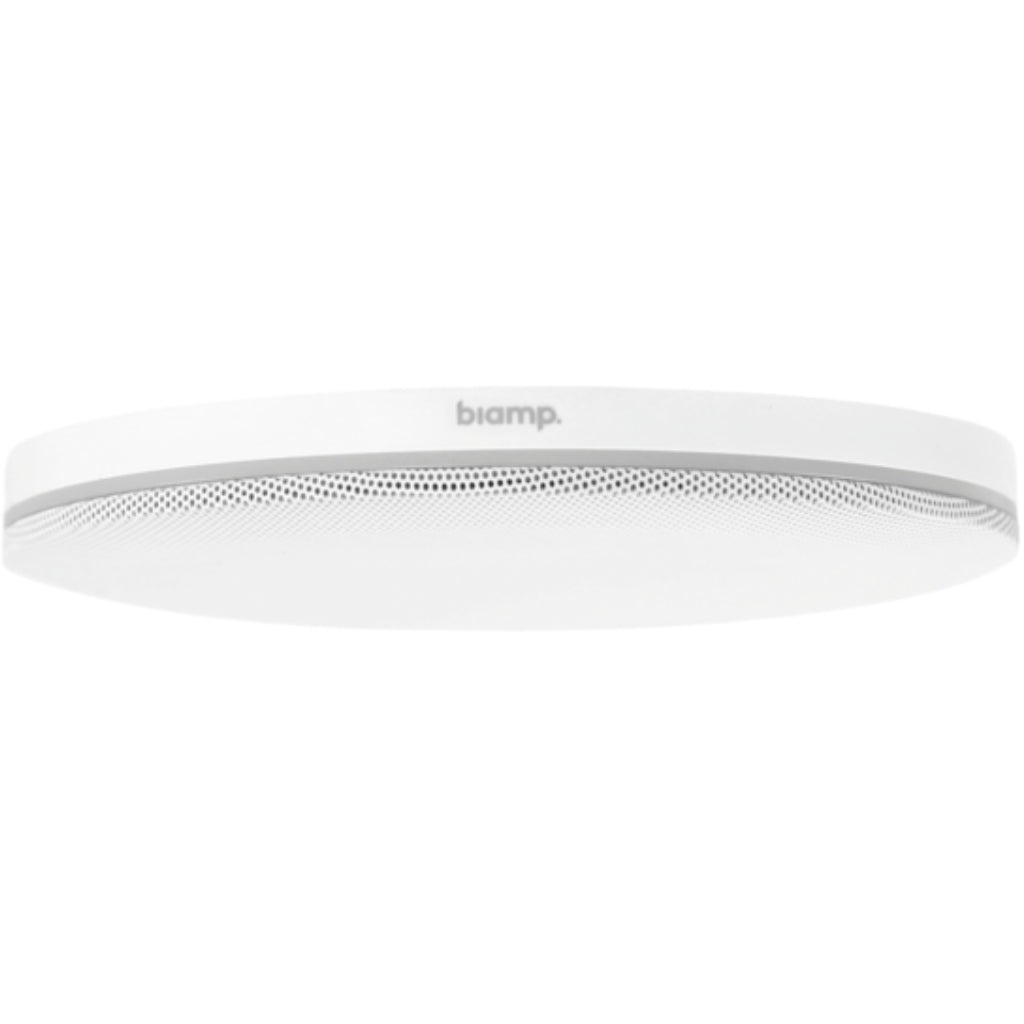

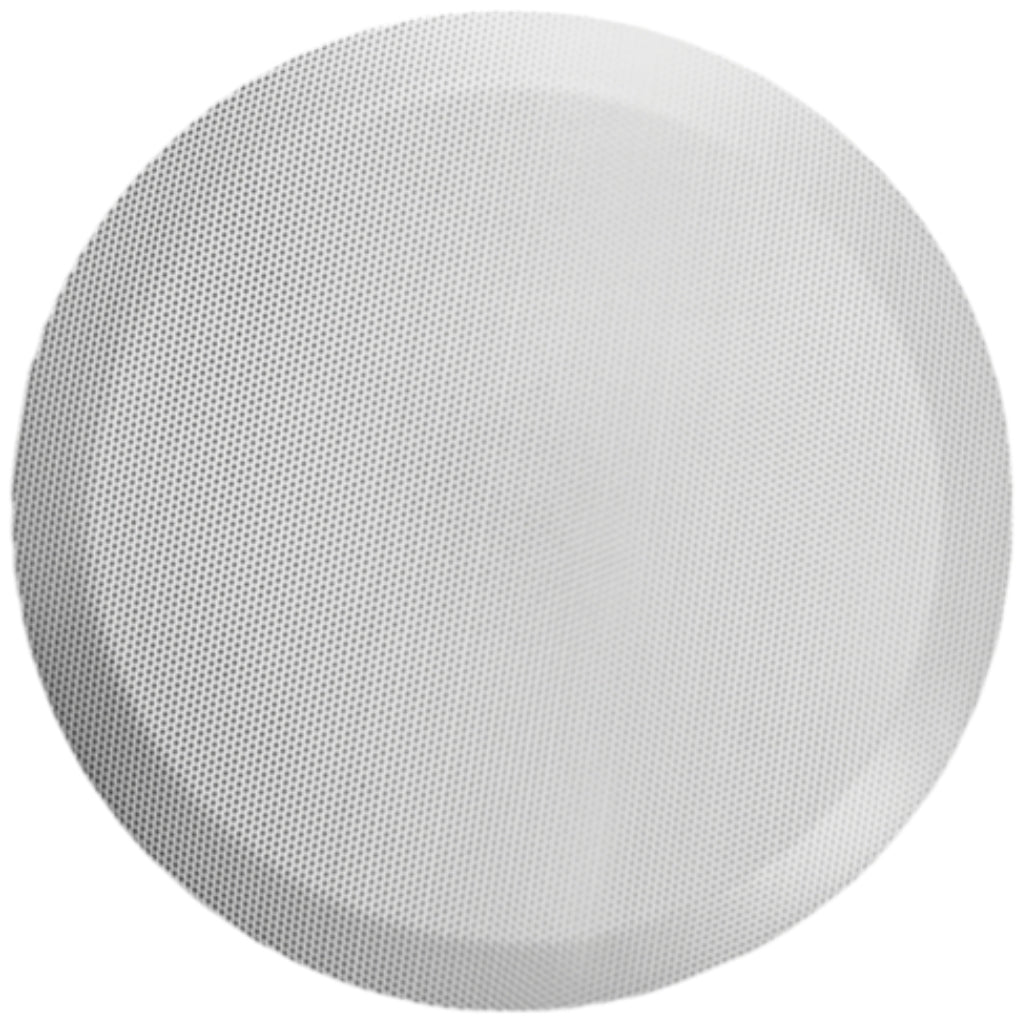

The Parlé TCM-XEX is an expansion AVB low-profile ceiling microphone for use in Tesira systems. Each microphone includes Beamtracking technology with four 90-degree zones, providing full 360-degree coverage of the meeting space.
The Parlé TCM-XEX is intended to be used as a second microphone in conjunction with the TCM-X or TCM-XA; it cannot operate as a standalone device.
The Parlé TCM-XEX Black & Parlé TCM-XEX White comply with the United States Trade Agreement Act (TAA), allowing it to be included in GSA Schedule contractors’ sales bids for the U.S. federal government.
Key Features
Measures 5.90 inches (150mm) in diameter
Mounts directly to the ceiling to virtually disappear in room
Beamtracking technology actively tracks and intelligently mixes conversations
Four 90-degree zones for full 360-degree room coverage
Beamtracking technology works out-of-box without any lobe aiming or room mapping
Uses only one channel of AEC per microphone
Single cable connection via category cable
LED mute status indicator
Available in either black or white
Evaluated to the requirements of UL 2043 and is suitable for use in air handling spaces
CE marked, UL listed, and RoHS compliant
5-year warranty
Compliant with the US Trade Agreement Act (TAA)
| Height | 0.7 in (17 mm, excluding ceiling mount) | Diameter | 5.9 in (150 mm) |
| Weight | 0.7 lbs (340 g) | Operating Temperature | 32 – 104°F (0 – 40°C) |
| Humidity | 0–95% RH (non-condensing) | Altitude | 0–10,000 ft (0–3000 m) MSL |
| Power | Custom / Proprietary | Max Distance Between Devices | 33 ft (10 m) between TCM-XEX and DSP host |
| Front Panel Indicator(s) | Mute Indicator (Green/Red LED) | Audio Polar Pattern | Active Beamformed |
| SNR | >76 dB (at 1kHz, 94dBSPL A-Weighted) | Digital Interface | Custom / Proprietary |
| Connector | RJ-45 (6.6 ft / 2 m cable) | Microphone Technology | 16-Element Digital Array |
| Frequency Response | 150 Hz – 16 kHz (±3 dB) | Dynamic Range | 92 dB (THD+N < 1%) |
| Maximum SPL | 109 dB (<1% THD) | TAA Compliant | Yes |
| Certifications | FCC Part 15B (USA), CE (Europe), UL and C-UL Listed (USA/Canada), RoHS Compliant, UL 2043 (Air Handling Spaces) | ||
| Description | Downloads |
|---|---|
| BIAMP Parlé TCM-XEX Ceiling Microphone | 911.0500.900 DataSheet | Download |
