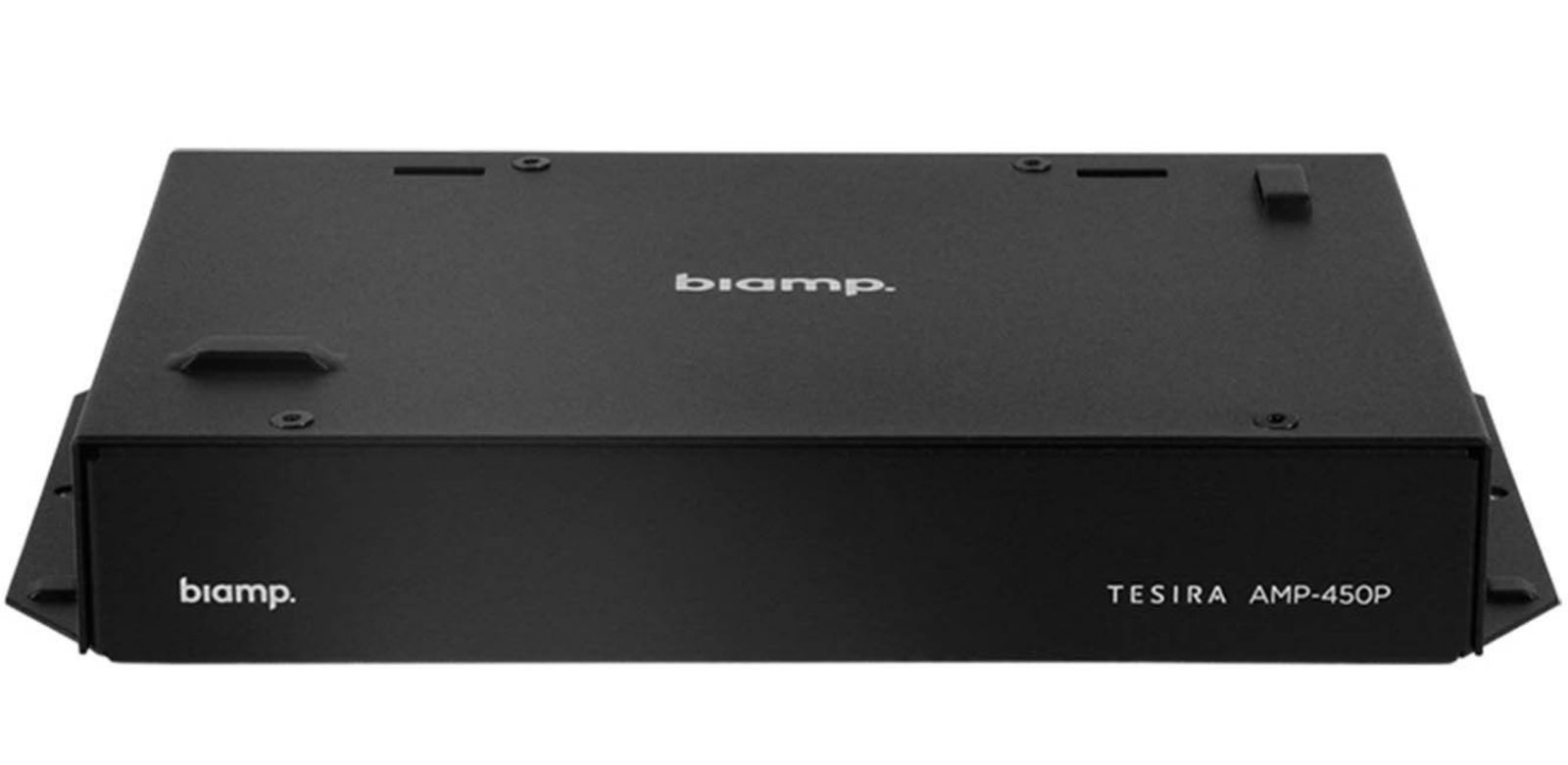

The Tesira AMP-450P is an AVB/TSN enabled, PoE+, four-channel amplifier. The output channels are software configurable, including selectable power versus channel count. The AMP-450P includes an internal limiter, and is capable of providing 3 watts of continuous power to all four channels. The Tesira AMP-450P is also capable of operating in a burst mode to handle peak signals, providing up to 50 watts (4Ω) or 30 watts (8Ω) per channel.
The Tesira AMP-450P complies with the United States Trade Agreement Act (TAA), allowing it to be included in GSA Schedule contractors’ sales bids for the U.S. federal government.
Key Features:
Four-channel amplifier; 3 watts continuous power per channel
Burst mode to handle peak signals; supports up to 50 watts (4Ω) or 30 watts (8Ω) per channel
PoE+ powered
Class-D amplifier topology
Fanless operation
Software-selectable power vs. channel count
Includes internal limiter function
Evaluated to the requirements of UL 2043 and is suitable for use in air handling spaces
LED indicators for power/status and amp status
Configurable via Tesira software
CE marked, UL listed, and RoHS compliant
5-year warranty
Compliant with the US Trade Agreement Act (TAA)
| Category | Specification | Value |
|---|---|---|
| GENERAL | ||
| Height | 1.18 inches (30 mm) | |
| Width | 7.67 inches (195 mm) | |
| Depth | 4.72 inches (120 mm) | |
| Weight | 1.54 lbs (0.7 kg) | |
| ENVIRONMENTAL | ||
| Operating Environment | Ambient Operating Temperature Range: 32-104° F (0–40° C) | |
| Humidity | 0-95% relative humidity (non-condensing) | |
| Altitude | 0-10,000 ft (0-3000m) MSL | |
| POWER | ||
| Power | PoE+ (IEEE 802.3at Class 4, 30W) | |
| Power Indicator(s) | Power Indicator (Green/Yellow/Red LED); Amp Status Indicator (Green/Yellow/Red LED) | |
| Operating Power | 4Ω | |
| Power Output | ||
| Burst Power Output | 4 Ω (per channel) (per ANSI/CTA-2006-B @ 1kHz) = 50W | |
| 8 Ω (per channel) (per ANSI/CTA-2006-B @ 1kHz) = 30W | ||
| Continuous Power Output | Single Channel Driven, (4Ω, 8Ω): 15W | |
| Dual Channel Driven (4Ω, 8Ω): 7W | ||
| Four Channel Driven, (4Ω, 8Ω): 3W | ||
| Cooling | Convection | |
| NETWORK | ||

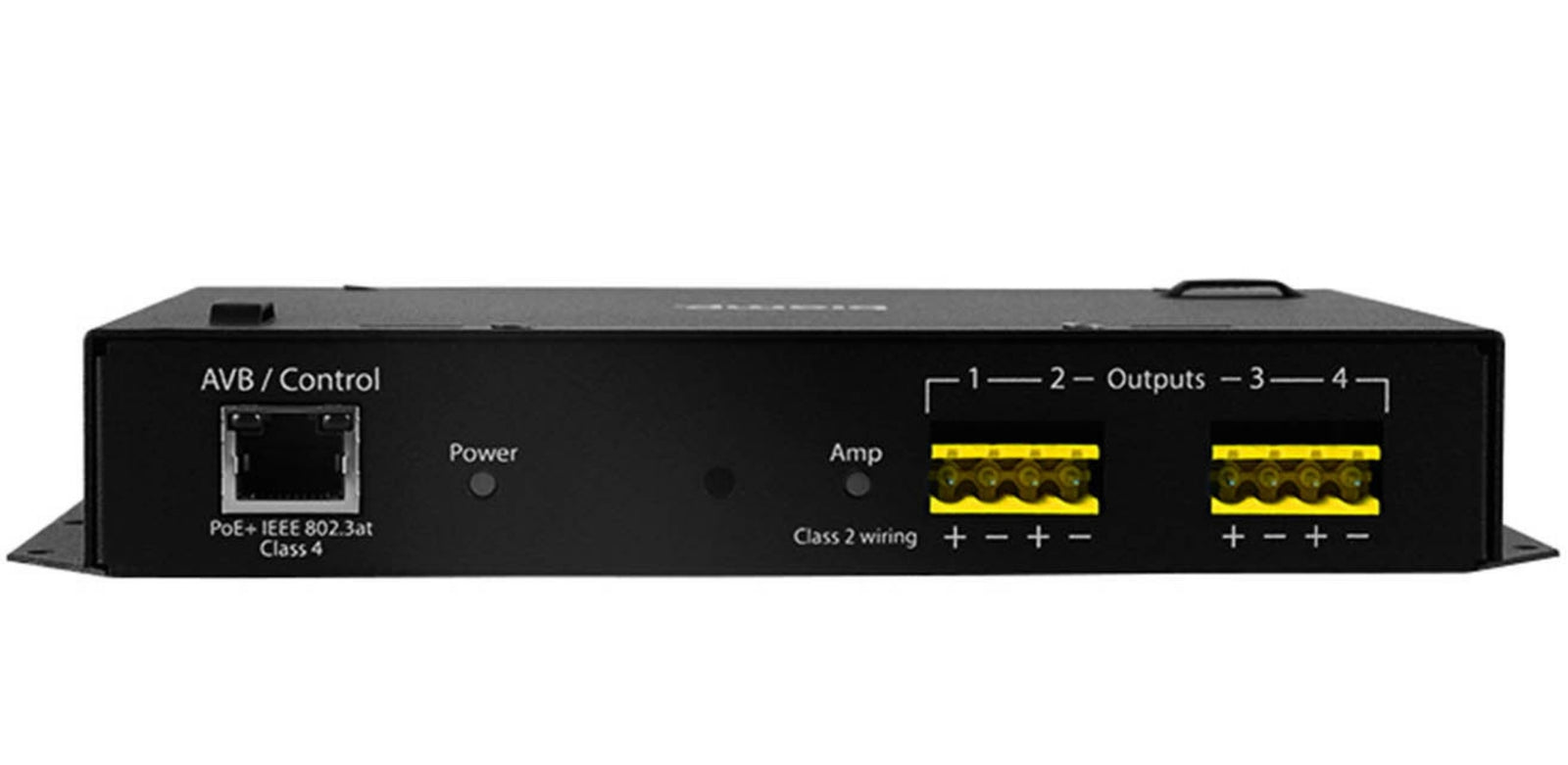

| Network Connection(s) | Gigabit Ethernet, RJ-45 (Cat 5e and above) | |
| AMPLIFIER | ||
| Channels | 4 Channels | |
| Amplifier | Class D | |
| Distortion | Intermodulation Distortion (SMPTE at continuous power): <0.3% | |
| AUDIO | ||
| Audio | 4-pin 5.08 mm Phoenix connectors | |
| THD+N | (20Hz-20kHz, at continuous power): < 0.3% | |
| Frequency Response | (20Hz-20kHz): ± 1dB | |
| Dynamic Range | (20Hz-20kHz BW): > 90dB | |
| CERTIFIED SOLUTIONS | ||
| TAA Compliant | TAA Compliant | |
| COMPLIANCE | ||
| Certifications | FCC Part 15B (USA), UL and C-UL listed (USA and Canada), CE Marked (Europe), KCC (Korea), RoHS Directive (Europe) | |
| Evaluated to the requirements of UL 2043 and is suitable for use in air handling spaces | ||
| NOTES | ||
| Specification Notes | BPAK Backpack adapter kit | |
| Seismic Cable Adapter for PoE amp plenum boxes | ||
| TB-1 Tile bridge for PoE amp plenum boxes | ||
| Plenum Box 12x12 Chicago compliant plenum box | ||
| C5E-10-P, C5E-25-P, 10ft and 25ft pre-terminated plenum rated Cat 5e cables |
| Description | Downloads |
|---|---|
| BIAMP Tesira AMP-450P AVB/TSN Enabled PoE+ Four-Channel Amplifier DataSheet | Downloads |
