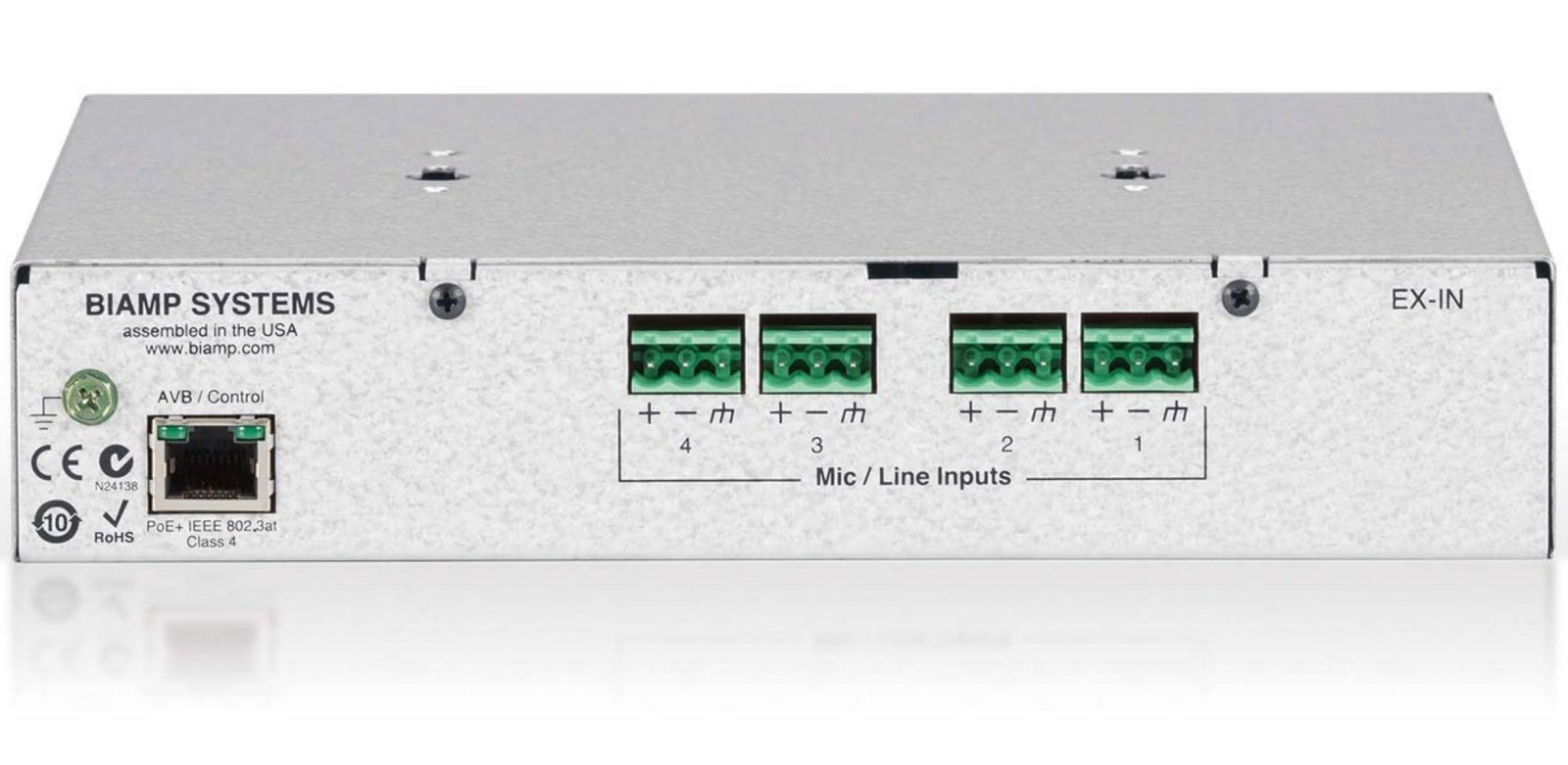

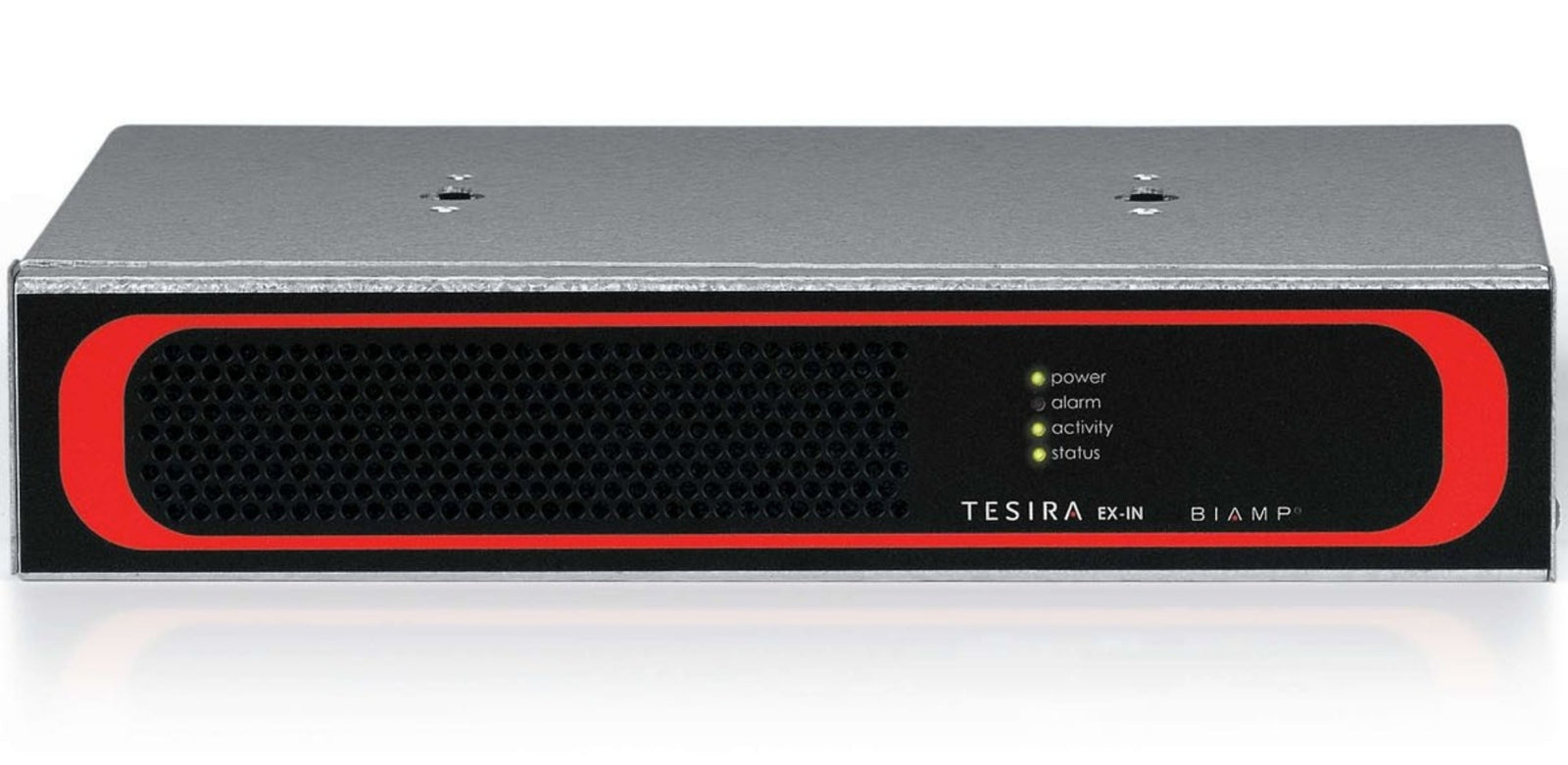

BIAMP Tesira EX-IN 4-Channel Mic/Line Input Expander | 911.0308.900
SKU: 911.0308.900
£929.99 (Excl. VAT)
- Description
- Specifications
-
BIAMP Tesira EX-IN 4-Channel Mic/Line Input Expander
Key Features
Four channels of balanced microphone or line level input
0 – 66 dB gain, adjustable in 6 dB increments
+48 volts Phantom Power
-100 to +12 dB fader range for level
Audio and control networking over AVB/TSN
Powered by PoE+
Plug-in barrier strip connectors
Front panel LEDs for device status indications
Half-rack chassis
RoHS compliant and AES grounded
5-year warranty
Compliant with the US Trade Agreement Act (TAA)
The Tesira EX-IN is a half-rack expander box for use with AVB-enabled Tesira server-class devices. The EX-IN is a 4-channel mic or line level audio input expander. The expander communicates with the Tesira AVB network for audio networking, configuration, and control, and is powered by PoE+.
The Tesira EX-IN complies with the United States Trade Agreement Act (TAA), allowing it to be included in GSA Schedule contractors’ sales bids for the U.S. federal government. -
Attribute Details Height 1.75 inches (44 mm) Width 8.5 inches (216 mm) Depth 7.75 inches (197 mm) Weight 3 lbs (1.4 kg) Operating Temp 32 - 104°F (0 - 40°C) Humidity 0-95% RH (non-condensing) Altitude 0-10,000 ft (0-3000m) MSL Power PoE+ (IEEE 802.3at Class 4, 30W) Phantom Power +48 VDC (7mA/input) Audio 4-channel analog audio input expander Impedance 8kΩ (balanced) Input Gain Range 0 - 66dB (6dB steps) Max Input +24dBu Output Impedance 200Ω (balanced) Max Output +24dBu THD+N < 0.006% @ 0dB Gain, +4dBu In Frequency Response 20Hz - 20kHz @ +4dBu, +0/-0.25dB Dynamic Range > 108dB (20Hz~20kHz) Crosstalk < -85dB @ 0dB Gain, +4dBu In Sampling Rate 48kHz A/D Converters 24-bit Certifications FCC, CE, UL, RCM, EAC, RoHS, TAA Compliant
