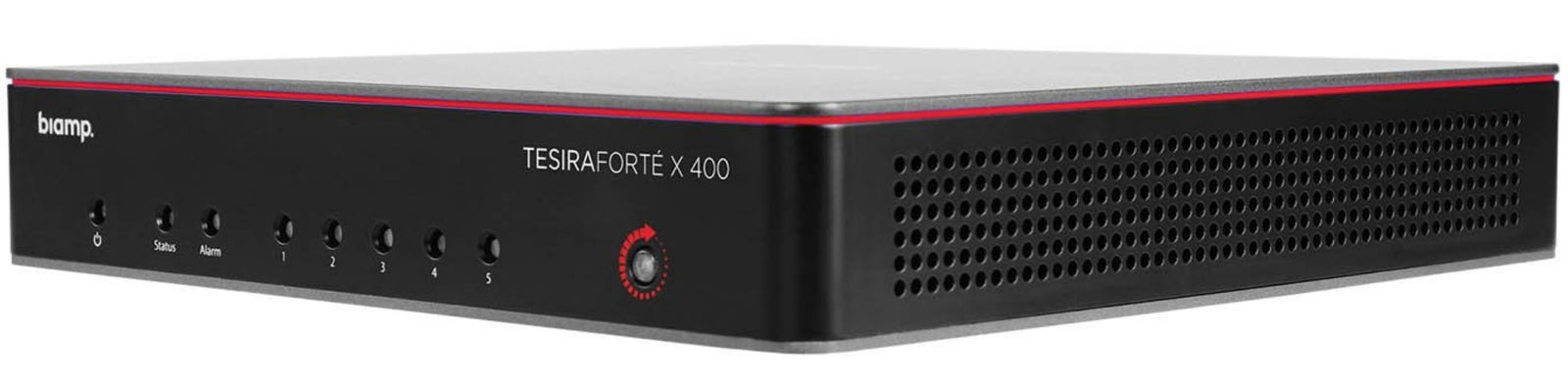

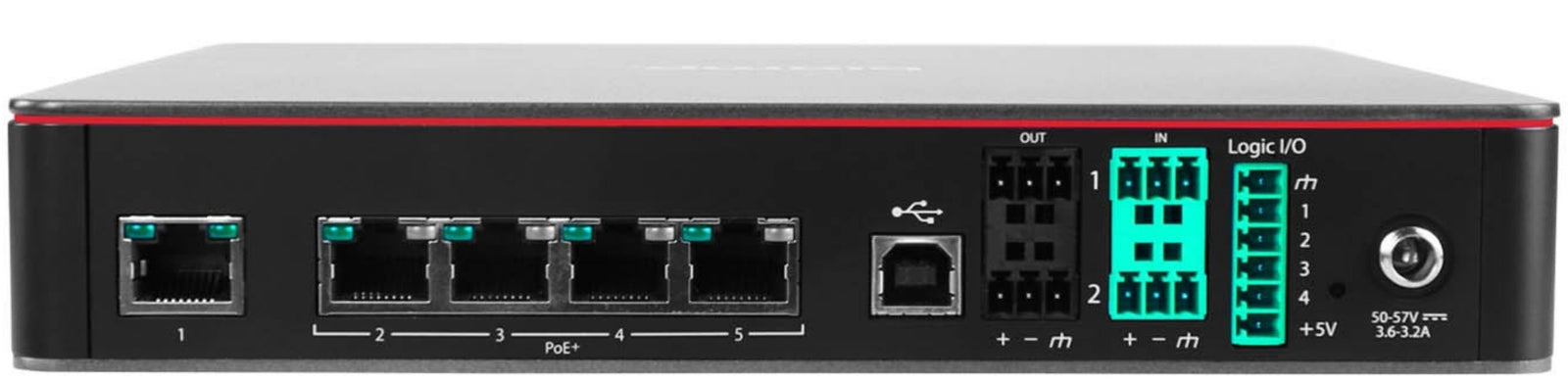

TesiraFORTÉ™ X 400 is a meeting room DSP featuring multiple network and analog audio connection points, with 4 channels of Acoustic Echo Cancellation (AEC) assignable across any digital or analog input. Five 1-Gigabit Ethernet ports are provided, four of which are PoE+ powered, and all of which support media and control traffic of various types including AVB, Dante and VoIP.
A USB port also supports 1x1 mono or 2x2 stereo USB audio along with HID synchronization allowing the device to act as a conferencing audio peripheral to systems such as Biamp’s Modena family or Unified Communications
platforms.
Biamp Launch technology provides the capability for device discovery and tuning to be undertaken without the need for custom programming, and additionally provides the user with a full performance report of the space upon completion.
TesiraFORTÉ X 400 provides extensive audio processing, including but not limited to: AEC technology, signal routing and mixing, equalization, filtering, dynamics, and delay, as well as control, monitoring, and diagnostic tools. Forte X 400 is auto-configurable using Launch but also allows users the option to manually override and completely customize its programming using Tesira software.
FEATURES
Up to 64x64 AVB Streams of digital audio networking with Biamp AVB devices
Up to 128x128 channels of digital audio networking with Biamp AVB devices
32x32 channels of digital audio networking via the Dante protocol
AES67-enabled Dante endpoint
2 mic/line level inputs, 2 mic/line level outputs
Five 1 Gigabit Ethernet Ports
Four ports support PoE+ power (IEEE 802.3.at Class 4, 30W)
Up to 2x2 channels of configurable USB audio
4 AEC channels assignable to any input
4-pin GPIO
Surface mountable with included bracket
Supports port authentication via IEEE 802.1X
SIP VoIP interface via Gigabit Ethernet connection
CE marked, UL listed, and RoHS compliant
Covered by Biamp Systems’ 5-year warranty
| Specification | Details |
|---|---|
| Frequency Response | 20Hz to 20kHz, +4dBu output: +0.25 dB/-0.5 dB |
| THD+N (22Hz to 22kHz) | 0dB gain, +4dBu input: < 0.006%<br>54dB gain, -50dBu input: < 0.040% |
| EIN (no weighting, 22Hz to 22kHz) | < -125dBu |
| Dynamic Range (in presence of signal) | 22Hz to 22kHz, 0dB gain: > 108dB |
| Input Impedance (balanced) | 8kΩ |
| Output Impedance (balanced) | 207Ω |
| Maximum Input | +24dBu |
| Maximum Output (selectable) | +24dBu, +18dBu, +12dBu, +6dBu, 0dBu, -31dBu |
| Maximum Number of AVB Channels | 128x128 |
| Maximum Number of AVB Streams | 64x64 |
| Maximum AVB Stream Passthrough | 150 |
| Maximum Number of Dante Channels | 32x32 |
| Maximum Number of Dante Flows | 32x32 |
| Input Gain Range (6dB steps) | 0-66dB |
| Overall Dimensions | Height: 1.47 inches (37.3 mm)Width: 8.11 inches (206 mm)Depth: 8.11 inches (206 mm) |
| Weight | 1.9 lbs (0.86kg) |
| Phantom Power | +48VDC (7mA/input) |
| Crosstalk, channel to channel, 1 kHz | 0dB gain, +4dBu input: < -85dB54dB gain, -50dBu input: < -75dB |
| Sampling Rate | 48kHz |
| A/D - D/A Converters | 24-bit |
| Power Consumption | 100-240VAC 50/60Hz: < 150W |
| USB | Bit Depth: 24-bitNumber of Channels: up to 2x2 Sample Rate: 48kHz |
| Environment | Ambient Operating Temperature Range: 32-104° F (0–40° C) Humidity: 0–98%, non-condensing Altitude: 0-6,600 feet (0–2000 Meters) MSL |
| Compliance | FCC Part 15B (USA) Canada ICES-003 (A) / NMB-003 (A) CE marked (Europe) UL und C-UL listed (USA and Canada) RCM (Australia) RoHS Directive (Europe) |
| Description | Downloads |
|---|---|
| BIAMP TesiraFORTÉ X 400 Meeting Room DSP DataSheet | Downloads |
