Biamp V2-1296B 12" 2-Way Full Range Loudspeaker | 911.0566.900
SKU: 911.0566.900
£574.09 (Excl. VAT)
- Description
- Specifications
- Downloads
-

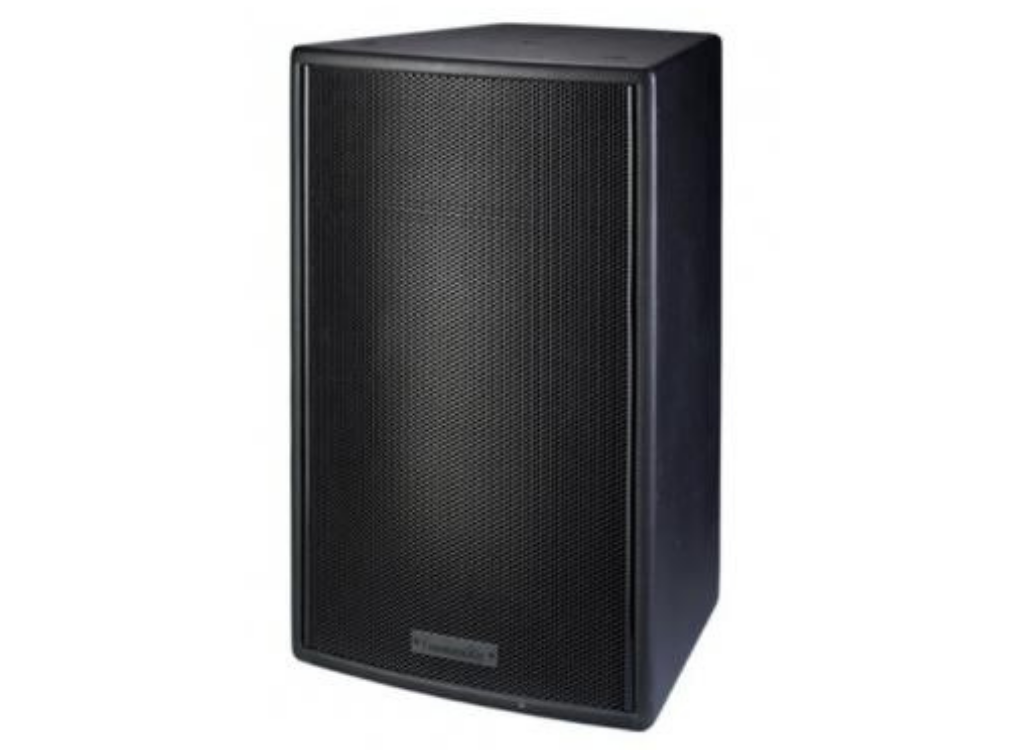

Biamp V2-1296B 12" 2-Way Full Range Loudspeaker
The V2-1296 is a two-way, full-range loudspeaker system suitable for use in a wide spectrum of fixed installations. Compact and extremely powerful, the V2-1296 handles applications ranging from jazz clubs and AV presentations, to rock and roll performances. Its trapezoidal design allows it to be clustered with like units, forming powerful arrays. The 90º x 60º pattern makes the V2-1296 ideal for applications requiring a wide coverage angle, such as in rooms that are wider than they are deep. The enclosure may be suspended from its M10 threaded rigging points using a variety of optional hardware from Community, or it may be installed using a third-party mounting device. The V2-1296 provides extended high frequency response, low distortion output, a tight, punchy bass response, and precise pattern control. Featuring carefully designed crossovers that provide flat acoustic power response through the critical mid-range region, and Community’s exclusive DYNA-TECH™ driver protection circuitry, the V2-1296 is a versatile performer for use in music and speech applications that require high quality, high power sound reinforcement at an affordable price. -
Feature Specification Loudspeaker Type Two-way, full-range, trapezoidal, vented bass Operating Range 60 Hz to 18 kHz (-10 dB) Frequency Response 90 Hz to 16 kHz (±3 dB) Max Input Ratings 200W continuous, 500W program Sensitivity (1W/1m) 98 dB (100 Hz to 12.5 kHz) free space Maximum Output 121 dB SPL / 127 dB SPL (peak) Nominal Impedance 8 ohms Minimum Impedance 6.2 ohms @ 160 Hz Nominal –6dB Beamwidth 90° H x 60° V (in vertical position) Crossover Frequency 1.3 kHz Recommended Signal Processing 60 Hz, 24 dB/octave Butterworth high pass filter Drivers LF: 1 x 12-inch cone, HF: 1 x 1-inch Driver Protection DYNA-TECH protection circuitry Input Connection NL4-compatible locking connector Controls None Enclosure Trapezoidal (22.5° included angle) Mounting/Rigging Provisions 13 x M10 threaded fittings; 4 x M8 fittings Finish Catalyzed polyester two-part paint, black or white Grille Powder coated steel, black or white finish Required Accessories None Supplied Accessories None Optional Accessories VB-Y12 U-shaped yoke bracket, VB-VY12 vertical yoke bracket, CMKIT ceiling mount kit, VB-TILT tilting bracket, VB-VST versatilt bracket, VFKIT vertical flying kit, M10EYBLTKIT 10mm eyebolt kit, STKIT seat track kit Dimensions (Height x Width x Depth) 23.9 inches (608 mm) x 15.4 inches (390 mm) x 14.3 inches (362 mm) Weight 38.4 lbs (17.4 kg) Model Options V2-1296B (black finish), V2-1296W (white finish) -
Description Downloads Spec Sheet Downloads
