Biamp V2-6B 2-Way Full Range Speaker | 911.1314.900

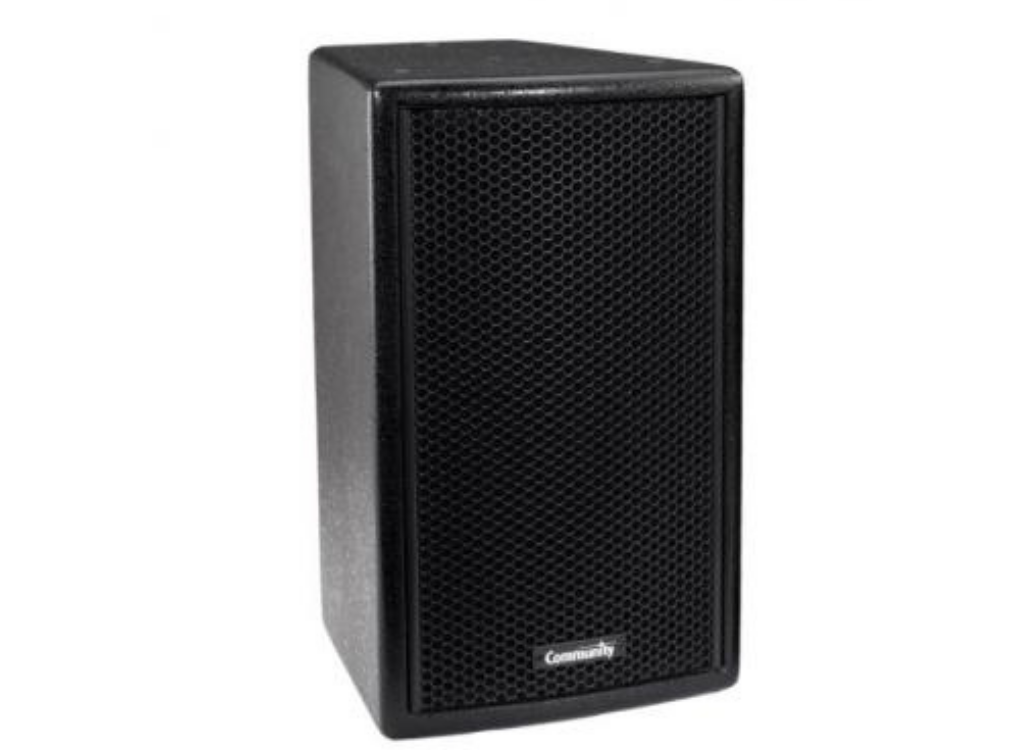

The V2-6 is a two-way, full-range loudspeaker system suitable for use in a wide variety of fixed installations. Compact but powerful, it is ideal for distributed systems such as those found in cafés, restaurants, shopping centers and airports. When paired with a subwoofer such as the V2-210S, a V2-6 system will produce high-fidelity, broad spectrum sound that belies its modest size. The V2-6 is also an excellent choice for ancillary delay applications. When used to augment a FOH system in such venues as auditoria, theaters and houses of worship, delay loudspeakers can significantly even-out the difference in sound pressure level from the front of the room to the rear of the room. Units may be positioned for underbalcony fill, overbalcony fill, or simply placed towards the rear of the seating areas. By deploying V2-6 loudspeakers in such a manner, the system designer will have far greater control over relative levels and relative tonal response when commissioning and equalizing the installation. The V2-6 may be mounted to a wall or ceiling surface using its included yoke bracket, suspended from its M6 threaded rigging points, or installed using a third-party mounting device.
An optional model with a built-in 100W autoformer with taps at 100W, 50W, 25W and 12.5W (model V2-6T) is also available from the factory. -
Feature Specification Loudspeaker Type Compact two-way, full-range, trapezoidal, vented bass, user rotatable horn Operating Range 90 Hz to 18 kHz (-10 dB) Frequency Response 110 Hz to 16 kHz (±3 dB) Max Input Ratings 100W continuous, 250W program; 28.3 volts RMS, 56.6 volts momentary peak Sensitivity (1W/1m) 92 dB (100 Hz to 12.5 kHz) free space Maximum Output 112 dB SPL / 118 dB SPL (peak) Nominal Impedance 8 ohms Minimum Impedance 6 ohms @ 200 Hz Nominal –6dB Beamwidth 90° H x 70° V (in vertical position) Crossover Frequency 1.3 kHz Recommended Signal Processing 100 Hz, 24 dB/octave Butterworth high pass filter Drivers LF: 1 x 6.5-inch cone; HF: 1 x 1-inch Driver Protection DYNA-TECH protection circuitry Input Connection NL4-compatible locking connector with terminal strip in parallel Controls None Enclosure Trapezoidal (22.5° included angle), 18mm, 11-ply cross-laminated birch Mounting/Rigging Provisions 9 x M6 threaded rigging fittings; 4 x M6 threaded fittings for third-party suspension products Finish Catalyzed polyester two-part paint, black or white Grille Powder coated steel, black or white finish Required Accessories None Supplied Accessories Yoke-style mounting bracket with optional 10° and 20° standoffs Optional Accessories CMKIT ceiling mount kit; VB-TILT tilting bracket; VB-VY6 vertical yoke bracket; M6EYBLTKIT 6mm eyebolt kit Dimensions (Height x Width x Depth) 15.5 inches (395 mm) x 9.8 inches (249 mm) x 10.1 inches (258 mm) Weight (incl. bracket) 19.7 lbs (8.9 kg); 21.7 lbs (9.9 kg) with autoformer Model Options V2-6B (low impedance, black finish); V2-6W (low impedance, white finish); V2-6BT (built-in autoformer for 70V/100V applications, black finish); V2-6WT (built-in autoformer for 70V/100V applications, white finish) -
Description Downloads Spec Sheet Downloads
