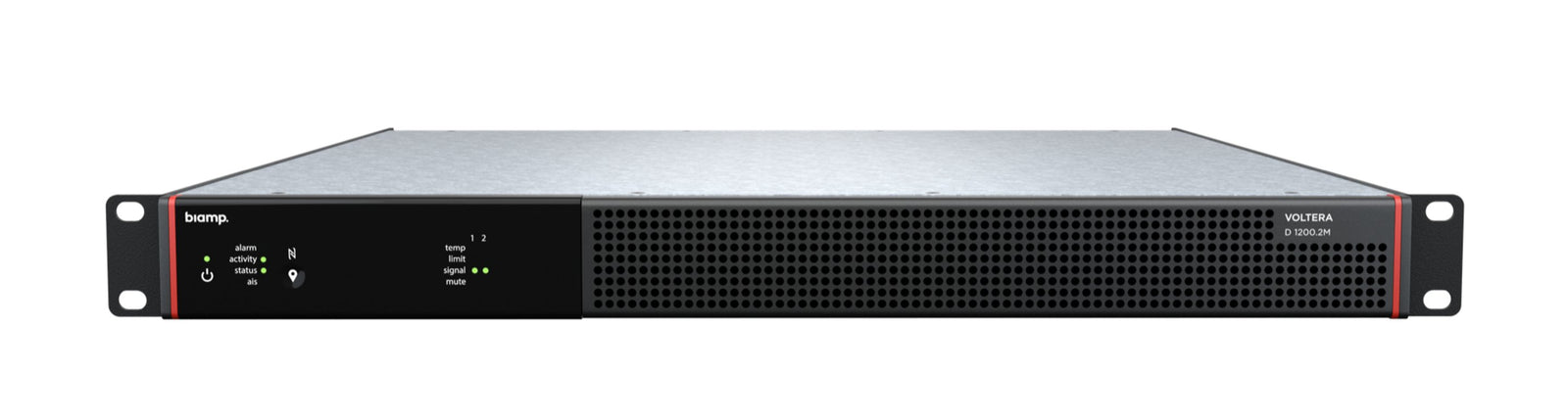

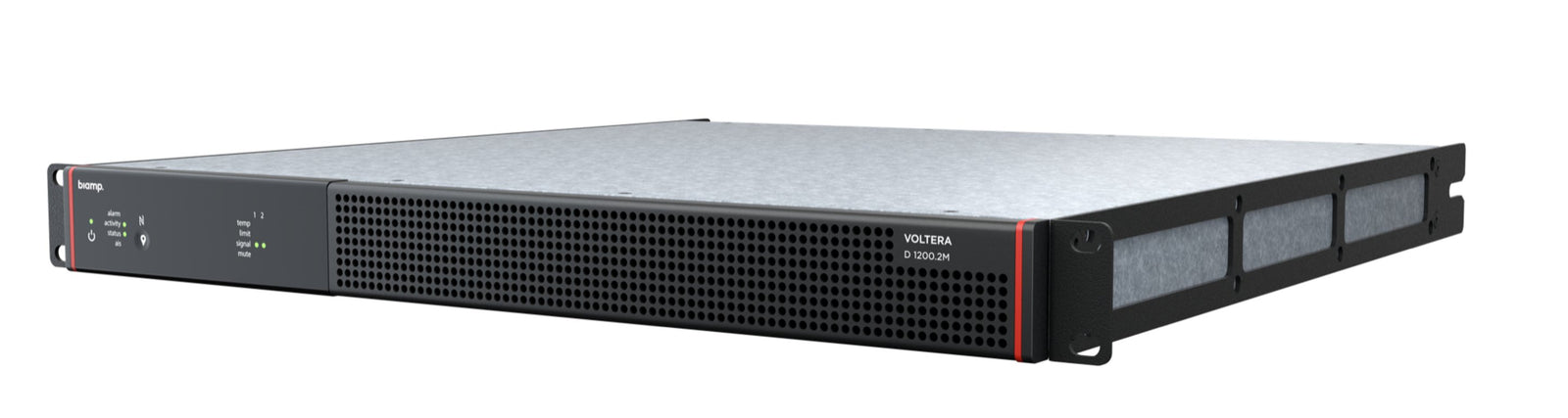

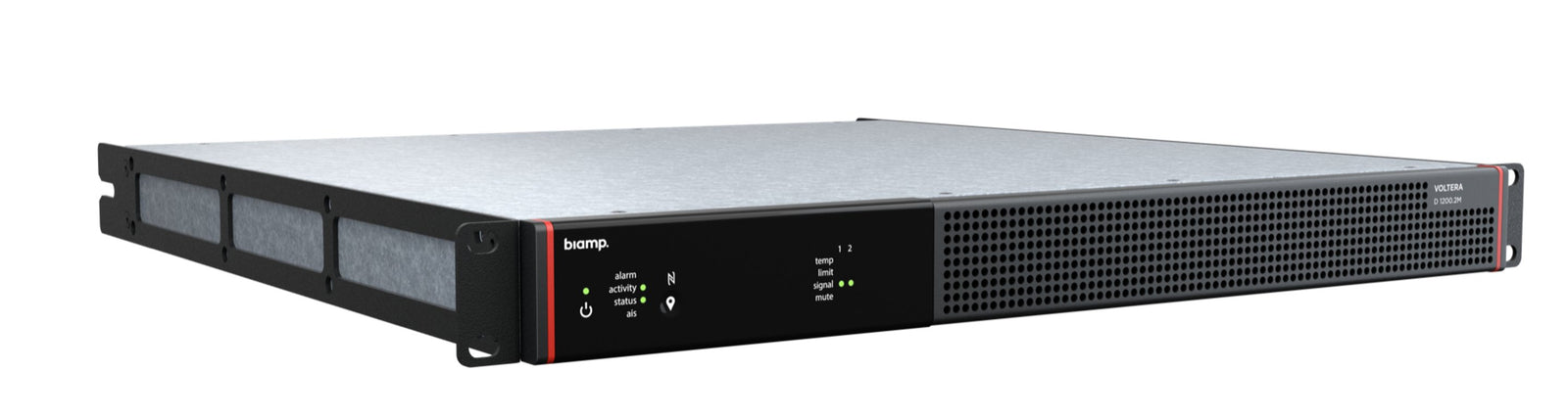

Voltera D M Series- seamlessly integrates amplification into a powerful loudspeaker controller, while also adding a fully programmable DSP onboard with enough headroom to handle even complex audio processing and distribution needs.
A host of one-of-a-kind features drive flexibility, reliability and extraordinary audio performance. The combination of integrated DSP, high power and channel density, high efficiency and low idle power — along with support for power sharing and networked audio — delivers significant space and cost savings.
Voltera D M amplified loudspeaker controllers are perfect for smaller venues where their ability to replace an external DSP can have a significant proportional impact on the total system cost. However, larger systems can also benefit when more DSP power is needed. No central resources to limit system size and onboard processing means system cost scales with power requirements
100% software configurable, by either Tesira or Biamp VenueTune software, depending on user preference and audio network protocols, Voltera D M amplified loudspeaker controllers make setup and use easier.
The ALAMOS loudspeaker profile library, with nearly 700 unique profiles covering over 200 Biamp models, streamlines commissioning when using Tesira or VenueTune software
Key Features
Powerful onboard DSP with ample headroom for large systems – the equivalent of a TesiraFORTÉ for Tesira custom processing and hosting of expanders
2 class D channels sharing 1200 watts
Power sharing provides up to 83% of total power or 1000 W through any single channel
High peak voltage output capability: 145 Vpk
Each channel can drive low impedance (2.7, 4, 8, and 16 ohm), 70V, or 100V
Each model supports AVB, Dante, and AES67
Accurate raised cosine EQ for the entire frequency band
Group-controlled raised cosine EQ making it attractive for tuning large systems
Comprehensive amplifier limiter scheme avoids protective mutes and shutdowns
Processor can be sustained through POE – no main power required and no reboots
Support for failover-to-analog from networked audio input operation
5-year warranty
Compliant with the US Trade Agreement Act (TAA)
Biamp Workplace Ready
| Feature | Description |
|---|---|
| Height | 1.7 in (44 mm) rack rail to rear panel |
| Width | 17.5 in (444 mm) rack rail to rear panel |
| Depth | 16.9 in (430 mm) rack rail to rear panel |
| Weight | 16.8 lbs (7.6 kg) |
| Included Accessories | Rear support kit for 19-inch 1 RU mount |
| Operating Temperature | 32–104°F (0–40°C) |
| Humidity | 0–95% non-condensing, altitude 0–2000 m (0–6562 ft) |
| Power per Channel (All Driven) | Hi-Z (70/100V): 600W, 16Ω: 600W, 8Ω: 600W, 4Ω: 600W, 2.7Ω: 600W |
| Max Power per Channel (Power Sharing) | Hi-Z (70/100V): 1000W, 16Ω: 650W, 8Ω: 1000W, 4Ω: 1000W, 2.7Ω: 1000W |
| Power Consumption | 100–240 VAC, 50/60 Hz |
| Power Output | Total all channels: 2400W, 1200W; Max voltage: 145 Vpk; Max current: 35 Apk |
| Cooling | Variable speed fans, front to back airflow |
| Network Connections | 2 × 1000Base-T ports; Formats: Dante, AES67, AVB; Modes: Converged, Split, Redundant |
| PoE+ Support | UPS with PoE+ prevents reboot if mains lost |
| Network Latency | AVB: 2 ms, Dante: 1–2 ms |
| Sample Rates Supported | 96 kHz, 48 kHz |
| Remote Interfaces | Tesira, VenueTune; Third-party: TTP |
| Front Panel Indicators | System, device, and channel status indicators |
| Amplifier Channels | 2 Class D channels |
| Signal Processing | 29 dB gain, 2.5 ms latency, FIR filters, EQ, delay, polarity, mute, loudspeaker profiles, peak/thermal limiters |
| Audio Performance | THD+N <0.05%, FR ±0.5 dB (20–20kHz), Dynamic Range 117 dB, Crosstalk >70 dB |
| Compliance | TAA Compliant |

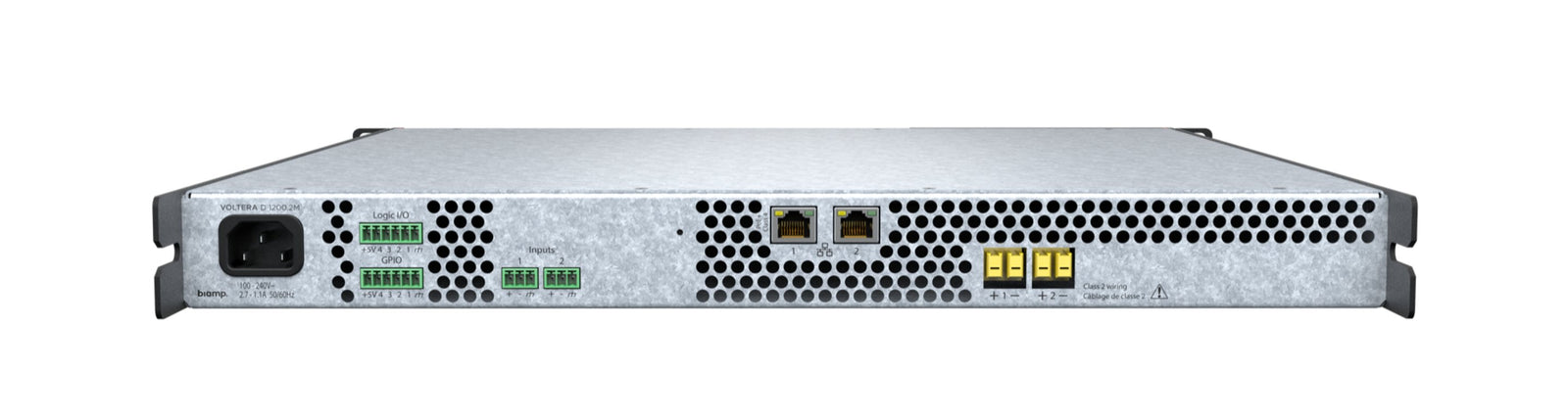

| Back Panel Interfaces | Mute/Health/Sleep I/O, 4 GPIO pins, 3-pin analog input, 2-pin outputs, IEC C14 mains |
| Front Panel Interfaces | Tamper-proof, NFC status reading, Locate functionality |
| Description | Downloads |
|---|---|
| Biamp Voltera D 1200.2M Amplified Loudspeaker Controller | 913.1984.900 DataSheet | Download |
