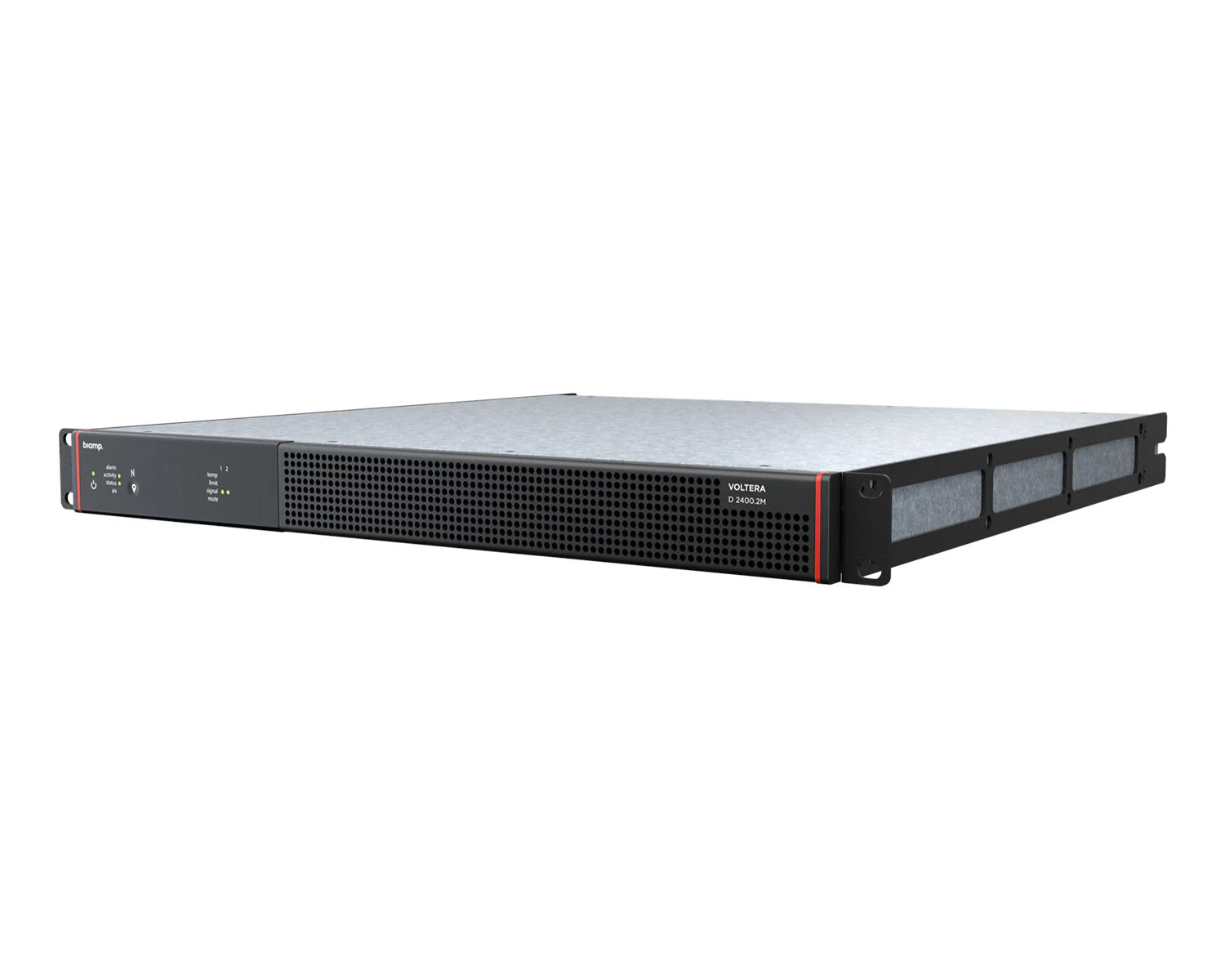

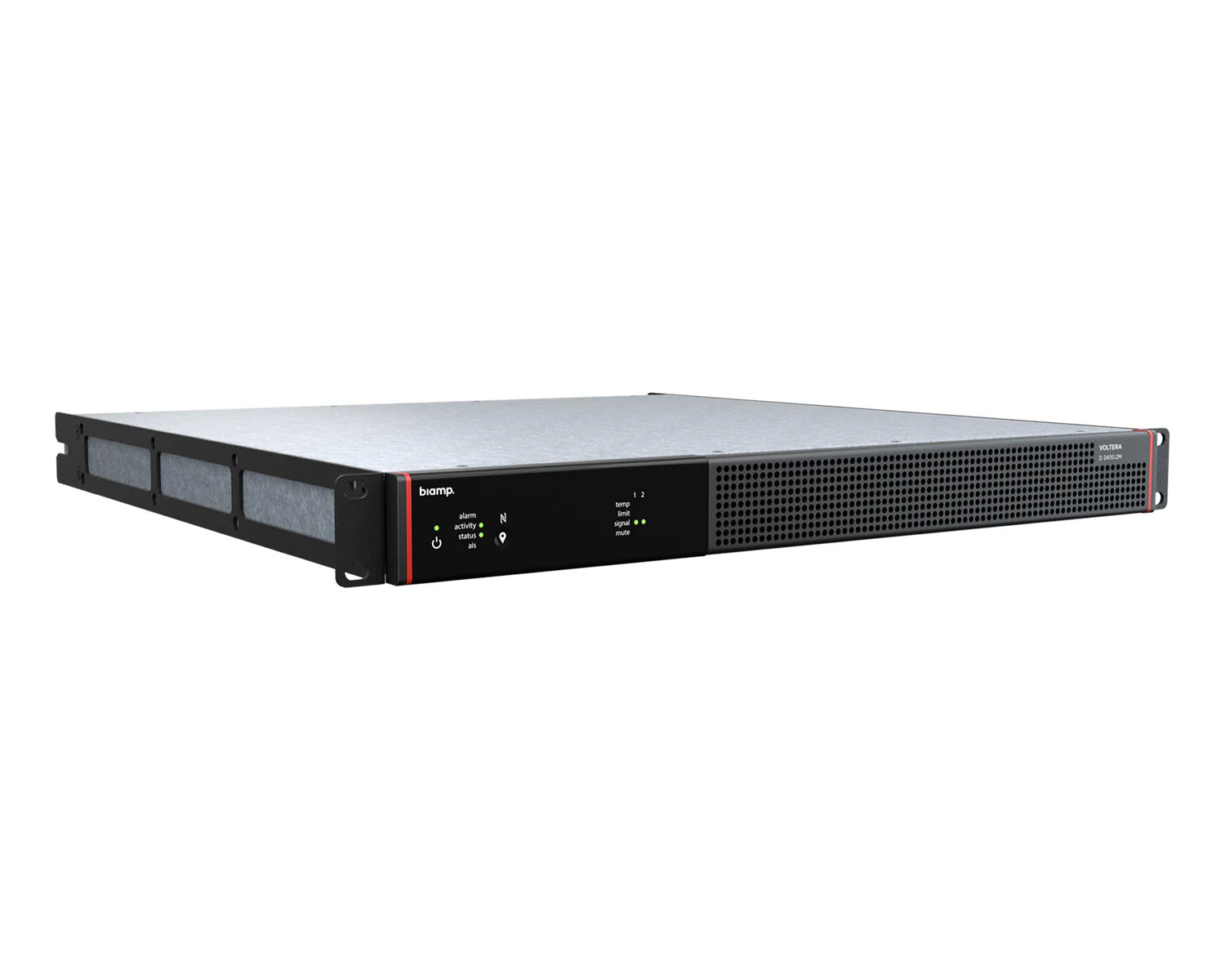

Audio DSP and Amplified Loudspeaker Controller - 2 Channels sharing 2400W with Dante & AVB.
VOLTERA D M SERIES - Previously unavailable in this segment, Voltera D M networked, amplified loudspeaker controllers feature the full performance of a standalone Tesira Digital Signal Processor (DSP), built into the 1 RU chassis, providing the capacity to host, select, configure, and tune a complete Tesira-based system.
Configurable through Tesira or VenueTune software, Voltera D M amplified loudspeaker controllers seamlessly combine amplification and processing into a single, cost-effective networked solution ideal for small-to-medium sized venues such as hotels, restaurants, retailers, and houses of worship.
Features
• ALAMOS speaker library automatically configures Tesira profiles for hundreds of Cambridge, Desono, and Commercial Audio loudspeakers
• Compact and powerful—up to 8 channels (D Series), or 4 channels (D M Series) in just one RU
• Compatible with AVB, Dante, and AES67 network protocols
• Accurate raised cosine EQ below 160 Hz
• Group-controlled raised cosine EQ making it attractive for large systems
• Redundant media interface
• Power share up to +100% per channel
• Lo-Z or Hi-Z per channel to support hybrid systems
• High peak voltage output capability
• 5-year warranty
| Feature | Description |
|---|---|
| Amplifier Channels | 2 |
| Total Output (all channels) | 2400 W |
| Max Output Voltage | 160 Vpk |
| Max Output Current | 40 Apk |
| Power per Channel (all driven) | Hi-Z (70/100 V): 1200 W 16Ω: 1200 W 8Ω: 1200 W 4Ω: 1200 W 2.7Ω: 1200 W |
| Max Power per Channel (Power Sharing) | Hi-Z (70/100 V): 2000 W 16Ω: 800 W 8Ω: 1600 W 4Ω: 2000 W 2.7Ω: 1360 W |
| Network | Ports: 2 × 1000Base-T Formats: Dante, AES67, AVB Modes: Converged or Split PoE+: Supported (port 1) Latency: AVB 2 ms, Dante 1/2 ms Sample rates: 48 & 96 kHz Remote: Tesira, VenueTune 3rd Party: TTP |
| Processing | Latency: 2.65 ms (analog in to out) Default gain: 29 dB Input: redundancy & failover, EQ, delay ≤2 s, polarity, mute Output: Loudspeaker profiles, 2048 tap FIR, 24 biquads, Dynamic EQ, Peak/Program/Thermal limiters Startup time with PoE+: <1 s |
| Audio Performance | THD+N: <0.05% (1 kHz, 1 dB below max) THD+N: <0.05% (20–20kHz, 1 W) Frequency response: ±0.5 dB (20–20kHz, 8Ω) Crosstalk: >70 dB @ 1 kHz Dynamic range: 117 dB |

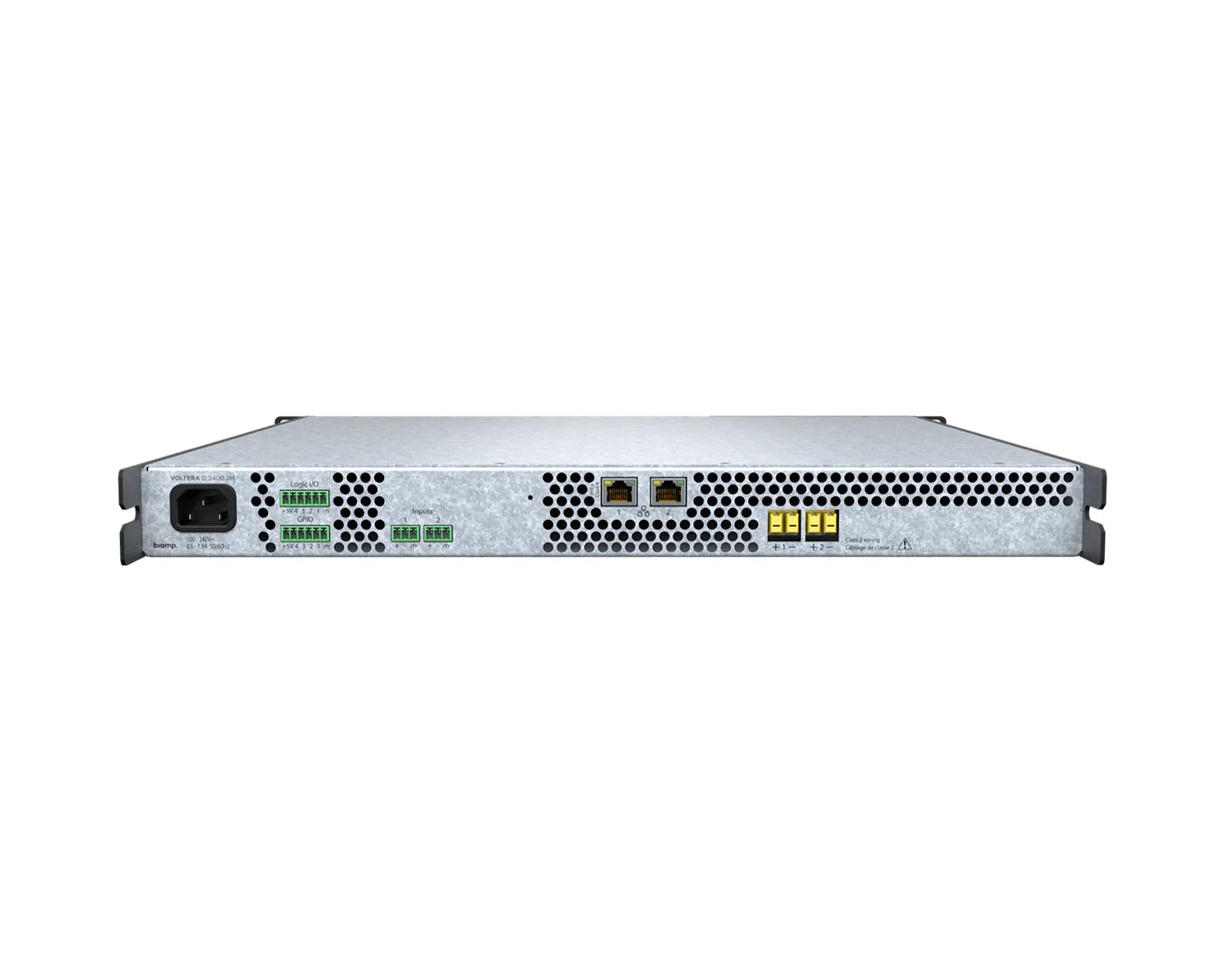

| Back Panel Interface | Control/Monitoring: IO Mute, Health, Sleep mode GPIO: 4 logic/voltage pins Inputs: 3-pin terminal block (3.81 mm pitch) Outputs: 2-pin terminal block (up to 41 Arms / 8 mm² cable) Mains: IEC C14 inlet |

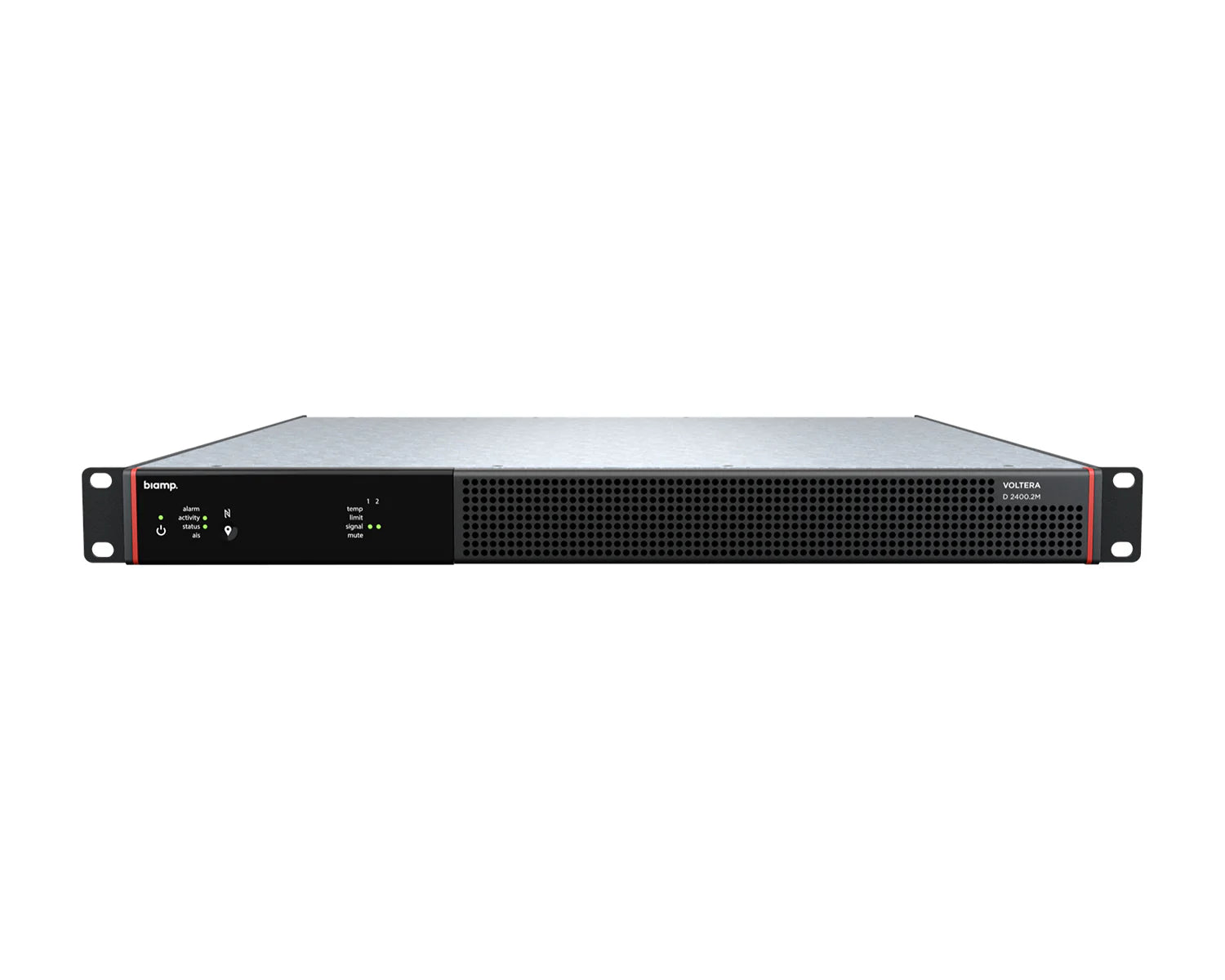

| Front Panel | Tamper-proof design NFC: Read status & network info Locate: Bi-directional Indicators: System, Device, Channel (mute, signal, limit, temp) |
| Power & Environment | Cooling: Variable speed fans (front to back) Operating Temp: 0–40°C (32–104°F) Humidity: 0–95% non-condensing Altitude: 0–2000 m Voltage: 100–240 VAC, 50/60 Hz |
| Mechanical | Size (HxWxD): 1.7 × 17.5 × 16.9 in (44 × 444 × 430 mm) Weight: 17 lbs (7.7 kg) Included: Rear support kit for 19" 1 RU mount |
| Description | Downloads |
|---|---|
| Biamp Voltera D 2400.2M Power Amplifier with DSP + Dante 2x1200W 1U | 913.1985.900 DataSheet | Download |
