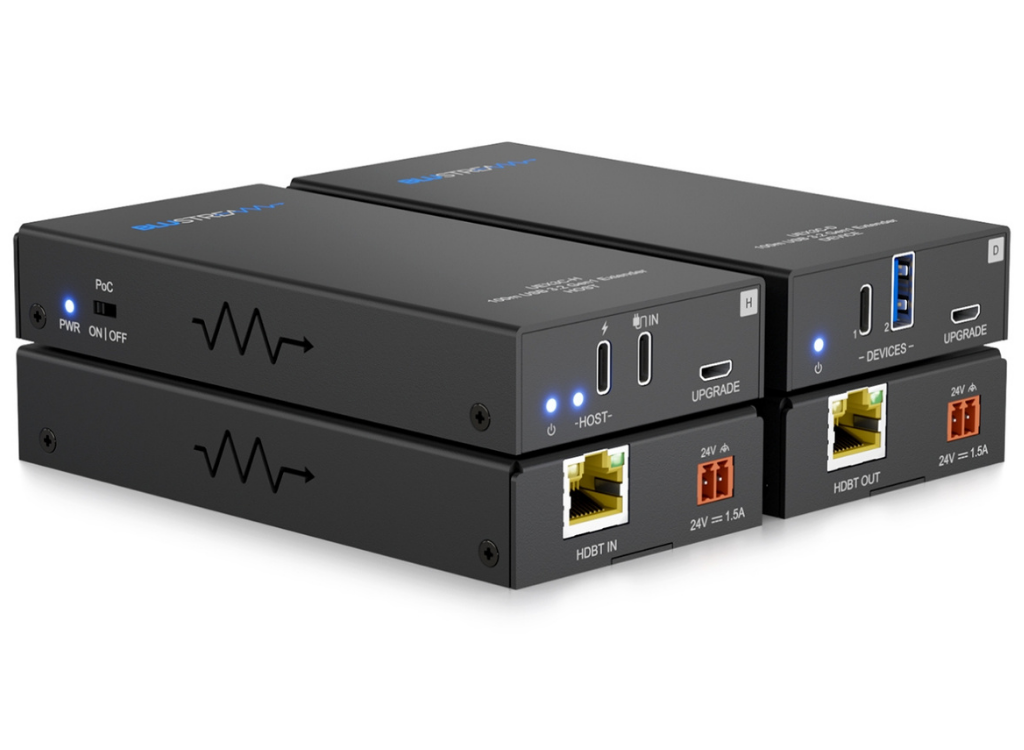

The UEX3C-KIT is a USB extender kit utilising HDBaseT™ technology to extend USB 3.2 Gen1 signals up to 100m over a single CAT6A cable. The UEX3C-KIT allows up to 2 USB devices to be connected to a single USB host with support for a transmission data bandwidth up to 5Gbps. The UEX3C-KIT is backwards compatible with USB 2.0 and 1.1 devices and provides bi-directional Power over Cable (PoC)
The UEX3C-KIT is ideal for applications requiring extension of USB 3.2 Gen1 conferencing cameras, video capture devices, Flash/hard drives, KVM devices, audio devices and other USB 3.2 Gen1 devices
Key Features
• Supports USB 3.2 signal extension up to 100m*
• Backwards compatible with USB 2.0 & 1.1 devices
• USB3.2 Gen1 data transfer rate up to 5Gbps*

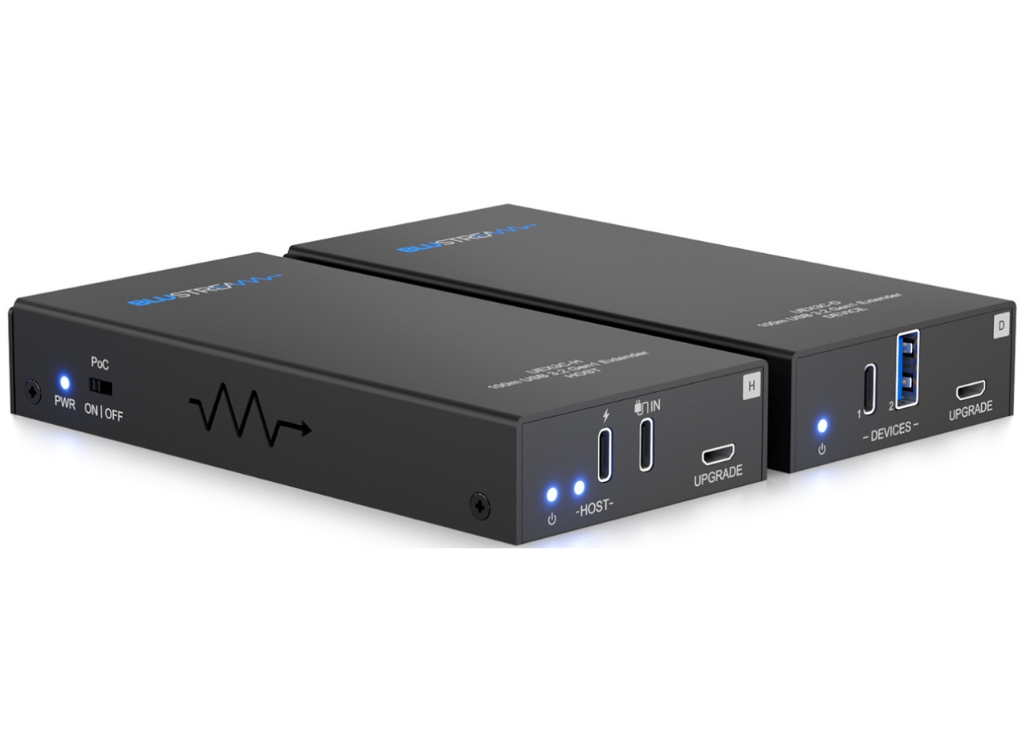

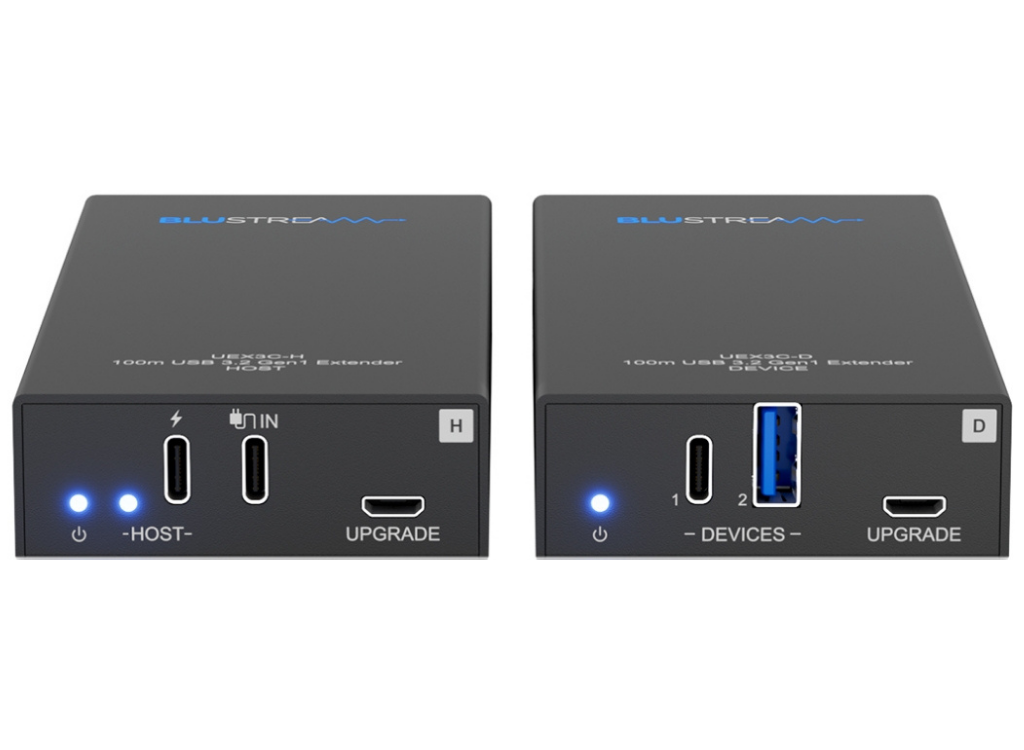

• 1x USB-C port on the receiver for connection to host device
• 1x USB-C host charging port for connection of external power supply to power host device
• 1x USB-A & 1x USB-C port on transmitter for connection to devices
• Provides up to 2.5A combined power to USB devices (up to 1.7A per single USB port)
• Configurable USB device power management via API commands
• Bi-directional PoC (Power over Cable) to power extenders from either the host or device unit
• PoC function can be enabled/disabled via dipswitch
• Simple plug and play, no driver installation or setup required.
* Signal distribution bandwidth and length are subject to length of device and host USB cables and CAT cable type. CAT6A F/UTP is recommended for use wiht this product. Please note: this product is for USB 3.2 data transfer only, and does not support DP Alt Mode video pass-through
Box Contents
1 x UEX3C-H
1 x UEX3C-D
2 x Mounting kits
1 x 24V/1.5A power supply
1 x Quick Reference Guide

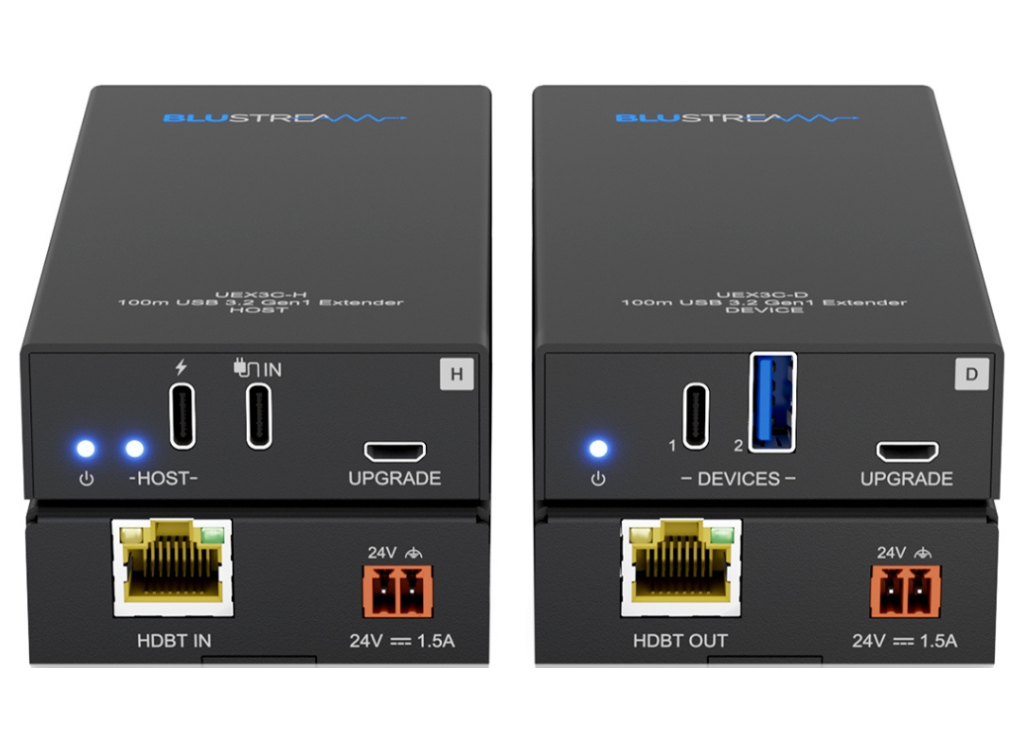

| Feature | UEX3C-H | UEX3C-D | UEX3C-KIT |
|---|---|---|---|
| USB Host Connectors | 1x USB-C, female | 1x USB-C, female, 1x USB-A, female | - |
| USB Charge Connectors | 1x USB-C, female | 1x USB-C, female | - |

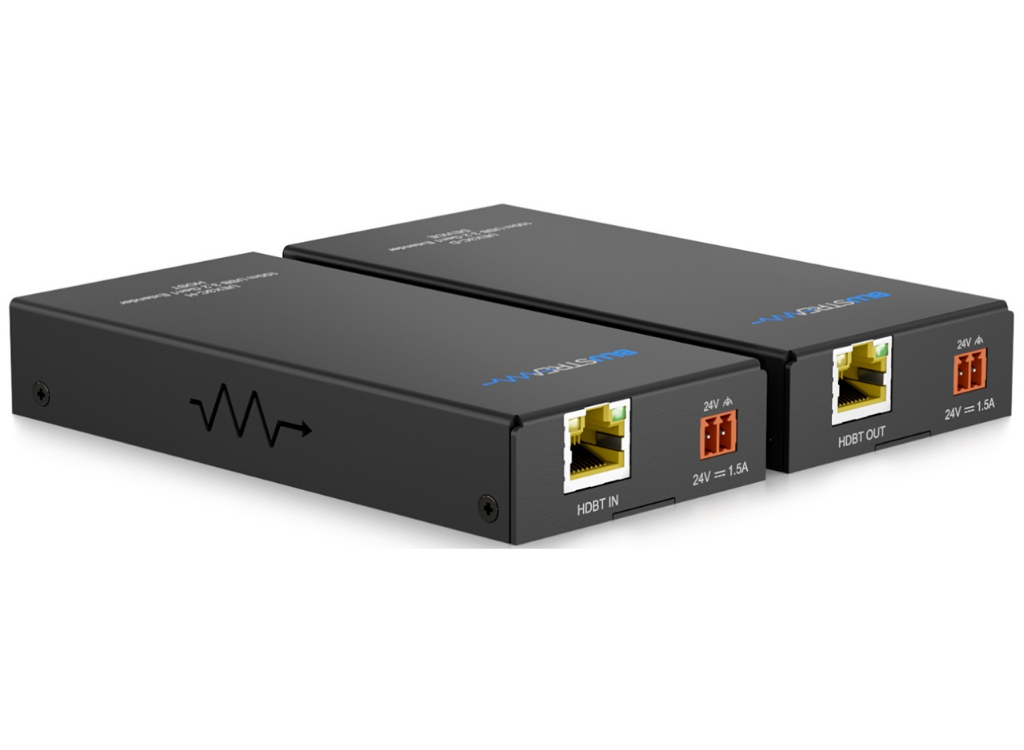

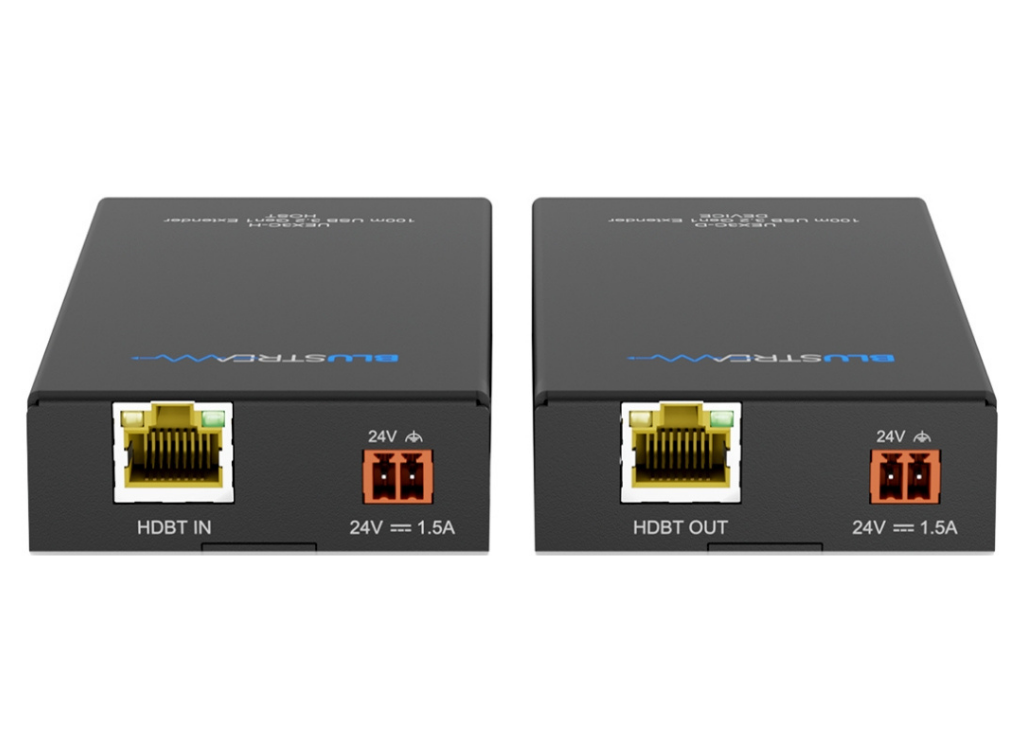

| CAT Connectors | 1x HDBaseT™ RJ45 connector | 1x HDBaseT™ RJ45 connector | - |
| Upgrade Port | 1x Micro USB connector | 1x Micro USB connector | - |
| Casing Dimensions (W x D x H) | 130mm x 61mm x 22mm | 130mm x 61mm x 22mm | - |
| Power Supply | 24V/1.25A DC, 2-pin Phoenix connector | 24V/1.25A DC, 2-pin Phoenix connector | - |
| Box Dimensions (W x D x H) | - | - | 215mm x 150mm x 63mm |
| Shipping Weight | - | - | 1.0kg |
| Operating Temperature | - | - | 32°F to 104°F (-5°C to +55°C) |
| Storage Temperature | - | - | -4°F to 140°F (-25°C to +70°C) |
