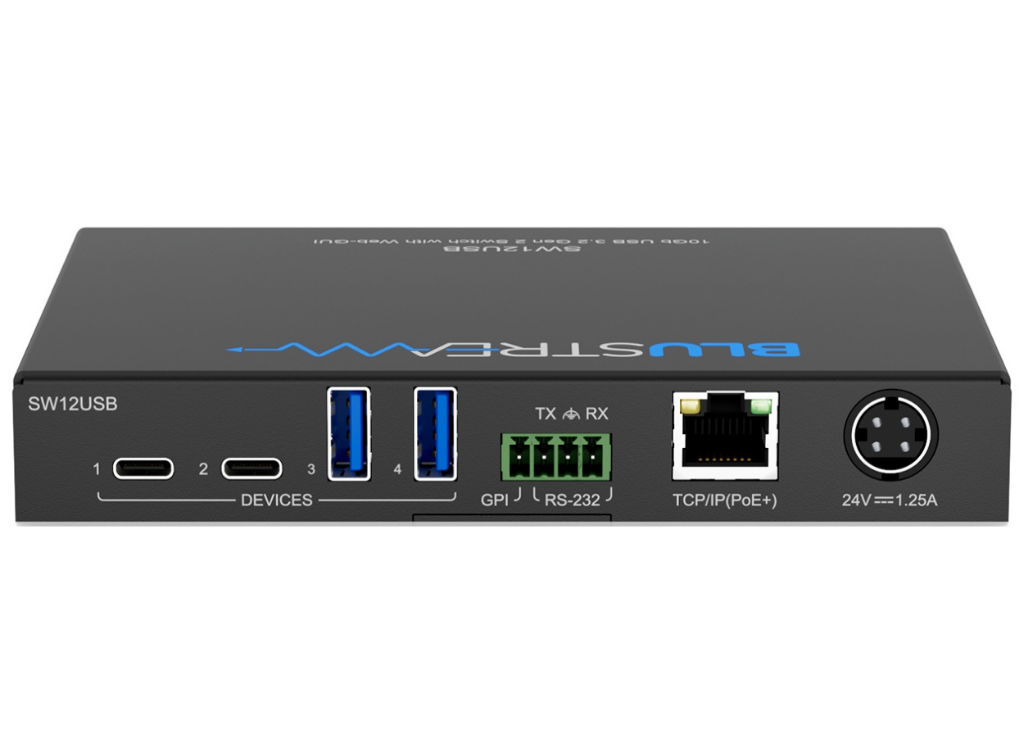

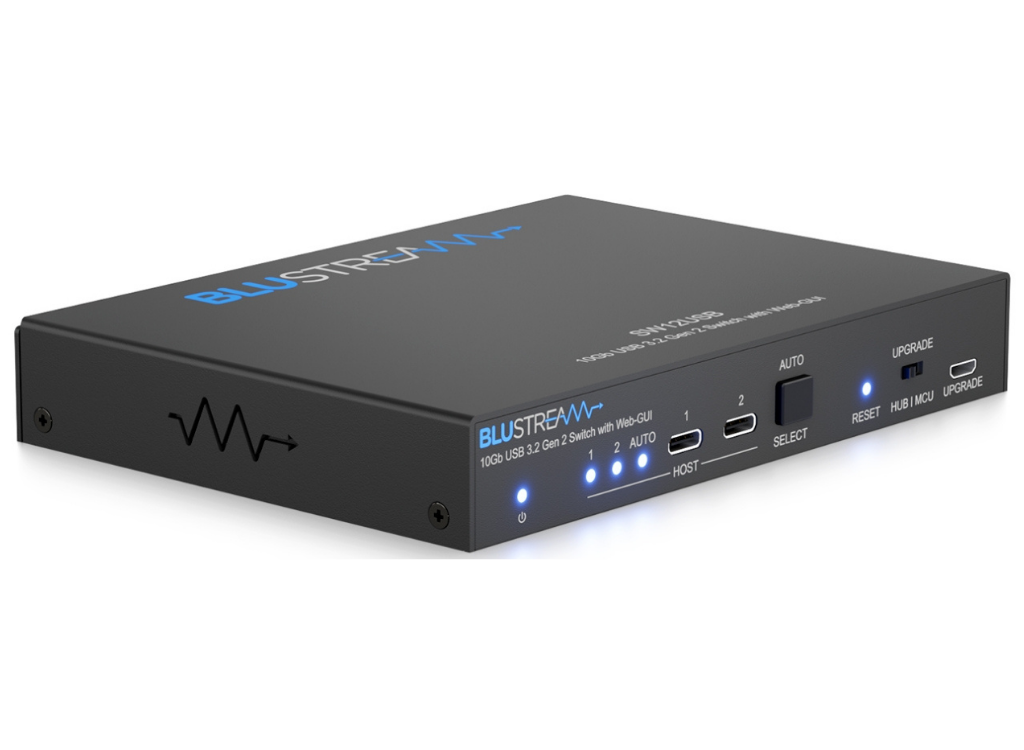

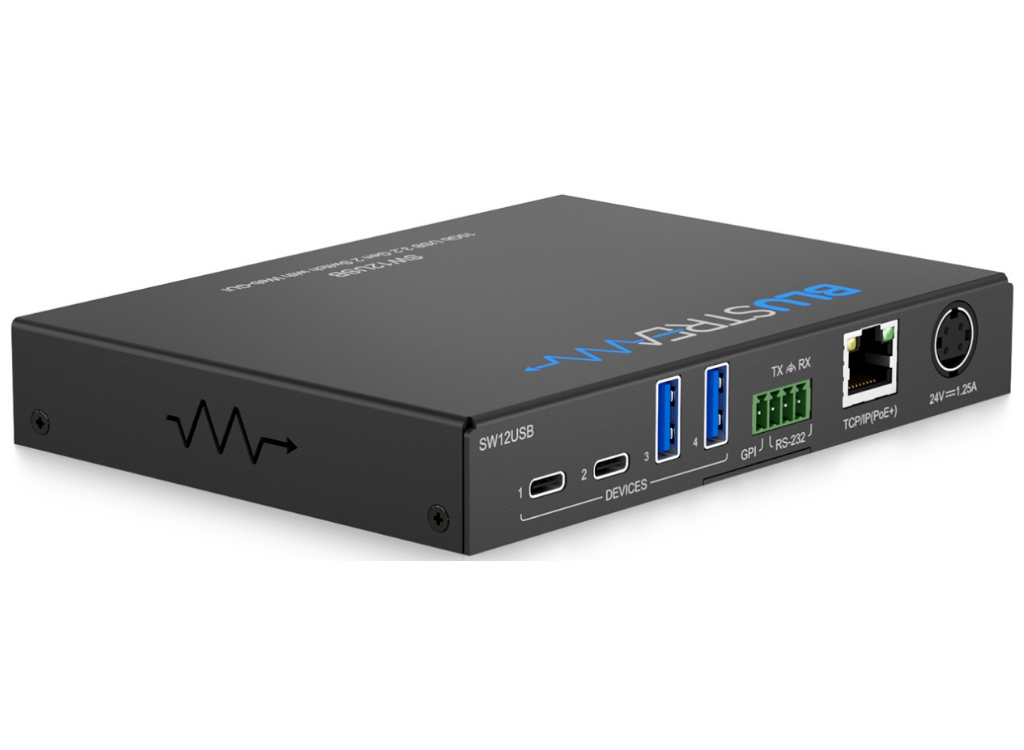

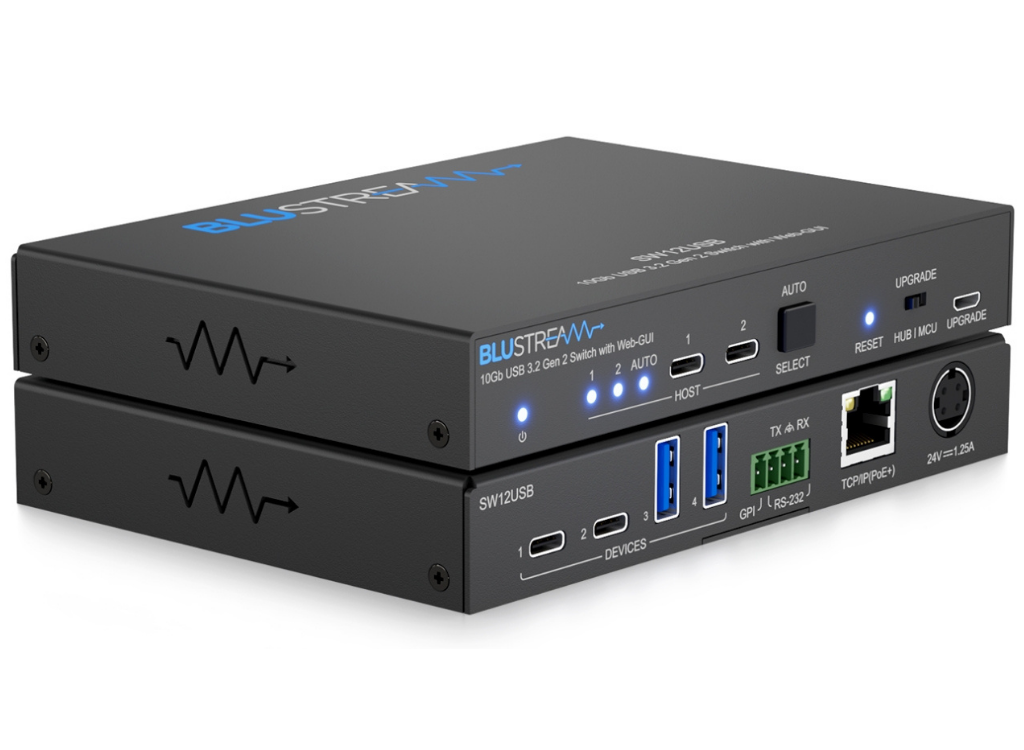

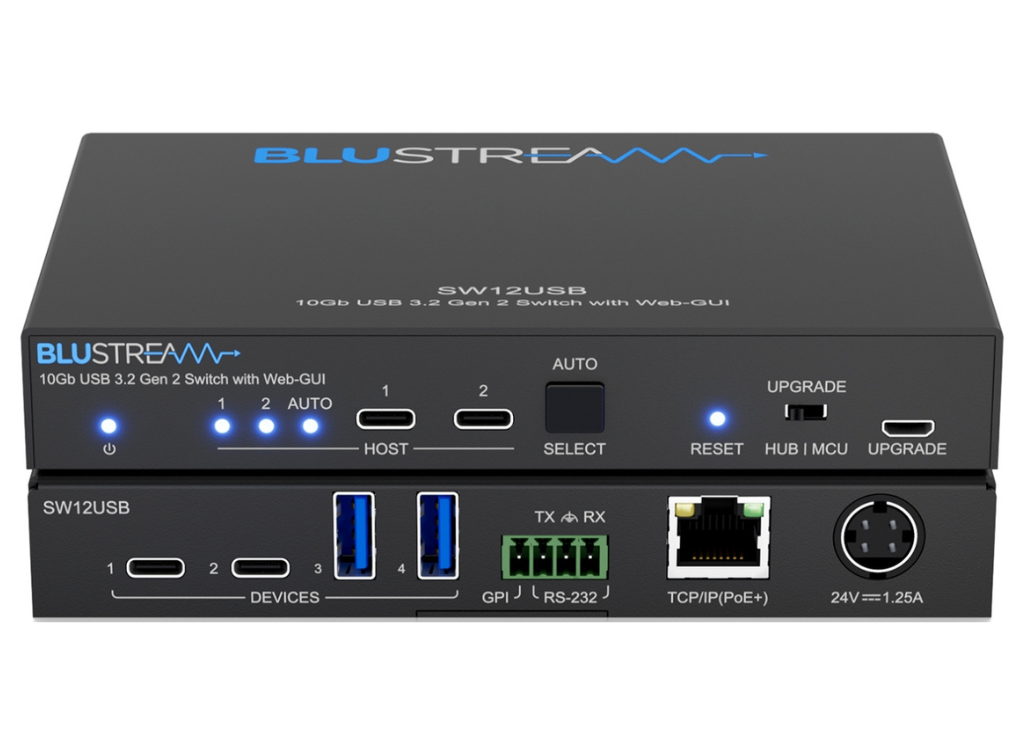

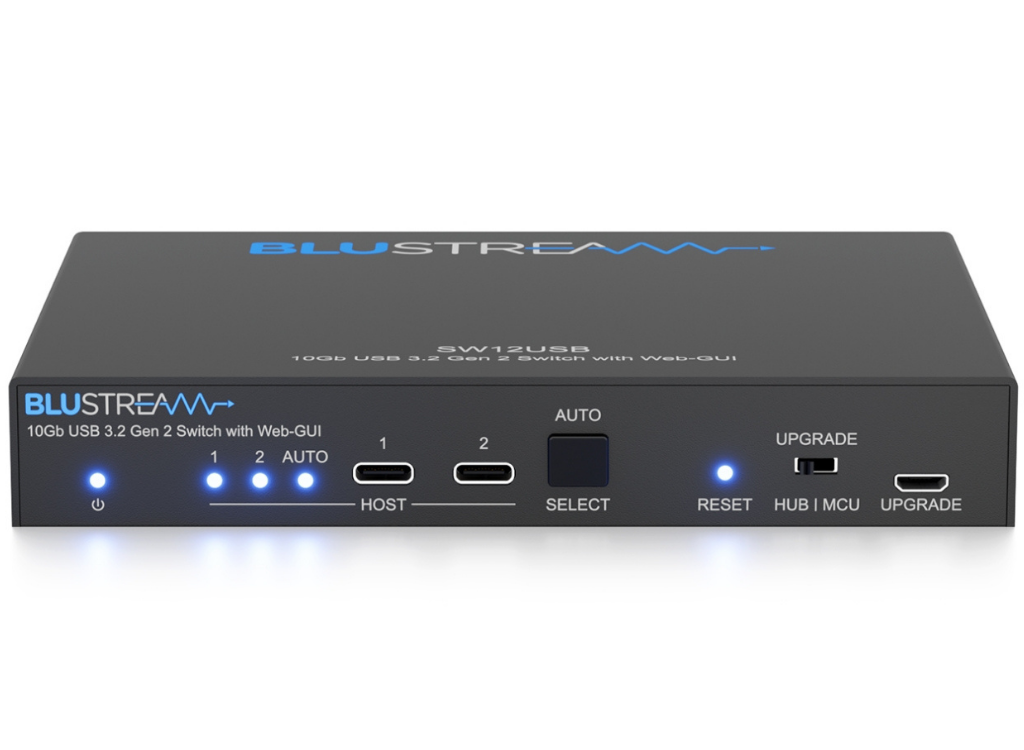

The SW12USB is a USB 3.2 Gen2 10Gb switcher, supporting 4 x USB devices that can be switched to 2 x USB-C host connections. The SW12USB supports auto switching between host devices using signal sense, or manually controlled via the front-panel push buttons, Web-GUI, TCP/IP, or RS-232
Key Features
• USB 3.2 Gen2 switch allowing up to 4 x USB peripheral devices to connect to 2 x USB hosts
• Features 2 x USB-C and 2 x USB-A device inputs and 2 x USB-C hosts
• USB 3.2 Gen2 connectivity with data transfer rate up to 10Gbps
• Backwards compatible with USB 2.0 and 1.1
• Auto or manual switching
• Plug-and-play with no drivers, downloads, or software required
• Features 1 x GPI port for integration with 3rd party products
• Features 802.3at PoE+ for powering of product from PoE+ network
• Local 24v power supply input for when network switch does not support PoE+
• Web interface module for control and configuration of SW12USB
• Control via front panel buttons, RS-232, or TCP/IP
Please note: this product is for USB 3.2 data transfer only, and does not support DP Alt Mode video pass-through
Box Contents
1 x SW12USB
1 x 24V/1.25A DC power supply
1 x Mounting kit
1 x Quick Reference Guide
| Feature | Specification |
|---|---|
| USB Device | 2 x USB Type A female, 2 x USB Type C female |
| USB Host | 2 x USB Type C female |
| GPI / RS-232 Port | 1 x 4-pin Phoenix connector |
| TCP/IP Control | 1 x RJ45, female |
| Firmware Upgrade | 1 x Micro-USB |
| Dimensions | 150mm x 110mm x 23mm |
| Shipping Weight | 0.6kg |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Storage Temperature | -4°F to 140°F (-20°C to 60°C) |
| Power Supply | 24V/1.25A DC, 4-pin DIN connector |
| Description | Downloads |
|---|---|
| Datasheet | Downloads |
| User Manual | Downloads |
