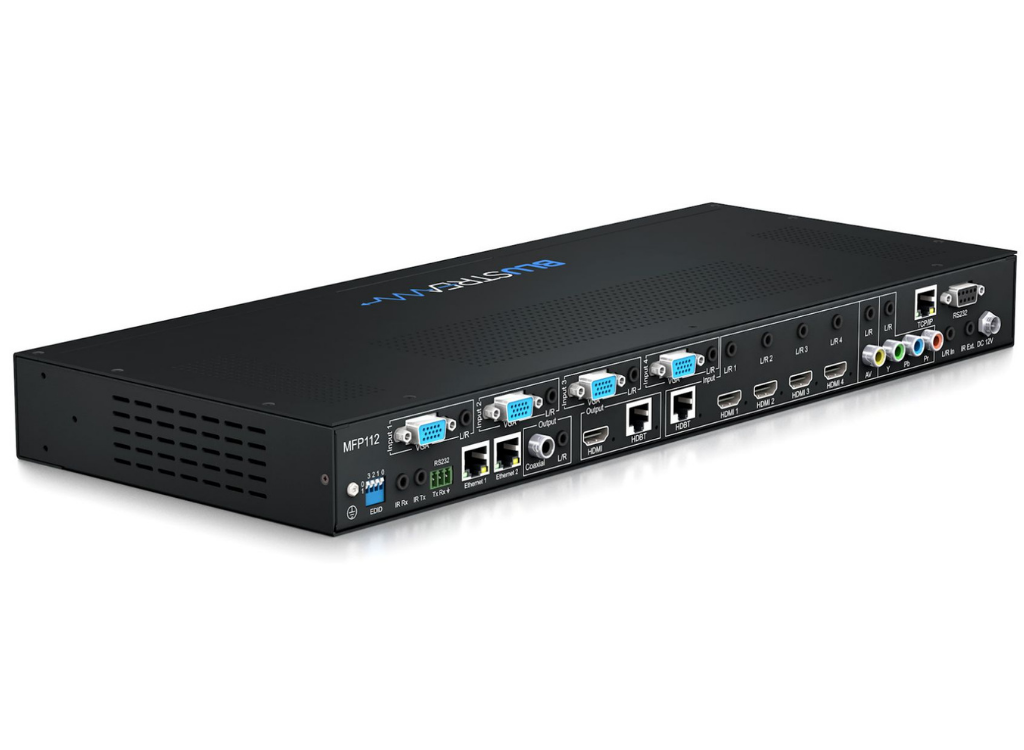

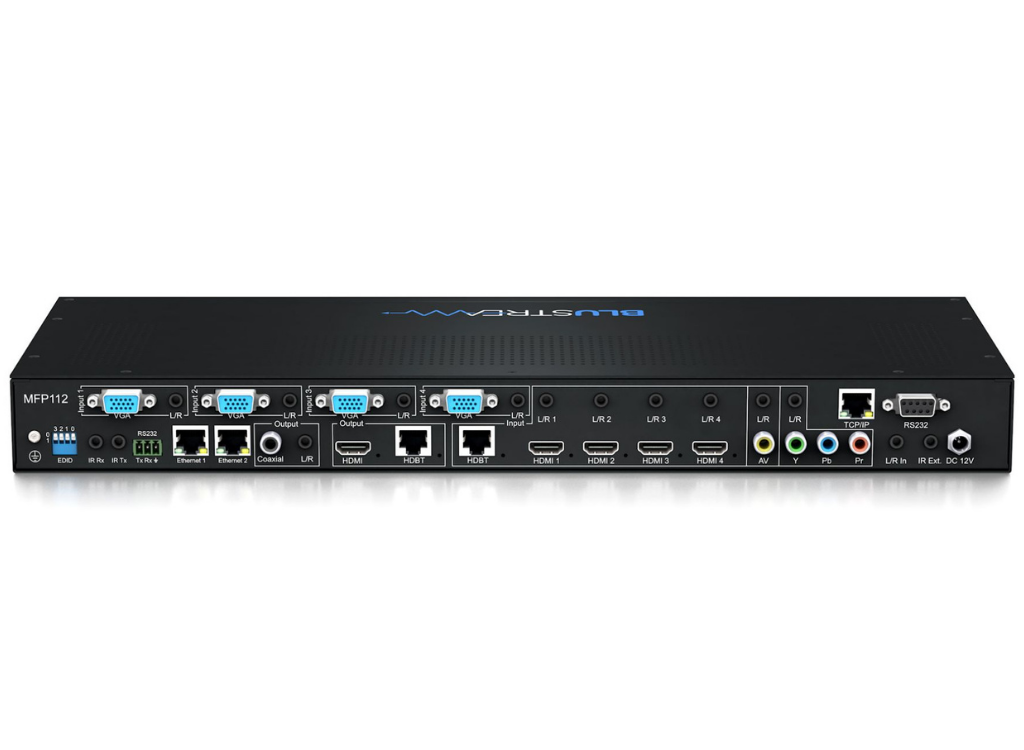

BluStream 11 Input 2 Output Multi-Format Presentation Switch | MFP112

Our MFP112 is a multi-format presentation switcher within-built video scaling, audio embedding, de-embedding, EDID management and HDBaseT™ input and output.

The MFP112 works in 2 modes, first as a 11 input dual output switcher, alternatively each output can work independently with HDMI output 1 routing the 1x HDBaseT™ & 4 x HDMI inputs only and output 2 switching all 11 video + audio inputs.

With control of the switcher using the front-panel push buttons, IR remote control or RS-232 interface it is an ideal solution for commercial installations.

Key Features
• Switcher can function in 2 modes:
   - Splitter Mode - Both HDMI output 1 & HDBaseT™ output 2 display the same selected input.
   - Matrix Switcher Mode - HDMI inputs are independently switchable to HDMI output 1 & HDBaseT™ output 2. HDMI output 1 has access to HDBaseT™ input + HDMI inputs 1-4 ONLY (HDMI signal pass-through     including 4K resolution), whilst HDBaseT™ output 2 has access to all HDMI, HDBaseT™ and analogue video inputs with associated audio.
• HDBaseT™ output (output 2) for distribution of video sources up to 100m (4K up to 70m) with bi-directional IR, RS-232, LAN serving and EDID management
• HDBaseT™ input for integration of remote HDMI sources up to 100m distance (4K up to 70m) with bi-directional IR and LAN serving
• Built-in video scaling, both up-scaling (maximum of 1080p) and down-scaling capabilities (including 4K to lower resolutions).
• Video inputs support all industry standard video resolutions including VGA-WUXGA and 480i-4K.
• Scaled video output resolutions include 720p, 1080p, 1280x1024, 1024x768, 1360x768, 1440,900, 1680x1050
• Audio embedding - independent analogue L/R audio input can be embedded to HDMI/HDBaseT™ outputs & analogue L/R audio and Coaxial digital outputs concurrently (feature available on HDMI / HDBaseT™ outputs 1 & 2 in Splitter mode and HDBaseT™ output 2 only in Matrix Switcher mode).
• HDMI audio breakout to analogue L/R audio and Coaxial digital outputs concurrently (linked to output 2 when in Matrix Switcher mode)
• Volume control of HDMI, line-level analogue L/R audio and Coaxial digital outputs
• PoH to compatible Blustream Transmitters & Receivers (local power required when using HEX100ARC-RX)
• Supports all known HDMI audio formats on HDMI pass-through, including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master audio transmission

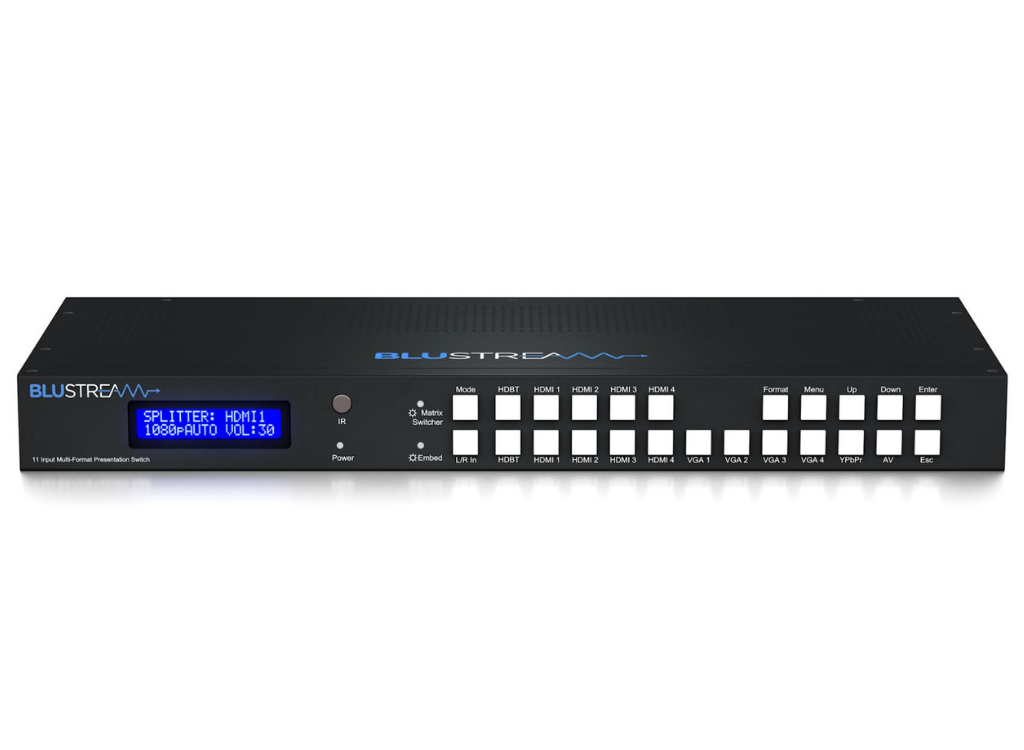

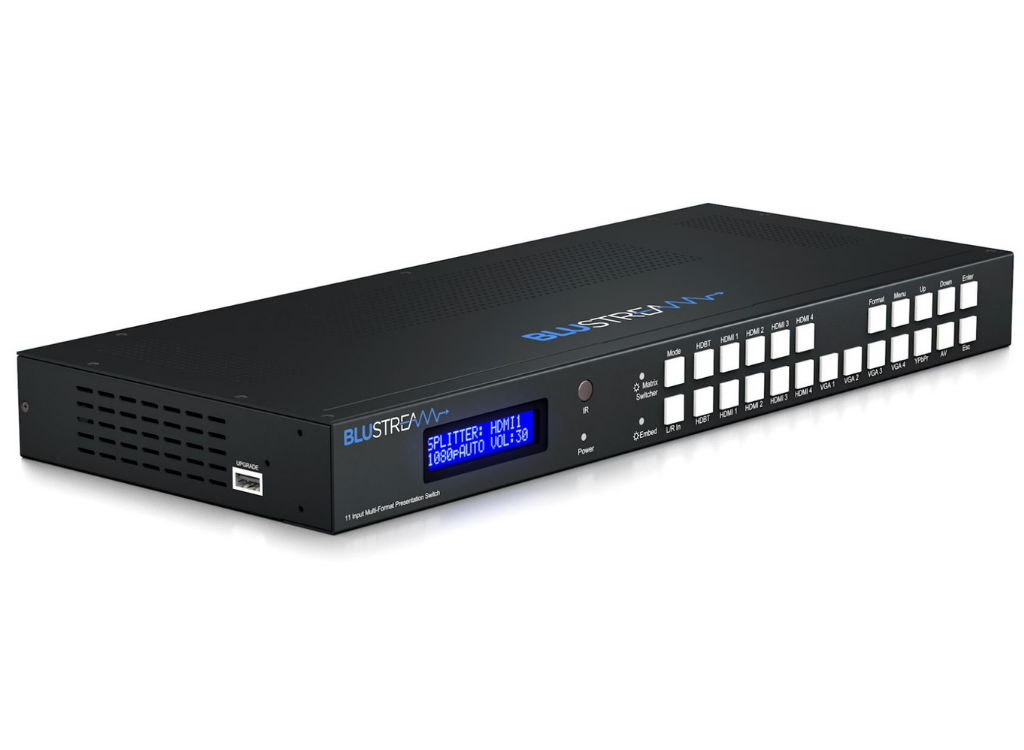

• Front panel display for status feedback
• Control via front panel, IR, RS-232 and TCP/IP
• 3rd Party drivers available for all major home control brands
• Advanced EDID management
• HDCP 1.4 compliant

Box Contents
1 x MFP112
1 x 12V/5A DC Power Supply
1 x Remote Control
4 x IR Receiver
3 x IR Transmitters
1 x IR Control Cable - 3.5mm-3.5mm Cable
1 x Serial cable - 9-pin RS232 to 3-pin Phoenix Connector
1 x Mounting Kit
1 x User Manual

Sold Separately
1 x HDBaseT™ 100m Transmitter (HDBaseT™ source input)
1 x HDBaseT™ 100m Receiver (HDBaseT™ output)
