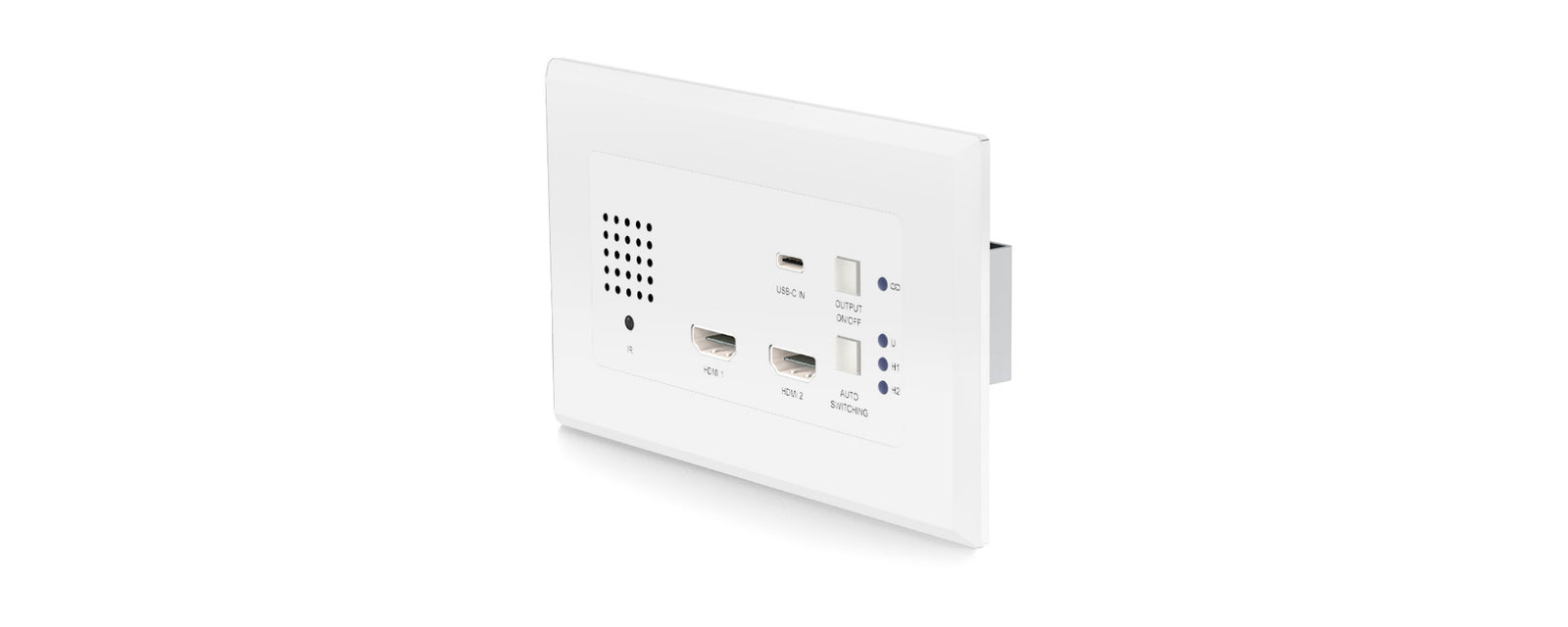

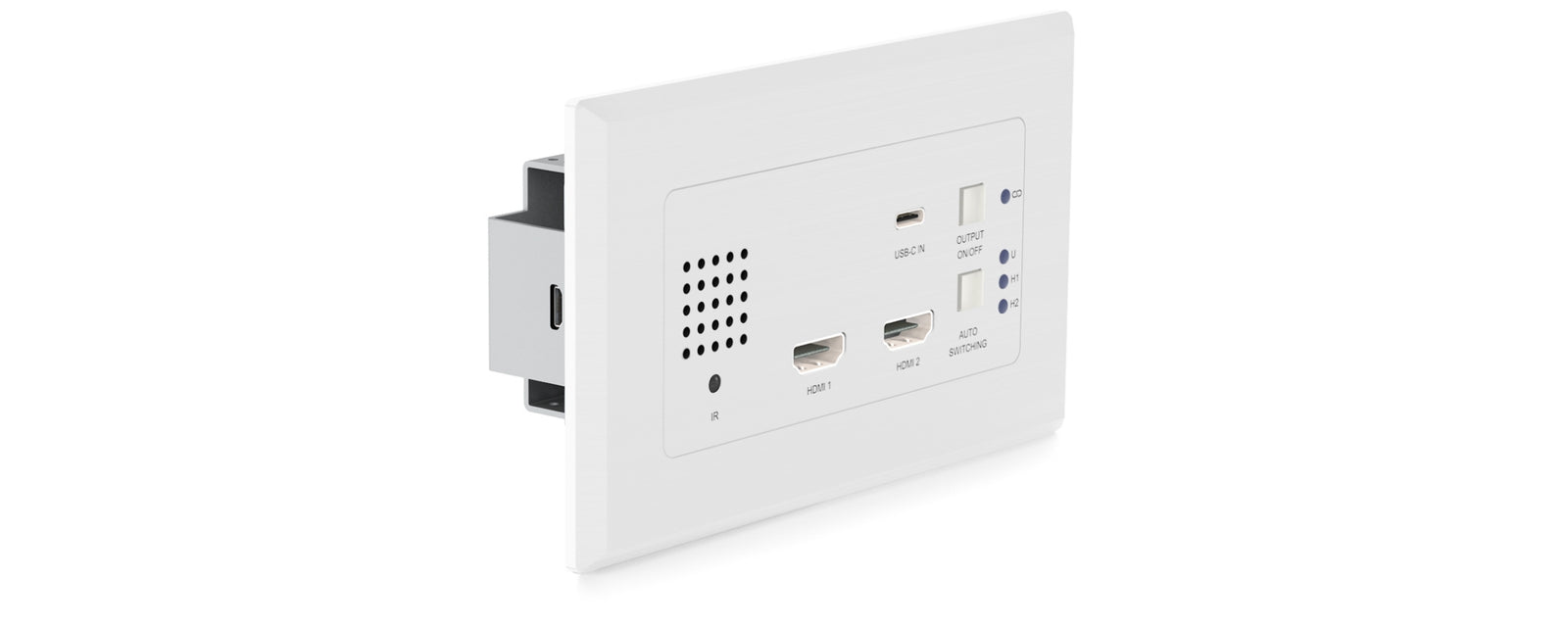

Our HEX31WPW-TX HDMI/USB-C wall plate HDBaseT™ Transmitter is a multi-format 4K input switcher solution delivering HDMI and USB-C inputs up to 70m at 1080p (40m 4K 60Hz 4:2:0).
The HEX31WPW-TX features both manual or automated source selection and includes display on / off control via CEC, RS-232 and IR (via compatible HDBaseT™ receivers / Matrix).
The HEX31WPW-TX has been designed to work with all Blustream HDBaseT™ receiver and matrix solutions, be installed in both UK and European back boxes and can be powered locally or from compatible Blustream HDBaseT™ products.
Key Features
• Features 2 x HDMI & 1x USB-C inputs with manual / auto source selection
• Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
• Supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
• Extends HDMI at 1080p up to a distance of 70m
• Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
• Input selection via front panel, IR or RS-232
• Programmable ON / OFF button utilising IR, RS-232 or CEC for control of display device at HDBaseT™ receiver
• Supports 12V-48V PoC from compatible Blustream HDBaseT™ receiver / matrix products
• Bi-directional RS-232 pass through
• Supports IR pass-through to HDBaseT™ device
• Compatible with all Blustream HDBaseT™ receiver / matrix products *
• Magnetic faceplate surround allowing both UK & EU back box compatibility
• HDCP 2.2 support
* Technical performance is subject to the features supported on the connected HDBaseT™ device ** Please note: The USB-C input port on this unit does not provide PD charging to devices connected for video distribution.
Box Contents
1 x HEX31WPW-TX
1 x 12V/1A DC Power Supply
1 x Magnetic Faceplate
1 x RS-232 Control Cable
1 x Quick Reference Guide
| Feature | Specification |
|---|---|
| Video Input Connectors | 2 x HDMI Type A, 19-pin, female, 1 x USB-C Type C |
| Video Output Connector | 1 x HDBaseT™ RJ45 connector |
| RS-232 Serial Port | 1 x 3-Pin Phoenix connector |
| IR Input Port | 1 x 3-Pin Phoenix connector |
| Product Upgrade | 1 x Micro USB female |
| Local Power Input | 1 x 2-Pin Phoenix connector |
| Casing Dimensions (WxHxD) (without faceplate) | 136mm x 76mm x 44mm |
| Casing Dimensions (WxHxD) (with faceplate) | 146mm x 86mm x 44mm |
| Faceplate Dimensions (WxHxD) | 146mm x 86mm x 6mm |
| Backbox Housed Unit Dimensions (WxHxD) | 109mm x 49mm x 35mm |
| Backbox Mounting Depth | 40mm (minimum) - backbox not supplied |
| Shipping Weight | 2.8kg |
| Operating Temperature | 32°F to 104°F (-5°C to +55°C) |
| Storage Temperature | -4°F to 140°F (-25°C to +70°C) |
| Power Supply | 12V/1A DC |
| Description | Downloads |
|---|---|
| BluStream 2 x HDMI & 1 x USB-C Wall Plate HDBaseT™ Transmitter | HEX31WPW-TX Datasheet | Downloads |
