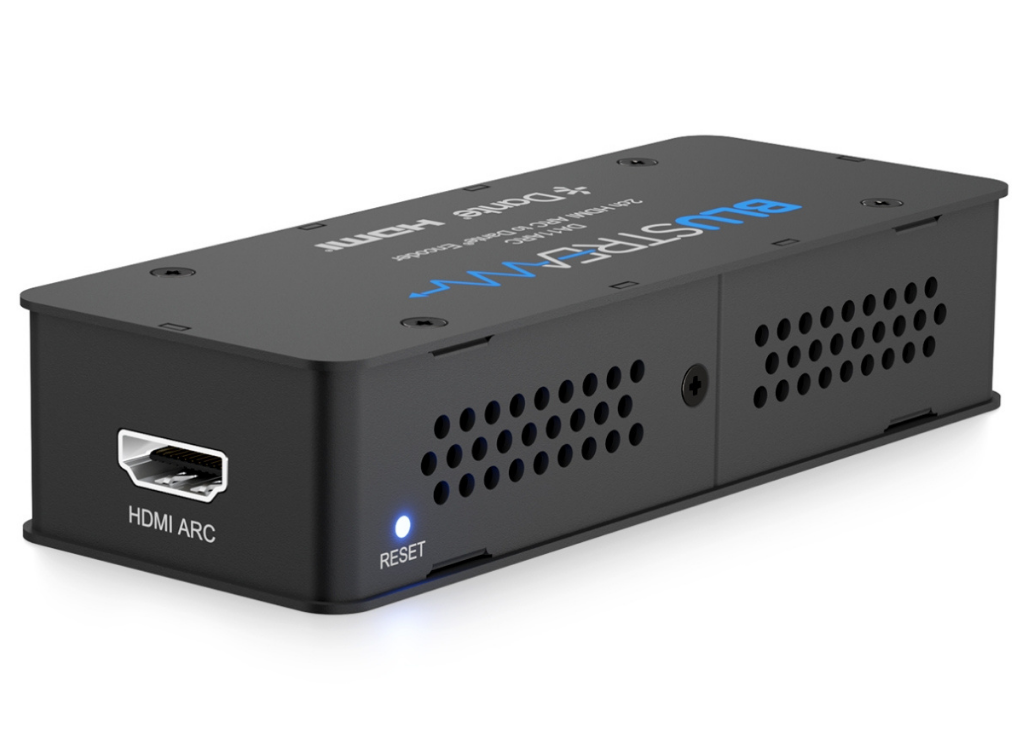

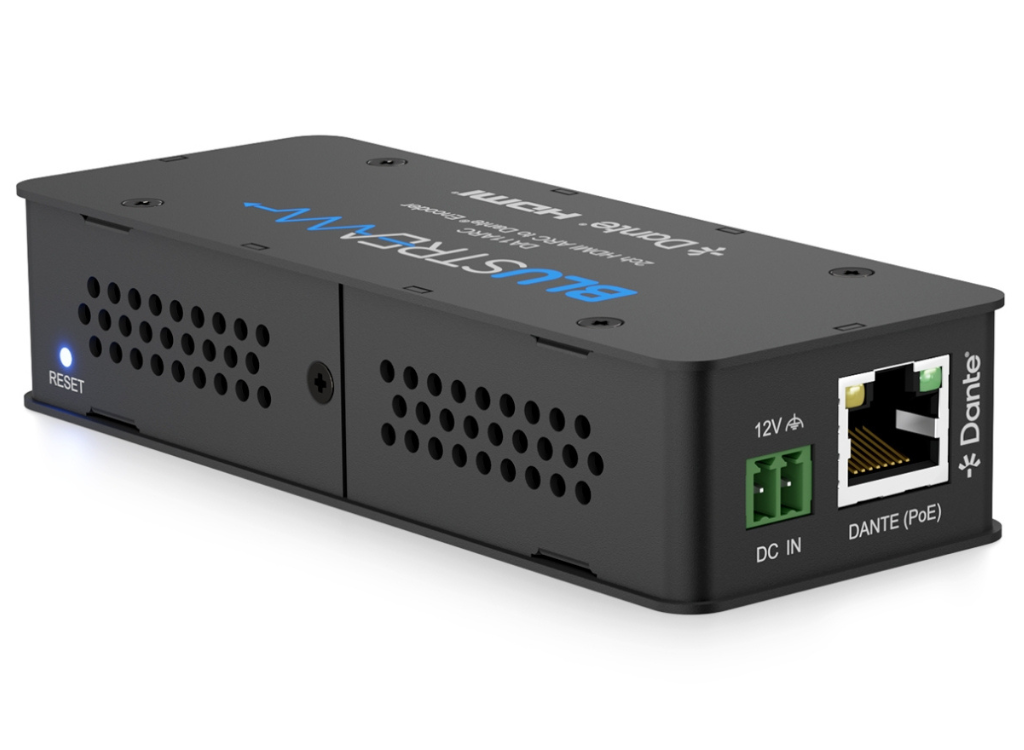

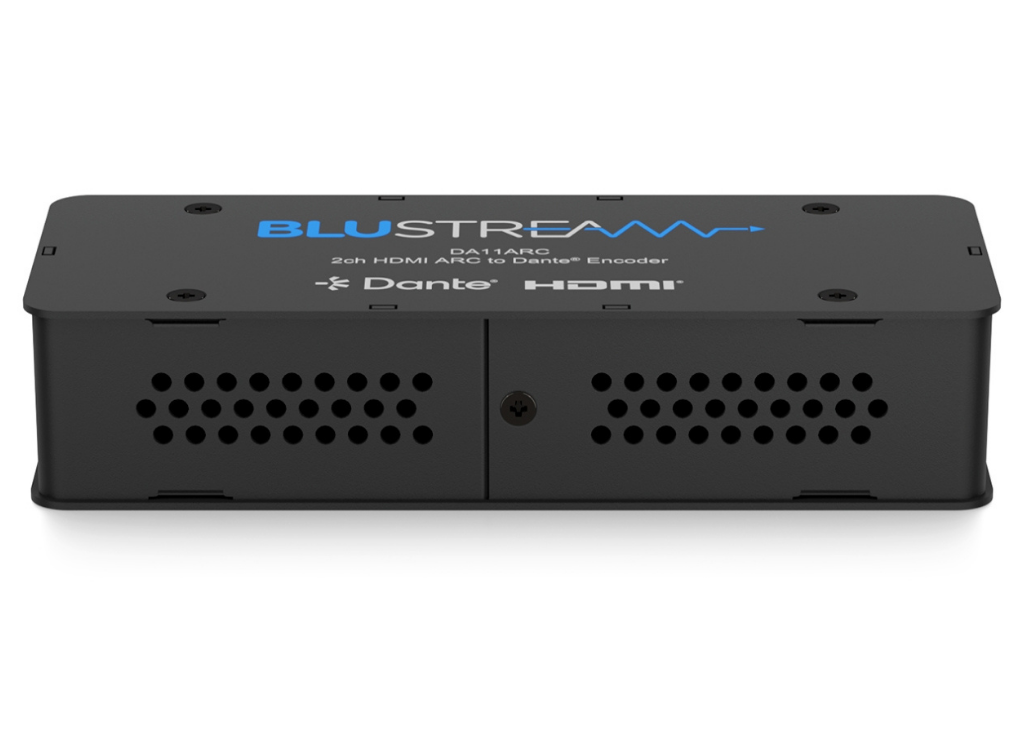

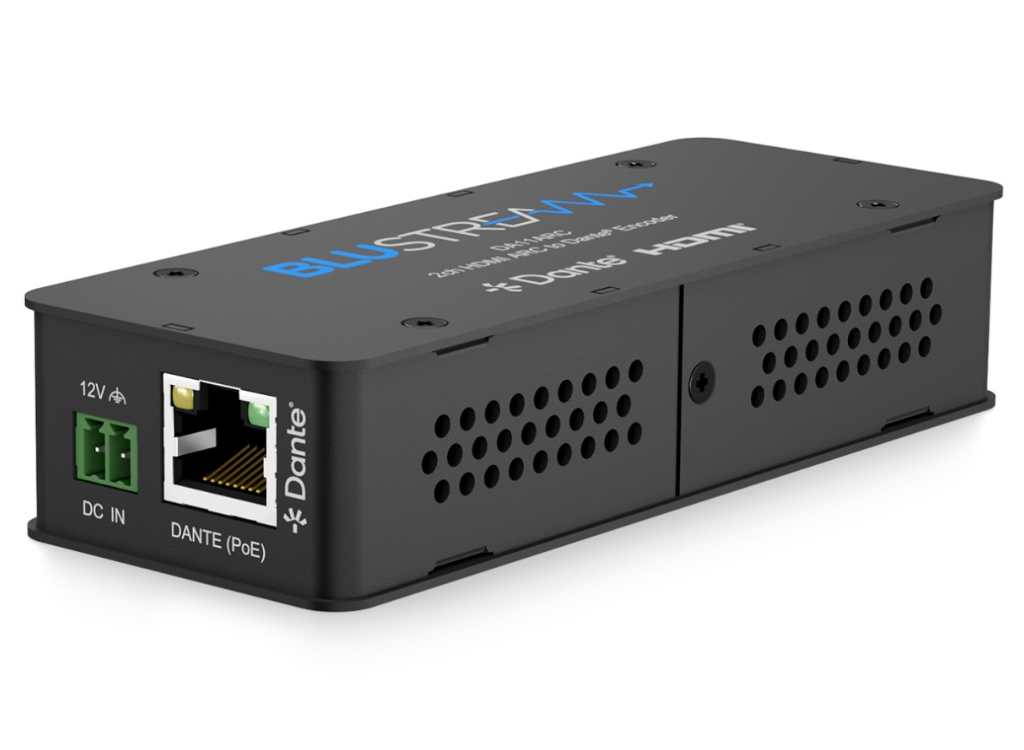

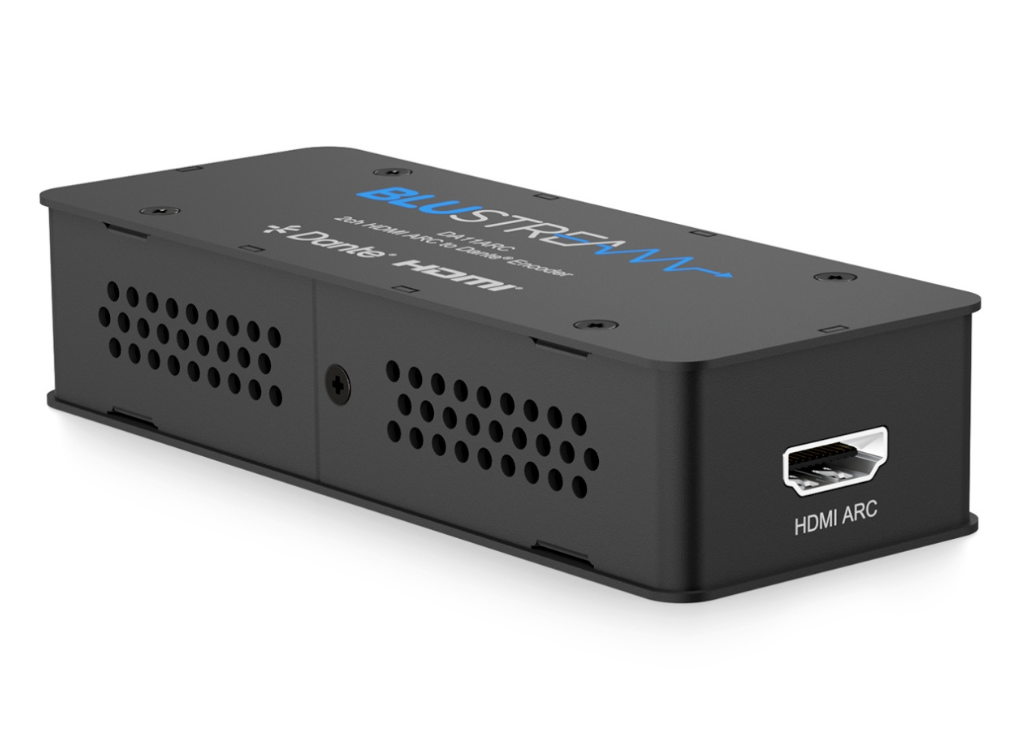

Our DA11ARC has been designed to encode HDMI ARC (Audio Return Channel) 2ch audio to a Dante® digital signal.
The DA11ARC is a plug & play device that is powered using PoE (Power Over Ethernet). The DA11ARC also supports AES67 RTP audio transport.
Key Features
• Encodes HDMI ARC (Audio Return Channel) 2ch audio to a Dante® digital signal
• Supports: 44.1, 48, & 96kHz sample rates @ 24 Bit
• Configurable Dante® device latency (supports 2, 3, 4, 5 or 10ms configurable using Dante® Controller)
• Input sensitivity/volume control adjustable via CEC, web GUI or API
• Supports AES67 RTP audio transport
• Features Class 0 802.3af PoE for powering of product from any PoE switch
• Local 12v power supply input for when network switch does not support PoE*
* PS121PH power supply sold separately
Please Note: The DA11ARC will only decode a 2ch HDMI ARC signal and is not compatible with multi-channel HDMI audio codecs.
Box Contents
1 x DA11ARC
1 x Quick Reference Guide
| Feature | Specification |
|---|---|
| Casing Dimensions | 120mm x 47mm x 26mm |
| Shipping Weight | 0.3 Kg |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Storage Temperature | -4°F to 140°F (-20°C to 60°C) |
| Power Supply | IEEE 802.3af POE PD or 12V/1A DC |

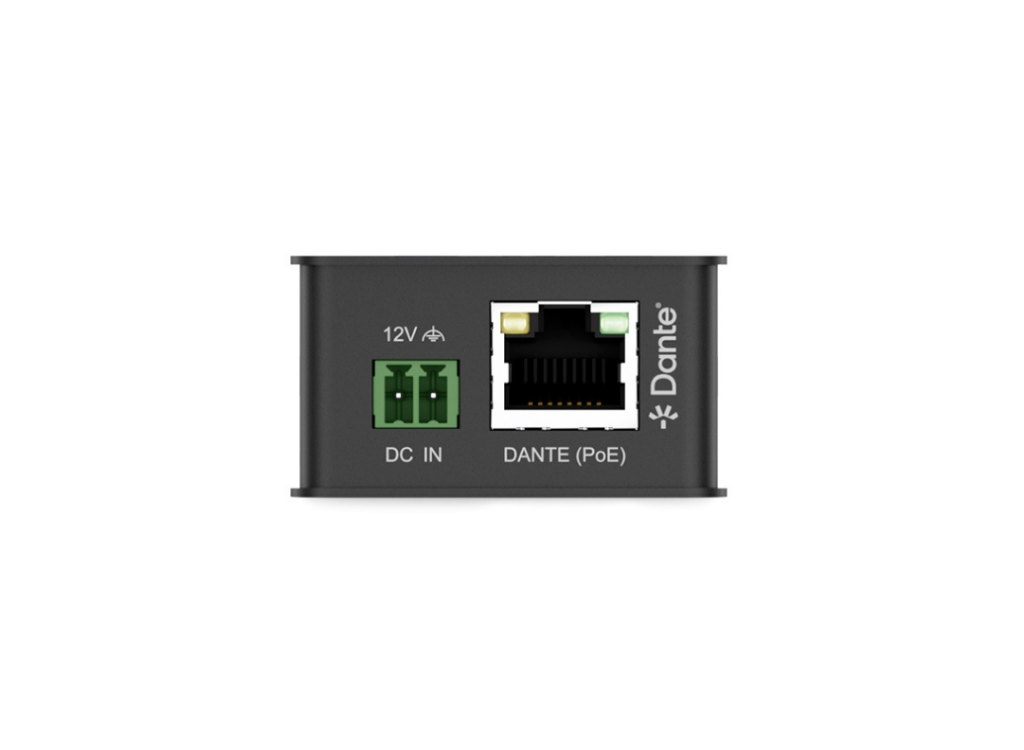

| Audio Output Connector | 1 x RJ45, female (100 Mbps Dante® network) |

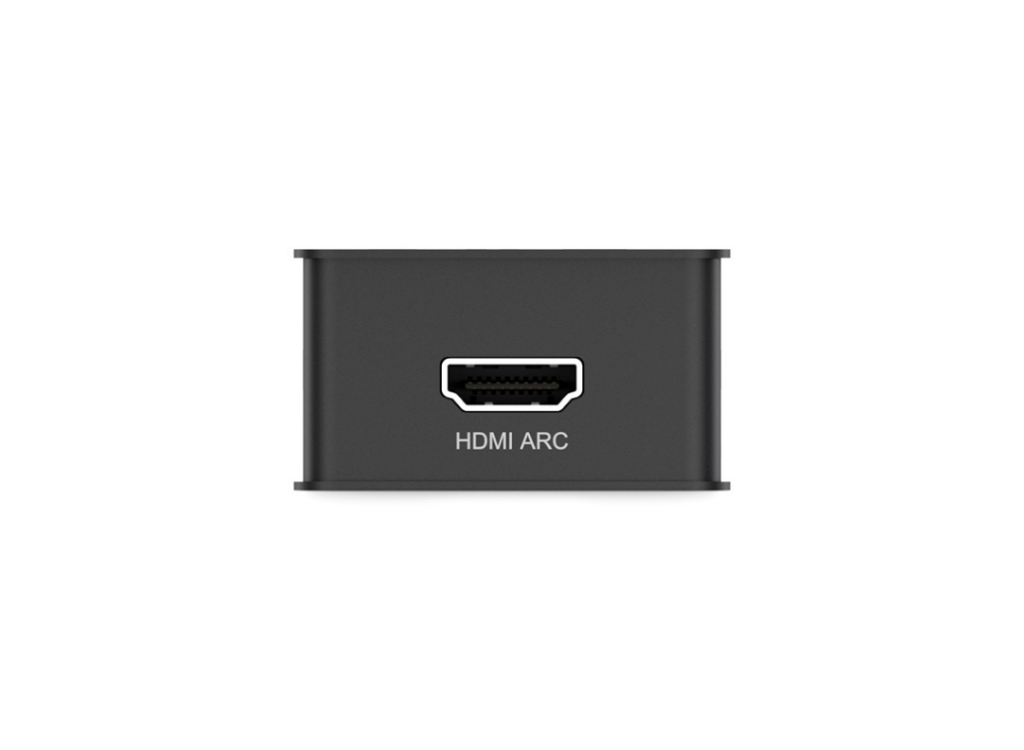

| Audio Input Connector | 1 x HDMI, female (2ch ARC audio only) |
| Description | Downloads |
|---|---|
| Datasheet | Downloads |
