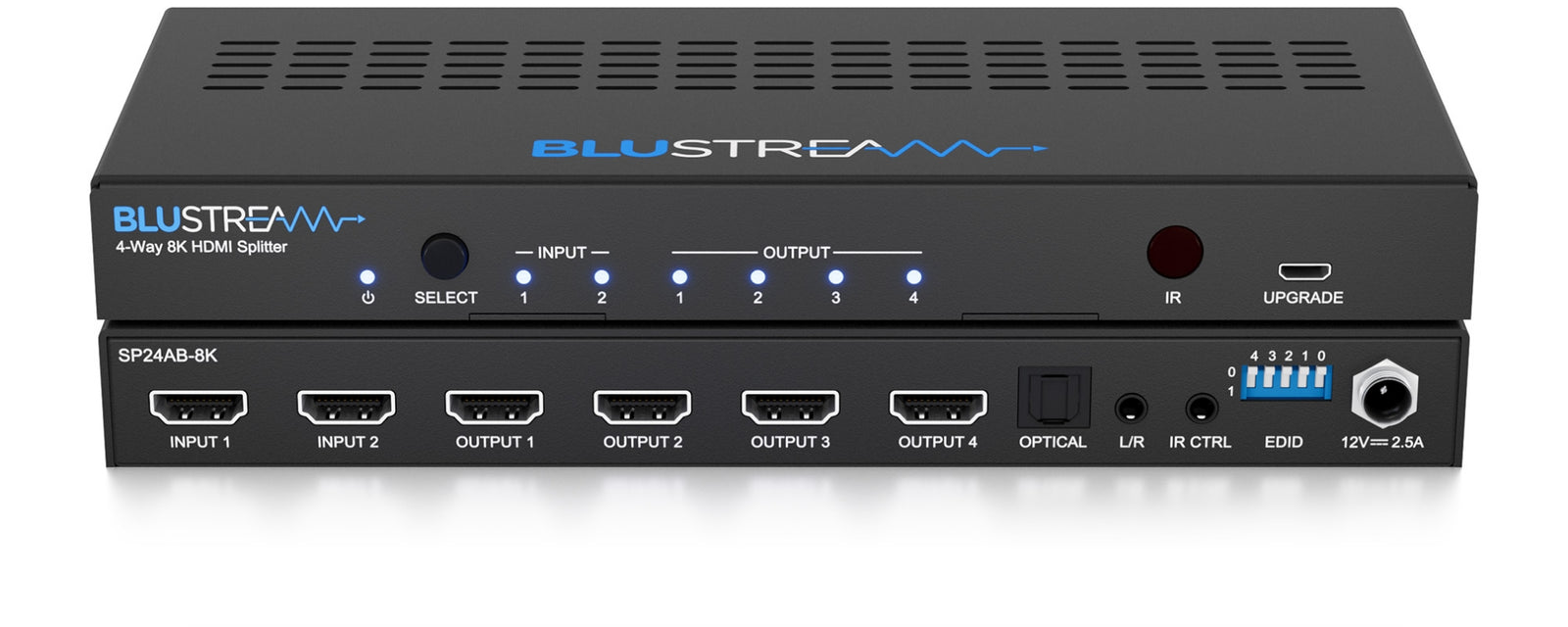

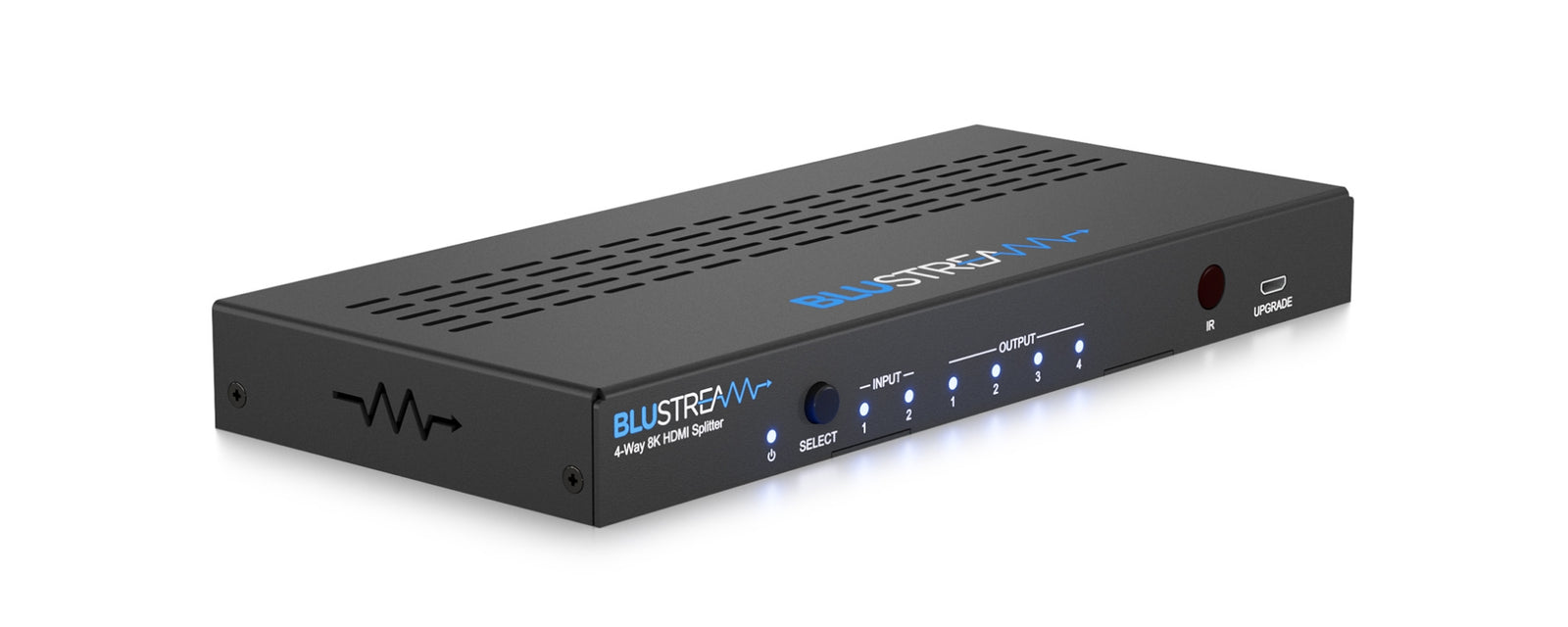

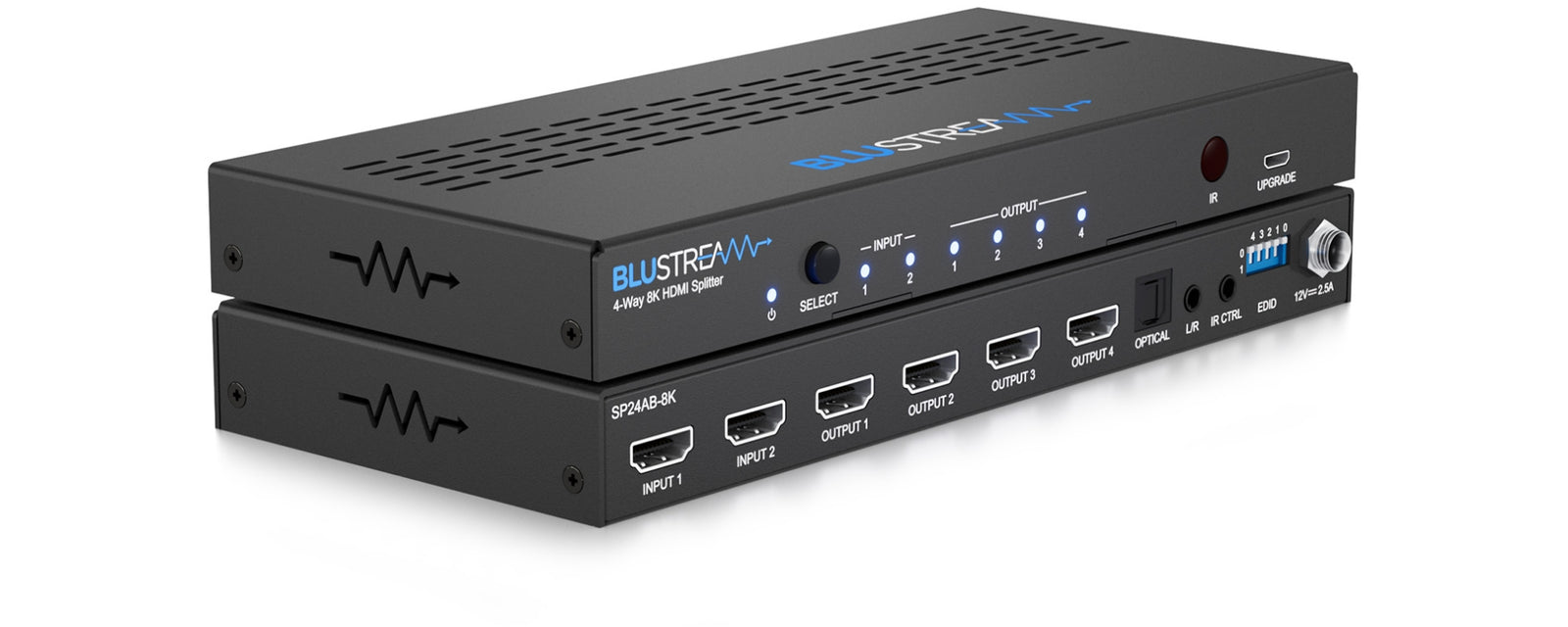

The SP24AB-8K HDMI 2.1 splitter is designed to be used where HDMI 2.1 chipset are being utilised for signals up to 8K 60Hz and 4K 120Hz.
With selection of 2 x HDMI 2.1 input sources, a single source can be distributed to up to 4 x outputs simultaneously, the SP24AB-8K can auto-switch based on detecting a 5v hot plug, a new TMDS signal; or manually using IR (remote included), or the front panel. Analogue and optical digital (S/PDIF) audio breakout allows for audio integration. HDCP2.3 compliant, and advanced EDID management.
Key Features
• Features 2 x selectable HDMI 2.1 inputs that are split to 4 x HDMI outputs
• Supports HDMI 2.1 specification including HDR (40Gbps maximum)
• Supports up to 8K 60Hz YCbCr 4:2:0 10bit, 8K 30Hz RGB/YCbCr 4:4:4 10bit, or 4K 120Hz RGB/YCbCr 4:4:4 10bit
• Supports ALLM (Auto Low Latency Mode) & VRR (Variable Refresh Rate)
• Supports all known HDMI audio formats including Dolby Atmos, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission
• Auto HDMI source switching via 5v and / or TMDS signal sensing

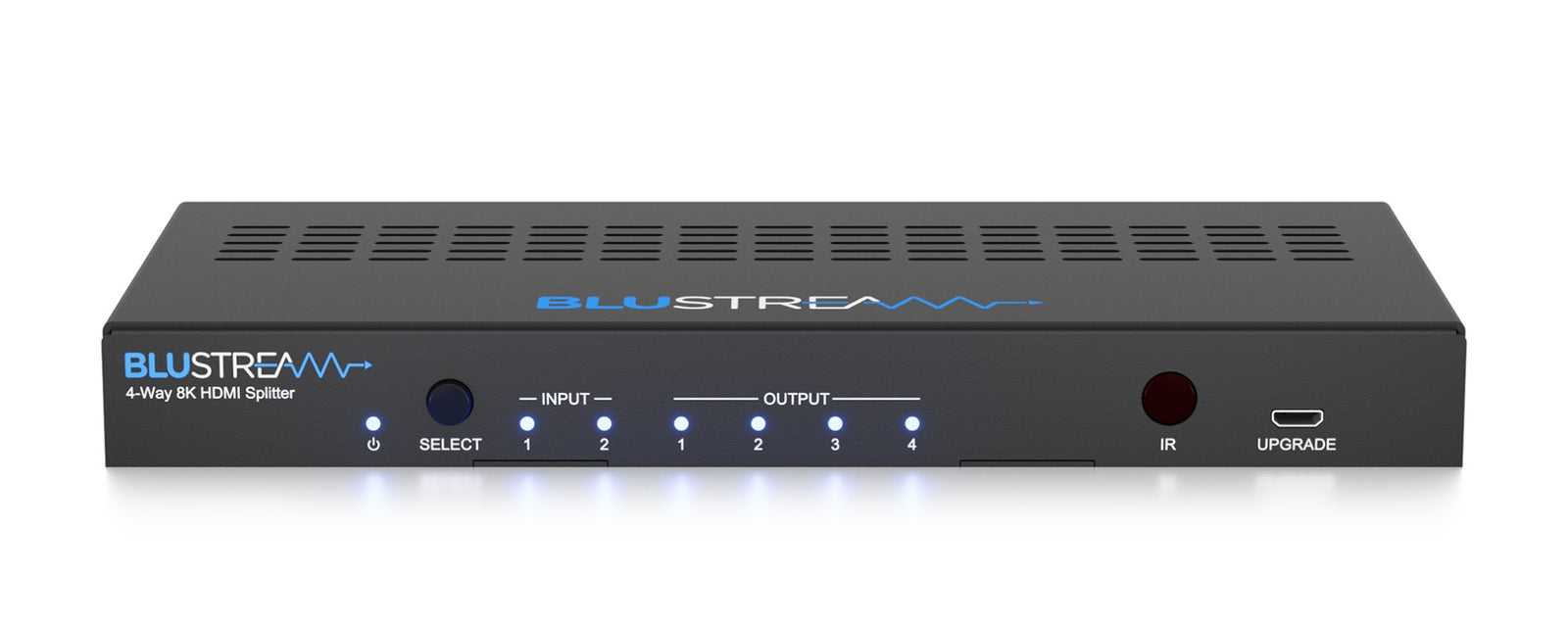

• Manual HDMI source switching via front panel and IR
• Audio breakout to analogue L/R audio and Coaxial (S/PDIF) digital outputs concurrently
• 5v / 12v IR Compatible
• HDCP 2.3 compliant with advanced EDID management
Box Contents
1 x SP24AB-8K
1 x 12V/2.5A DC power supply
1 x IR Receiver 1 x IR Remote Control 1 x Mounting kit
4 x Rubber Feet
1 x Quick Reference Guide

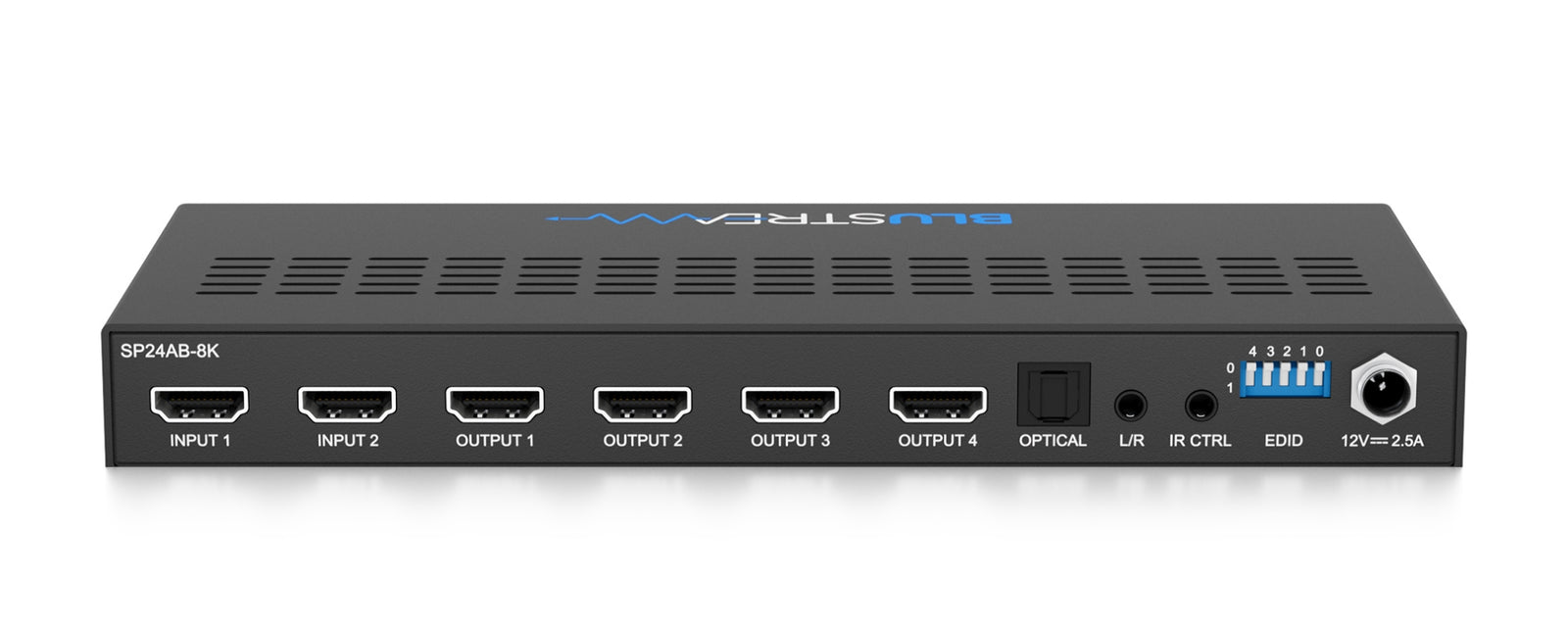

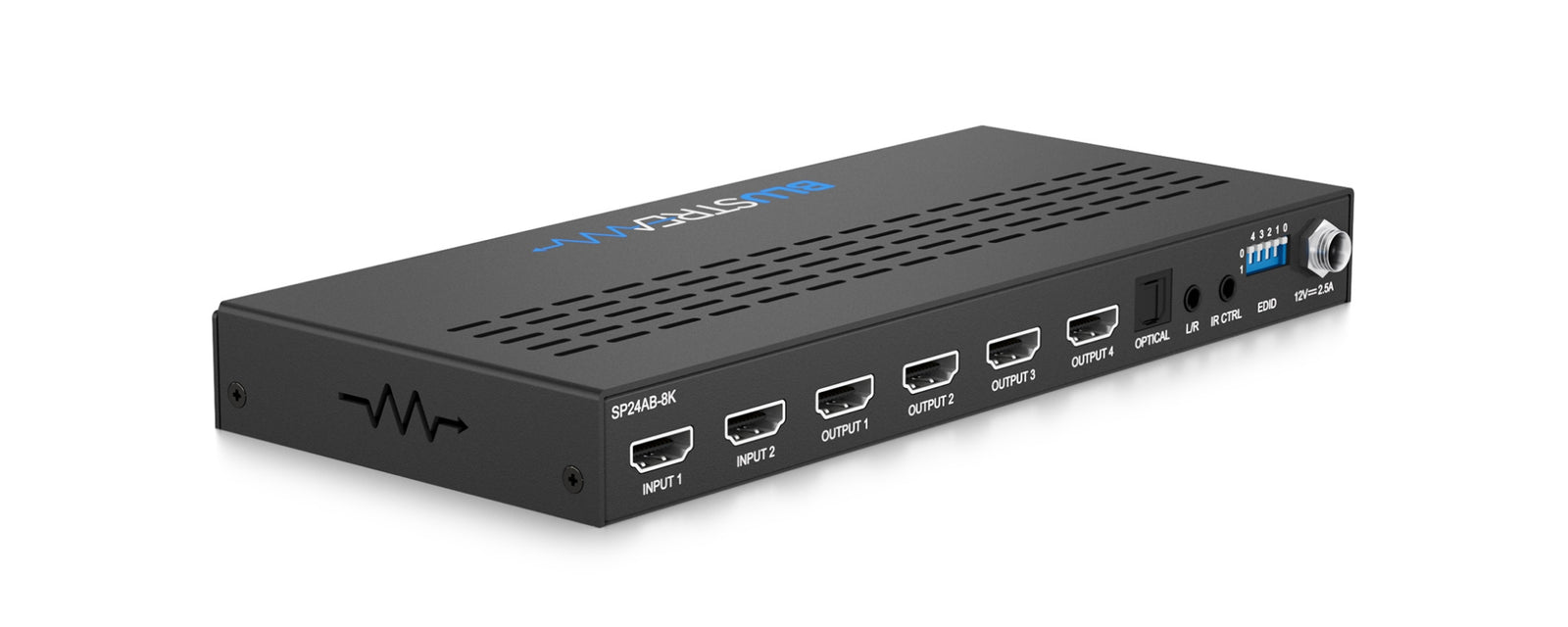

| Feature | Specification |
|---|---|
| Video Input Connectors | 2 x HDMI Type A, female |
| Video Output Connectors | 4 x HDMI Type A, Female RJ45 connector |
| Audio Output Connectors | 1 x Analogue L/R (3.5mm), 1 x Optical S/PDIF |
| IR Input Port | 1 x 3.5mm stereo jack |
| Upgrade Port | 1 x Micro USB connector |
| Casing Dimensions (WxDxH) | 212mm x 94mm x 23mm |
| Power Supply | 12v/2.5A DC connector |
| Box Dimensions (WxDxH) | 265mm x 135mm x 90mm |
| Shipping Weight | 1kg |
| Operating Temperature | 32°F to 104°F (0°C to +40°C) |
| Storage Temperature | -4°F to 140°F (-20°C to +60°C) |
| Description | Downloads |
|---|---|
| Datasheet | Downloads |
