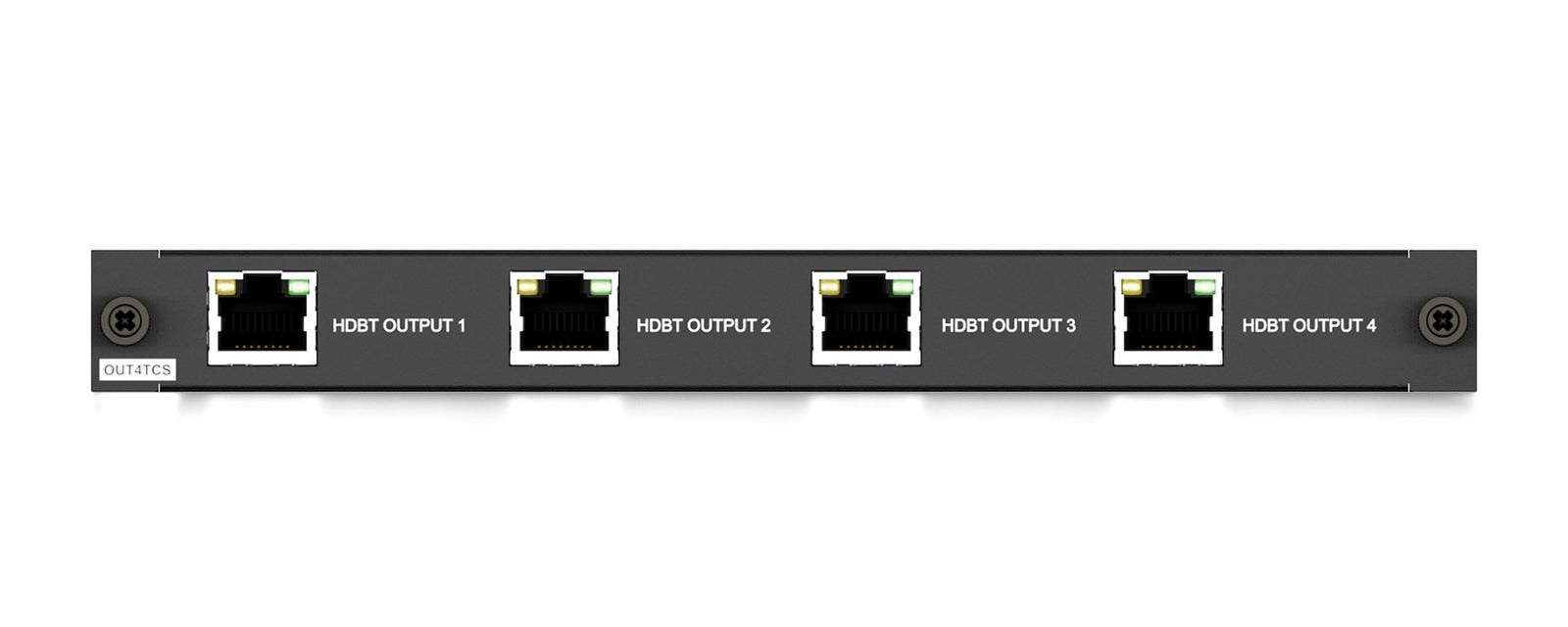

BluStream 4-Way HDBaseT™ CSC Output Board - 4K HDR up to 70m | PRO-OUT4TCS

The PRO-OUT4TCS output board offers 4 x independent HDBaseT™ outputs utilising CSC technology allowing support of HDMI 2.0 4K 60Hz 4:4:4 (18Gbps) HDCP 2.2 signal distribution up to lengths of 70m (1080p to 100m).

The PRO-OUT4TCS features independent down-scaling of 4K video inputs on the CSC HDBaseT™ outputs to allow displays only capable of supporting lower video resolutions to receive 4K video while still showing maximum original 4K UHD resolution on the higher-definition displays.

The PRO-OUT4TCS also features quick release card module fittings allowing simple installation into the Custom Pro Matrix hub.

Key Features
• Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable

• Features 4 x HDBaseT™ outputs for connection to compatible HDBaseT™ receivers

• Advanced Colour Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR support

• Supports 4K 60Hz 4:4:4 UHD video up to 70m*

• Independent down-scaling of video input resolutions up to 4K 60Hz 4:4:4 to the following formats:
   - 1080p 60Hz (for screens that do not support 4K)
   - 4K 60Hz 4:2:0 (for screens that do not support full 4K 60Hz 4:4:4)

• Extends HDMI 1080p video up to 100m

• Supports all known HDMI audio formats including Dolby TrueHD, Atmos and DTS-HD Master Audio transmission

• Supports PoC to power Blustream HDBaseT™ receivers

• Quick release card module fittings allowing simple population of input and output cards in Custom Pro Matrix Hub

• HDCP 2.2 Support

• To be used with the HEX100CS-RX receivers

*For HDMI 2.0 18Gbps video distribution the PRO-OUT4TCS must be used with a HDMI 2.0 18Gbps Custom Pro input board
