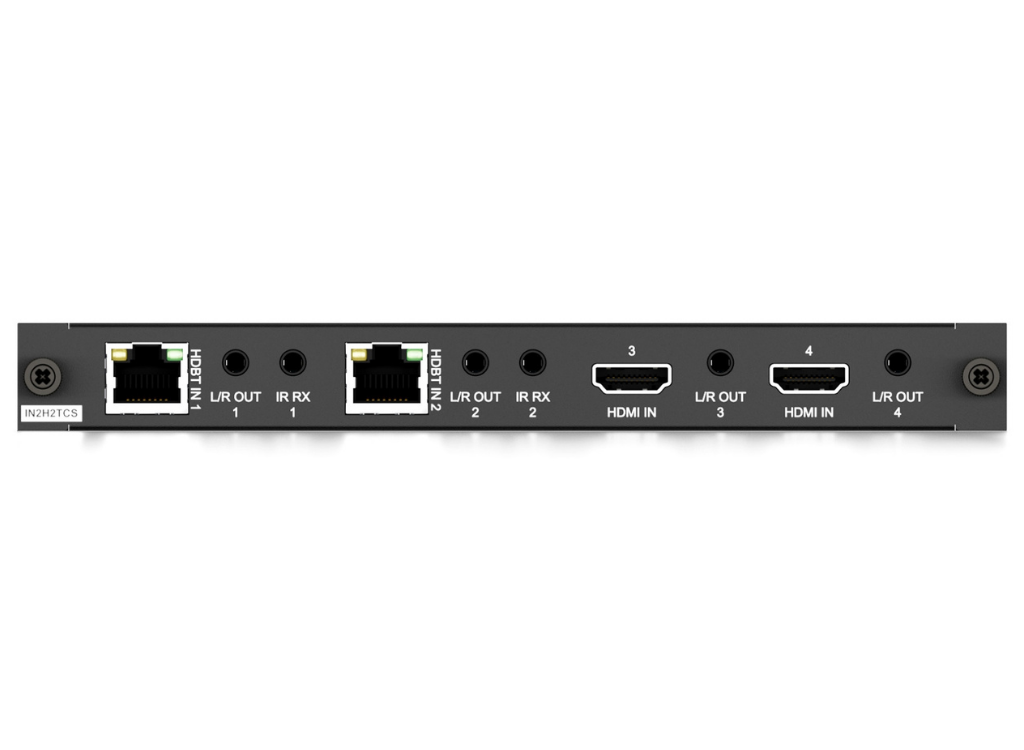

The PRO-IN2H2TCS board features 2 x HDBaseT™ and 2 x HDMI 2.0 inputs utilising CSC technology allowing support of HDMI 2.0 4K 60Hz 4:4:4 (18Gbps) HDCP 2.2 signal distribution up to lengths of 100m (4K 70m). The four sources can be independently routed to any HDMI / HDBaseT™ output board. The HDBaseT™ inputs include IR distribution to allow source control at each connected HDBaseT™ Transmitter. Each source input includes an independent fixed level 2ch analogue audio breakout and features quick release card module fittings allowing simple installation into the Custom Pro Matrix hub.
Key Features
• Features 2 x HDMI and 2 x HDBaseT™ inputs which can be independently routed to video output cards
• HDMI and HDBaseT™ inputs support HDMI 2.0 18Gbps specification including up to 4K UHD 60Hz 4:4:4 and HDR resolutions*
• HDBaseT™ inputs support signal distribution up to a distance of 100m @ 1080p (4K 60Hz 4:4:4 UHD @ 70m) when used with a compatible Blustream CSC Transmitter**
• Supports all known HDMI audio formats including Dolby TrueHD, Atmos and DTS-HD Master Audio transmission
• Each HDMI / HDBaseT™ input includes an independent fixed level 2ch analogue audio breakout allowing connection to a local third party audio solution (supports 2ch PCM)
• HDBaseT™ inputs include IR distribution to allow source control at each connected HDBaseT™ Transmitter
• Quick release card module fittings allowing simple population of input and output cards in Custom Pro Matrix Hub
• HDCP 2.2 Support
*Full 4K 60Hz 4:4:4 support is subject to input / output boards specified. For HDMI 2.0 18Gbps video distribution the PRO-IN2H2TCS must be used with a Blustream CSC based HDBaseT™ Transmitter
**The PRO-IN2H2TCS does not support PoC (Power over Cable) to connected Blustream HDBaseT™ Transmitter units. A separate power supply unit must be specified
| Feature | Specification |
|---|---|
| Video Input Connectors | 2 x HDMI Type A, 19-pin, female, 2 x HDBaseT™ RJ45 |
| Audio Output Connectors | 4 x Analogue Left/Right audio (3.5mm stereo jack) |
| IR Input Ports | 2 x 3.5mm stereo jack |
| Card Dimensions (W x H x D) | 170mm x 22mm x 182mm |
| Dimensions Including Connections (W x H x D) | 190mm x 22mm x 188mm |
| Shipping Weight | 0.5kg |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Storage Temperature | -4°F to 140°F (-20°C to 60°C) |
