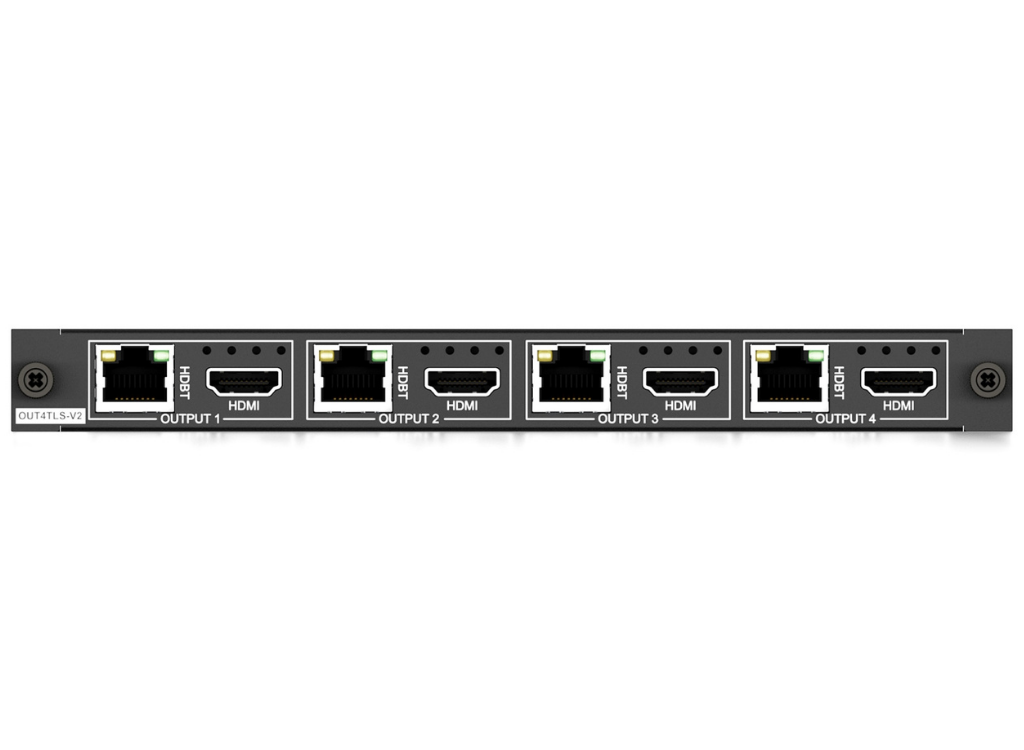

BluStream 4-Way HDMI / HDBaseT™ CSC Output Board - 4K HDR up to 40m | PRO-OUT4TLS-V2
The PRO-OUT4TLS-V2 output board offers 4 x dual HDBaseT™ outputs for connection to a HDBaseT™ receiver and HDMI display per zone.
The PRO-OUT4TLS-V2 utilises CSC technology allowing support of HDMI 2.0 4K 60Hz 4:4:4 (18Gbps) HDCP 2.2 signal distribution up to lengths of 40m (1080p to 70m).
The PRO-OUT4TLS-V2 features independent down-scaling of 4K video inputs on the CSC HDBaseT™ outputs to allow displays only capable of supporting lower video resolutions to receive 4K video while still showing maximum original 4K UHD resolution on the higher-definition displays.
The PRO-OUT4TLS-V2 also features quick release card module fittings allowing simple installation into the Custom Pro Matrix hub.
Key Features
• Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
• Features 4 x simultaneous HDMI / HDBaseT™ outputs for connection to HDMI displays and HDBaseT™ receivers
• Advanced Colour Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR support
• Supports 4K 60Hz 4:4:4 UHD video up to 40m*
• Independent down-scaling of video input resolutions up to 4K 60Hz 4:4:4 to the following formats:
- 1080p 60Hz (for screens that do not support 4K)
- 4K 60Hz 4:2:0 (for screens that do not support full 4K 60Hz 4:4:4)
• Extends HDMI 1080p video up to 70m
• Supports all known HDMI audio formats including Dolby TrueHD, Atmos and DTS-HD Master Audio transmission
• Supports PoC to power Blustream HDBaseT™ receivers
• Quick release card module fittings allowing simple population of input and output cards in Custom Pro Matrix Hub
• HDCP 2.2 Support
• To be used with the HEX70CS-RX receivers
*For HDMI 2.0 18Gbps video distribution the PRO-OUT4TLS-V2 must be used with a HDMI 2.0 18Gbps Custom Pro input board
| Feature | Specification |
|---|---|
| Video Output Connectors | 4 x HDMI Type A, 19-pin, female; 4 x HDBaseT™ RJ45 |
| Card Dimensions (W x H x D) | 182mm x 22mm x 177mm |
| Dimensions Including Connections (W x H x D) | 202mm x 22mm x 188mm |
| Shipping Weight | 0.5kg |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Storage Temperature | -4°F to 140°F (-20°C to 60°C) |
