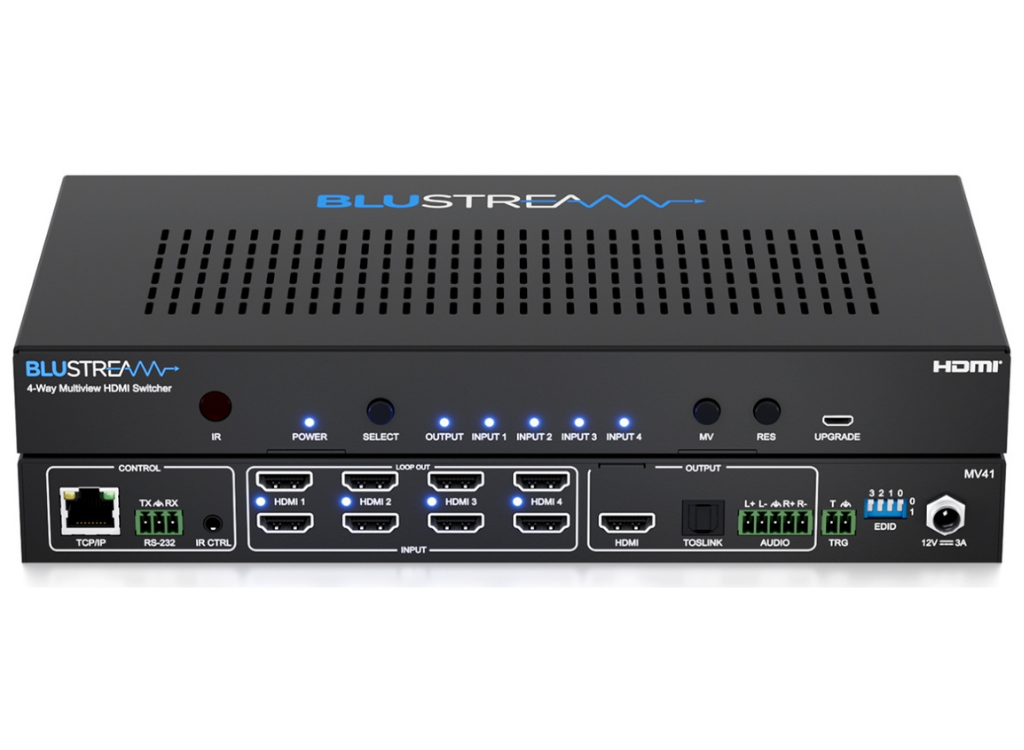

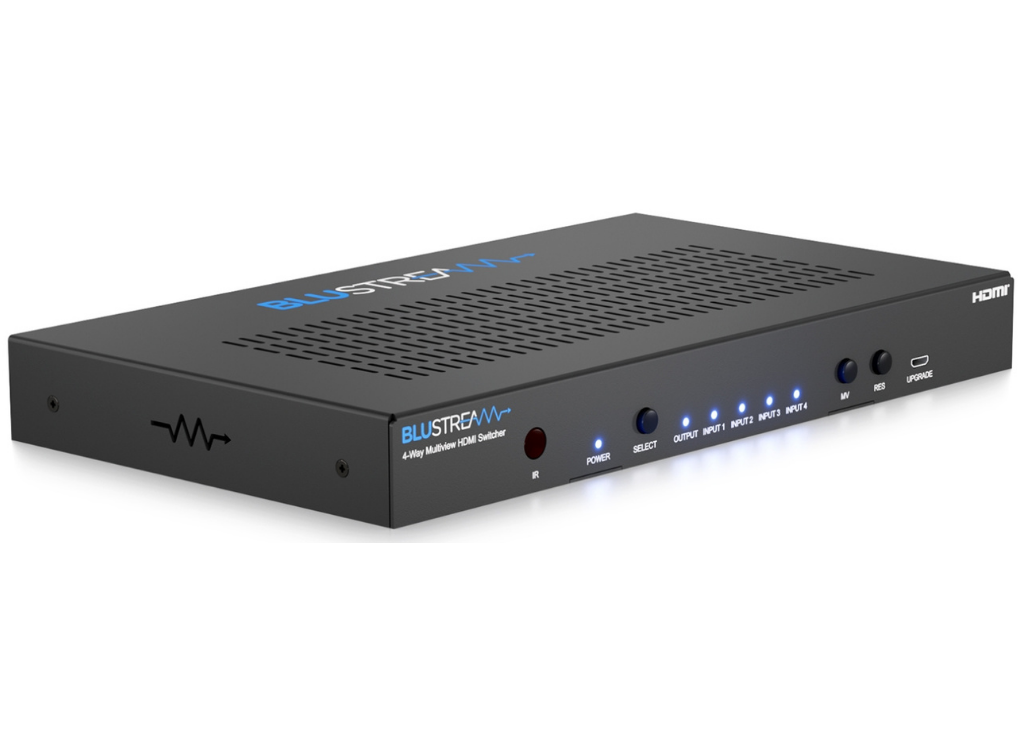

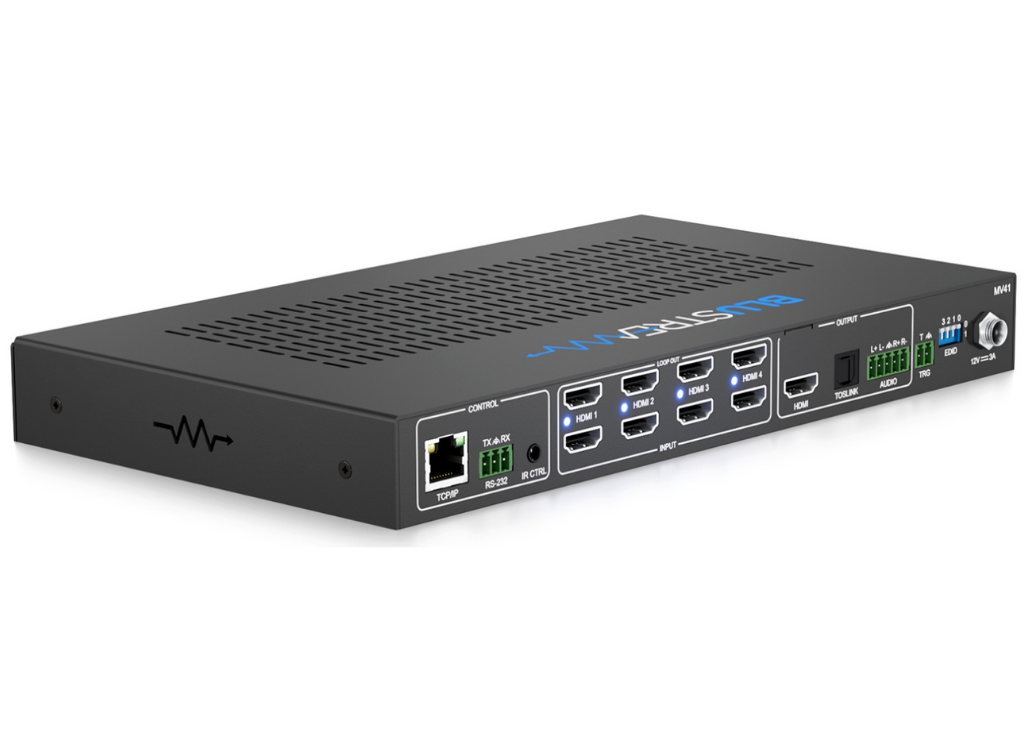

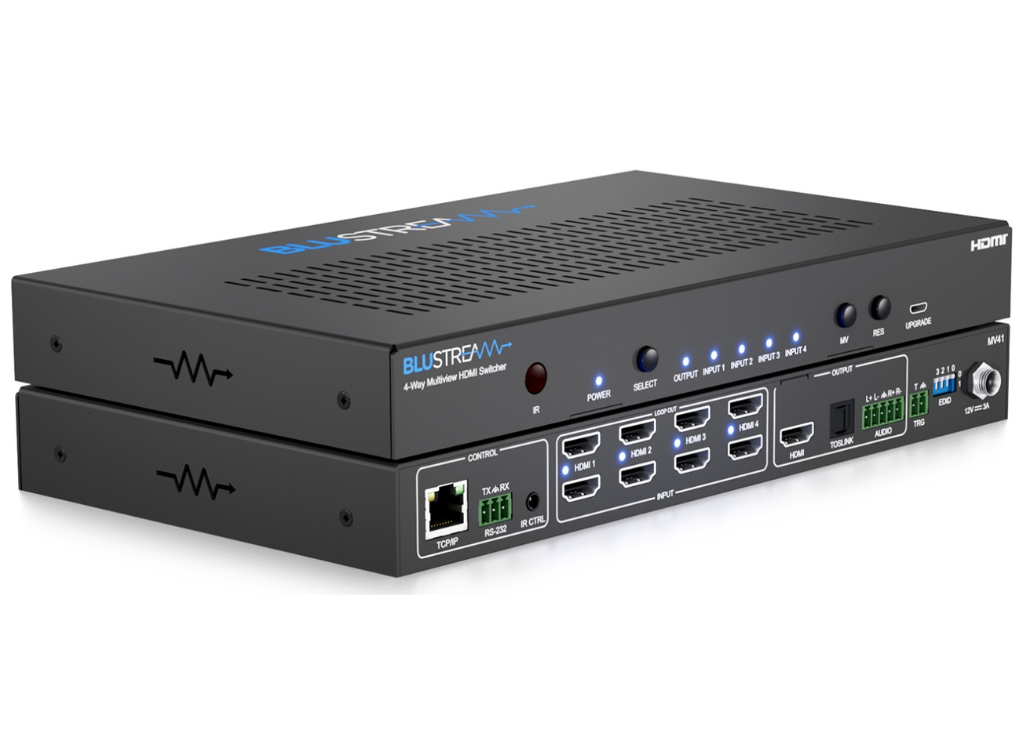

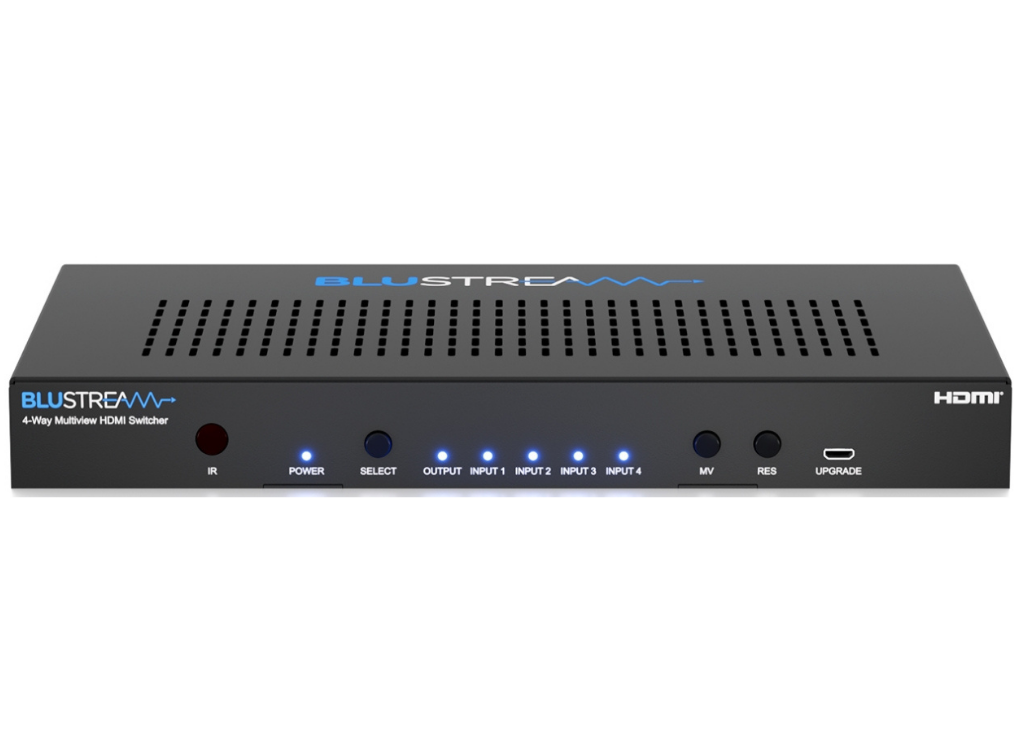

BluStream 4-Way Multiview HDMI Switcher | MV41
Our MV41 is an advanced 4x1 HDMI multi-view switcher. The MV41 allows up to 4x HDMI2.0 sources to be output to a single display at the same time, with pre-defined and customisable video layouts, and seamless switching. The MV41 also supports HDMI loop-through for all HDMI inputs allowing cascading of original source signals for further distribution.
The MV41 features 2ch PCM and Optical S/PDIF audio breakout, with third party control achievable from the web-GUI, TCP/IP, RS-232, IR remote control, of from the front panel buttons.
The multiple configuration and connectivity options make the MV41 suitable for both residential and commercial installations
Key Features
• Advanced 4x HDMI input switch with multi-view HDMI output
• Features 4x HDMI loop out for integrating local displays or cascading to multiple devices
• Supports PIP, PBP, POP, Dual, Triple and Quad-windows layouts with pre-defined and customisable configurations
• Supports video down-scaling and HDR to SDR conversion on HDMI multiview output
• Supports HDMI2.0 4K UHD 60Hz 4:4:4 18Gbps specification including HDR
• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
• Supports all known HDMI audio formats including Dolby Atmos, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission
• HDMI audio breakout to analogue L/R audio, and optical digital outputs concurrently
• Analogue L/R audio outputs support both balanced and unbalanced audio signals
• Control via front panel, IR, RS-232, TCP/IP, web-GUI and 12V trigger
• Supplied with Blustream 5V IR receiver and remote control
• 3rd party drivers available for all major control brands
• HDCP2.3 compliant with advanced EDID management
Box Contents
1 x MV41
1 x IR receiver
1 x IR remote control
1 x 5-pin phoenix connector
1 x 3-pin phoenix connector
1 x 2-pin phoenix connector
1 x 19” rack mounting kit
1 x Quick reference guide
1 x 12V/3A DC power supply
-
Feature |
Specification |

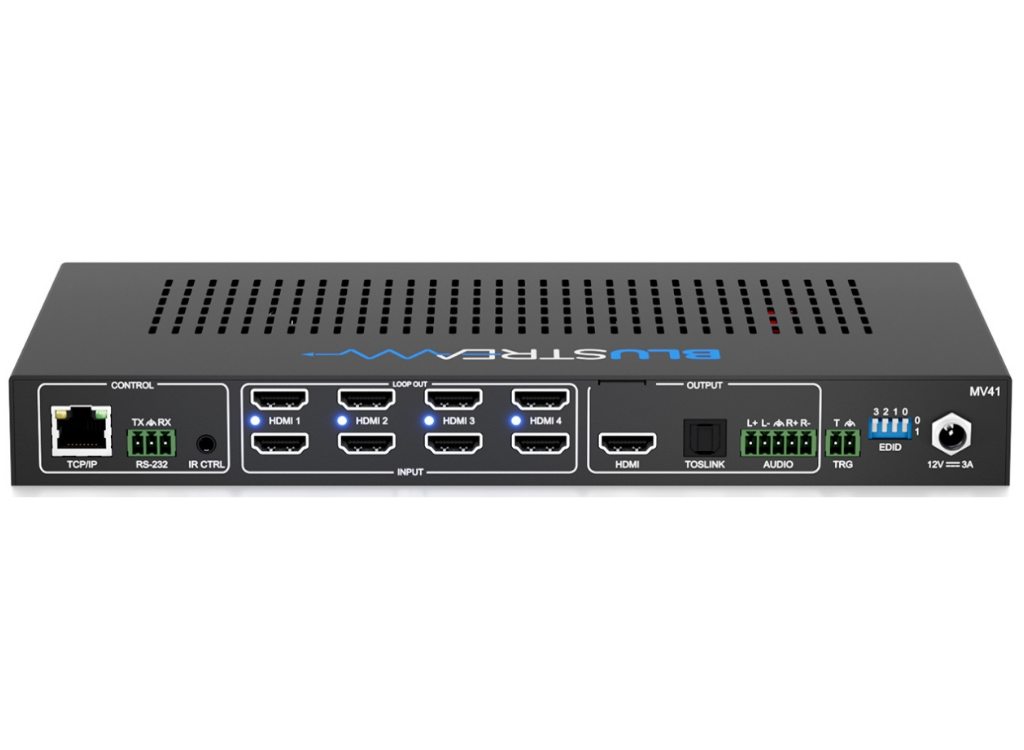

Video Input Connectors |
4 x HDMI Type A, 19-pin, female |
Video Output Connectors |
5 x HDMI Type A, 19-pin, female |
Audio Output Connectors |
1 x Optical (S/PDIF), 1 x 5-pin Phoenix connector |
TCP/IP Control |
1 x RJ45, female |
RS-232 Port |
1 x 3-pin Phoenix connector |
12V Trigger Port |
1 x 2-pin Phoenix connector |
IR Input Ports |
1 x 3.5mm stereo jack |
Firmware Upgrade |
1 x Micro-USB UART port |
Dimensions (W x D x H) |
265mm x 152mm x 30mm |
Shipping Weight |
1.5kg |
Operating Temperature |
32°F to 104°F (0°C to 40°C) |
Storage Temperature |
-4°F to 140°F (-20°C to 60°C) |
Power Supply |
12V/3A DC, screw connector |
-
