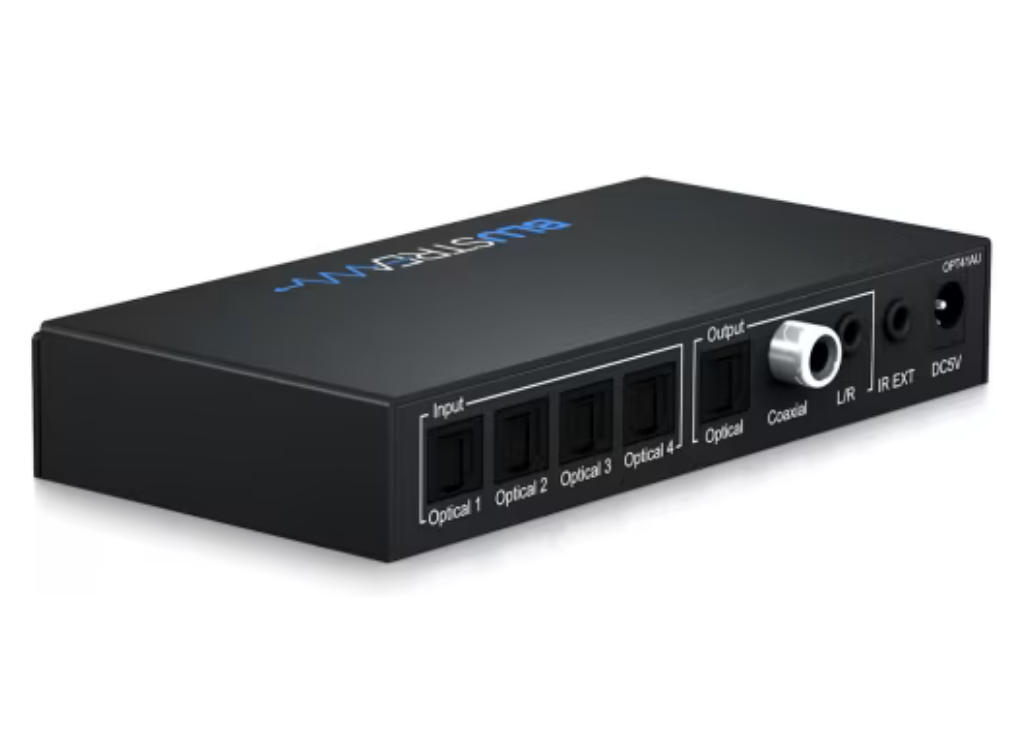

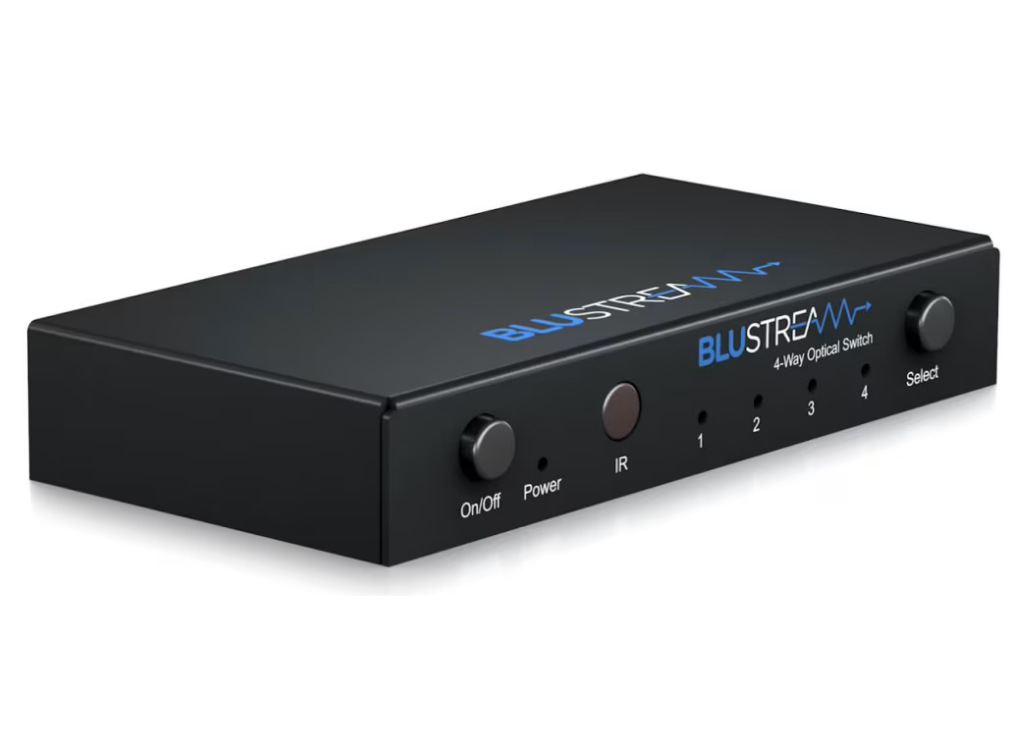

Our OPT41AU is an advanced 4-way optical audio switch. Perfect for the integration of multiple audio sources with a sound bar.
The OPT41AU also has a built in DAC and simultaneous digital and analogue stereo audio outputs.
The OPT41AU supports 192kHz sample rates and up to 24-bit resolution for enhanced sound reproduction.
Key Features
• Features 4 x optical S/PDIF digital inputs which can be switched to single optical output
• DAC (Digital to Analogue Audio Converter) converts selected optical digital to analogue left / right stereo audio output
• Built-in digital audio converter converts selected optical audio input to coaxial digital output
• Outputs optical digital, coaxial digital and analogue left / right stereo audio concurrently
• Supports sample rates 32kHz, 44.1kHz, 48kHz, 96kHz & 192kHz up to 24-bit resolution
• Supports LPCM, DTS, Dolby Digital and Dolby Digital plus when used as a straight digital in / digital out switcher
• Ultra low jitter and high fidelity design

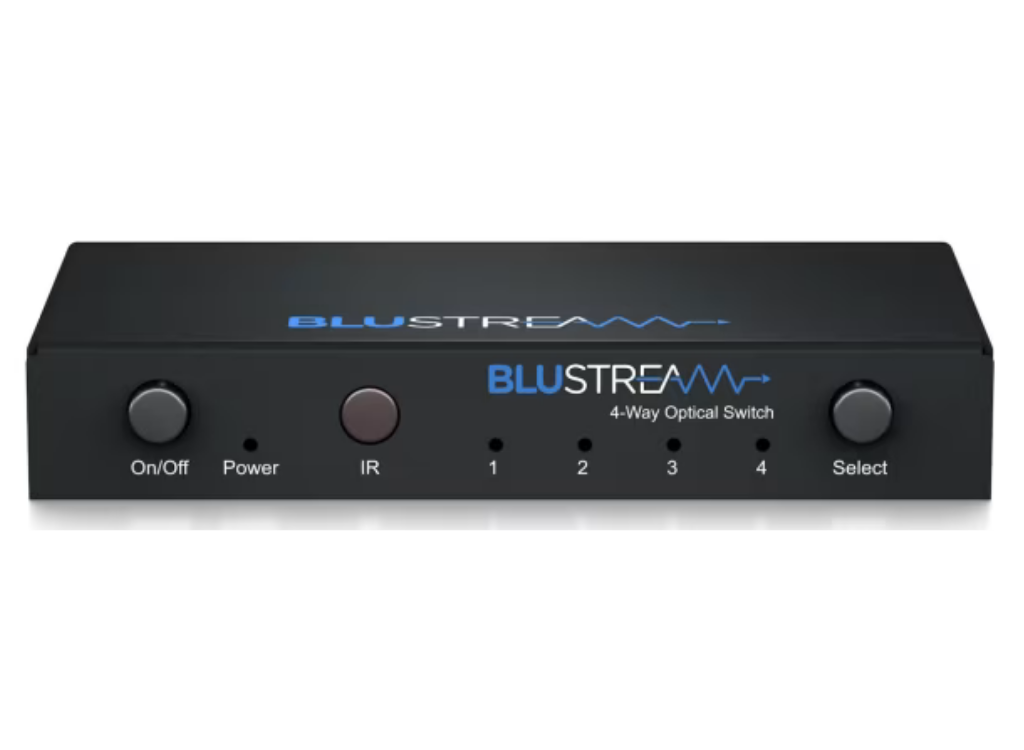

• Input selection button on front panel to toggle between optical inputs
• IR receiver on front panel to switch inputs and turn on / off audio outputs using supplied IR remote
• External IR input can be used to extend IR with Blustream IR receiver cable
Box Contents
1 x OPT41AU
1 x IR Remote Control
1 x 5V/1A DC Power Supply
1 x Mounting Kit
1 x User Manual

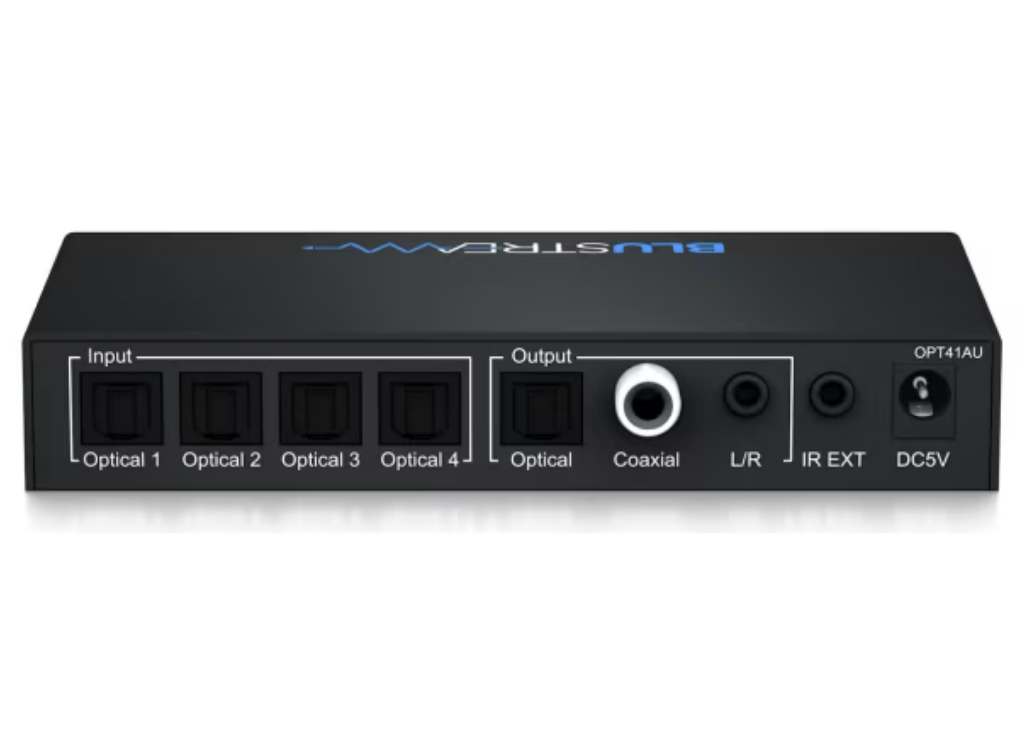

| Feature | Specification |
|---|---|
| Audio Input Connectors | 4 x Optical (S/PDIF) |
| Output Connectors | 1 x Optical, 1 x RCA (S/PDIF), 1 x Analog L/R |
| IR Input Ports | 1 x 3.5mm stereo jack |
| Product Dimensions (with) | 140 x 80 x 25 mm |
| Product Dimensions (without) | 140 x 70 x 25 mm |
| Product Weight | 0.25 kg |
| Box Dimensions | 210 x 125 x 90 mm |
| Shipping Weight | 0.5 kg |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Storage Temperature | -4°F to 140°F (-20°C to 60°C) |
| Power Supply | 5V/1A DC, screw type connector |
| Mounting Kit | Included |
| Description | Downloads |
|---|---|
| Datasheet | Downloads |
| Manual | Downloads |
