The Blustream IP510UHD Simultaneous Transceiver is an SDVoE compliant AV over IP solution that provides the highest-quality, uncompromised 4K, with zero latency audio/video extension over copper or optical fibre 10G network. The IP510UHD-TZ includes support for HDMI 2.0 including distribution of HDR (High Dynamic Range), 10/12-bit colour content, and multi-channel HD audio signals.
The IP510UHD-TZ provides advanced features including PoE+ and transmission of multiple control and data signals alongside audio and video, including IR, RS-232, USB 1.1 (KVM) and 1Gb Ethernet.
The IP510UHD-TZ is ideal for 18Gbps HDMI installations where multiple transceivers can be combined with one or more 10GbE copper / fibre switches to form a distributed video matrix, multi-viewer, or video wall system.
Features
Advanced 18Gbps UHD Video over 10Gb network with visually lossless compression, and zero latency
Supports HDMI 2.0 18Gbps specification with pass-through for up to 4K 60Hz 4:4:4 and 10/12-bit HDR sources,
including Dolby Vision
Supports video scaling and seamless switching
Supports all known HDMI audio formats including Dolby Atmos, Dolby TrueHD, Dolby Digital Plus and DTS-HD
Master Audio transmission
Features 4 operational modes:
Matrix distribution (requires 10Gb network switch)
Video Wall (requires 10Gb network switch)
Multiview mode (requires 10Gb network switch)
One-to-one HDMI extender (no network switch required)
Supports fixed signal routing function for IR, RS-232, CEC and USB
USB 1.1 end to end/point to point pass-through for KVM
Analogue L/R audio embedding and audio breakout (balanced and unbalanced)
Bi-directional 10/100/1000BaseT Ethernet pass-through
Supports bi-directional 5V or 12V IR pass-through
PoE (Power over Ethernet) to power Blustream products from PoE+ switch
HDCP 2.2 compliant with advanced EDID management
Local 12V 2A power supply (should Ethernet switch not support PoE+)
| Specification | Details |
|---|---|

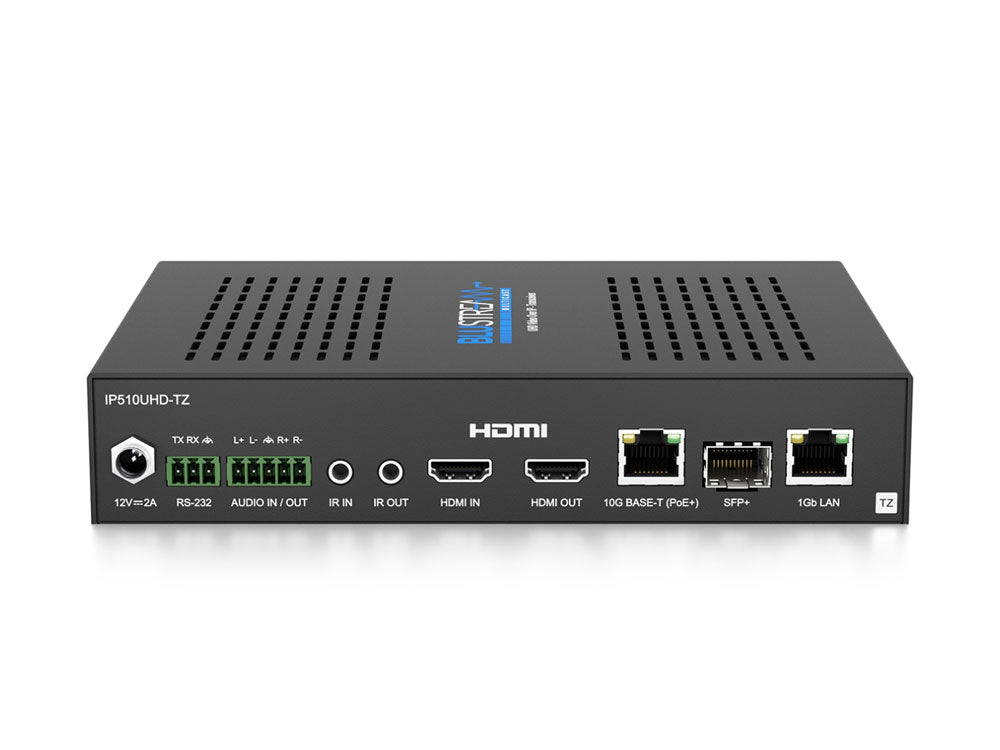

| Video Input | 1 x HDMI Type A, female |
| Video Output | 1 x HDMI Type A, female |
| Audio Input/Output | 1 x 5-pin Phoenix connector |
| Ethernet Port | 1 x 10GBaseT RJ45 Video network, 1 x SFP+ module video network, 1 x 1Gb LAN RJ45 pass-through |
| RS-232 Serial Port | 1 x 3-pin Phoenix connector |
| USB/KVM Port | 1 x USB-Type B (host), 2 x USB-Type A (device) |
| IR Input | 1 x 3.5mm stereo jack |
| IR Output | 1 x 3.5mm mono jack |
| Dimensions (W x D x H) | 195mm x 153mm x 37mm |
| Dimensions with Connections (W x D x H) | 191mm x 160mm x 37mm, without feet |
| Shipping Weight (Kit) | 1.05kg |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Storage Temperature | -4°F to 140°F (-20°C to 60°C) |
| Operating Altitude | < 2,000m |
| Description | Downloads |
|---|---|
| BluStream 4K 60Hz 4:4:4 SDVoE Simultaneous Transceiver Over 10Gb Managed Network | IP510UHD-TZ DataSheet | Downloads |
