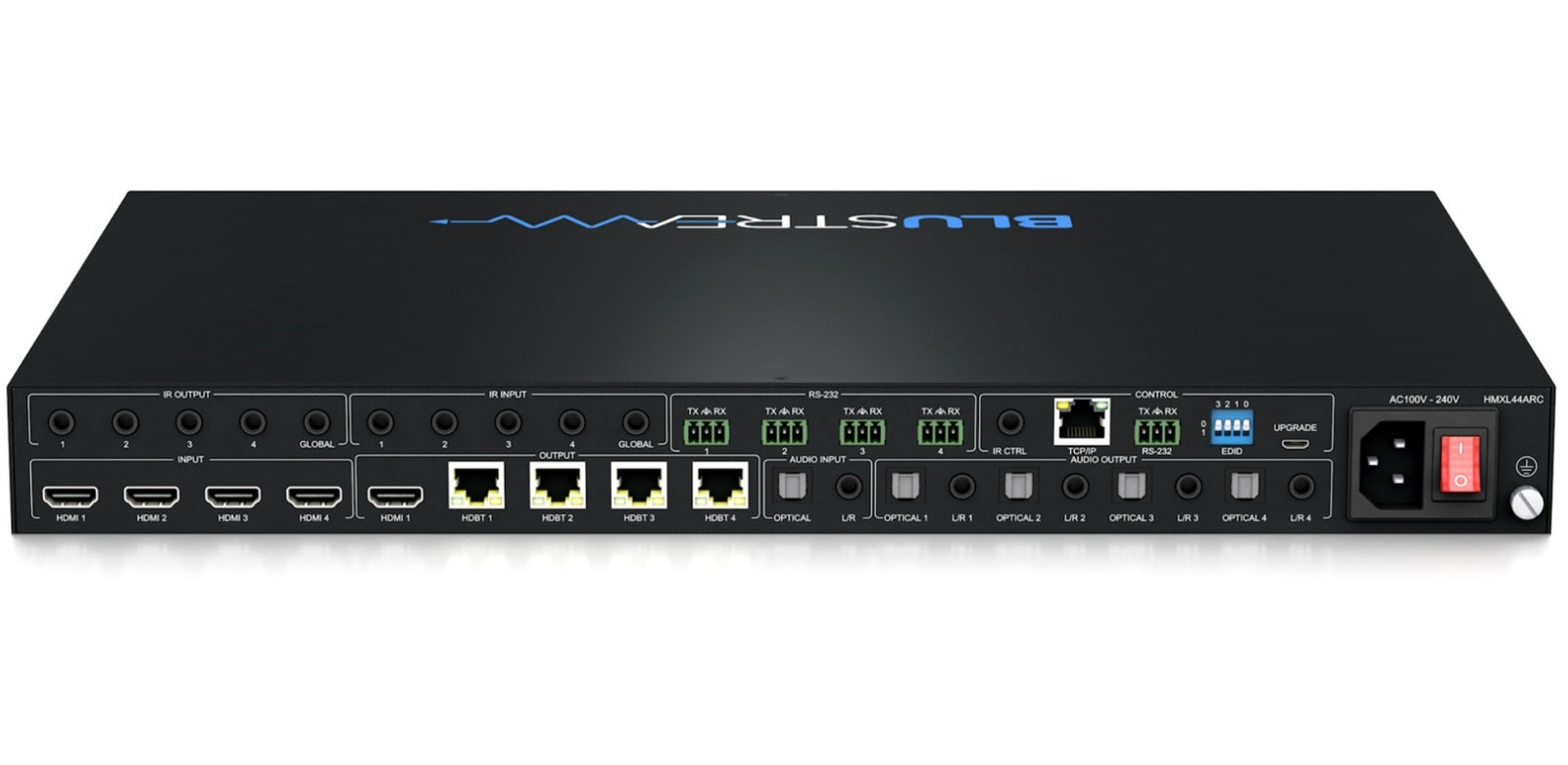

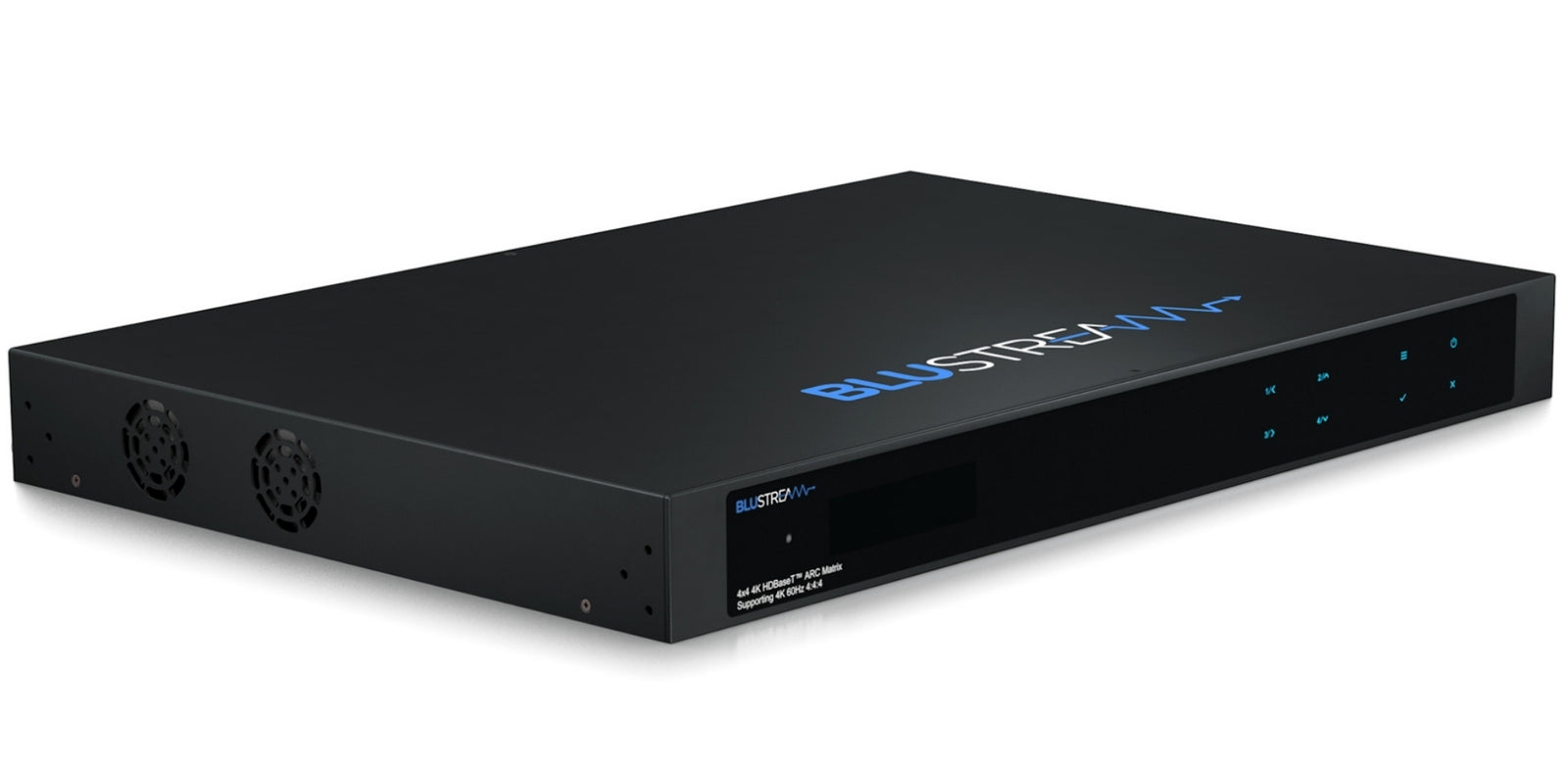

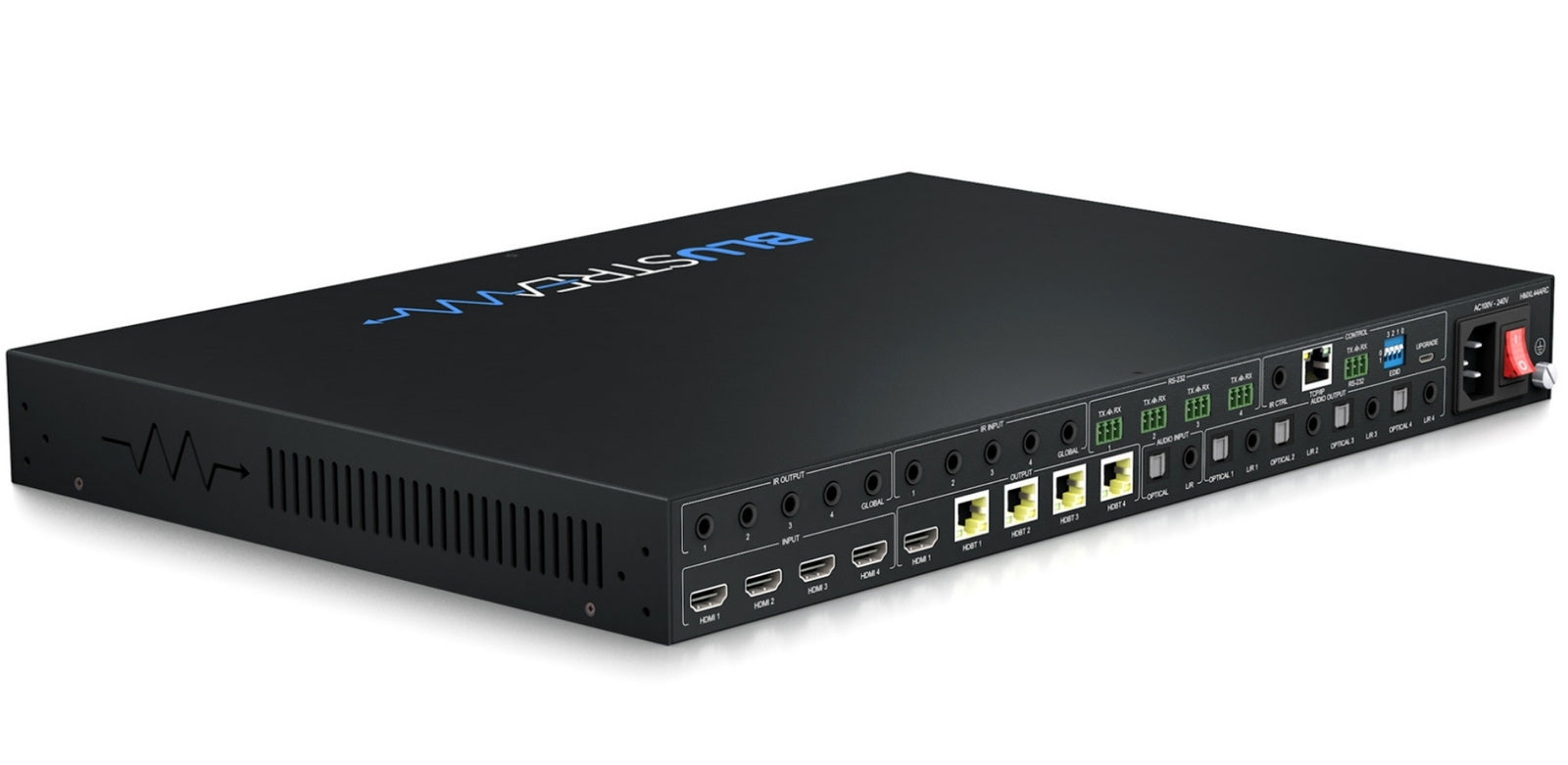

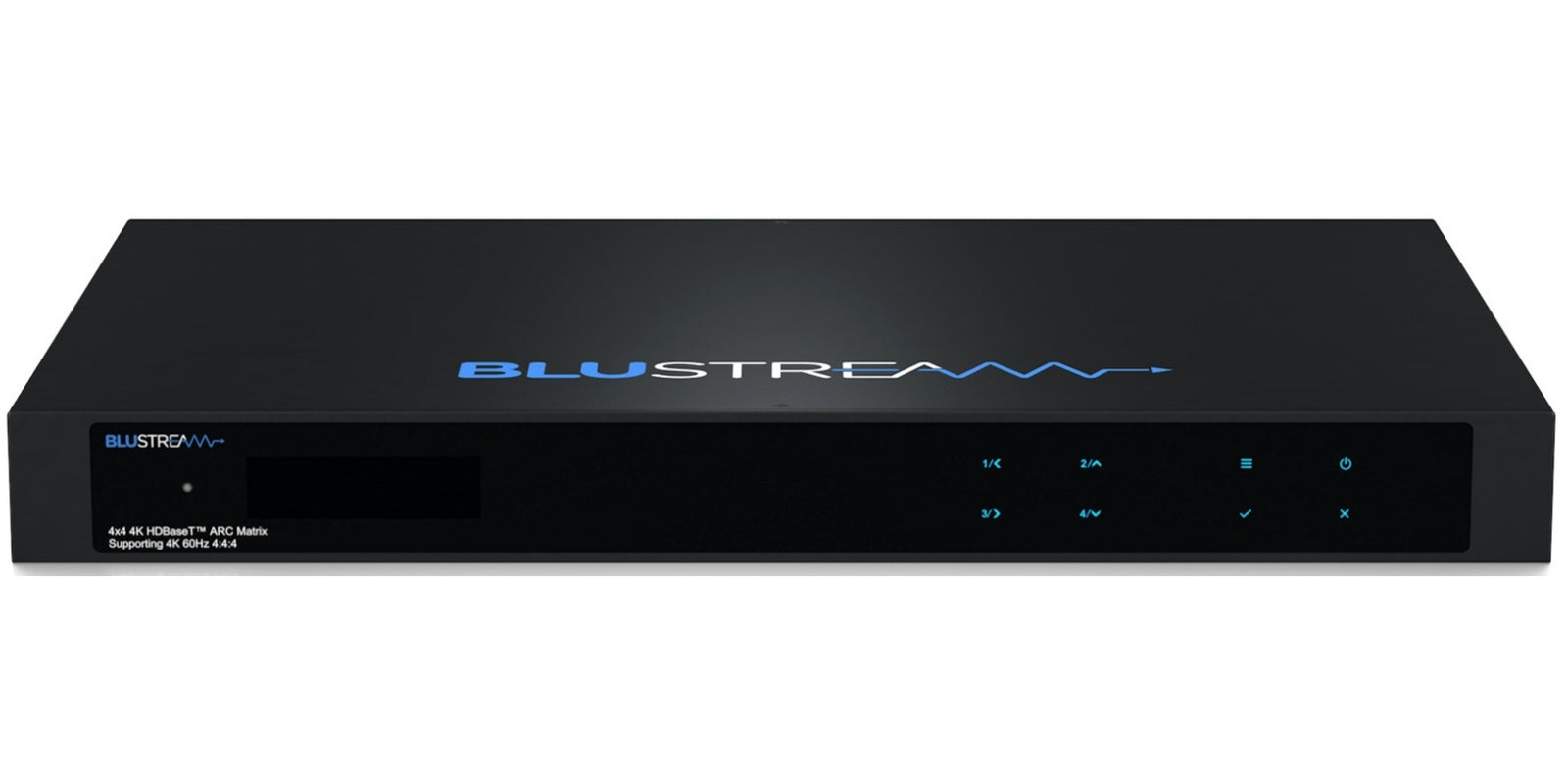

BluStream 4K 60Hz 4x4 HDBaseT™ AV Matrix Kit | HMXL44ARC-KIT

BluStream 4K 60Hz 4x4 HDBaseT™ AV Matrix Kit | HMXL44ARC-KIT

Our Essential 4x4 HDBaseT™ Matrix offers unprecedented performance and value for the custom installation market. The HMXL44ARC is a HDMI2.0 4K60Hz 4:4:4 HDCP2.2 Matrix package utilising CSC technology to deliver HDMI, Bi-directional IR and PoC up to lengths of 70m (at 1080p) over a single CAT cable.

The Matrix also provides advanced features including simultaneous HDBaseT™/HDMI on output 1, video Smart Scaling on HDBaseT outputs and independent 14x4 audio matrix including Audio Return Channel (ARC). The HMXL44ARC includes in-built web browser interface module for control and configuration of the Matrix and RS-232 and IR pass through to enable seamless 3rd party control integration.


Key Features
Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
 Advanced Colour Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR*
 Features 4 x HDMI inputs which can be independently routed to 4 x HDBaseT™ outputs
 Output 1 features simultaneous HDMI and HDBaseT™ output
 Video Smart Scaling on HDBaseT™ outputs allowing a display only capable of supporting lower video resolutions (4K 60Hz 4:2:0 or 1080p) to receive 4K 60Hz 4:4:4 video content while still showing maximum original 4K • UHD resolution on remaining video outputs
Supports 4K 60Hz 4:4:4 UHD video up to 40m and 1080p video up to 70m
 14x4 Audio Matrix independently controllable from video. Audio source inputs include:
    4x audio breakout from HDMI source inputs
    4x audio breakout from zone outputs
    4x ARC from zone outputs
    1x Optical and 1x Analogue audio input
 Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
 Web interface module for control and configuration of matrix
 Supports bi-directional IR and RS-232 on all HDBaseT™ outputs
 Control via front panel, IR, iOS / Android App, RS-232 and TCP/IP
 Supports PoC (Power over Cable) to power compatible HDBaseT™ receivers
 Supplied with Blustream IR receivers and emitters
 Advanced EDID management and HDCP 2.2 compliant
 Supplied with 4x RX70CS HDBaseT Receivers

Box Contents
1 x HMXL44ARC
4 x RX70CS
1 x Rack mounting kit
1 x Remote control
4 x IR emitters
5 x IR receivers
1x Serial Cable - DB9 to 3-pin phoenix connector
1 x IR Control Cable - 3.5mm-3.5mm Cable
IEC Power Cable(s)
1 x Quick Reference Guide
