Our MFP72 is a multi-format presentation switcher with in-built video scaling, audio embedding / de-embedding, and advanced EDID management.
The MFP72 works in 2 modes, first as a 7 input dual output switcher (7:1 x 2), alternatively each output can work independently with Output 1 routing the 4 x HDMI inputs only (4:1 up to 4K) and Output 2 switching all 7 video/audio inputs (7:1 up to 1080p).

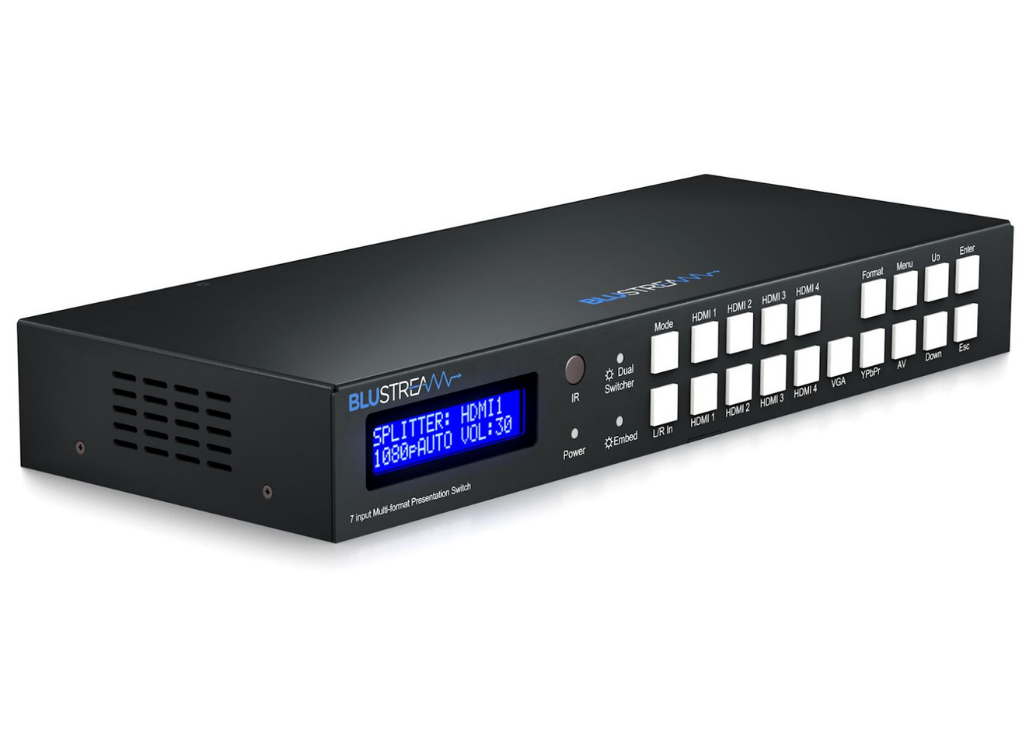

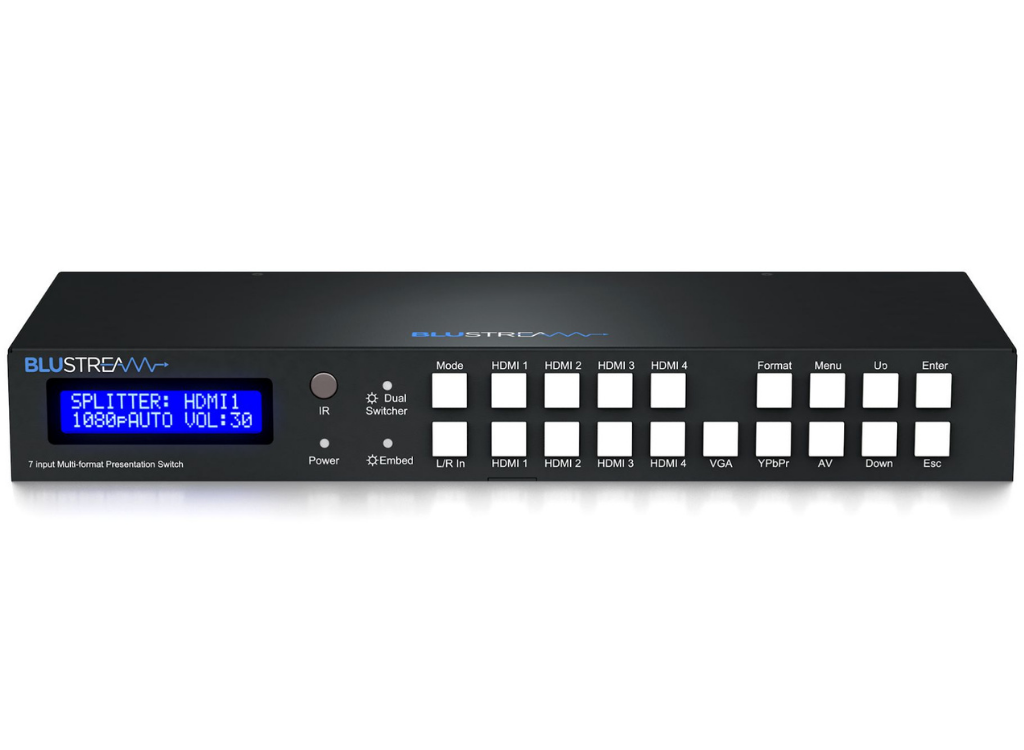

With control of the switcher using the front-panel push buttons, IR remote control or RS-232 interface it is an ideal solution for commercial installations.
Key Features
• Switcher can function in 2 modes:
- Splitter Mode - both HDMI outputs display the same image from any video input
- Switcher Mode - HDMI output 1 and 2 are independently controlled
• HDMI output 1 can view only HDMI inputs 1-4 (up to resolutions of 4K)
• HDMI output 2 can view all HDMI and analogue video inputs with associated audio (up to 1080p resolution)
• Built-in video scaling, both up-scaling and down-scaling capabilities
• Video inputs support industry standard video resolutions including VGA-WUXGA and 480i-4K (including 800x600 @60 & 75Hz)
• Scaled video output resolutions: 720p, 1080p, 1280x1024, 1024x768, 1360x768, 1440x900, 1680x1050
• Audio embedding - independent analogue L/R audio input can be embedded to HDMI outputs & Analogue L/R audio and Coaxial digital outputs concurrently (feature available for HDMI output 1 & 2 in 'Split mode', 'Switch mode' = HDMI output 2 only).
• HDMI audio breakout to Analogue L/R audio and Coaxial digital outputs concurrently (linked to output 2 in 'Switch mode')
• Volume control - controls volume output of HDMI, Analogue L/R audio and Coaxial digital outputs
• Supports 3D signal display
• Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master audio transmission
• Supplied with Blustream IR receiver and IR link cable
• Control via front panel, IR and RS-232
• 3rd Party drivers available for all major home control brands
• HDCP 1.4 compliant
Box Contents
1x MFP72
1x 5V/2A DC Power Supply
1x IR Remote Control
1x IR Receiver
1x IR control Cable - 3.5mm-3.5mm Cable (IRCAB)
1x Mounting Kit
1x User Manual

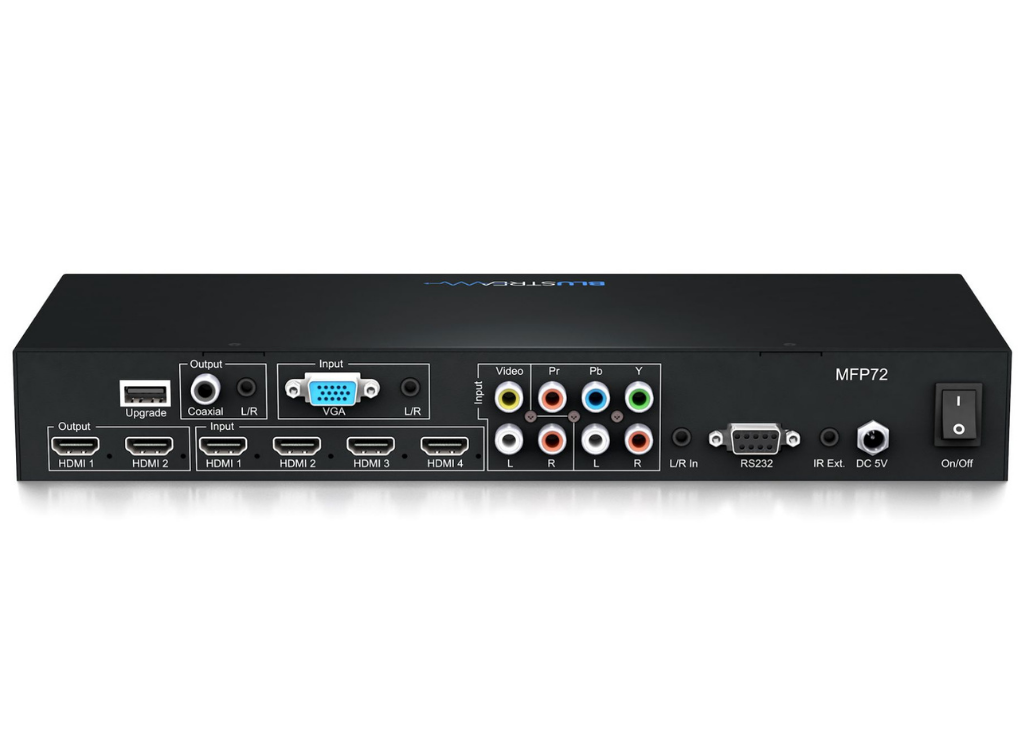

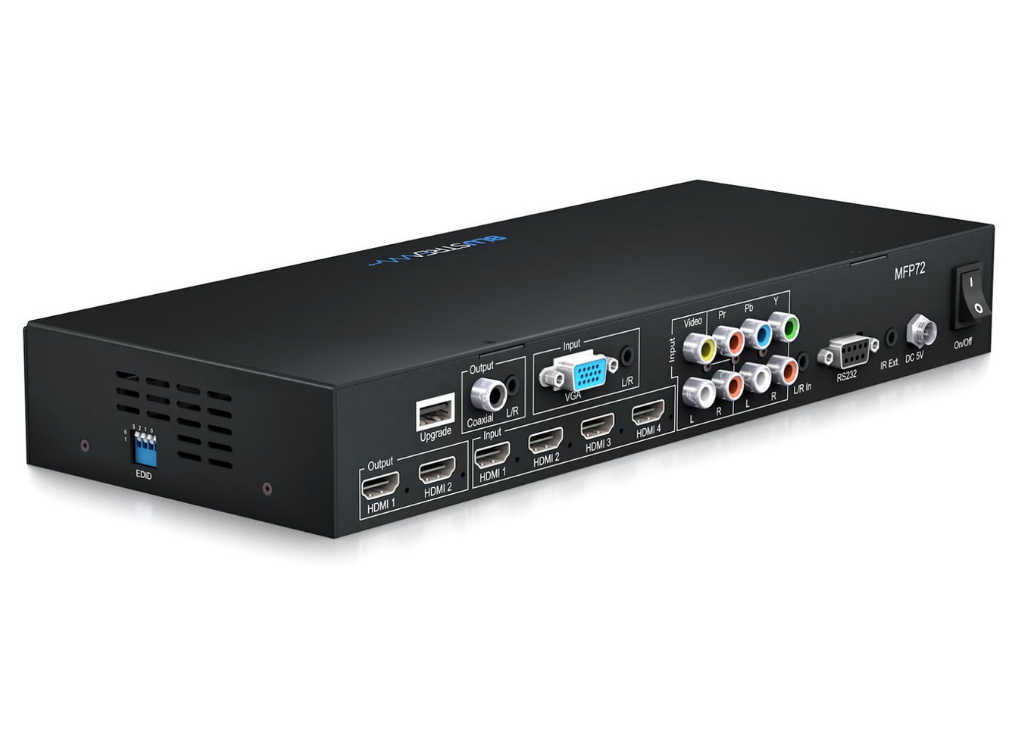

| Feature | Specification |
|---|---|
| Video Input Connectors | 4 x HDMI Type A, 1 x VGA, 1 x Composite, 1 x YPbPr |
| Video Output Connectors | 2 x HDMI Type A |
| Audio Input Connectors | 2 x 3.5mm stereo, 4 x RCA (2 x L/R) |
| Audio Output Connectors | 1 x 3.5mm stereo, 1 x S/PDIF Coaxial |
| RS-232 Serial Port | DB-9 connector |
| IR Input Ports | 1 x 3.5mm stereo jack |
| Casing Dimensions | 323mm x 45mm x 130mm, without feet |
| Dimensions Including Connections | 322mm x 45mm x 140mm |
| Shipping Weight | 1.5kg |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Storage Temperature | -4°F to 140°F (-20°C to 60°C) |
| Power Supply | 5V/2A DC |
