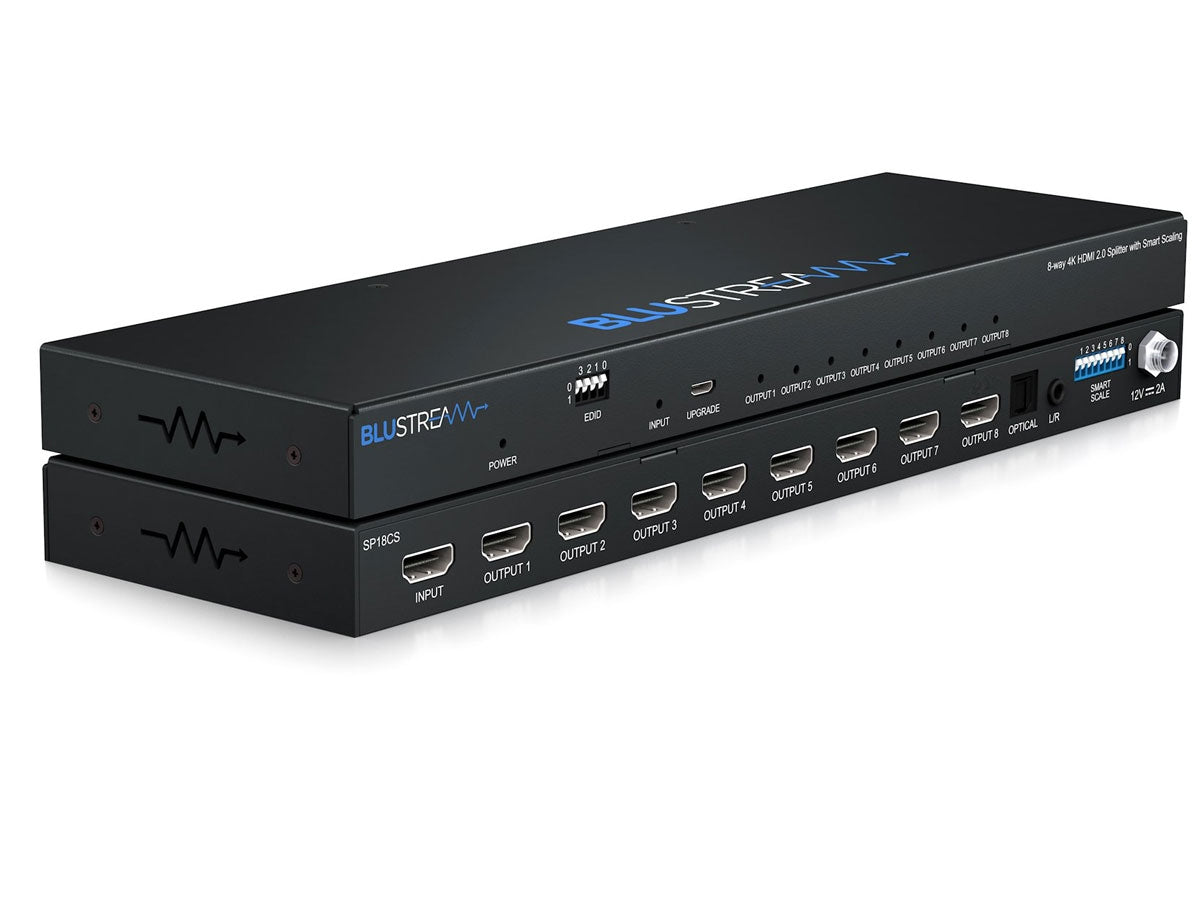

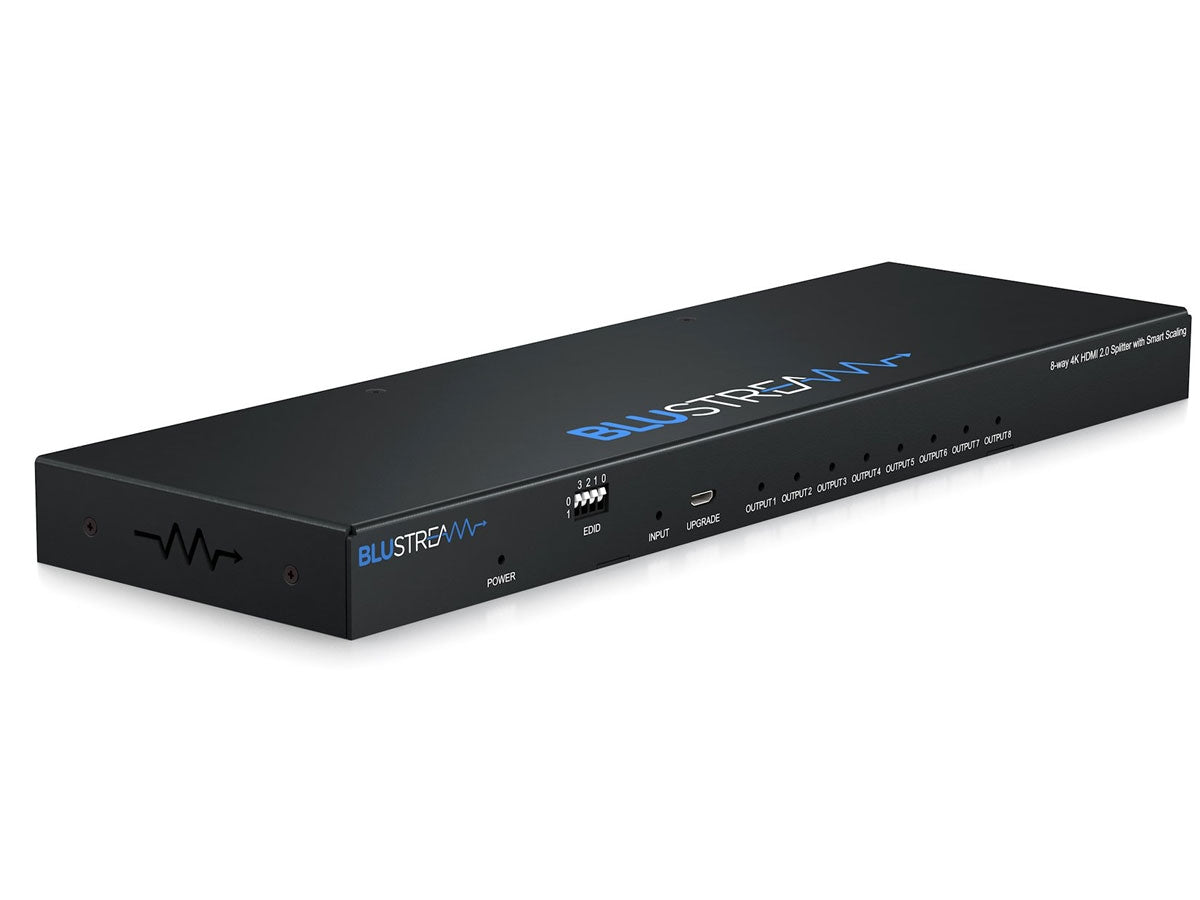

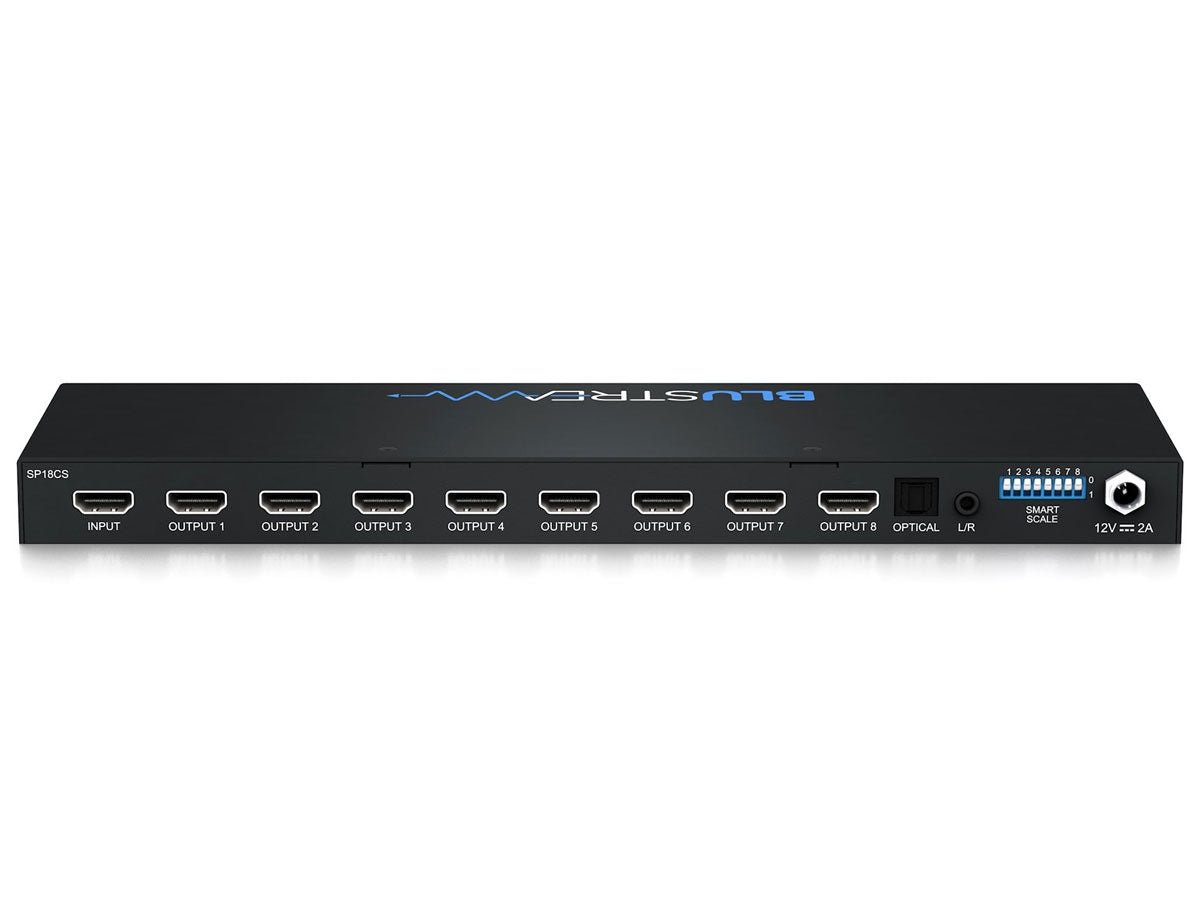

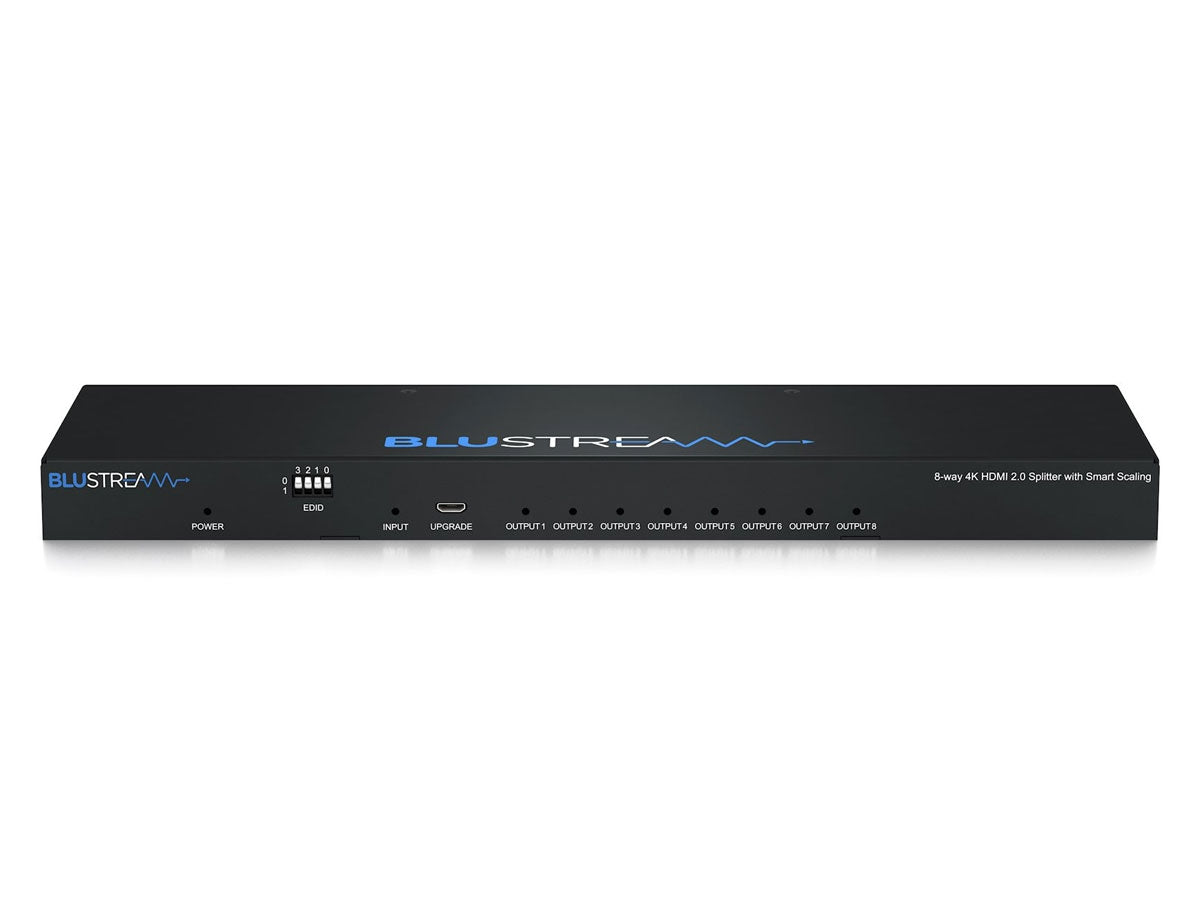

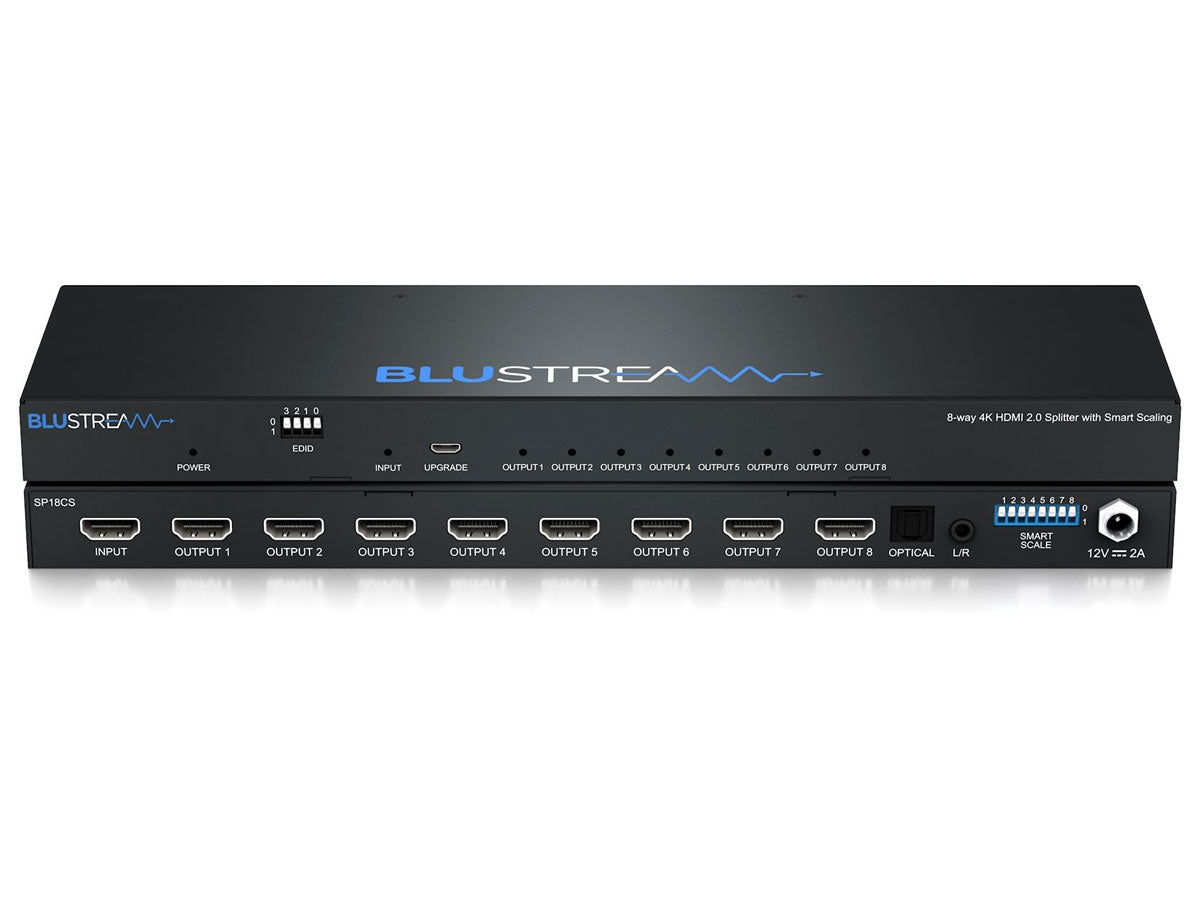

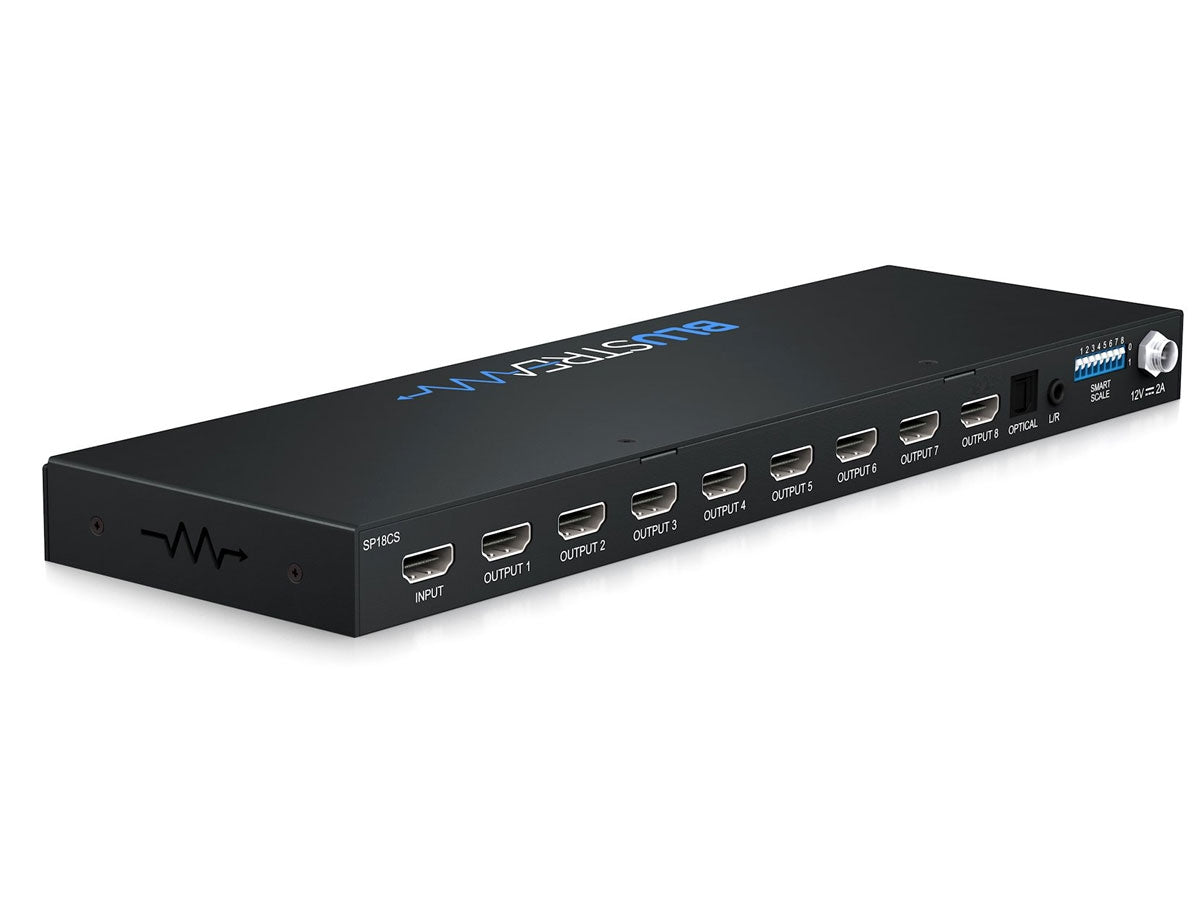

BluStream 8-Way 4K HDMI 2.0 HDCP 2.2 Splitter | SP18CS

SKU: SP18CS

Availability:

22 in stock

Save £113.69

£360.92 (Excl. VAT)

- £433.10 (Inc. VAT)

£360.92 - £360.92

- - £433.10

Availability:

22 in stock

Quantity

Download Product Datasheet

Open an Account – Tailored to Your Organisation

Education, healthcare, public sector, or trade — get exclusive pricing, expert support, and 30-day terms. Click here to open your account today.

Educational & Public Sector Prices Available

For more details, please call us at 020 8191 9223 or email us at info@screenmoove.com

Book a Free Product Demo

Experience the power of our technology before you decide. Remote and on-site options available.

Description
Specifications

BluStream 8-Way 4K HDMI 2.0 HDCP 2.2 Splitter

Our SP18CS 4K HDMI 2.0 splitter distributes a single HDMI source to eight simultaneous outputs with both digital (S/PDIF) and analogue audio breakout.
The splitter supports full HDMI 2.0 and HDCP 2.2 with video resolutions up to and including 4K @ 60Hz 4:4:4 with automatic video down conversion on each output.

Features 1x HDMI input that is replicated to 8x HDMI outputs
Supports HDMI 2.0 18Gbps specification including HDR
Supports up to 4K UHD 60Hz 4:4:4
Video down-conversion on outputs allowing a display only capable of supporting lower video resolutions (4K 60Hz 4:2:0 or 1080p) to receive 4K 60Hz 4:4:4 video content while still showing maximum original 4K UHD resolution on remaining video outputs
Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
Supports all known HDMI audio formats including Dolby Atmos, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission
HDMI audio breakout to analogue L/R audio and optical digital outputs concurrently
CEC (Consumer Electronic Command) will only pass between the source device and the sink connected to output 1
Advanced EDID management
HDCP 2.2 Support

Specification	Details
Video Input Connectors	1x HDMI Type A
Video Output Connectors	8x HDMI Type A
EDID	4-PIN DIP switch
Smart Scale	8-PIN DIP switch
Audio Output Connectors	1x Digital (Optical), 1x Analogue audio L/R (3.5mm stereo Jack)
Dimensions (W x D x H)	300mm x 92mm x 23mm
Shipping Weight	1.3kg
Operating Temperature	32°F to 104°F (0°C to 40°C)
Storage Temperature	-4°F to 140°F (-20°C to 60°C)
Power Supply	12V/2A DC
