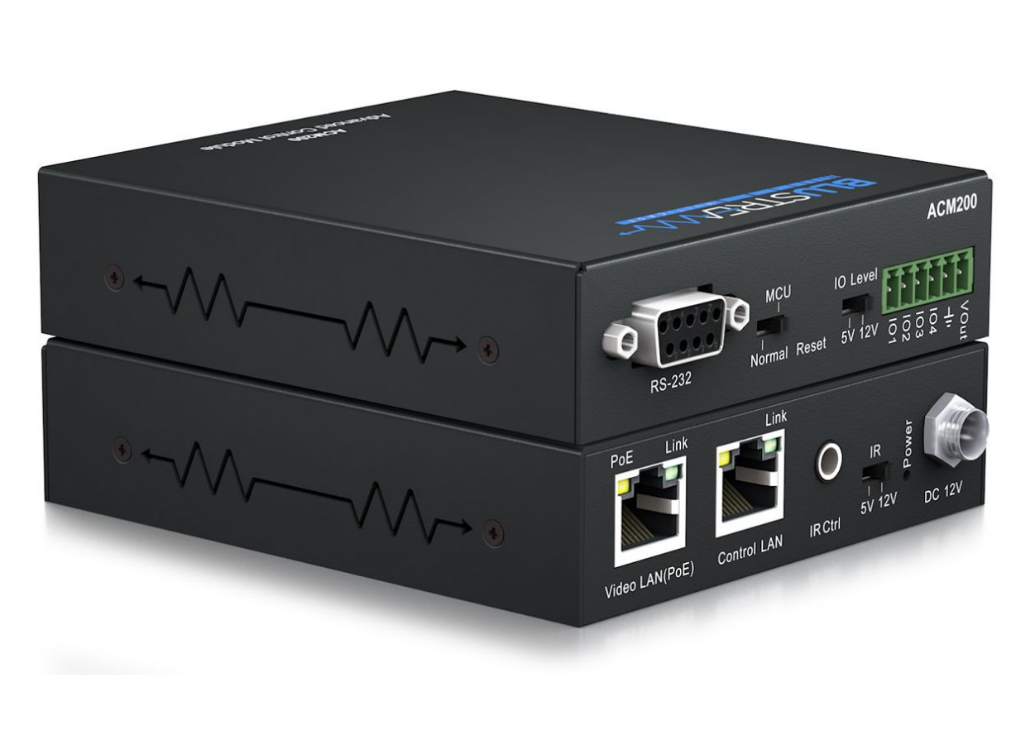

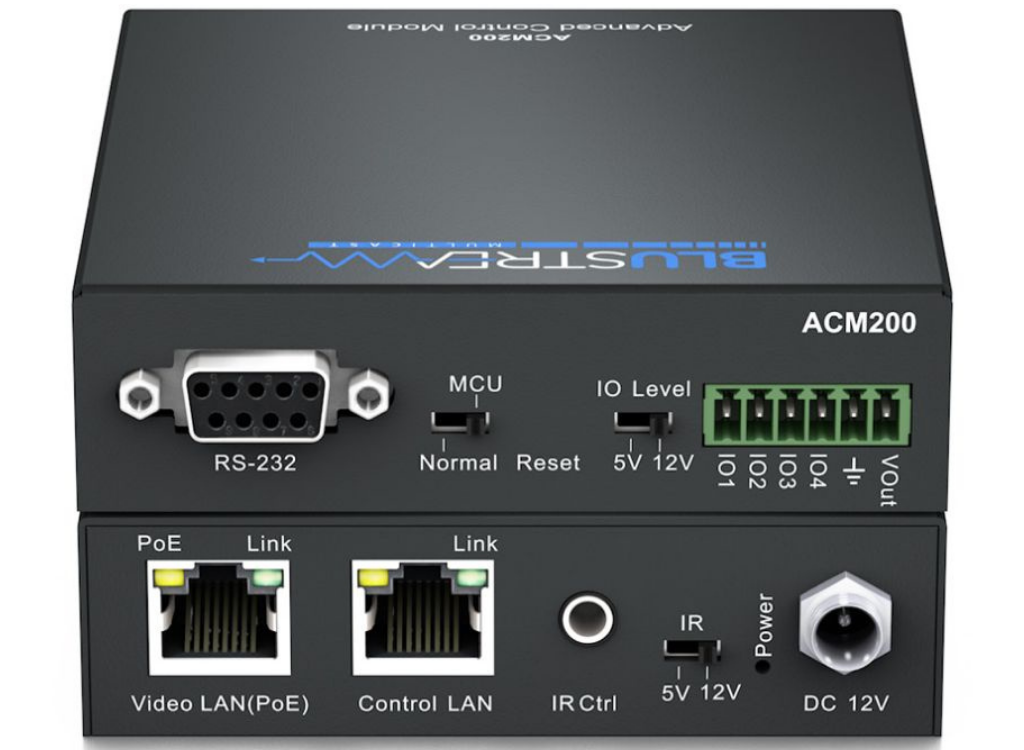

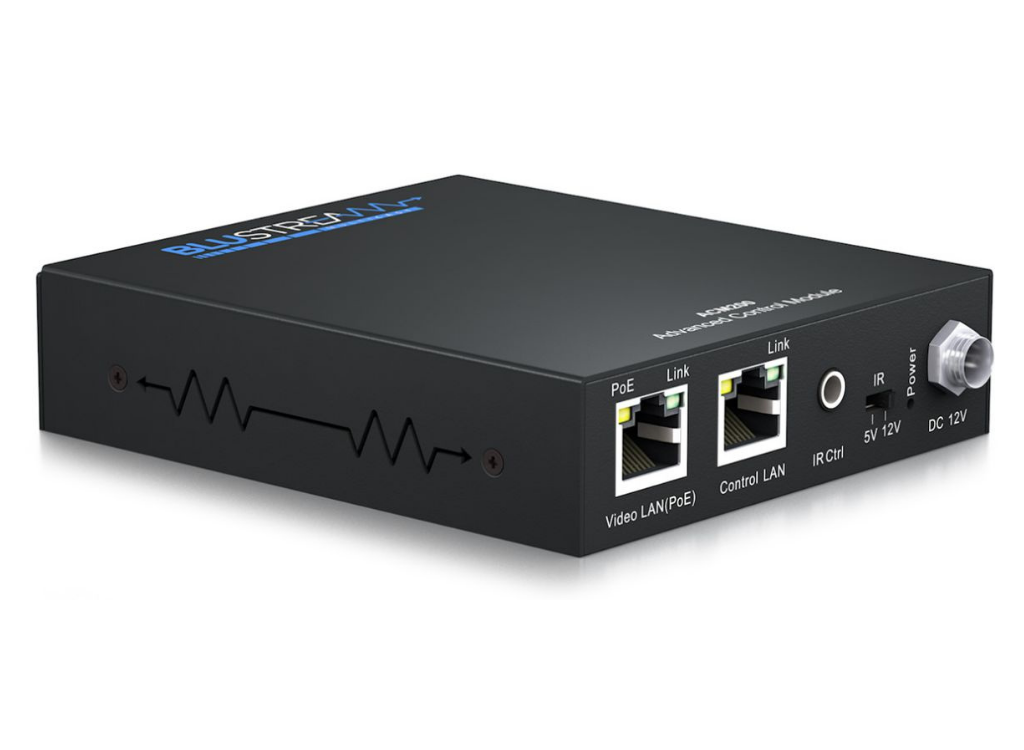

Our HD and UHD Multicast distribution platforms allow distribution of HDMI video over a 1Gb managed network. The ACM200 Advanced Control Module allows for advanced third party control of our IP50HD, or, IP200UHD / IP250UHD Multicast systems using TCP/IP, RS-232 and IR.
The ACM200 includes a web interface module for control and configuration of the Multicast system and features 'drag and drop' source selection with video preview and independent routing of IR, RS-232, USB/KVM, audio and video.
Pre-built Blustream product drivers simplify Multicast product installation and negate the need for an understanding of complex network infrastructures.
Key Features
• Web interface module for configuration and control of IP50HD, or, IP200UHD / IP250UHD Blustream Multicast systems
• Intuitive 'drag & drop' source selection with video preview feature for active monitoring of system status
• Advanced signal management for independent routing of IR, RS-232, USB / KVM, audio and video
• Auto system configuration
• 2 x RJ45 LAN connections to bridge existing network to Multicast video distribution network, resulting in:
- Better system performance as network traffic is separated
- No advanced network setup required
- Independent IP address per LAN connection
- Allows simplified TCP/IP control of Multicast system
• RS-232 integration for control of Multicast system
• IR integration for control of Multicast system
• Video wall control functionality for up to a maximum of 9 x 9 array
• PoE (Power over Ethernet) to power Blustream product from a PoE switch
• Local 12V/2A power supply (optional) should Ethernet switch not support PoE (PSU not supplied)
• Support for iOS and Android App control
• 3rd Party drivers available for all major home control brands
Please note: Compatible with IP50HD, or, IP200UHD / IP250UHD systems only. Please note that for IP50HD systems, a separate ACM200 firmware is required. IP50HD, IP2xxUHD, IP3xxUHD, and IP500UHD systems are not interoperable.
Box Contents
1 x ACM200
1 x IR Control Cable – 3.5mm to 3.5mm Cable
1 x 6-pin Phoenix Connector
1 x Mounting Kit
| Feature | Specification |
|---|---|

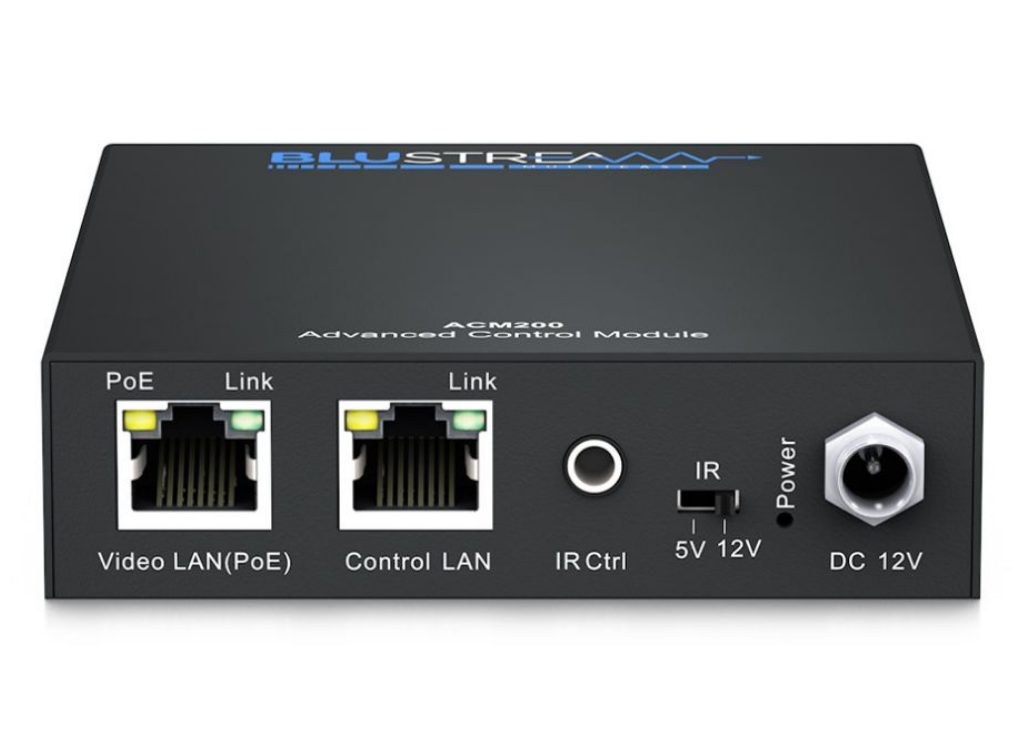

| Ethernet Port | 2 x LAN RJ45 (1 x PoE support) |

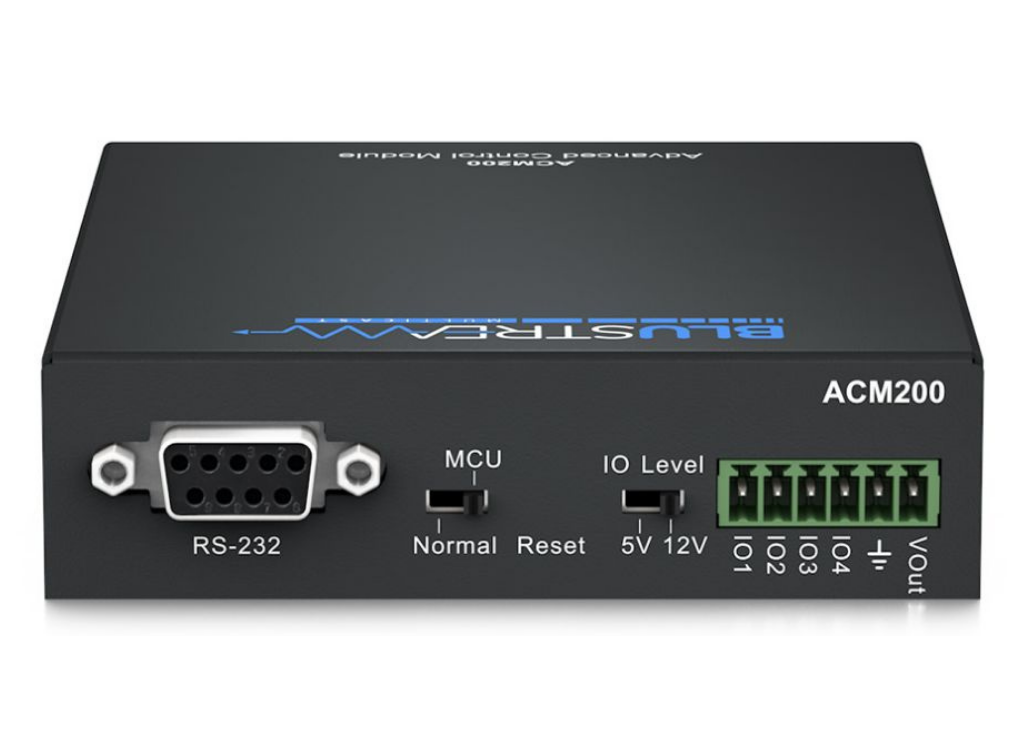

| RS-232 Serial Port | 1 x DB-9 female |
| RS-232 & I/O Port | 1 x 6-Pin Phoenix connector |
| IR Input Ports | 1 x 3.5mm stereo jack |
| PoE Draw | 4.0W (typical), 4.5W (max load) |
| Dimensions | 96mm x 110mm x 26mm |
| Shipping Weight | 0.6 kg |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Storage Temperature | -4°F to 140°F (-20°C to 60°C) |
