Our ADC11AU is designed to convert left / right analogue stereo audio into either coaxial or optical digital.
Both digital outputs are simultaneous so audio can be distributed to multiple locations.
The ADC11AU converts to 16-bit 48kHz digital audio for enhanced sound reproduction.
Key Features
• ADC (Analogue to Digital Audio Converter) converts analogue left / right stereo audio input to both S/PDIF optical and coaxial digital PCM outputs
• Both optical digital and coaxial digital output simultaneously
• Converts to 16-bit 48kHz digital audio
• Plug and play solution
Box Contents
1 x ADC11AU
1 x 5V/1A DC Power Supply
1 x Mounting Kit
1 x User Manual
| Specification | Details |
|---|---|

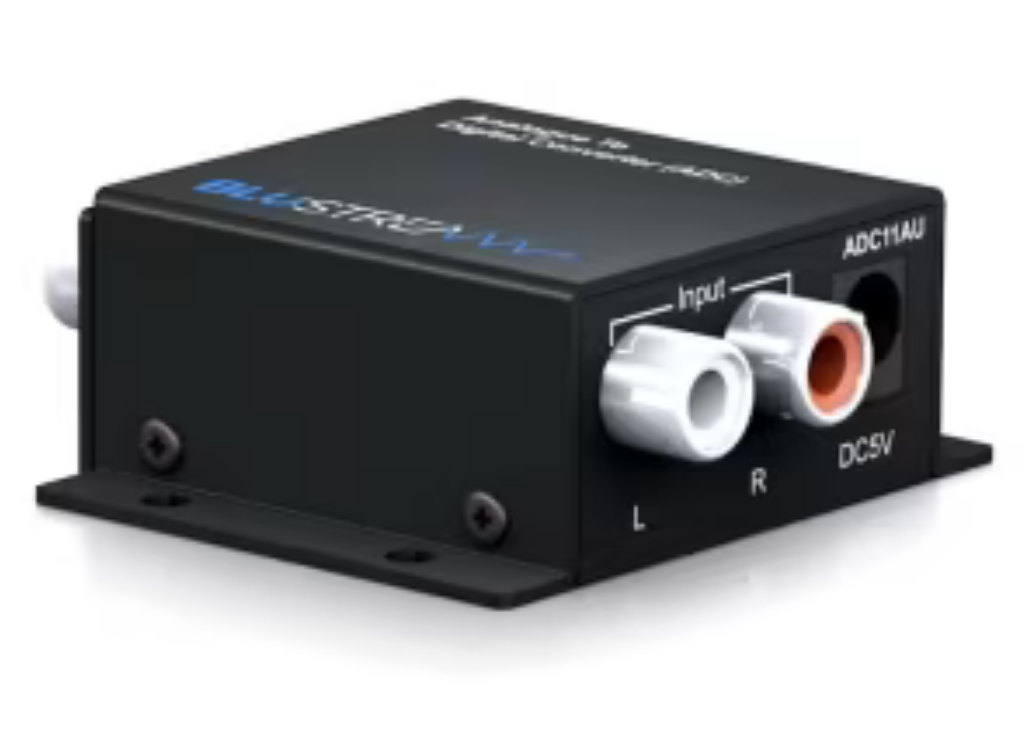

| Audio Input Connectors | 2 x Analogue stereo left/right (RCA) |

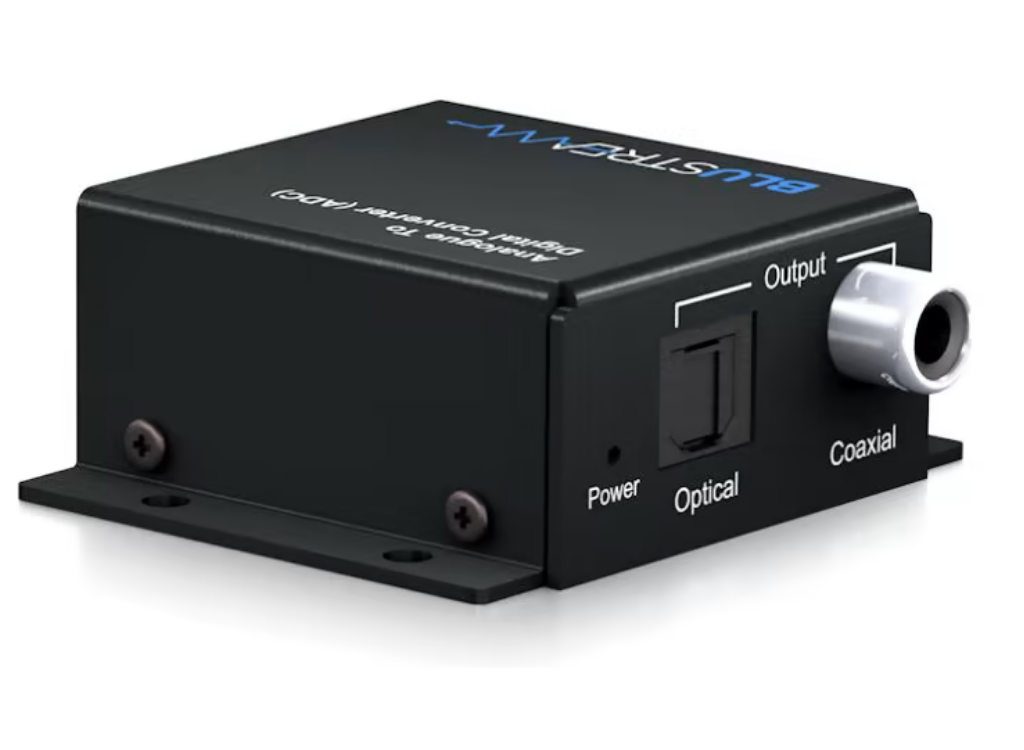

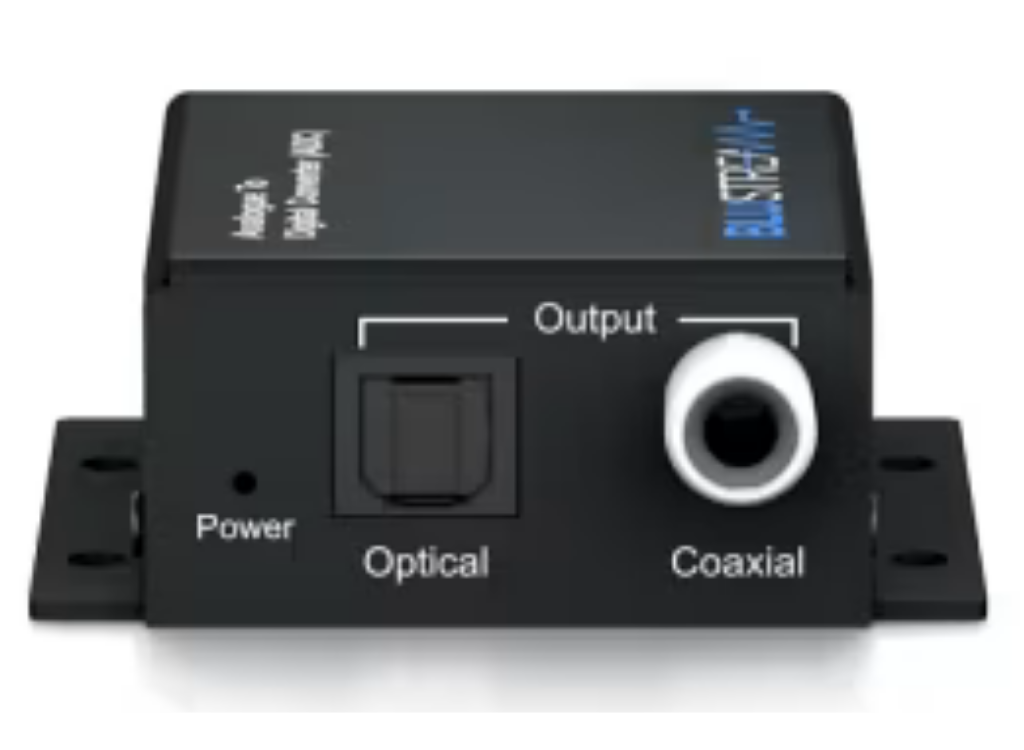

| Audio Output Connectors | 1 x Optical (SPDIF), 1 x RCA (SPDIF) |
| Dimensions (W x D x H) | 65 x 55 x 25mm (with connections) |
| Dimensions (W x D x H) | 55 x 55 x 25mm (without connections) |
| Product Weight | 0.1kg (excluding accessories) |
| Carton / Box Dimensions | 165 x 110 x 90mm |
| Shipping Weight | 0.3kg |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Storage Temperature | -4°F to 140°F (-20°C to 60°C) |
| Power Supply | 5V/1A DC, barrel type connector |
| Mounting Kit | Included |
| Description | Downloads |
|---|---|
| User Manual | Downloads |
