Our UHD SDVoE Multicast distribution platform allows distribution of the highest-quality, un-compromised 4K with zero latency Audio/Video over copper or optical fibre 10GbE networks.

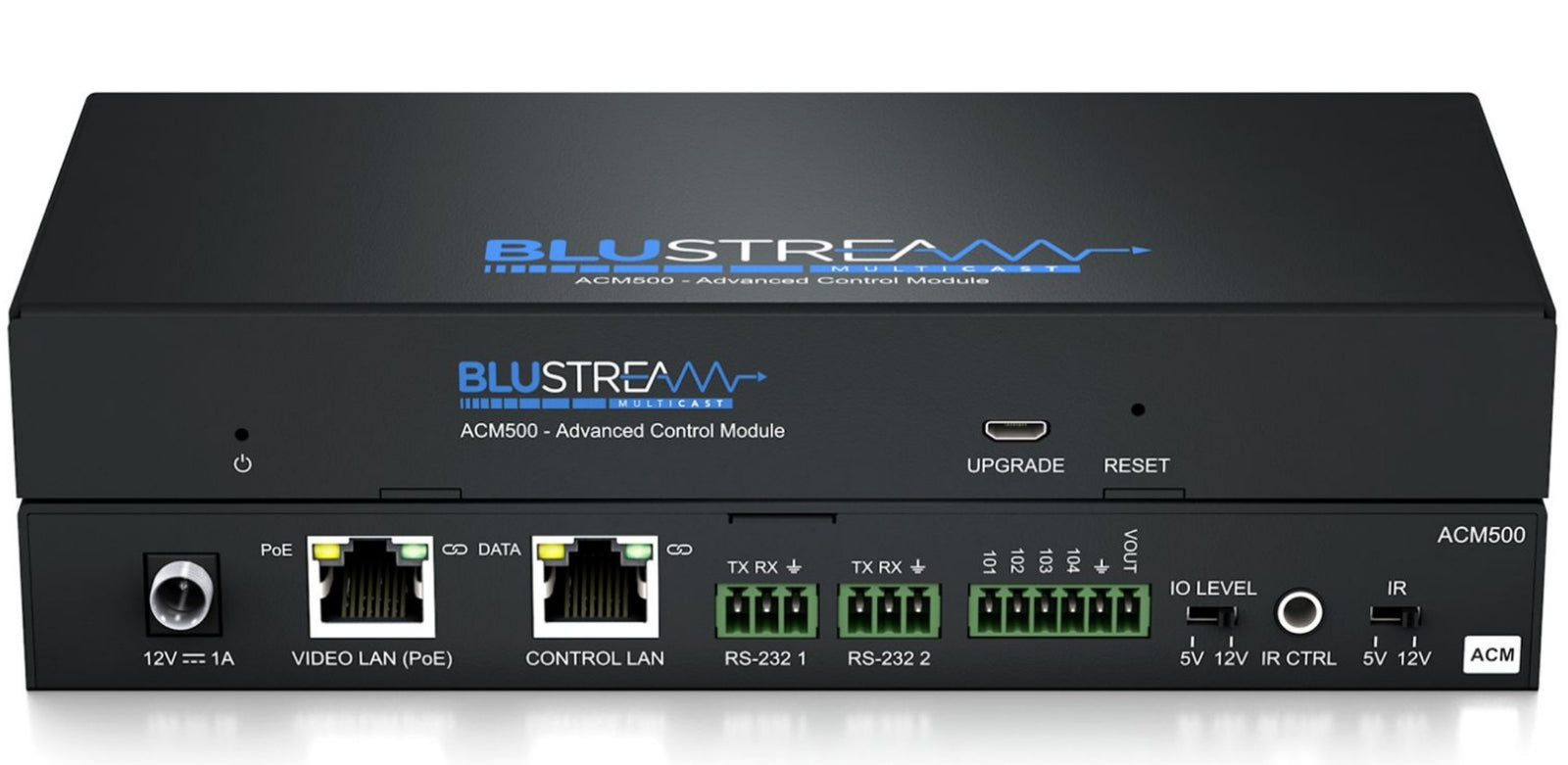

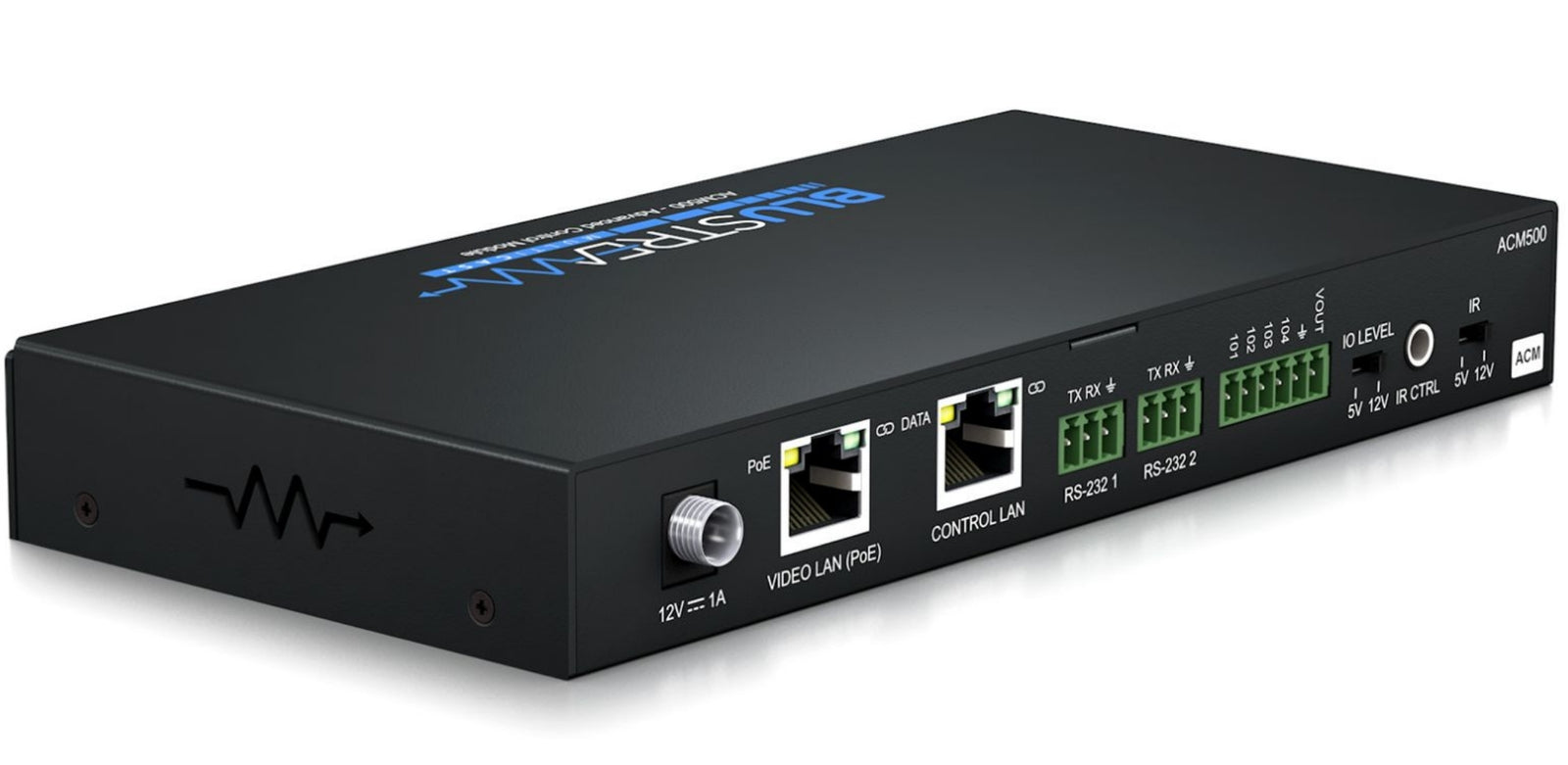

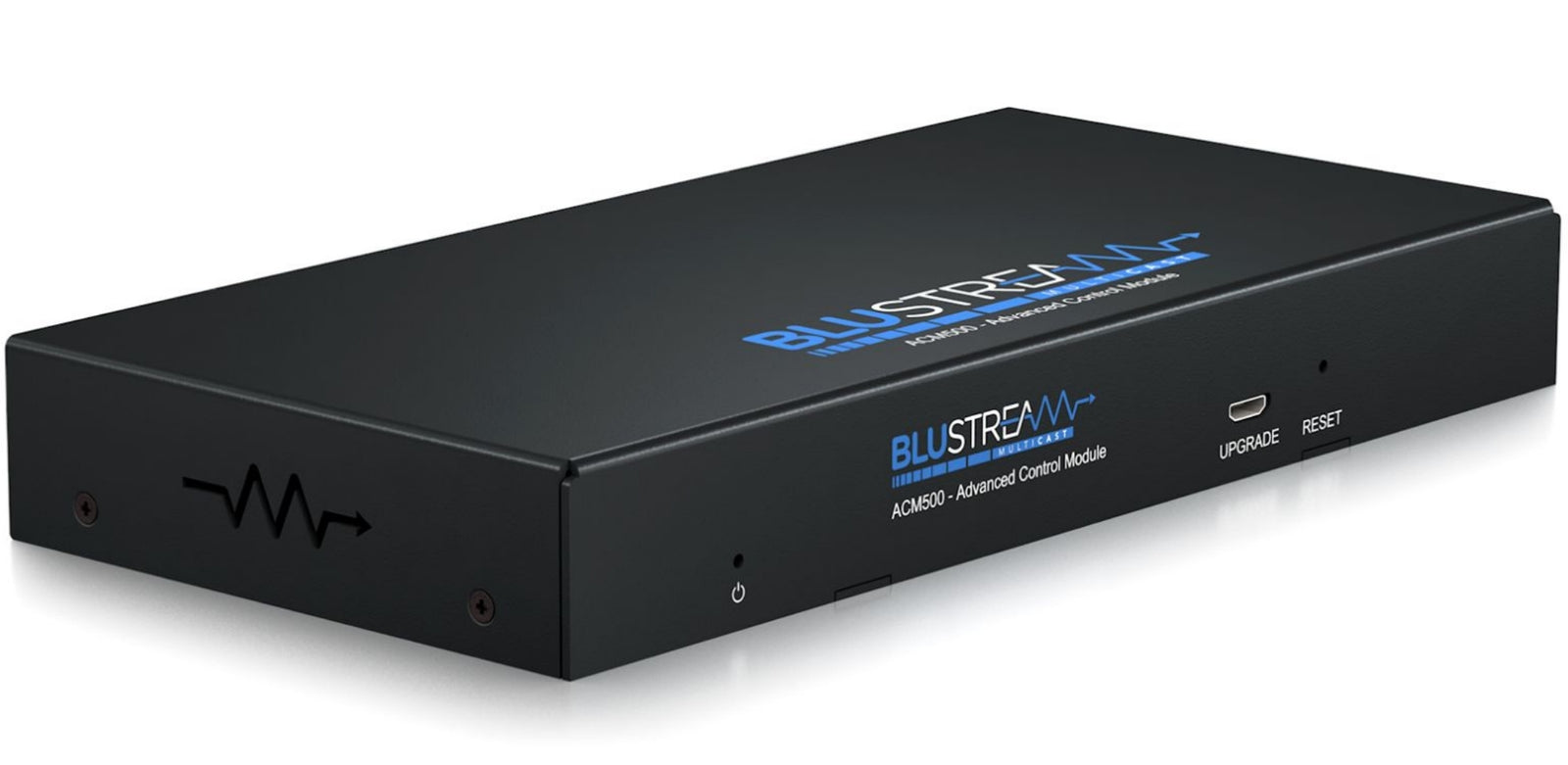

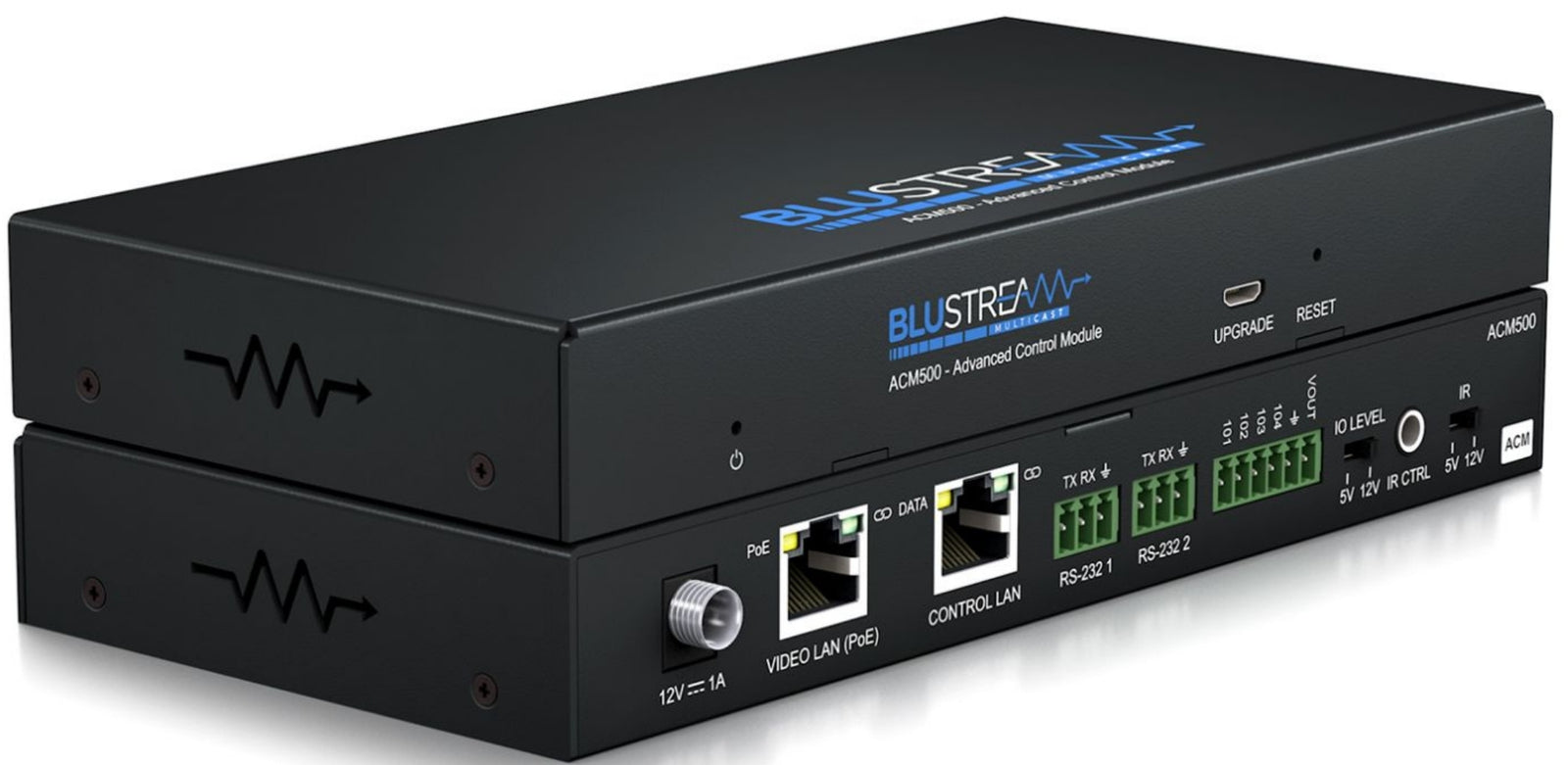

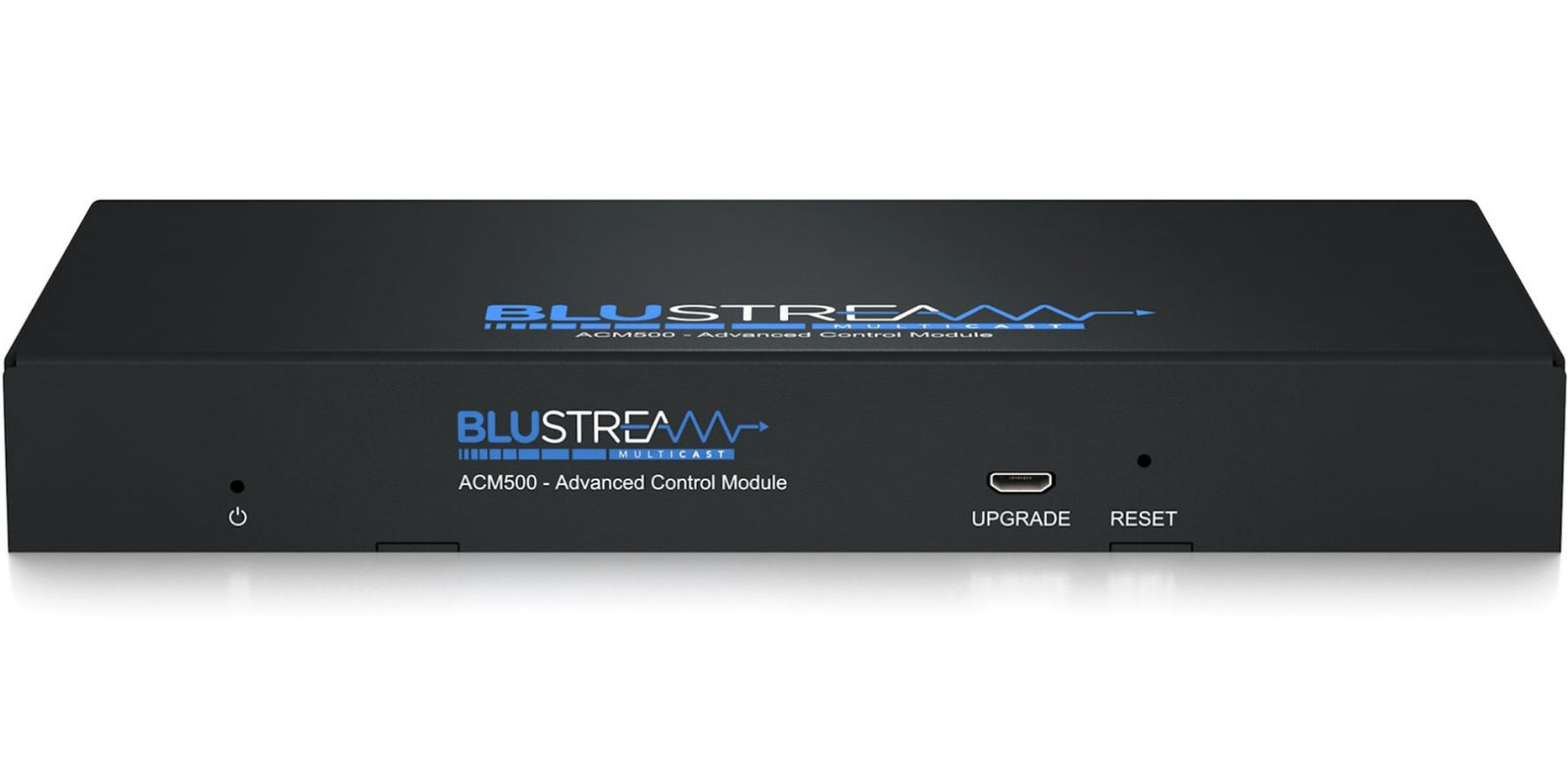

The ACM500 Control Module features advanced third party control of the SDVoE 10GbE Multicast system using TCP/IP, RS-232 and IR. The ACM500 includes a web interface module for control and configuration of the Multicast system and features 'drag & drop' source selection with video preview and independent routing of IR, RS-232, USB / KVM, Audio and Video.
Pre-built Blustream product drivers simplify Multicast product installation and negate the need for an understanding of complex network infrastructures.
Key Features
Web interface module for configuration and control of Blustream IP500UHD and IP510UHD SDVoE 10GbE Multicast systems
Intuitive 'drag & drop' source selection with video preview feature for active monitoring of system status
Advance signal management for independent routing of IR, RS-232, USB/KVM, audio and video
Auto system configuration
2x RJ45 LAN connections to bridge existing network to Multicast video distribution network, resulting in:
- Better system performance as network traffic is separated
- No advanced network setup required
- Independent IP address per LAN connection
- Allows simplified TCP/IP control of Multicast system
Dual RS-232 ports for control of the Multicast system, or pass-through of control to remote third party devices
5V/12V IR integration for control of Multicast system
PoE (Power over Ethernet) to power Blustream product from PoE switch
Local 12V power supply (optional) should Ethernet switch not support PoE
Support for iOS and Android App control
3rd Party drivers available for all major control brands
Box Contents
1 x ACM500
1 x IR Control Cable - 3.5mm to 3.5mm Cable
4 x Rubber Feet
1 x Mounting Kit

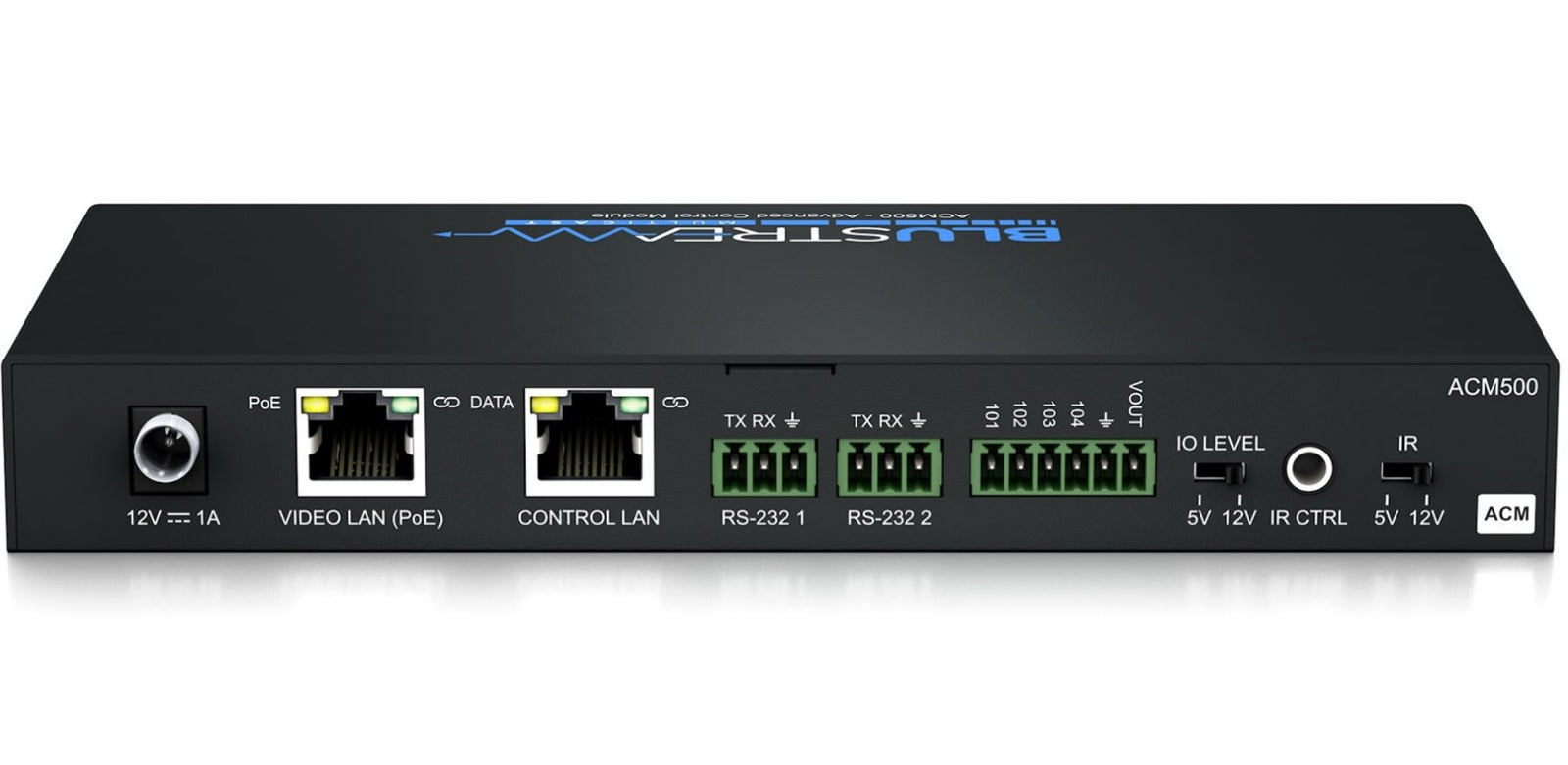

| Specification | Details |
|---|---|
| Ethernet Port | 2 x 1Gb LAN RJ45 (1x PoE support) |
| RS-232 Serial Port | 2 x 3-Pin Phoenix connector |
| I/O Port | 1 x 6-Pin Phoenix connector |
| IR Input Ports | 1 x 3.5mm stereo jack |
| PoE Draw | 7.9W (typical), 8.4W (max load) |
| Product Upgrade | 1 x Micro USB, female |
| Dimensions (W x D x H) | 190.4mm x 93mm x 25mm |
| Shipping Weight (Kit) | 0.6kg |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Storage Temperature | -4°F to 140°F (-20°C to 60°C) |
| Power Supply | PoE or 12V/1A DC |
| Description | Downloads |
|---|---|
| BluStream Advanced IP Multicast Control Module for IP500 Series SDVoE Video Over IP Downloads, Drivers and Firmware | Downloads |
