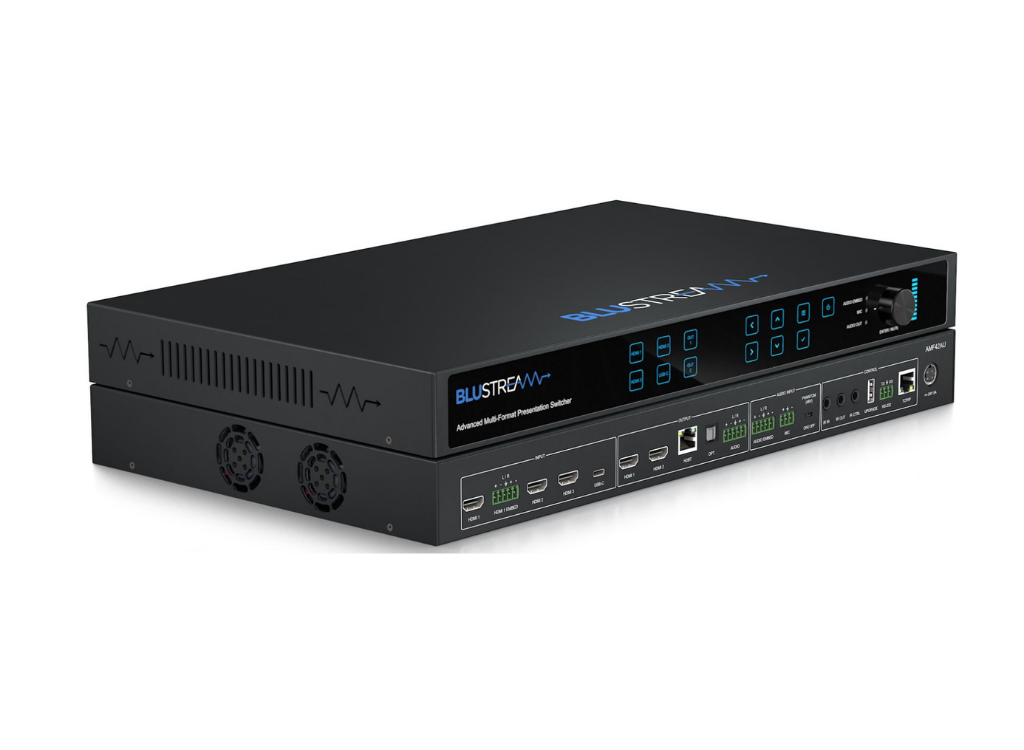

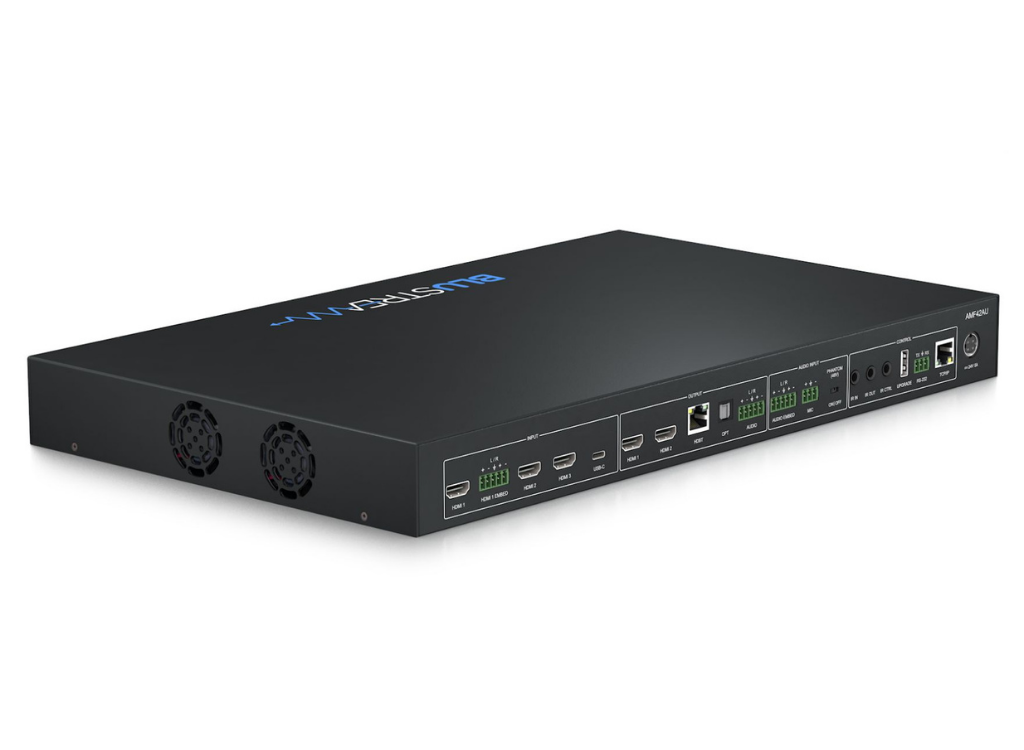

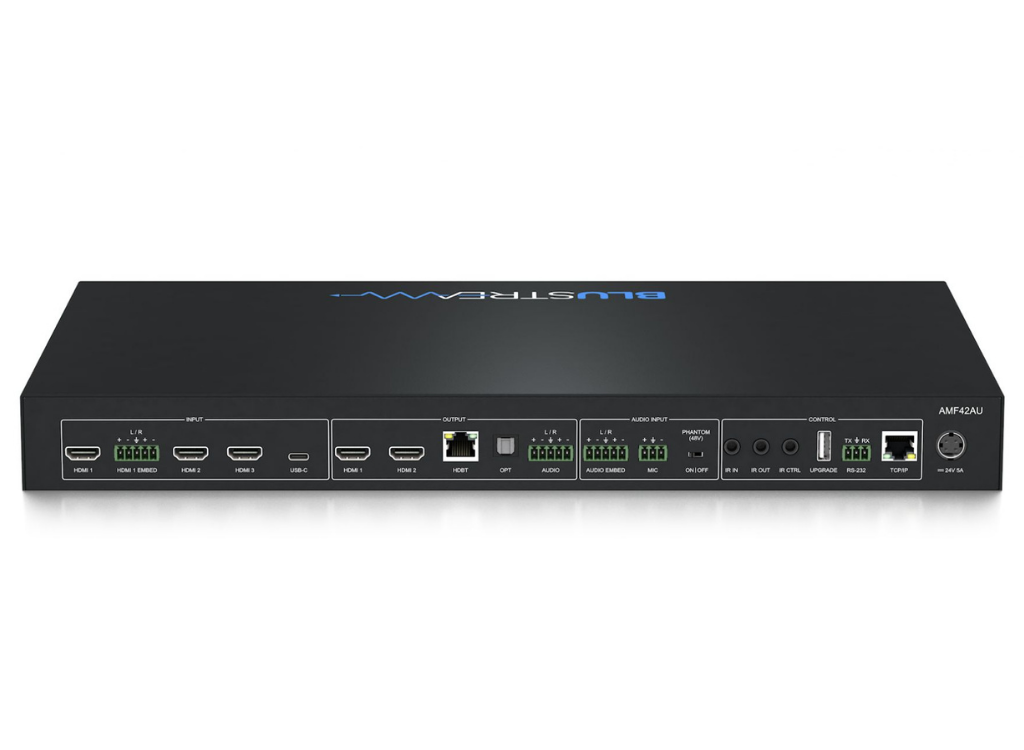

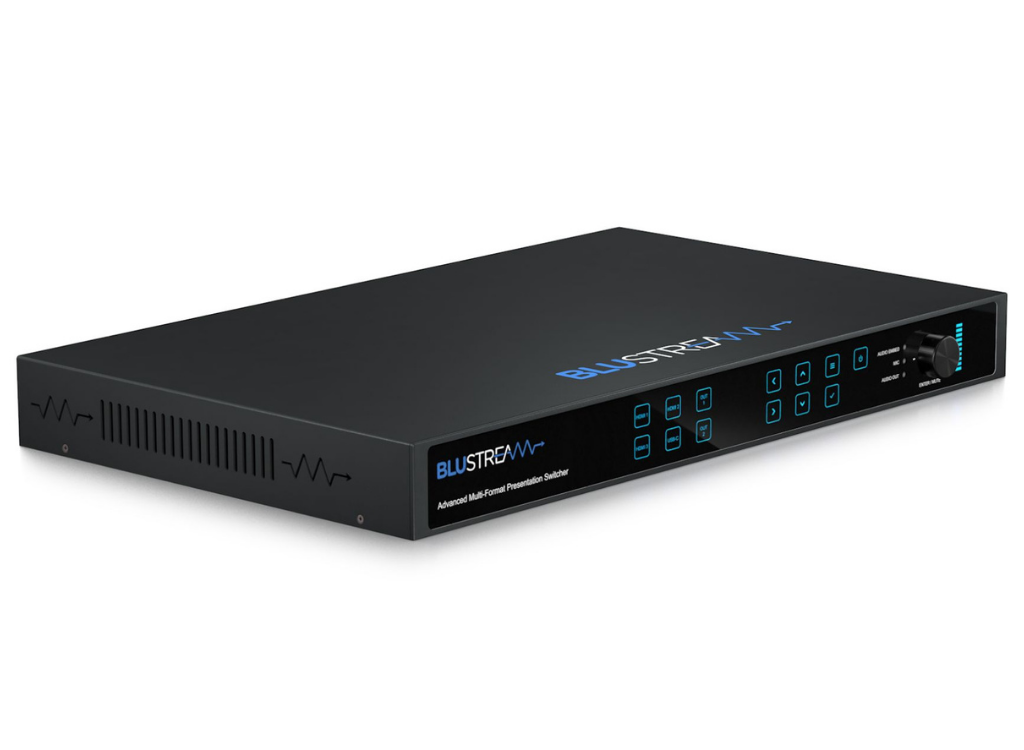

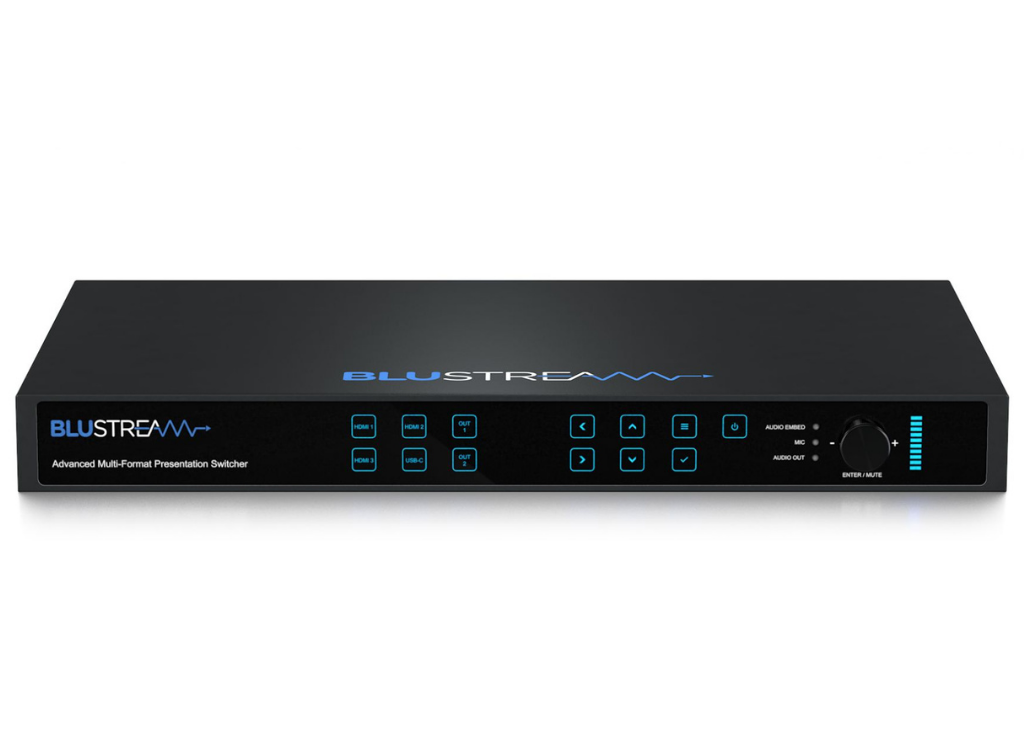

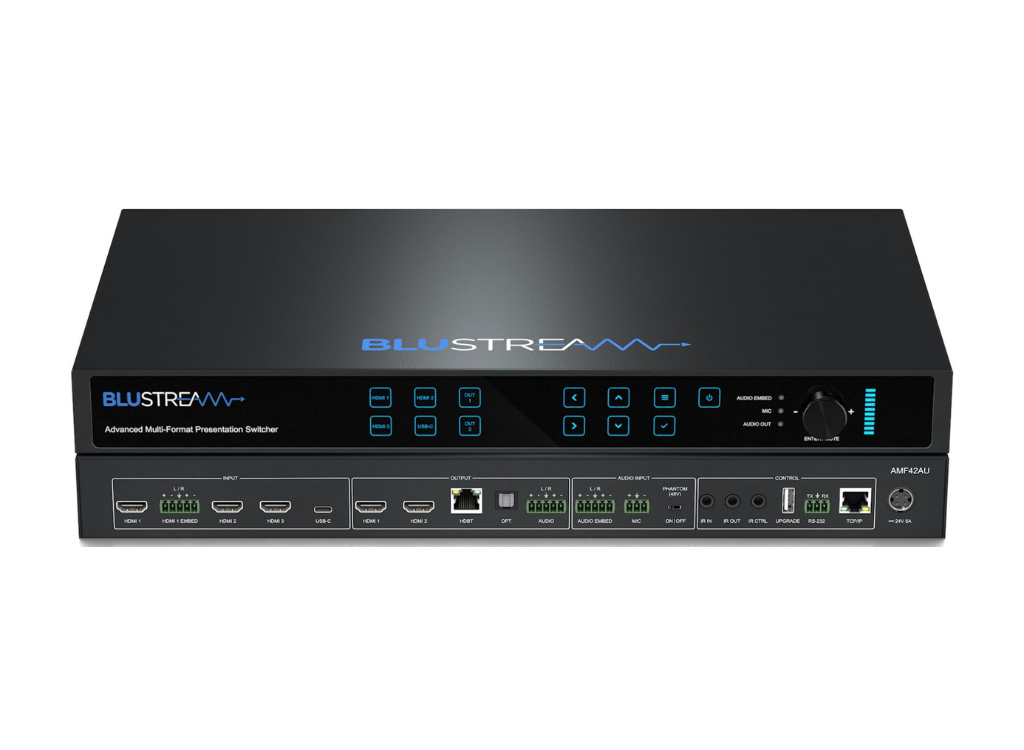

BluStream Advanced Multi-Format Presentation Switcher | AMF42AU
Our AMF42AU is an advanced 4K 4x2 HDMI 2.0 4K 60Hz 4:4:4 HDCP 2.2 multi-format presentation switcher featuring 3 x HDMI 2.0 and 1 x USB-C input to 2 x HDMI 2.0 / 1x HDBaseT™ output.
The AMF42AU provides enhanced features including seamless switching, independent video scaling on outputs, MIC input with audio mixing and 48V phantom power, PoC to power a Blustream compatible HDBaseT™ receiver.
The AMF42AU also features Web GUI for control and configuration, source and display control via CEC, RS-232 and IR, manual or automated source selection, IR pass-through and control via front panel, IR, RS-232 and TCP/IP.
The AMF42AU is an ideal product for your boardroom, classroom or huddle-space application.
Key Features
• Features 3 x HDMI and 1 x USB-C inputs which can be independently routed to 2 x HDMI / HDBaseT™ outputs
• Dual HDMI / HDBaseT™ on output 2
• Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable up to 70m 1080p (4K up to 40m)*
• Advanced Colour Space Conversion (CSC) supports HDMI 2.0 18Gbps specification*
• Independent video scaling on outputs
• Supports resolutions up to 4K UHD 60Hz 4:4:4
• Seamless source switching with manual or auto source selection
• Supports USB Type C up to 4K UHD 60Hz 4:4:4, DP1.2 with 40W charging capability
• Audio breakout to analogue L/R audio and Toslink (S/PDIF) digital outputs concurrently
• ARC breakout available via S/PDIF when using RX70CS receiver
• Analogue audio inputs and output support both balanced and unbalanced audio
• Features MIC mixer over source audio with independent level adjustment
• MIC input supports line level or 48V Phantom power
• Configurable source and display control via CEC, RS-232 and IR
• Web interface module for control and configuration of matrix
• 3rd party drivers available for major control brands
• HDCP 2.2 compliant with advanced EDID management
*All features designed to work with the Blustream RX70CS HDBaseT™ receiver. HDBaseT™ output is compatible with all Blustream receivers however functionality may vary. Refer to product manual for compatibility before connecting.
Box Contents
1 x AMF42AU
1 x IR Remote Control
1 x 24V/5A DC Power supply
1 x Rack Mounting Kit
1 x IR Receiver
1 x IR Emitter
1 x RS-232 Control Cable
1 x Quick Reference Guide
-
| Feature |
Specification |
| Video Input Connectors |
3 x HDMI Type A, 19-pin, female; 1 x USB-C Type C |
| Video Output Connectors |
2 x HDMI Type A, 19-pin, female; 1 x HDBaseT™ RJ45 connector |
| Audio Input Connectors |
2 x 5-pin phoenix connector (2ch balanced/unbalanced analogue audio) |
| MIC Input Connectors |
1 x 3-pin phoenix connector |
| Audio Output Connectors |
1 x 5-pin phoenix connector (2ch balanced/unbalanced analogue audio); 1 x Optical Toslink (S/PDIF) |
| RS-232 Serial Ports |
1 x 3-pin phoenix connector |
| TCP/IP Control |
1 x RJ45, female |
| IR Input Ports |
2 x 3.5mm stereo jack |
| IR Output Ports |
1 x 3.5mm mono jack |
| Product Upgrade |
1 x USB Type A female |
| Rack Mountable |
1U rack height, rack ears included |
| Casing Dimensions (W x H x D) |
437mm x 44mm x 265mm |
| Operating Temperature |
32°F to 104°F (-5°C to +55°C) |
| Storage Temperature |
-4°F to 140°F (-25°C to +70°C) |
| Power Supply |
24V/5A DC |
-
