Official Partner

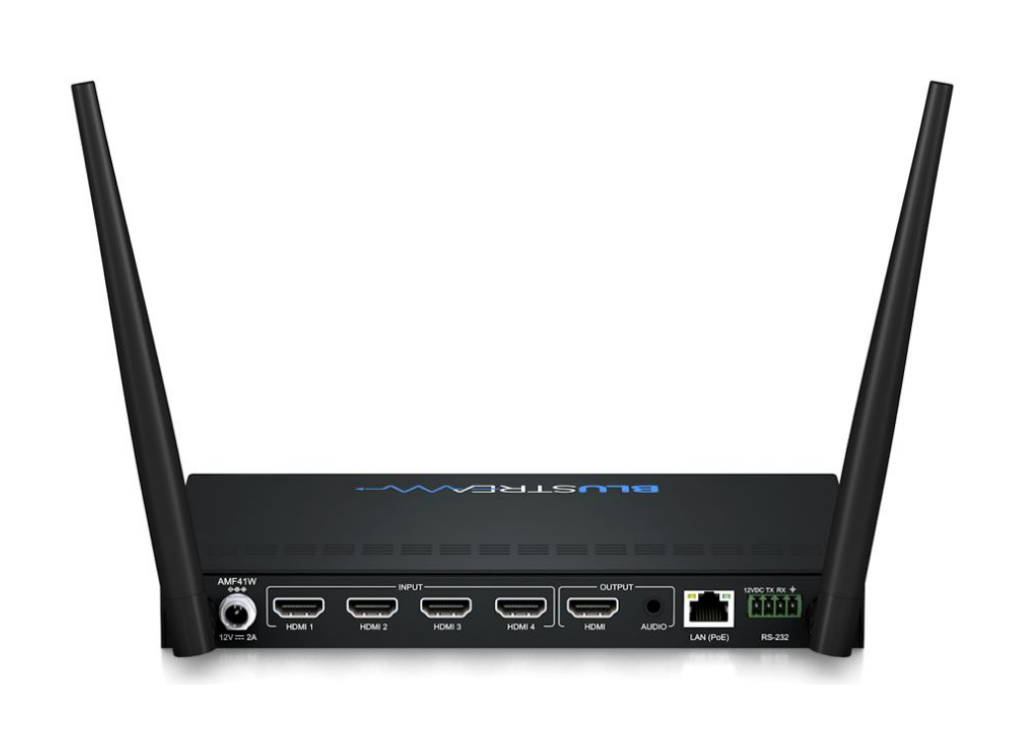

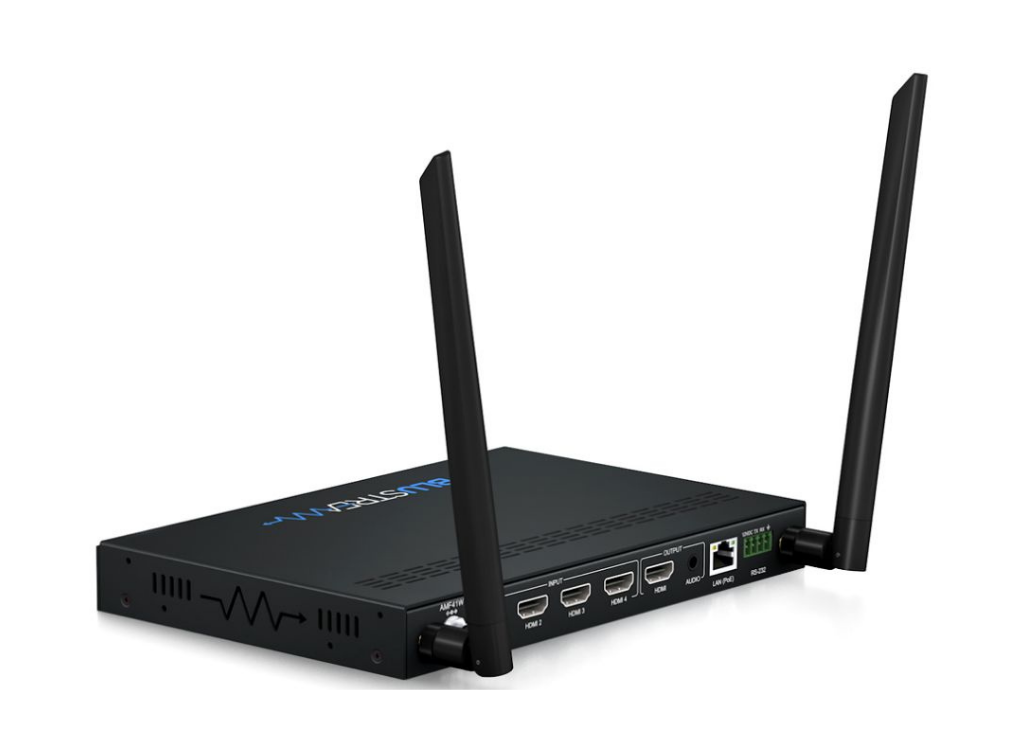

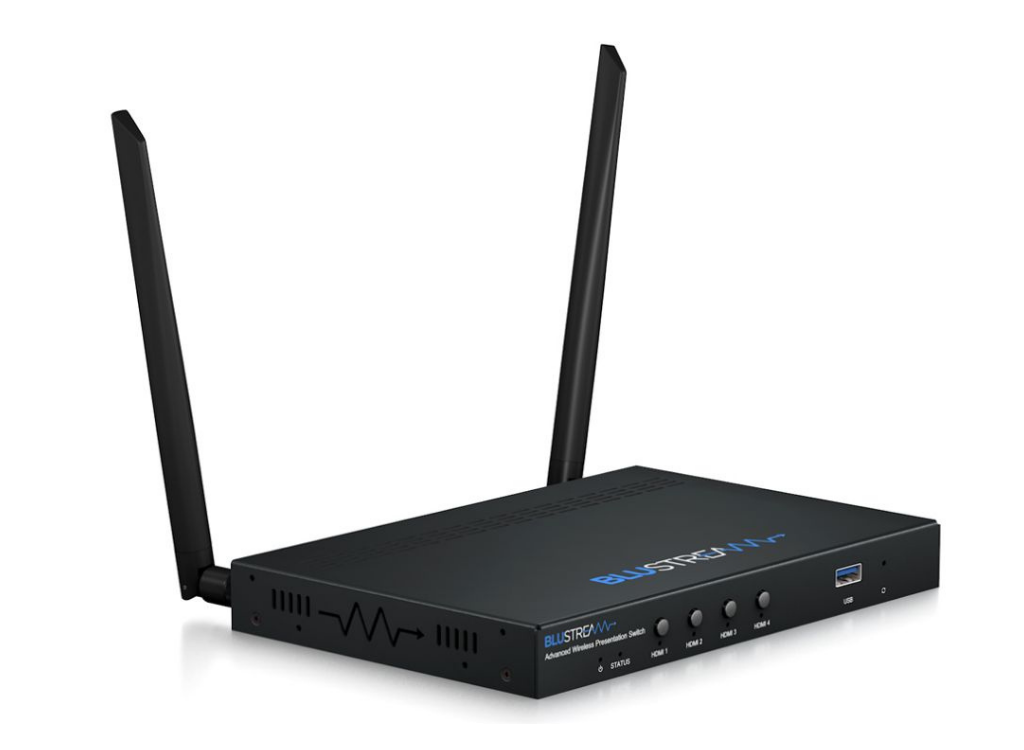

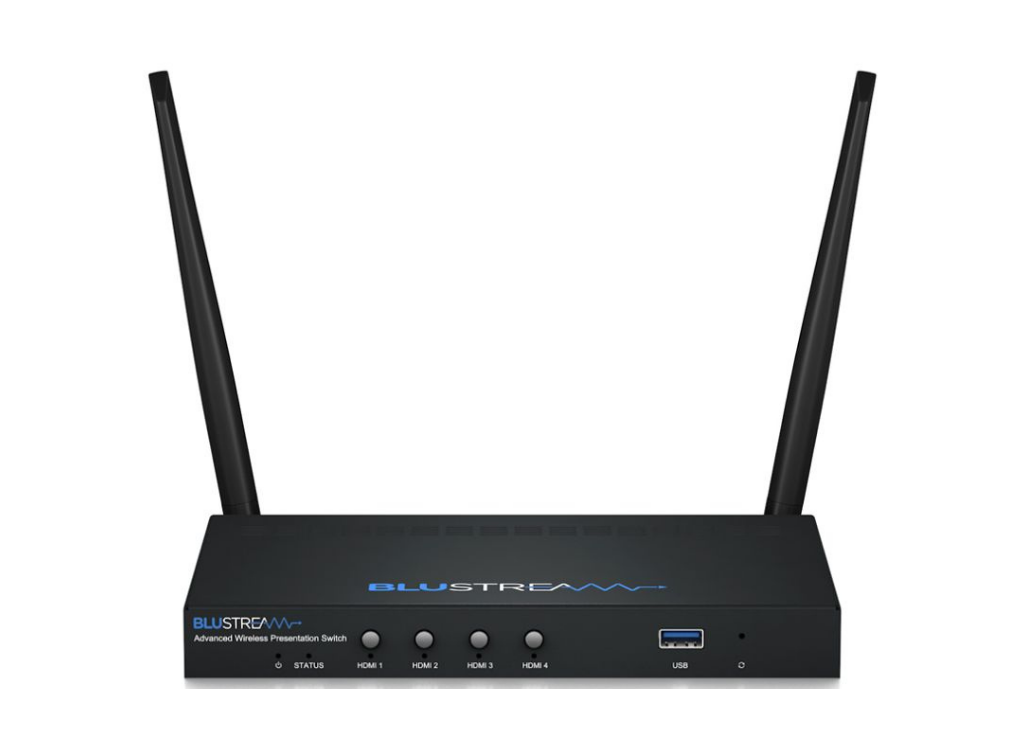

The AMF41W is an advanced 4K multi-format presentation switch featuring 4 x HDMI, AirPlay and Miracast® inputs to a single HDMI output.
The AMF41W provides enhanced features including localised 2.4/5G WiFi hotspot, seamless switching, multi-view presentation, video scaling, and web-GUI for control and configuration.
The AMF41W also features auto display control via RS-232, manual or automated source selection and control via front panel, and TCP/IP.
The AMF41W is an ideal product for your boardroom, classroom or huddle-space application.
Key Features
• Features 4 x HDMI, AirPlay and Miracast® inputs which can be switched to a single HDMI output
• Localised 2.4G/5G WiFi hotspot to host AirPlay and Miracast® local streaming to AMF41W
• Multi-view presentation with up to 7 concurrent video signals and configurable screen layout
• Seamless switching of sources in both single, or multi-view mode
• In-built video scaler with output timing up to 4K 60Hz 4:4:4
• HDMI inputs support resolutions up to 4K UHD 60Hz 4:2:0 / 4K 30Hz 4:4:4*
• Supports AirPlay mirror and Miracast® point-to-point mode (up to 1080p)
• Audio breakout to analogue L/R audio
• LAN connection for integration to existing network infratructures
• Auto display on/off feature allowing control of display via RS-232
• Web interface module for control and configuration of switch
• Control via front panel or TCP/IP with manual or auto source selection
* Please note: the AMF41W does not accept interlaced video formats
Box Contents
1 x AMF41W
1 x 12V/2A DC power supply
1 x 4-pin Phoenix connector (RS-232)
2 x Antenna
1 x Mounting kit
1 x Quick reference guide
| Feature | Specification |
|---|---|
| Video Input Connectors | 4 x HDMI Type A, 19-pin, female |
| Video Output Connectors | 1 x HDMI Type A, 19-pin, female |
| Audio Output Connectors | 1 x 3.5mm stereo jack |
| RS-232 Serial Port | 1 x 4-Pin Phoenix connector |
| TCP/IP Control | 1 x RJ45, female |
| USB Connectors | 1 x USB Type A female |
| WiFi | 2.4G & 5G |
| Casing Dimensions | 215mm x 25mm x 141mm (excluding antennas) |
| Operating Temperature | 32°F to 113°F (0°C to +45°C) |
| Storage Temperature | -4°F to 150°F (-25°C to +70°C) |
| Power Supply | 12V/2A DC, screw type barrel connector |
| Description | Downloads |
|---|---|
| Datasheet | Downloads |
| User Manual | Downloads |
