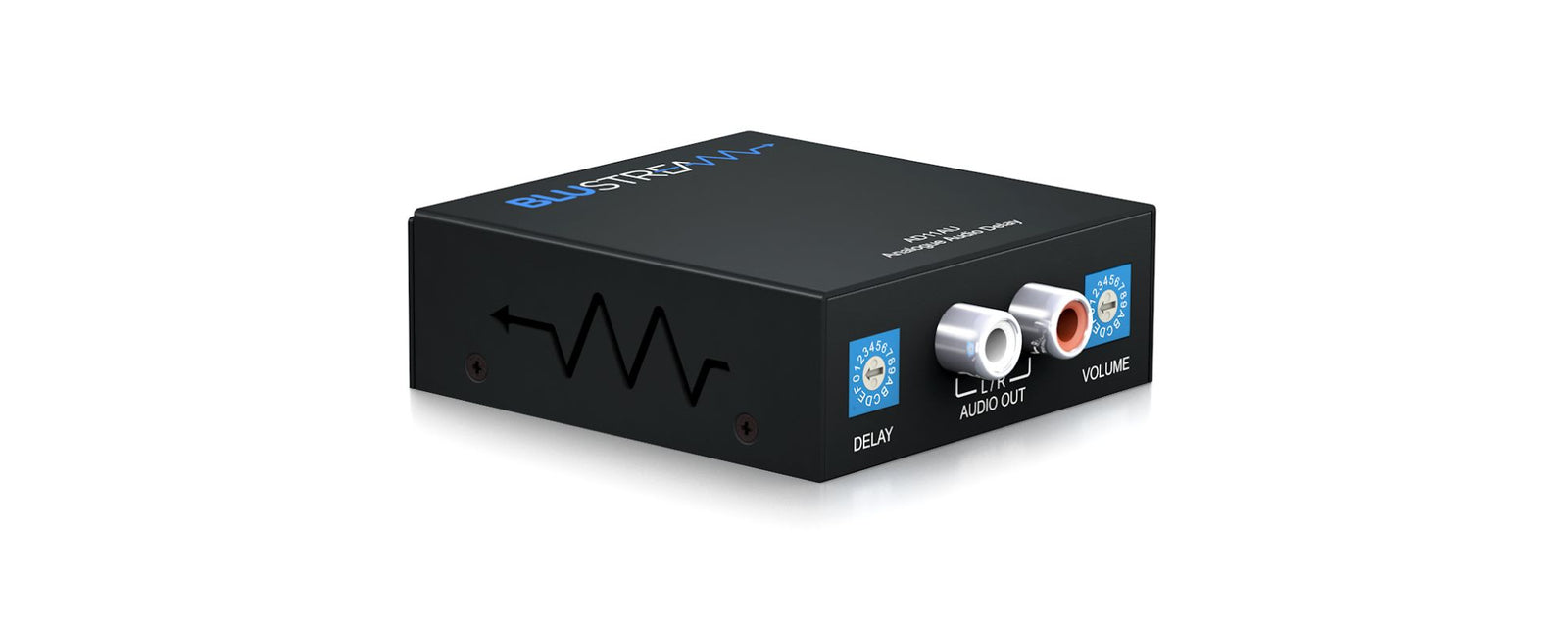

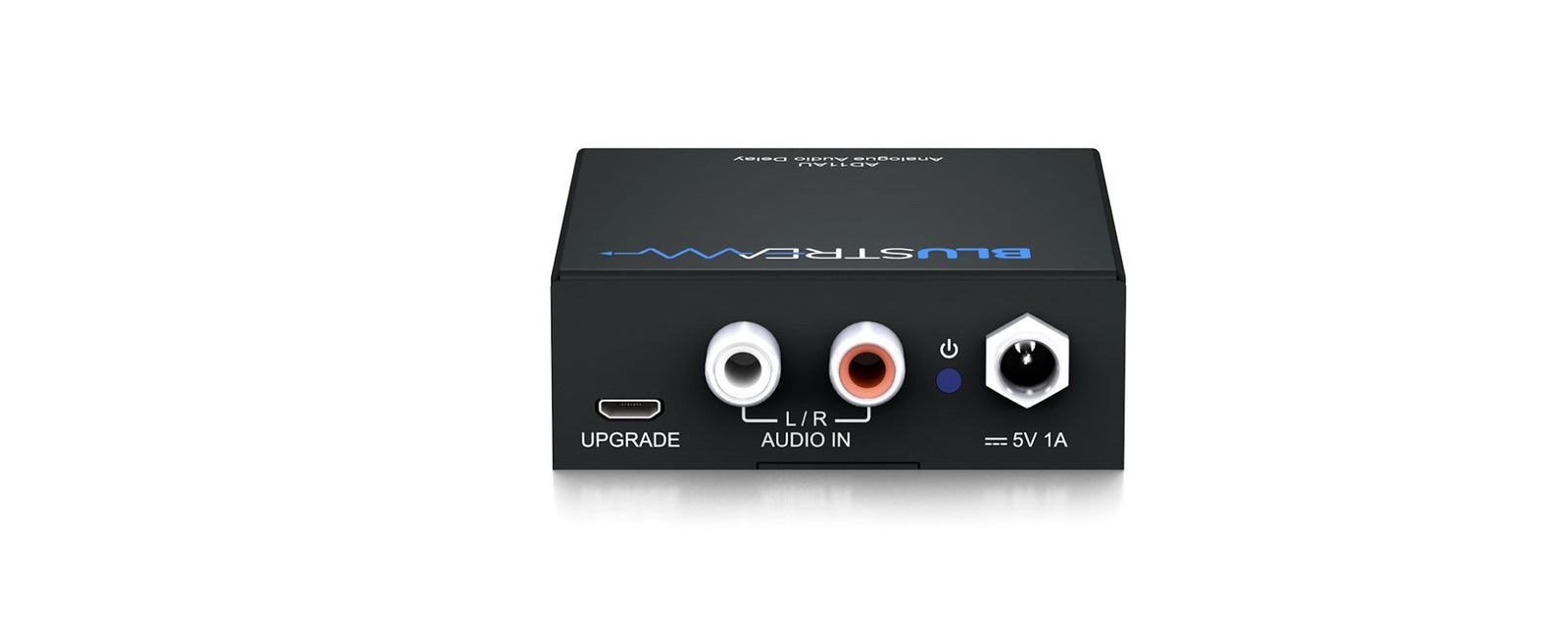

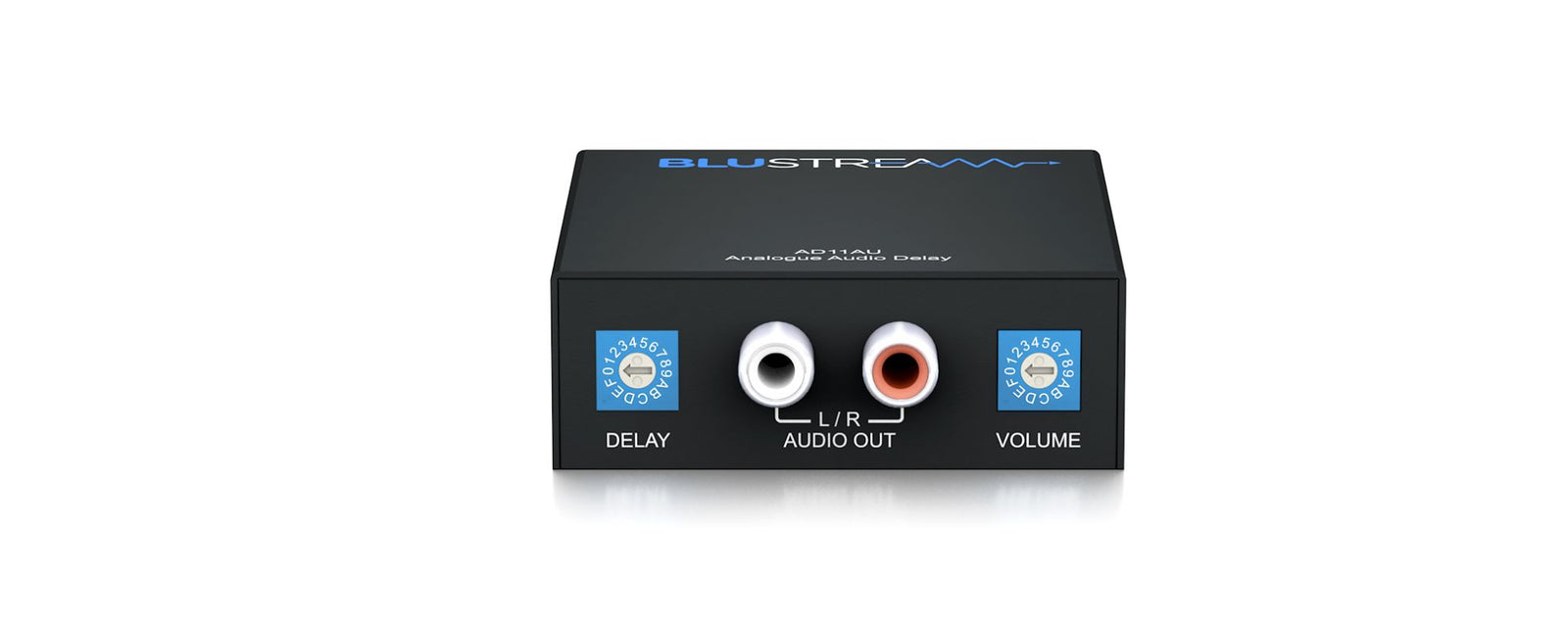

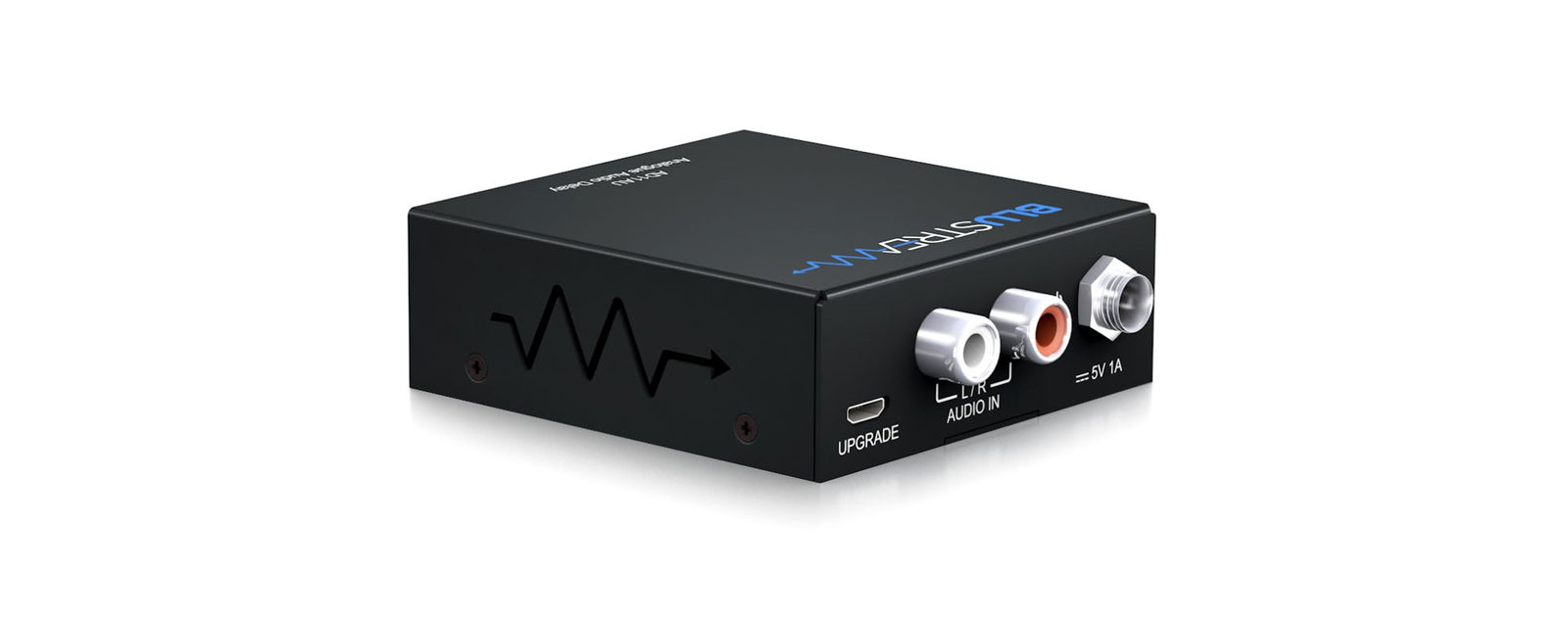

Our AD11AU has been designed to help correct audio delays incurred when separating audio and video signals in an AV system.
The AD11AU can add a delay of up to 1 second selectable in 15 increments and has line-level volume adjustment of -75dB to 0dB.
Key Features
• In-line 2ch analogue audio delay with line-level volume control
• Supports 48KHz / 24 bit sample rates
• Selectable audio delay from 50-1,000ms
- 0 - 500ms in steps of 50ms
- 500 - 1,000ms in steps of 100ms
• Adjustable line level volume control from -75dB to 0dB
Box Contents
1 x AD11AU
1 x 5V/1A DC Power Supply
1 x Mounting Kit
1 x Quick Reference Guide
| Feature | Specification |
|---|---|
| Audio Input Connectors | 2 x RCA analogue left/right |
| Audio Output Connectors | 2 x RCA analogue left/right |
| Audio Delay | Rotation switch |
| Volume Control | Rotation switch |
| Casing Dimensions (WxHxD) | 70mm x 25mm x 73mm |
| Shipping Weight | 0.4kg |
| Operating Temperature | 32°F to 104°F (-5°C to +55°C) |
| Storage Temperature | -4°F to 140°F (-25°C to +70°C) |
| Power Supply | 5V/1A DC |
| Description | Downloads |
|---|---|
| Datasheet | Downloads |
