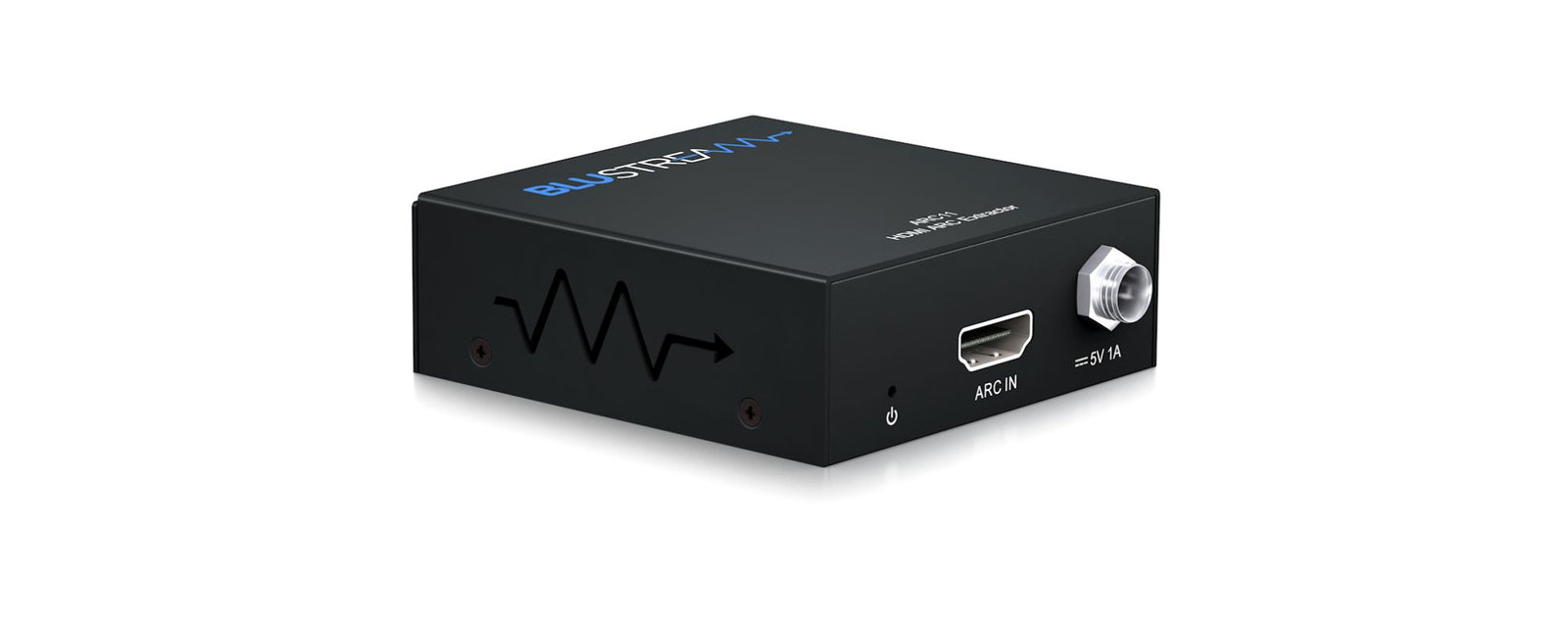

Our ARC11 has been designed to extract audio from the HDMI ARC (Audio Return Channel) of a display.
Featuring both an analogue audio, and optical audio output, it can extract the embedded ARC audio information for use within a multi room audio distribution system.
Key Features
• Extracts audio from the Audio Return Channel of a HDMI signal*
• Features analogue audio breakout of 2ch PCM audio signals, where source audio is 2ch PCM
• Supports up to 192kHz sample rates at 24bit depth
• Features optical audio breakout of multi-channel and 2ch audio formats
• Supports the following embedded audio formats: Dolby Digital 5.1, Dolby Digital 2.0, DTS-ES 6.1, DTS 5.1, DTS 2.0, PCM 2.0
*Please note: the output of the ARC11 is a fixed line, and cannot be controlled via CEC volume commands from the display
Box Contents
1 x ARC11
1 x 5V/1A DC USB Power Supply
1 x Mounting Kit
1 x Quick Reference Guide
| Feature | Specification |
|---|---|

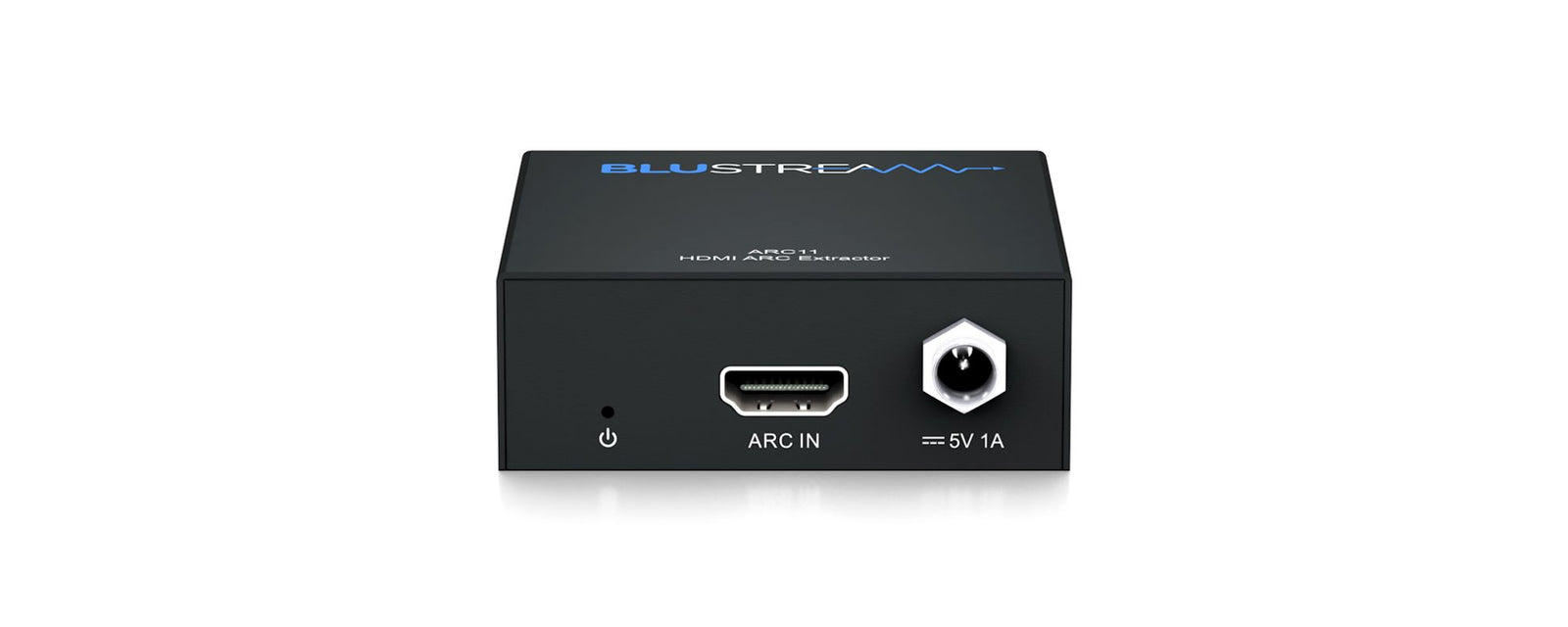

| Audio Input Connectors | 1 x HDMI Type A, 19-pin, female |

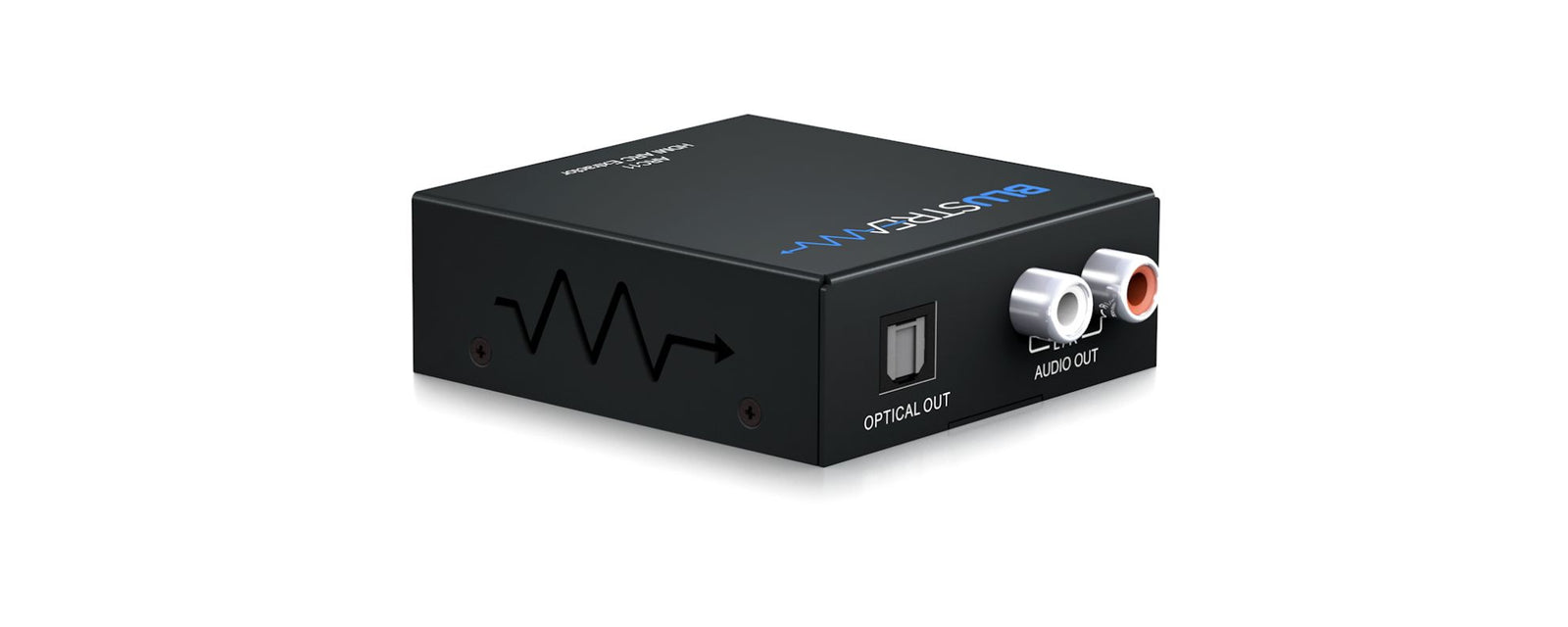

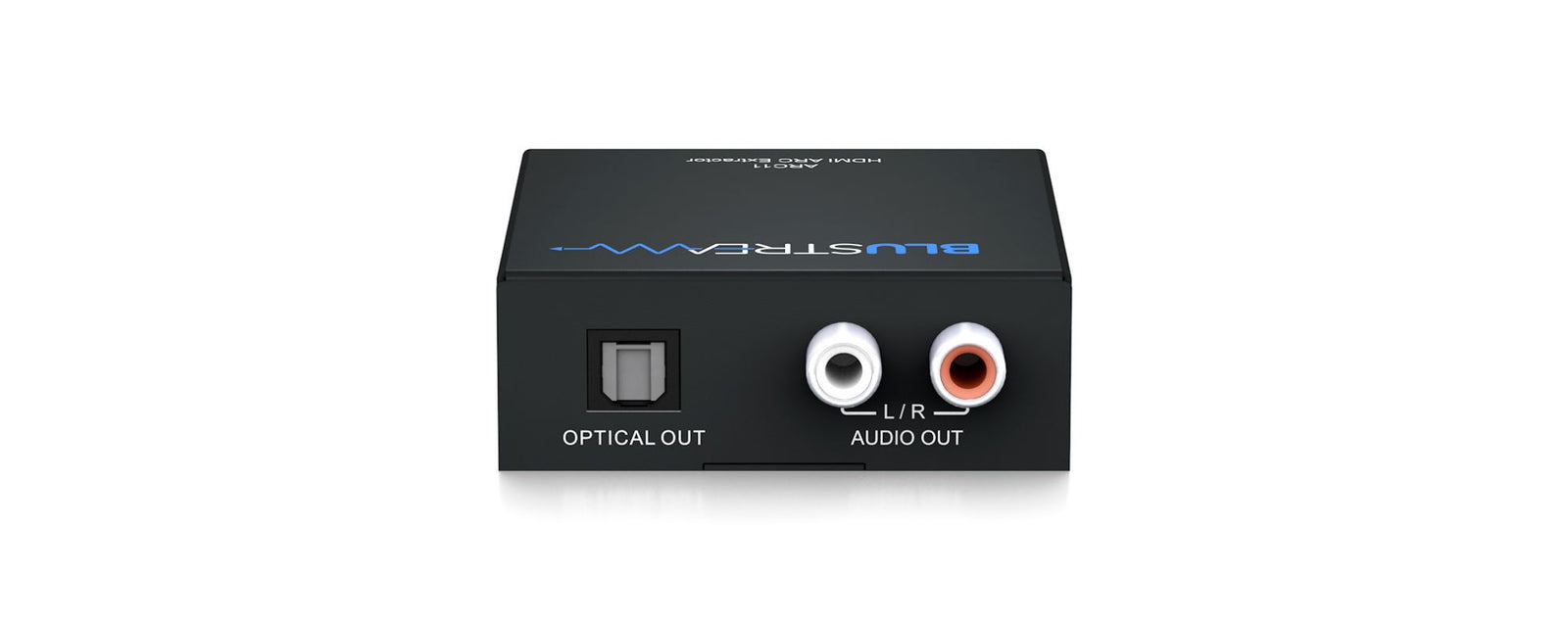

| Audio Output Connectors | 2 x RCA analogue left/right, 1 x Toslink optical output |
| Dimensions (W x H x D) | 70mm x 25mm x 73mm |
| Shipping Weight | 0.4kg |
| Operating Temperature | 32°F to 104°F (-5°C to +55°C) |
| Storage Temperature | -4°F to 140°F (-25°C to +70°C) |
| Power Supply | 5V/1A DC USB |
| Description | Downloads |
|---|---|
| Datasheet | Downloads |
