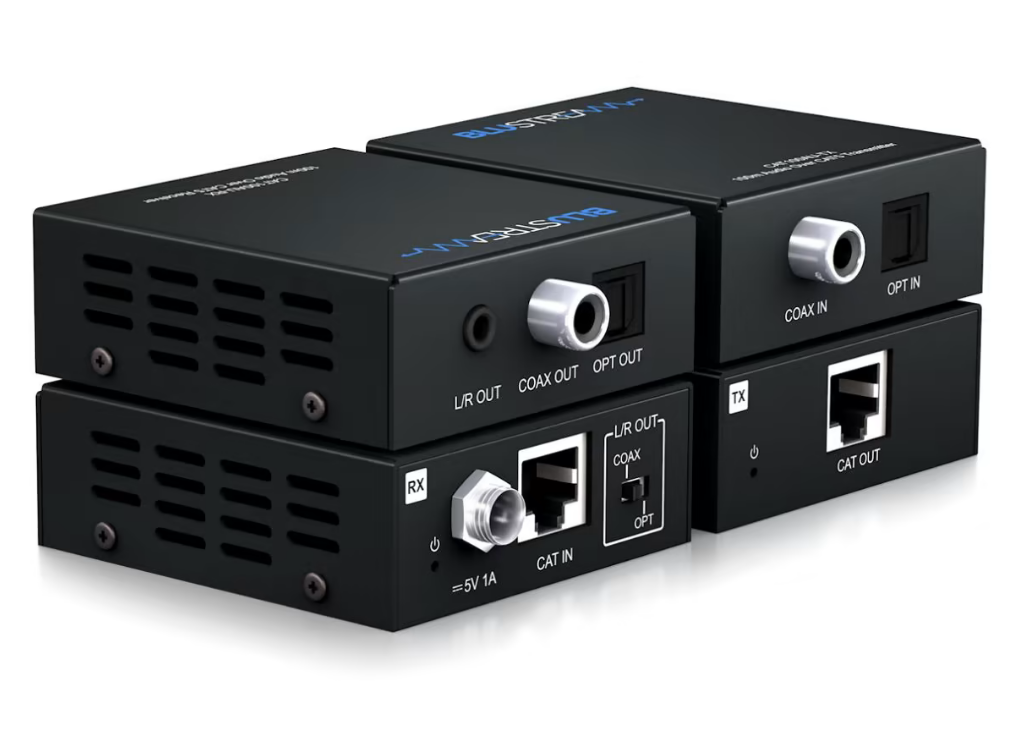

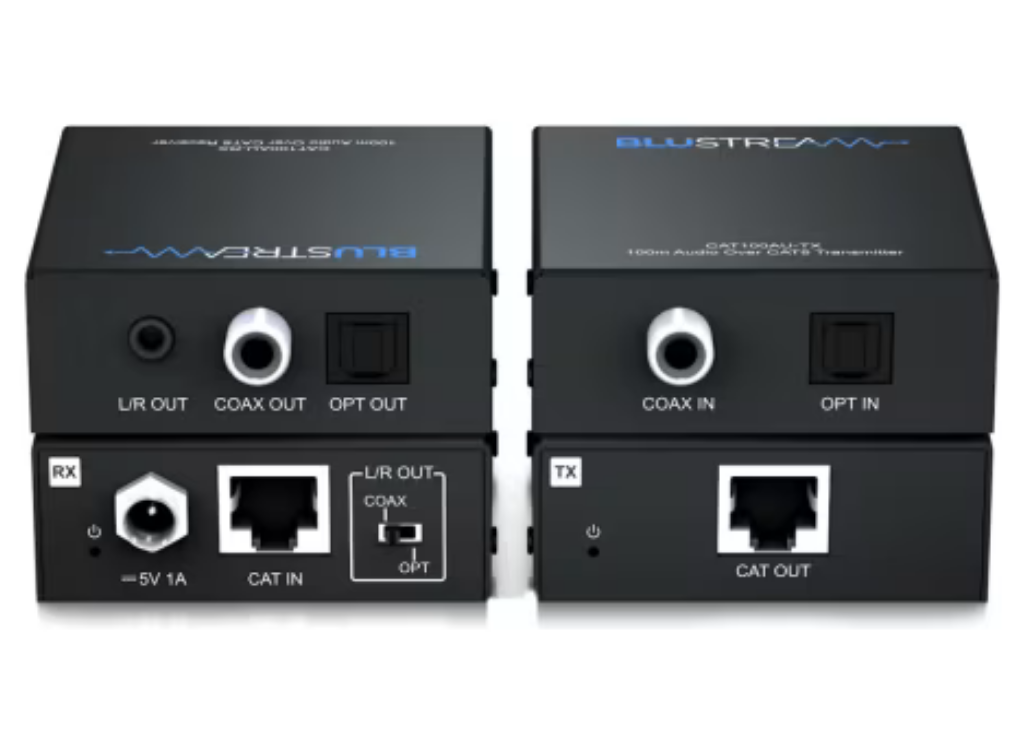

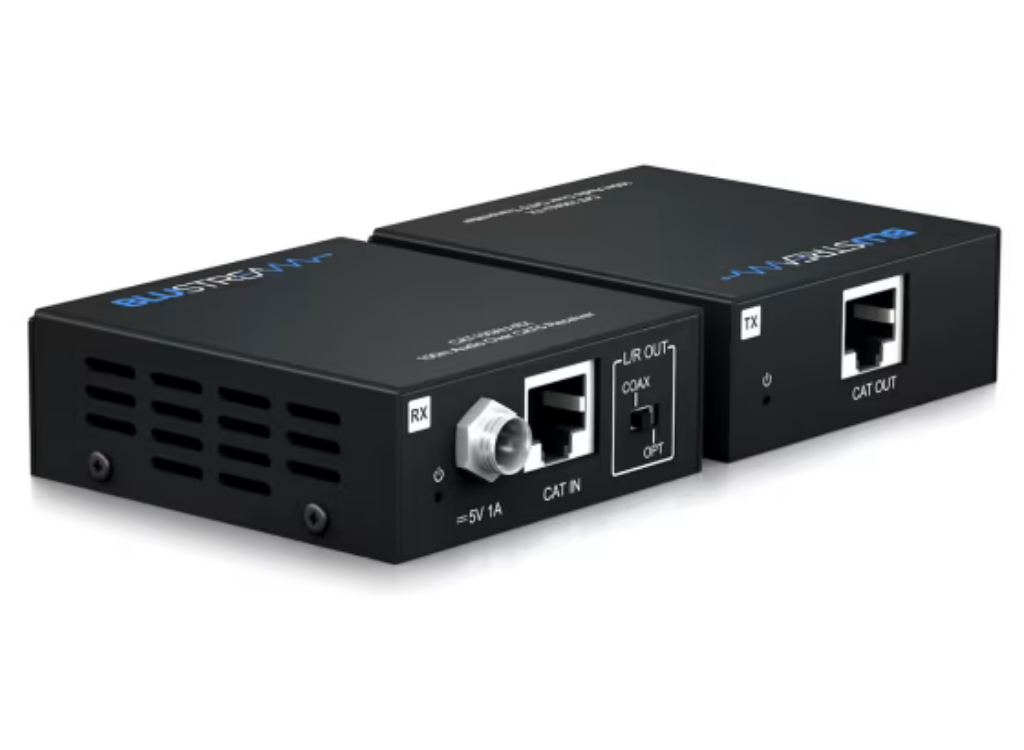

BluStream CAT100AU Digital Audio Over CAT
Our CAT100AU Audio over CAT5e/6 extender kit transmits audio signals up to a distance of 300m (192kHz signals up to 100m).
This plug-and-play device accepts both optical and coaxial digital inputs and includes a built in DAC to enable use of the stereo left / right audio output from either input.
Key Features
• Extend optical and coaxial digital audio signals up to distances of 300m* over a single CAT cable
• Both optical and coaxial digital can be distributed at the same time
• Built in DAC (Digital to Analogue audio Converter) converts either optical or coaxial digital (selectable) to analogue stereo left/right audio output (source selected on receiver unit)
• Supports sample rates 32kHz, 44.1kHz, 48kHz, 96kHz and 192kHz up to 24-bit resolution
• Ultra low jitter and high fidelity design
*CAT100AU supports distances of up to: 192kHz - 100m; 96kHz - 150m; < 48kHz - 300m
Box Contents
1 x CAT100AU-TX
1 x CAT100AU-RX
1 x 5V/1A DC Power Supply
1 x Mounting Kit
1 x User Manual
-
Feature |
CAT100AU-TX |
CAT100AU-RX |
Audio Input Connectors |
1 x Optical (S/PDIF), 1 x RCA (S/PDIF) |
N/A |
Output Connectors |
1 x RJ45 |
1 x Optical (S/PDIF), 1 x RCA (S/PDIF), 1 x Analogue (3.5mm) |
Input Connectors |
N/A |
1 x RJ45, 5V/1A DC |
Balun Dimensions |
65 x 80 x 25mm (with connections) |
65 x 70 x 25mm (without connections) |
Individual Balun Weight |
0.13kg (excluding accessories) |
0.13kg (excluding accessories) |
Box Dimensions |
210 x 125 x 95mm |
210 x 125 x 95mm |
Shipping Weight |
0.6kg |
0.6kg |
Operating Temperature |
32°F to 104°F (0°C to 40°C) |
32°F to 104°F (0°C to 40°C) |
Storage Temperature |
-4°F to 140°F (-20°C to 60°C) |
-4°F to 140°F (-20°C to 60°C) |
Power Supply |
5V/1A DC, barrel type connector |
5V/1A DC, barrel type connector |
Power Transfer |
Power supplied from receiver |
Power supplies to transmitter |
-
