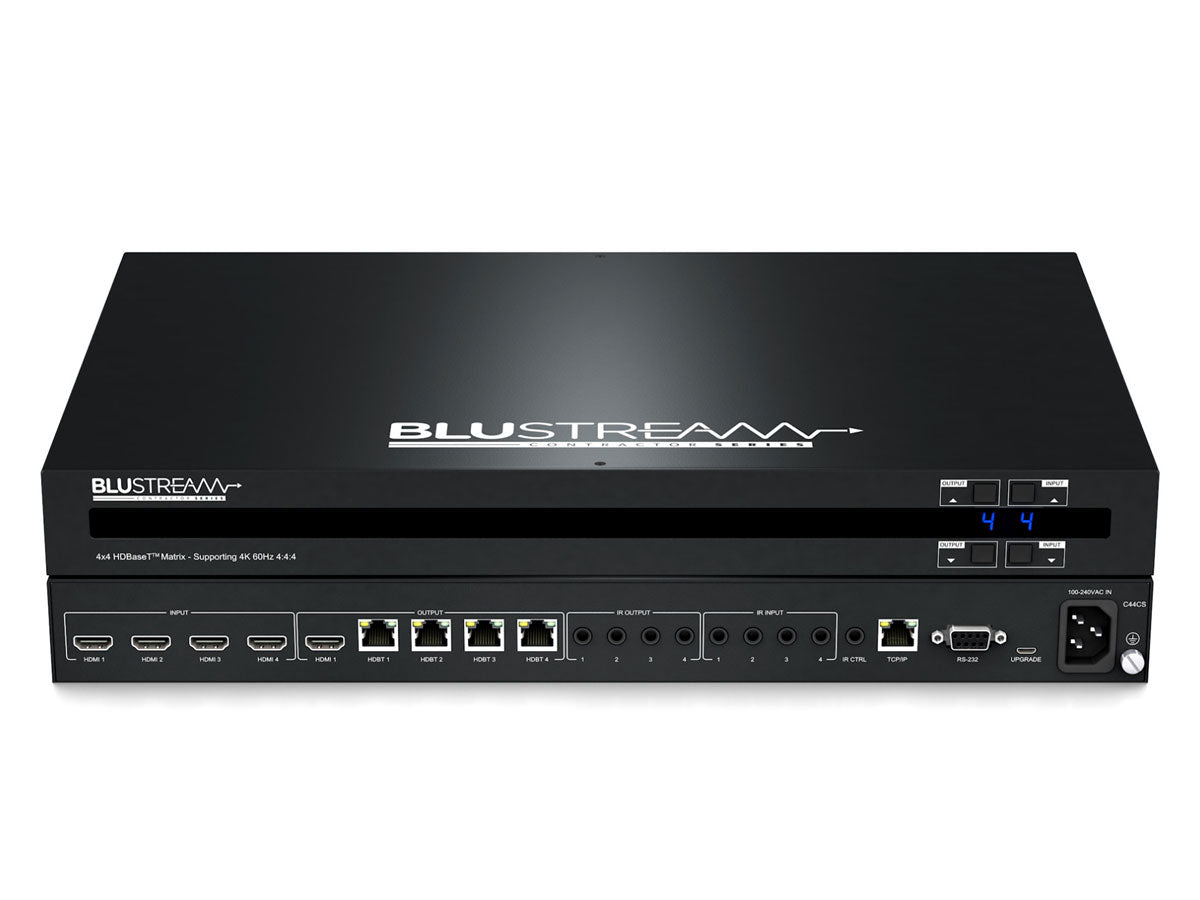

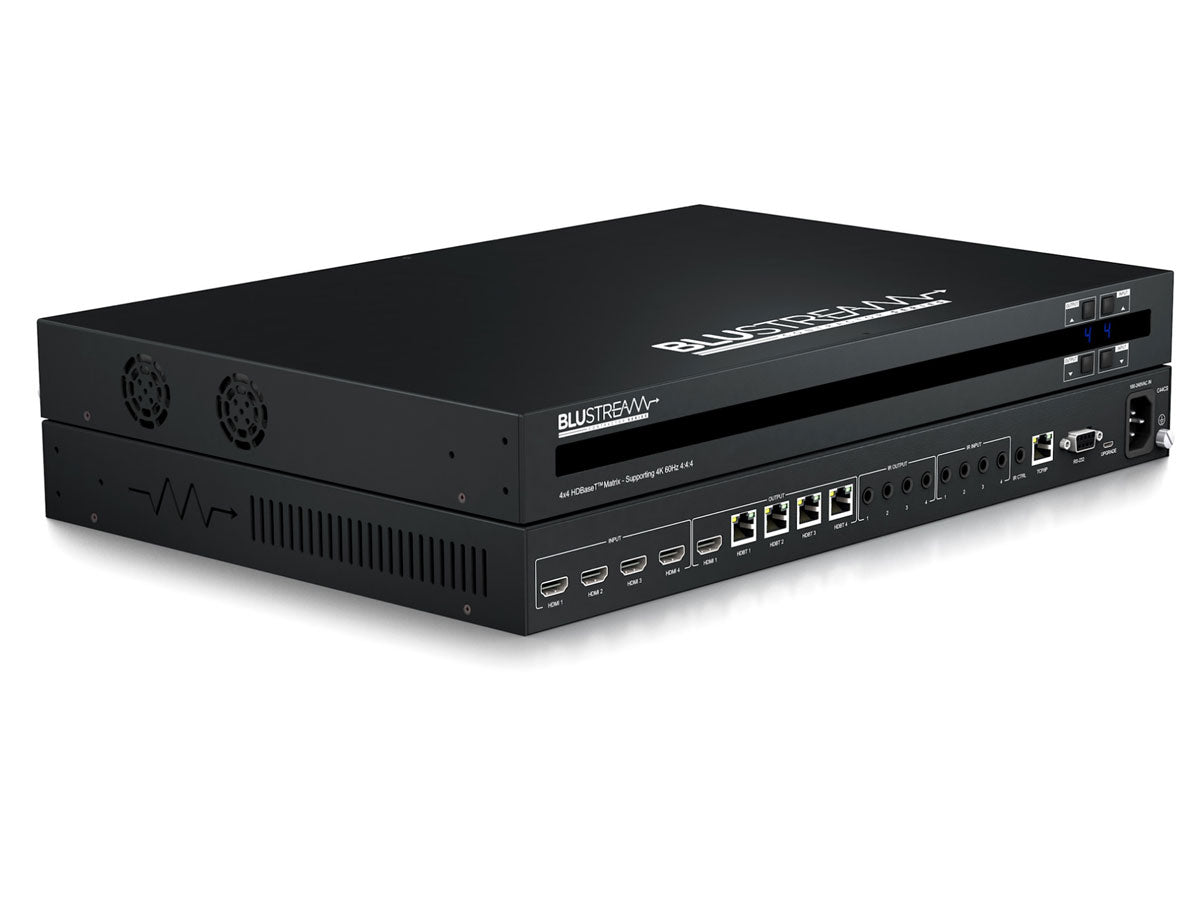

Our Contractor 4x4 HDBaseT™ matrix offers unprecedented performance and value for the custom installation market. The C44CS-KIT is a HDMI 2.0 4K 60Hz 4:4:4 HDCP 2.2 Matrix utilising CSC technology to deliver HDMI, bi-directional IR, and PoC up to lengths of 70m over a single CAT cable.
The matrix also provides advanced features including simultaneous HDBaseT™ / HDMI on output 1, video down conversion on HDBaseT™ outputs and a web browser interface module for control and configuration of the matrix.

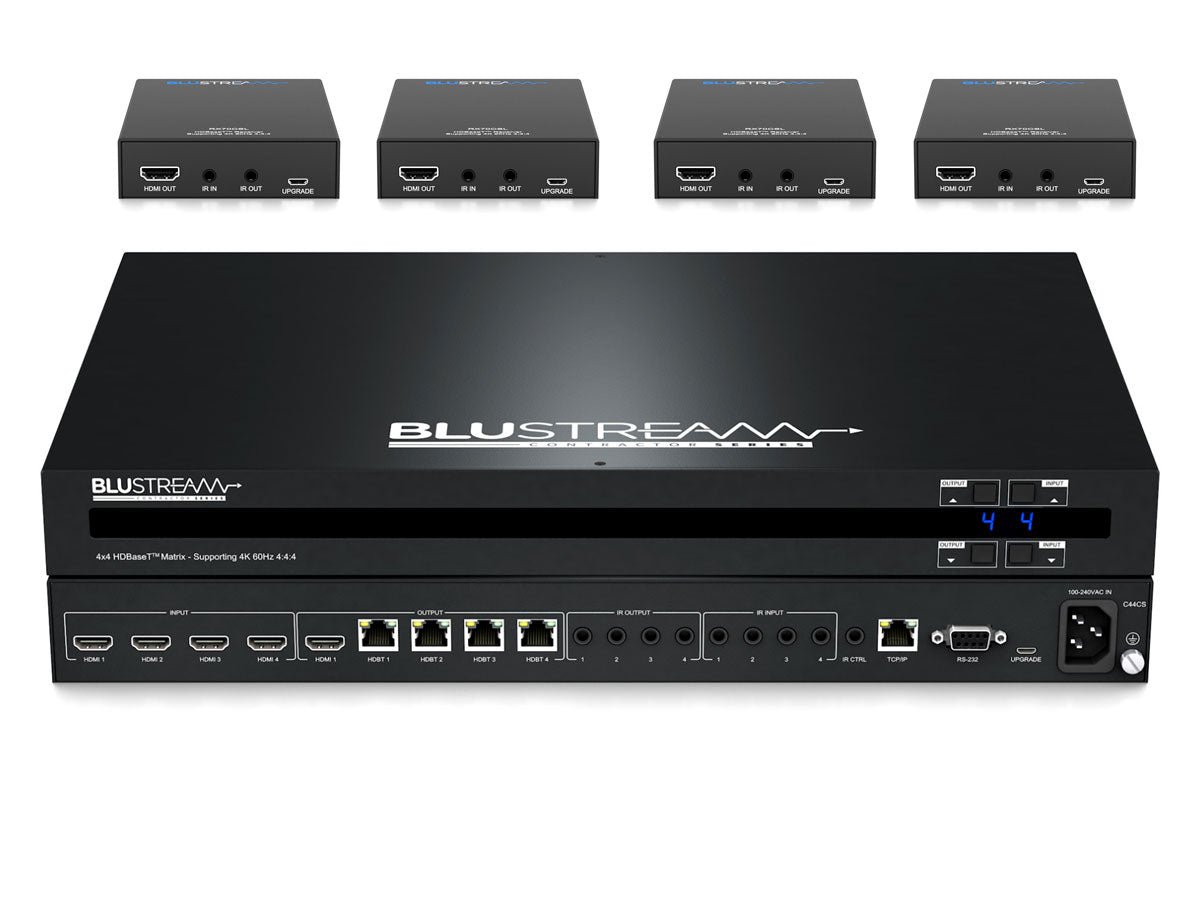

The C44CS-KIT is supplied with 4 x RX70CSL receivers.
Features
Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
Advanced Colour Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR*
Features 4 x HDMI inputs which can be independently routed to 4 x HDBaseT™ outputs
Output 1 features simultaneous HDMI and HDBaseT™ output
Video down-conversion on HDBaseT™ outputs allowing a display only capable of supporting lower video resolutions (4K 60Hz 4:2:0 or 1080p) to receive 4K 60Hz 4:4:4 video content while still showing maximum original 4K UHD resolution on remaining video outputs
Supports 4K 60Hz 4:4:4 UHD video up to 40m
Extends HDMI 1080p video up to 70m
Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
Web interface module for control and configuration of matrix
Supports bi-directional IR on all HDBaseT™ outputs

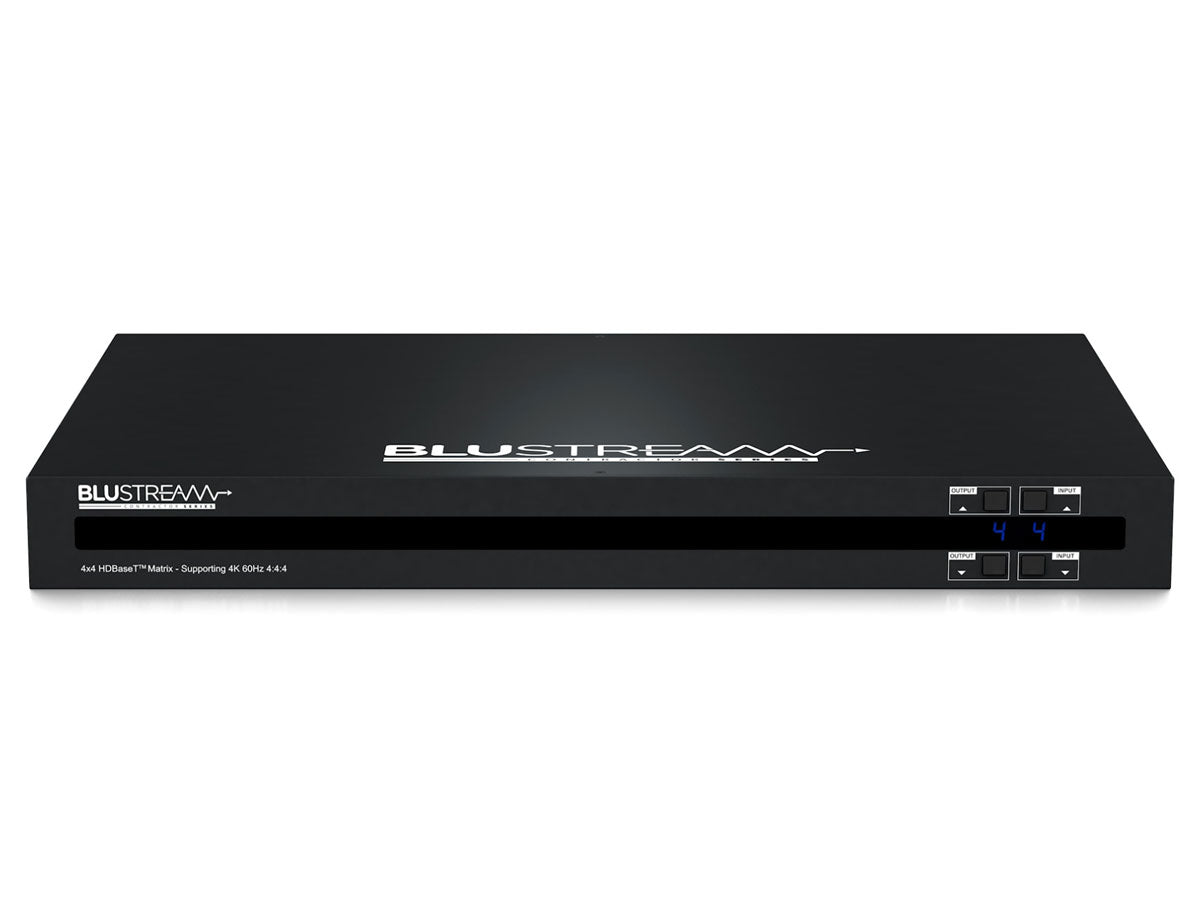

Control via front panel, iOS / Android App, IR, RS-232 or TCP/IP
Supports 12V PoC (Power over Cable) to power compatible HDBaseT™ receivers
Supplied with Blustream IR receivers and emitters
3rd party drivers available for all major control brands

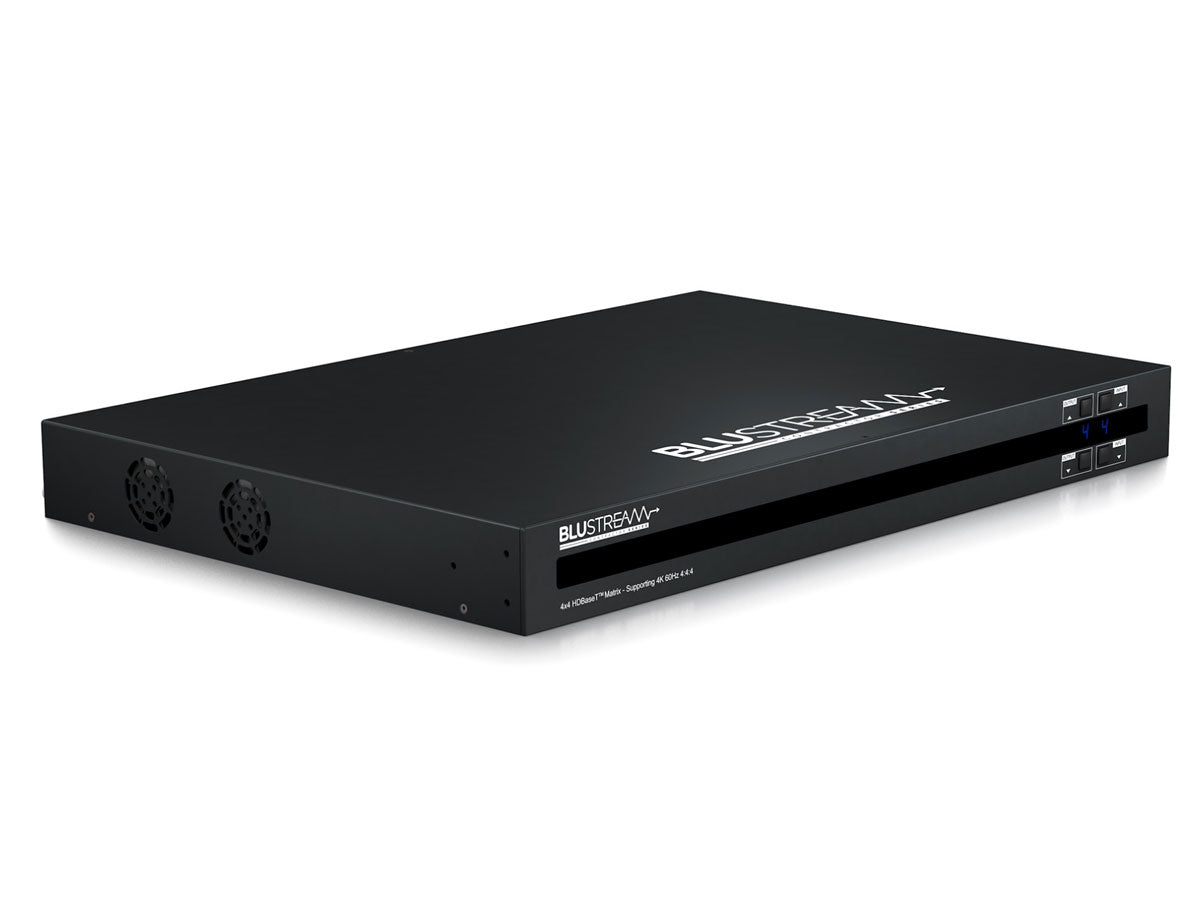

1U design for 19” rack mount integration - mounting kit included
Advanced EDID management and HDCP 2.2 compliant
Box Contents
1 x C44CS Matrix
4 x RX70CSL Receivers
1 x Rack Mounting Kit
4 x Mounting Kits for RX70CSL
4 x Mounting Feet
1 x Remote Control
4 x IR Emitters
5 x IR Receivers
1 x Serial Cable - DB9 to DB9
1 x IR Control Cable - 3.5mm-3.5mm Cable
1 x Quick Reference Guide
IEC Power Cable(s)
| Component | Details |
|---|---|
| C44CS - Matrix | |

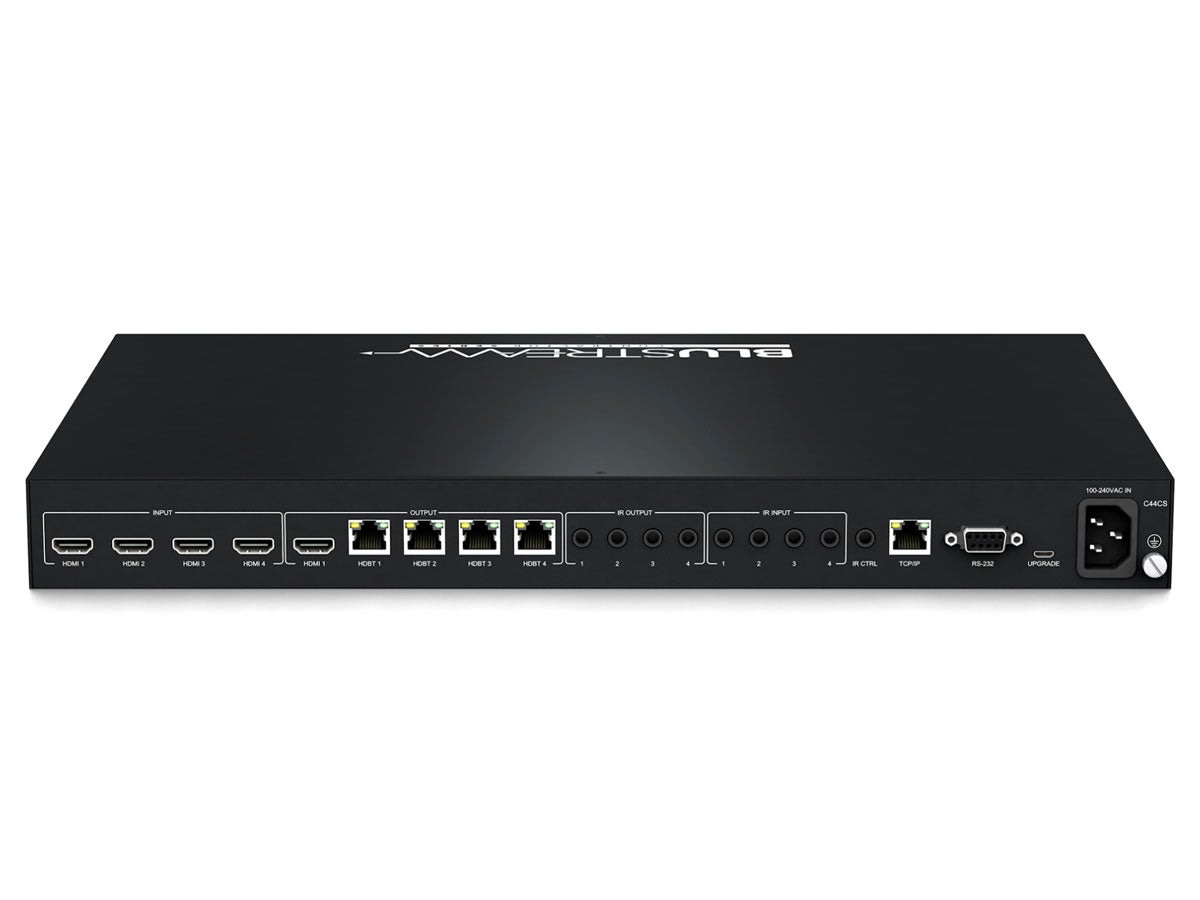

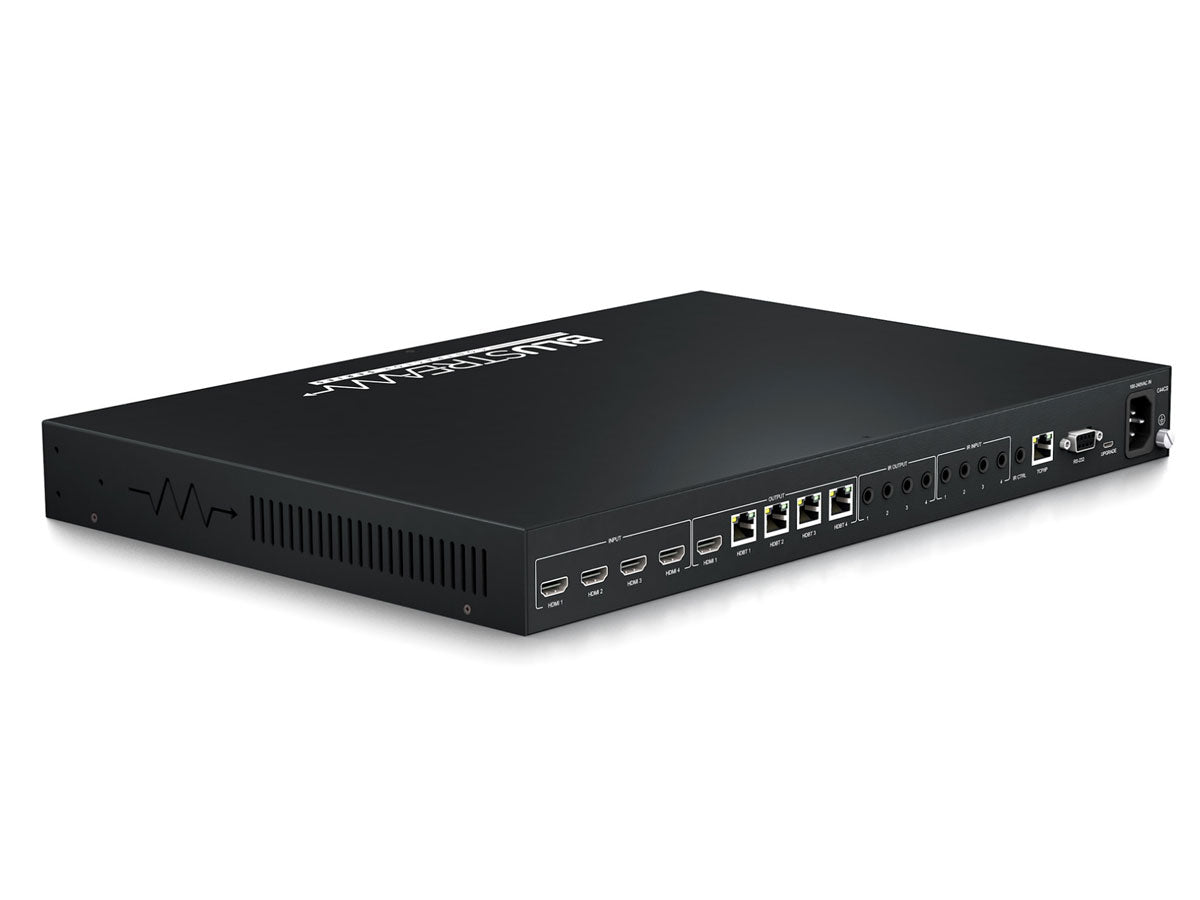

| Video Input Connectors | 4 x HDMI Type A, 19-pin, female |
| Video Output Connectors | 1 x HDMI Type A, 19-pin, female, 4 x HDBaseT™ RJ45 connectors |
| TCP/IP Control | 1 x RJ45, female |
| RS-232 Serial Ports | 1 x DB-9, female |
| IR Input Ports | 5 x 3.5mm stereo jack |
| IR Output Ports | 4 x 3.5mm mono jack |
| Rack Mountable | 1U rack height, rack ears included |
| Casing Dimensions (W x H x D) | 437mm x 44mm x 300mm (without feet) |
| RX70CSL Receiver | |
| Video Input Connectors | 1 x HDBaseT™ RJ45 connector |
| Video Output Connectors | 1 x HDMI Type A |
| IR Input Ports | 1 x 3.5mm stereo jack |
| IR Output Ports | 1 x 3.5mm mono jack |
| Casing Dimensions (W x H x D) | 85mm x 24mm x 120mm |
| Mounting Wings | Supplied |
| C44CS-KIT | |
| Power Supply | Internal 100-240V AC |
| HDBT Power Output | 12V DC 0.8A per port |
| Shipping Weight | 6.0kg |
| Operating Temperature | 23°F to 122°F (-5°C to +50°C) |
| Storage Temperature | -13°F to 158°F (-25°C to +70°C) |
| Description | Downloads |
|---|---|
| BluStream Contractor 4x4 HDBaseT™ CSC Matrix - 70m | C44CS-KIT DataSheet | Downloads |
| BluStream Contractor 4x4 HDBaseT™ CSC Matrix - 70m | C44CS-KIT User Manual | Downloads |
| BluStream Contractor 4x4 HDBaseT™ CSC Matrix - 70m | C44CS-KIT Compatibility Guide | Downloads |
| BluStream Contractor 4x4 HDBaseT™ CSC Matrix - 70m | C44CS-KIT Quick ReferenceGuide | Downloads |
| BluStream Contractor 4x4 HDBaseT™ CSC Matrix - 70m | C44CS-KIT Schematic | Downloads |
