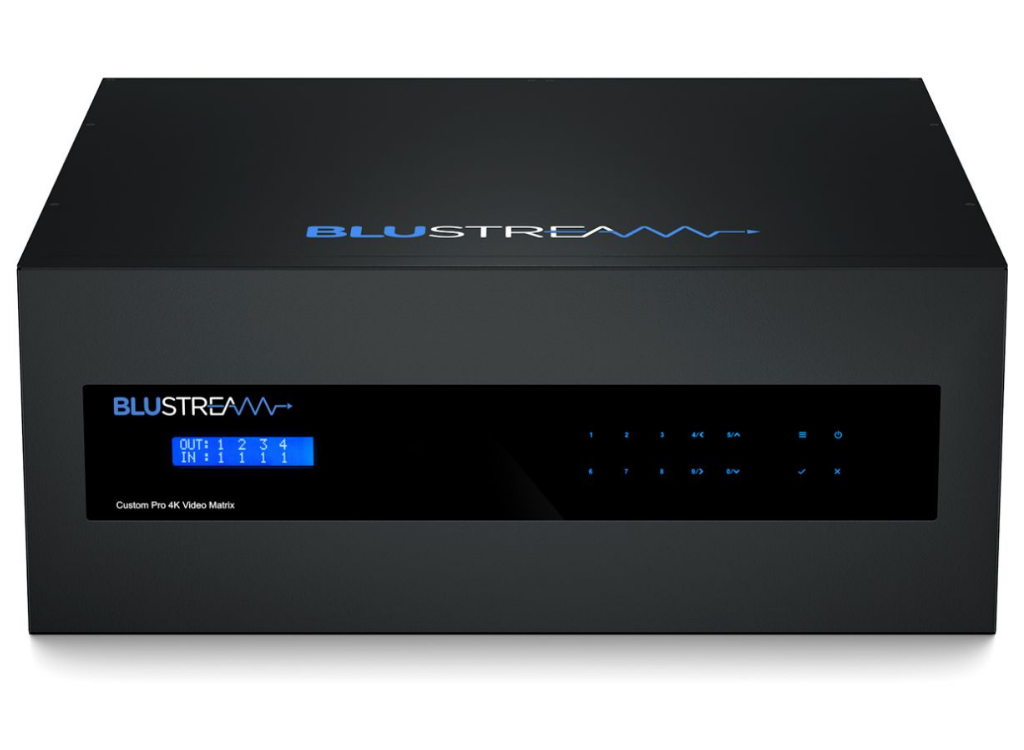

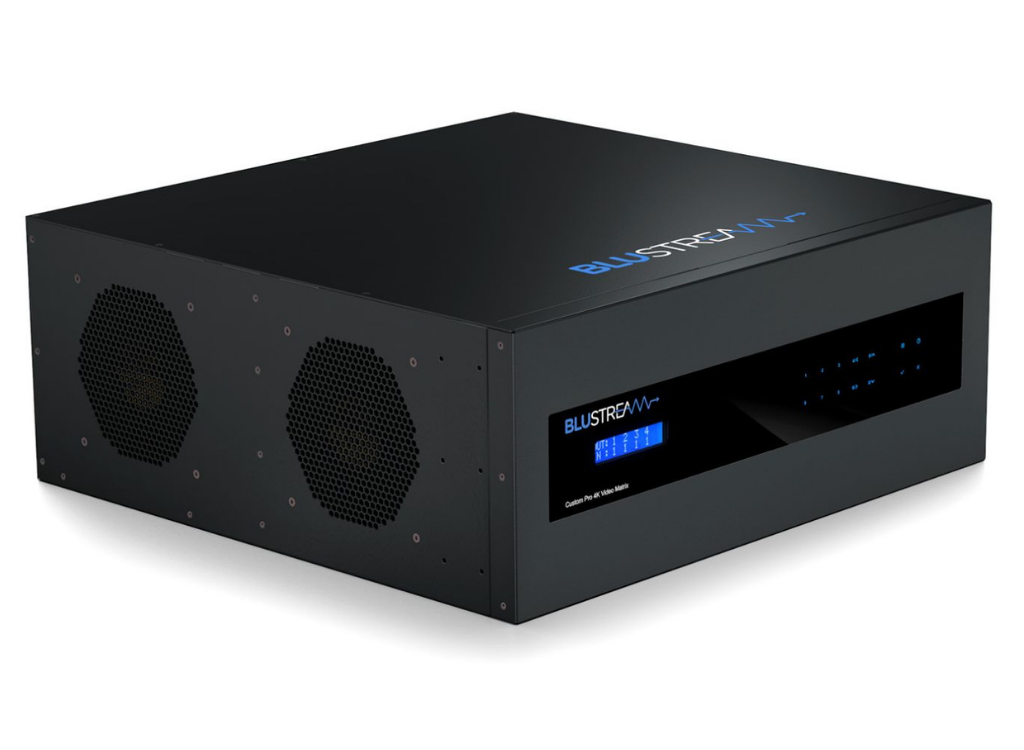

BluStream Custom Pro 16x16 HDBaseT™ CSC Matrix - 100m | PRO16HBT100CS
The pre-configured range of Custom Pro Matrix achieve new levels of both performance and flexibility. The Custom Pro PRO16HBT100CS has been designed to operate in complex and challenging AV environments.
Key Features
• Pre-configured Custom Pro matrix bundle with 16 x video inputs, 16 x video outputs, Audio breakout, and 2-way IR control
• Supports 4K UHD video up to 4K 60Hz 4:4:4 (18Gbps) over HDBaseT™ using Colour Space Conversion up to 70m at 4K 60Hz 4:4:4, or up to 100m at 1080p
• HDBaseT™ CSC output boards feature independent automatic downscaling of up to 4K 60Hz 4:4:4 video input to the following formats (HDMI outputs are native pass-through):
- 1080p@ 60Hz (for screens that do not support 4K)
- 4K 60Hz 4:2:0 (for screens that do not support full 4K 60Hz 4:4:4)
• 16 x analogue L/R audio inputs which can be embedded onto corresponding HDMI / HDBaseT™ zone outputs
• Extend 16 x IR outputs for routed control of local source equipment
• 16 x IR inputs for distribution of IR to compatible Blustream HDBaseT™ receivers
• Optional RS-232 control board for bi-directional serial control with equipment connected to Blustream HDBaseT™ receivers (PRO-8RS232 cards sold separately)
• Audio breakout board with line-level volume control
• Web browser interface for control and configuration of matrix
• Control of matrix via front panel, RS-232, TCP/IP and Web GUI / App
• Supports PoC (Power over Cable) when used with compatible Blustream HDBaseT™ receivers
• 3rd Party drivers available for major commercial & residential control brands
• Advanced EDID management
• HDCP 2.2 compliant
• Used with Blustream HEX100CS-RX receivers (sold separately)
• Used with Blustream HEX70CS-RX receivers - if distance at 4K does not exceed 40m, or 70m at 1080p (sold separately)Box Contents
1 x Custom Pro Hub 16 Matrix
4 x PRO-IN4HAB
2 x PRO-8ABV
3 x PRO-OUT4HTCS
1 x PRO-OUT4TCS
*Individual boards dispatched separately for assembly by installer
1 x Remote Control
1 x Rack Mounting Kit
5 x IR Receiver
4 x IR Emitter
5 x IR Control Cable - 3.5mm-3.5mm Cable
1 x Quick Reference Guide
Power Cable/s
-

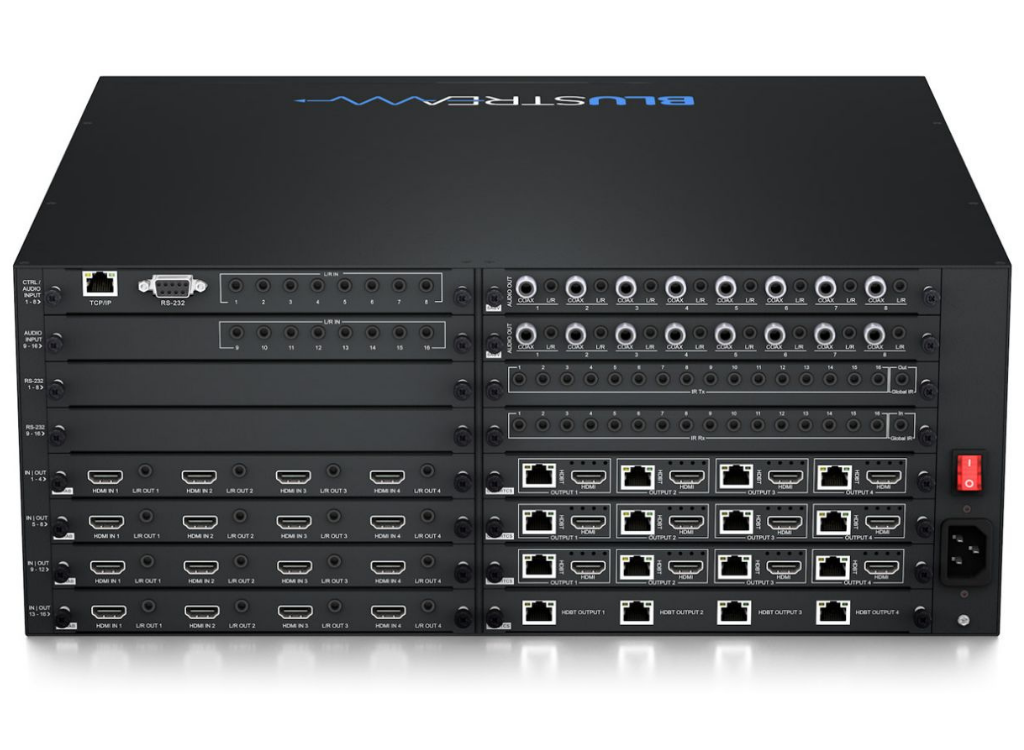

Feature Specification Video Input Connectors 16 x HDMI Type A, 19-pin, female Video Output Connectors 12 x HDMI Type A, 19-pin, female; 16 x HDBaseT™ RJ45 Source Audio Output Connectors 16 x 3.5mm stereo jack (L/R) Zone Audio Output Connectors 16 x 3.5mm stereo jack (L/R), 16 x RCA Coaxial (S/PDIF) Audio Input Connectors 16 x 3.5mm stereo jack (L/R) RS-232 Serial Ports 1 x 9-pin RS-232 connector IR Input Ports 16 x 3.5mm stereo jack IR Output Ports 16 x 3.5mm mono jack TCP/IP Control 1 x RJ45 connector, female Rack Mountable 4U rack height, rack ears included Casing Dimensions (W x H x D) 440mm x 173mm x 422mm without feet Dimensions Including Connections 440mm x 178mm x 430mm with feet Operating Temperature 32°F to 104°F (0°C to 40°C) Storage Temperature -4°F to 140°F (-20°C to 60°C) Power Supply Internal 100-240V AC, IEC cable supplied -
