The pre-configured range of Custom Pro Matrix achieve new levels of both performance and flexibility.

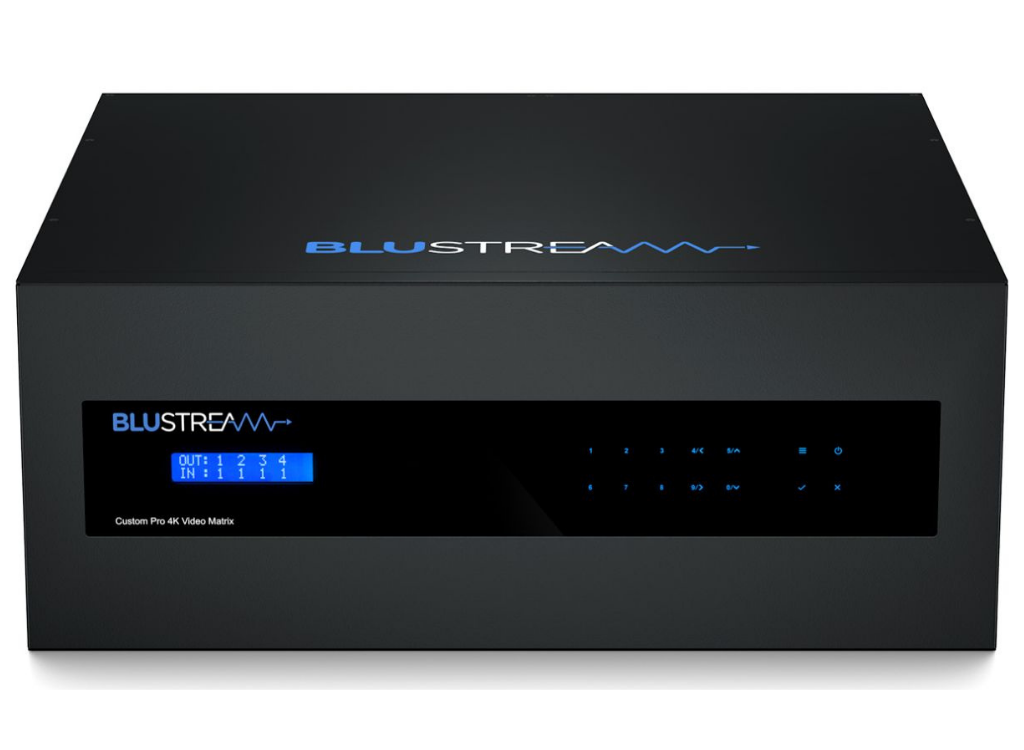

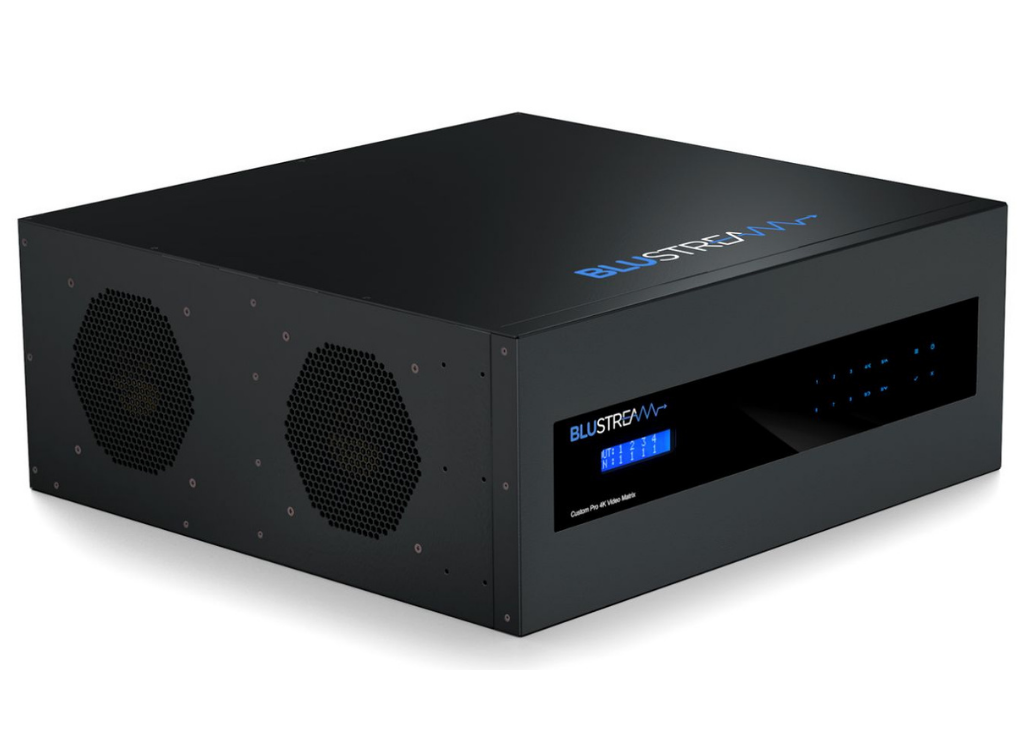

The Custom Pro PRO16HBT70CS has been designed to operate in complex and challenging AV environments.
Key Features
• Pre-configured Custom Pro Matrix bundle with 16 x video inputs, 16 x video outputs, Audio breakout, and 2-way IR control
• Supports 4K UHD video up to 4K 60Hz 4:4:4 (18Gbps) over HDBaseT™ using Colour Space Conversion up to 40m at 4K 60Hz 4:4:4, or up to 70m at 1080p
• HDBaseT™ CSC output boards feature independent automatic downscaling of up to 4K 60Hz 4:4:4 video input to the following formats (HDMI outputs are native pass-through):
- 1080p@ 60Hz (for screens that do not support 4K)
- 4K 60Hz 4:2:0 (for screens that do not support full 4K 60Hz 4:4:4)
• 16 x analogue L/R audio inputs which can be embedded onto corresponding HDMI / HDBaseT™ zone outputs
• Extend 16 x IR outputs for routed control of local source equipment
• 16 x IR inputs for distribution of IR to compatible Blustream HDBaseT™ receivers
• Optional RS-232 control board for bi-directional serial control with equipment connected to Blustream HDBaseT™ receivers (PRO-8RS232 cards sold separately)
• Audio breakout board with line-level volume control
• Web browser interface for control and configuration of matrix
• Control of matrix via front panel, RS-232, TCP/IP and Web GUI / App
• Supports PoC (Power over Cable) when used with compatible Blustream HDBaseT™ receivers
• 3rd Party drivers available for major commercial & residential control brands
• Advanced EDID management
• HDCP 2.2 compliant
• Used with Blustream HEX70CS-RX receivers (sold separately)
Box Contents
1 x Custom Pro Hub 16 Matrix
4 x PRO-IN4HAB
2 x PRO-8ABV
1 x PRO OUT4TLS-V2
3 x PRO-OUT4TL-V2
*Individual boards dispatched separately for assembly by installer
1 x Remote Control
1 x Rack Mounting Kit
5 x IR Receiver
4 x IR Emitter
5 x IR Control Cable - 3.5mm-3.5mm Cable
1 x Quick Reference Guide
Power Cable/s

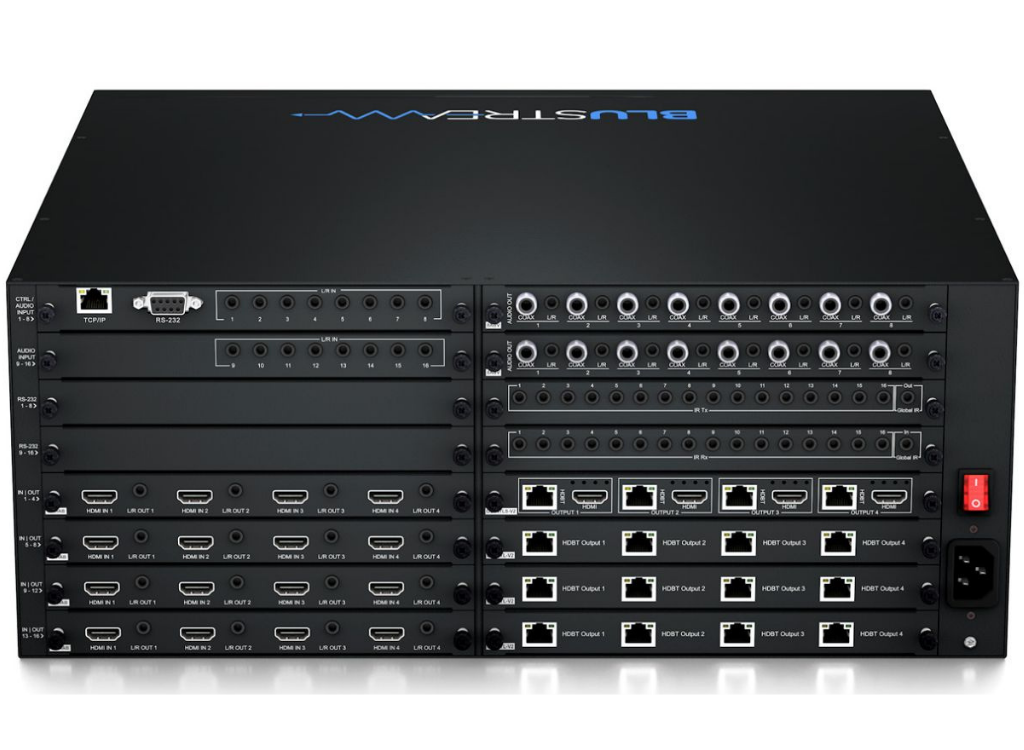

| Feature | Specification |
|---|---|
| Video Input Connectors | 16 x HDMI Type A, 19-pin, female |
| Video Output Connectors | 4 x HDMI Type A, 19-pin, female; 16 x HDBaseT™ RJ45 |
| Source Audio Output Connectors | 16 x 3.5mm stereo jack (L/R) |
| Zone Audio Output Connectors | 16 x 3.5mm stereo jack (L/R); 16 x RCA Coaxial Digital (S/PDIF) |
| Audio Input Connectors | 16 x 3.5mm stereo jack (L/R) |
| RS-232 Serial Ports | 1 x 9-pin RS-232 connector |
| IR Input Ports | 16 x 3.5mm stereo jack |
| IR Output Ports | 16 x 3.5mm mono jack |
| TCP/IP Control | 1 x RJ45 connector, female |
| Rack Mountable | 4U rack height, rack ears included |
| Casing Dimensions (W x H x D) | 440mm x 173mm x 422mm without feet |
| Dimensions Including Connections (W x H x D) | 440mm x 178mm x 430mm with feet |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Storage Temperature | -4°F to 140°F (-20°C to 60°C) |
| Power Supply | Internal 100-240V AC, IEC cable supplied |
