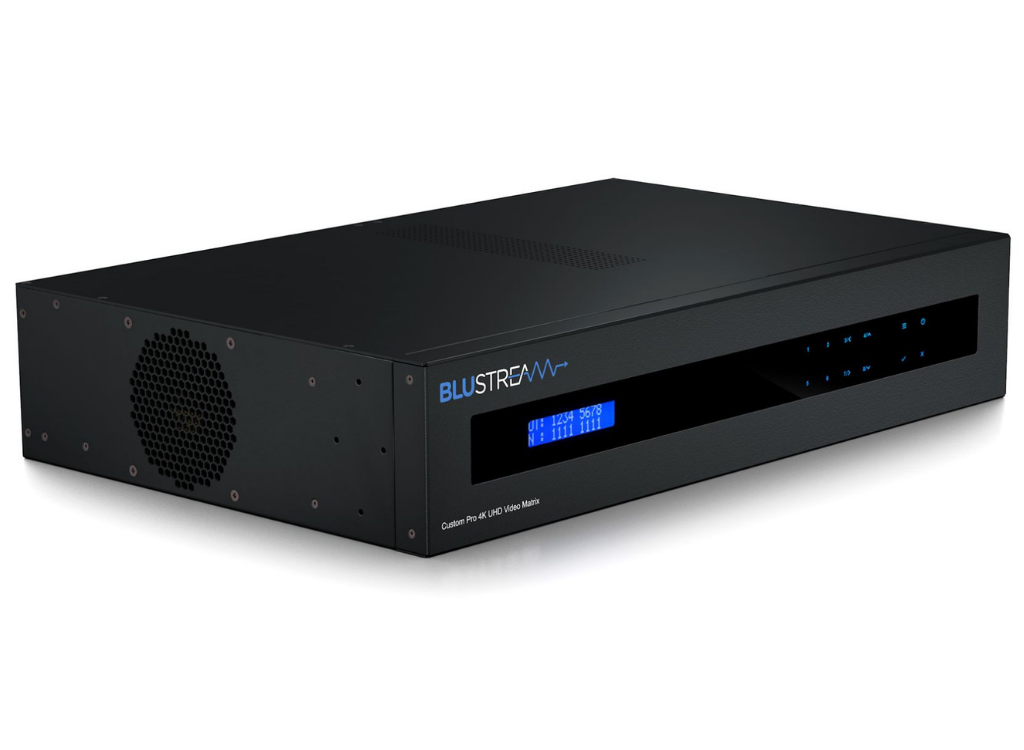

Our Custom Pro 4x8 HDBaseT™ CSC Matrix offers unprecedented 4K HDR performance for the custom installation market.
The PRO48HBT70CS is a HDMI 2.0 4K 60Hz 4:4:4 HDCP 2.2 Matrix utilising CSC technology to deliver HDMI, Bi-directional IR, PoC up to lengths of 70m over a single CAT cable (4K with HDR up to 40m), with independent down-scaling of 4K video inputs on the CSC HDBaseT™ outputs to allow displays only capable of supporting lower video resolutions to receive 4K video while still showing maximum original 4K UHD resolution on the higher-definition displays.
The Matrix also provides advanced features including audio breakout and a web browser interface module for control and configuration of the matrix.
Key Features
• HDBaseT™ technology offering distribution of video and audio over a single CAT cable
• Advanced Colour Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR
• Features 4 x HDMI inputs which can be independently routed to 8 x HDBaseT™ outputs
• Supports 4K 60Hz 4:4:4 UHD video up to 40m
• Independent down-scaling of resolutions up to 4K 60Hz 4:4:4 video input to the following formats:
- 1080p 60Hz (for screens that do not support 4K)
- 4K 60Hz 4:2:0 (for screens that do not support full 4K 60Hz 4:4:4)
• Supports 4K HDR
• Extends HDMI 1080p video up to 70m
• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K HDR
• Supports all known digital HDMI audio formats including Dolby TrueHD, Atmos; DTS-HD Master Audio and DTS:X transmissions
• Analogue audio input can be embedded onto any HDMI input
• Web interface module for control and configuration of Matrix
• Supports bi-directional IR
• Supplied with Blustream IR receivers and emitters

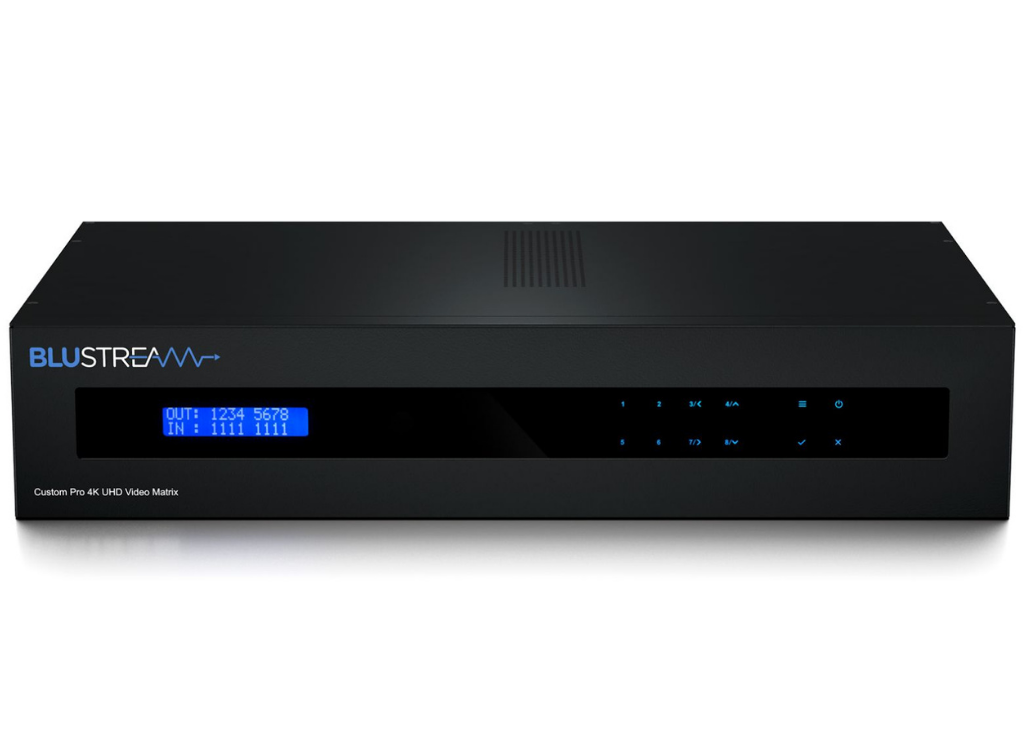

• Control via front panel, IR, RS-232 and TCP/IP
• Supports PoC (Power over Cable) to power compatible HDBaseT™ receivers
• 3rd Party drivers available for major control brands
• 2U Design for 19" rack mount integration - Mounting kit included
• Advanced EDID management
• HDCP 2.2 compliant
• To be used with the HEX70CS-RX receivers

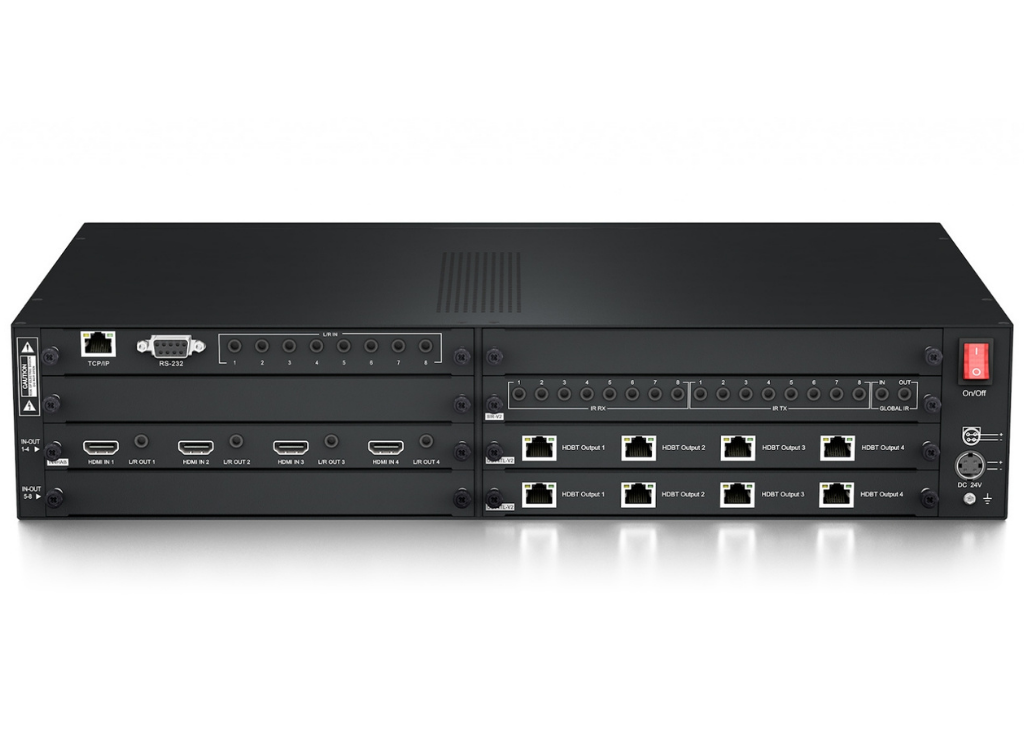

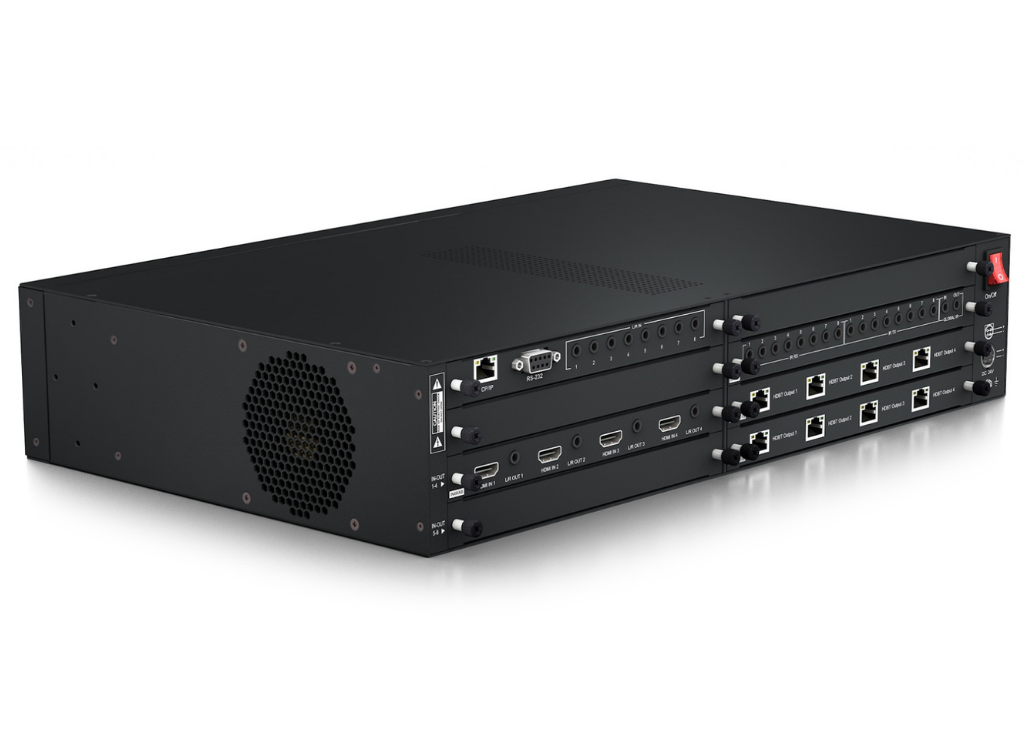

| Feature | Specification |
|---|---|
| Video Input Connectors | 4 x HDMI Type A, 19-pin, female |
| Video Output Connectors | 8 x HDBaseT™ RJ45 connector |
| Audio Input Connectors | 8 x 3.5mm stereo jack (L/R) |
| TCP/IP Control | RJ45, female |
| Ethernet / Network | RJ45, female |
| IR Input Ports | 9 x 3.5mm stereo jack |
| RS-232 Serial Port | DB-9, female |
| Rack Mountable | 2U rack height, rack ears included |
| Casing Dimensions (W x H x D) | 440mm x 87mm x 282mm (without feet) |
| Dimensions Including Connections (W x H x D) | 440mm x 94mm x 288mm (with feet) |
| Shipping Weight | 5kg |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Storage Temperature | -4°F to 140°F (-20°C to 60°C) |
| Power Supply | 24V/8A DC |
