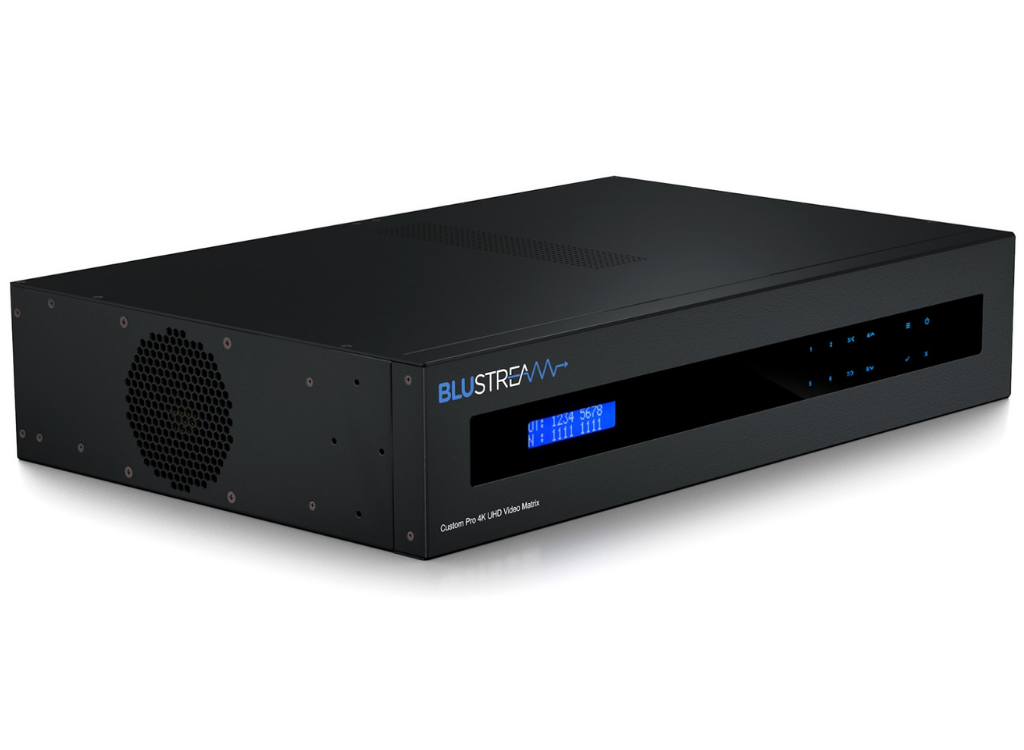

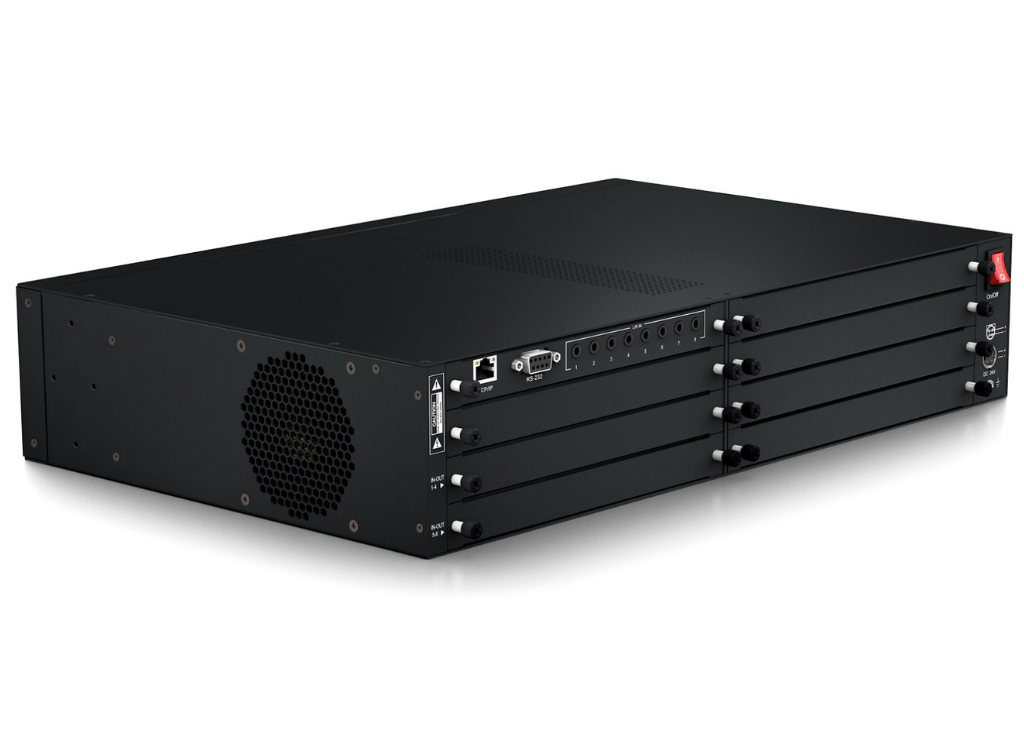

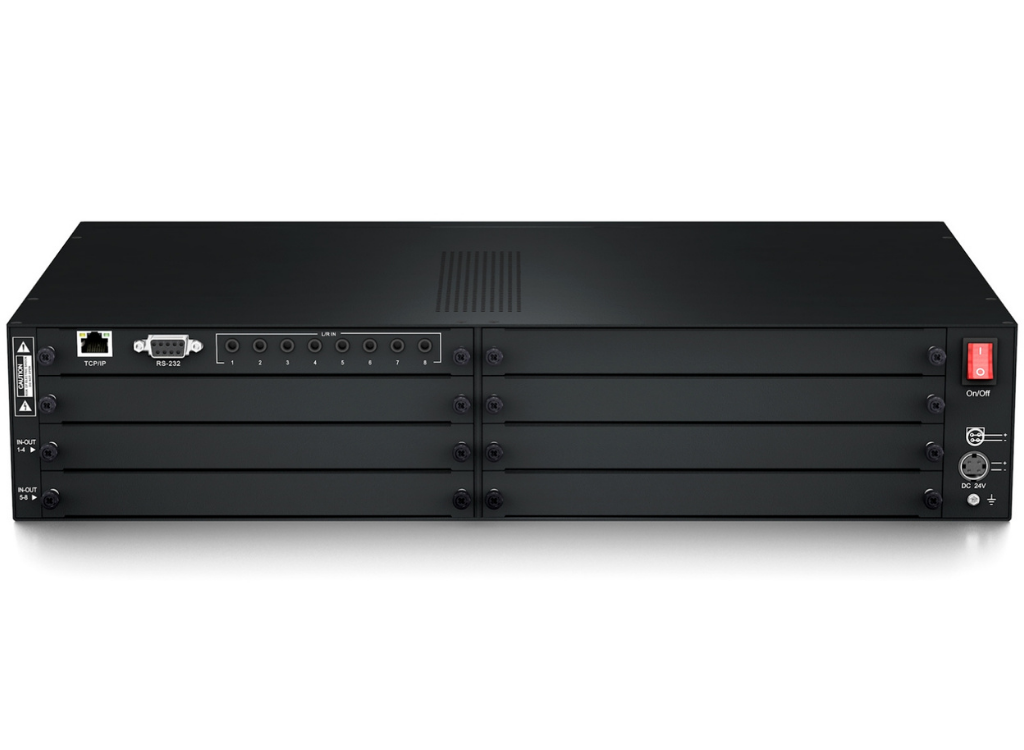

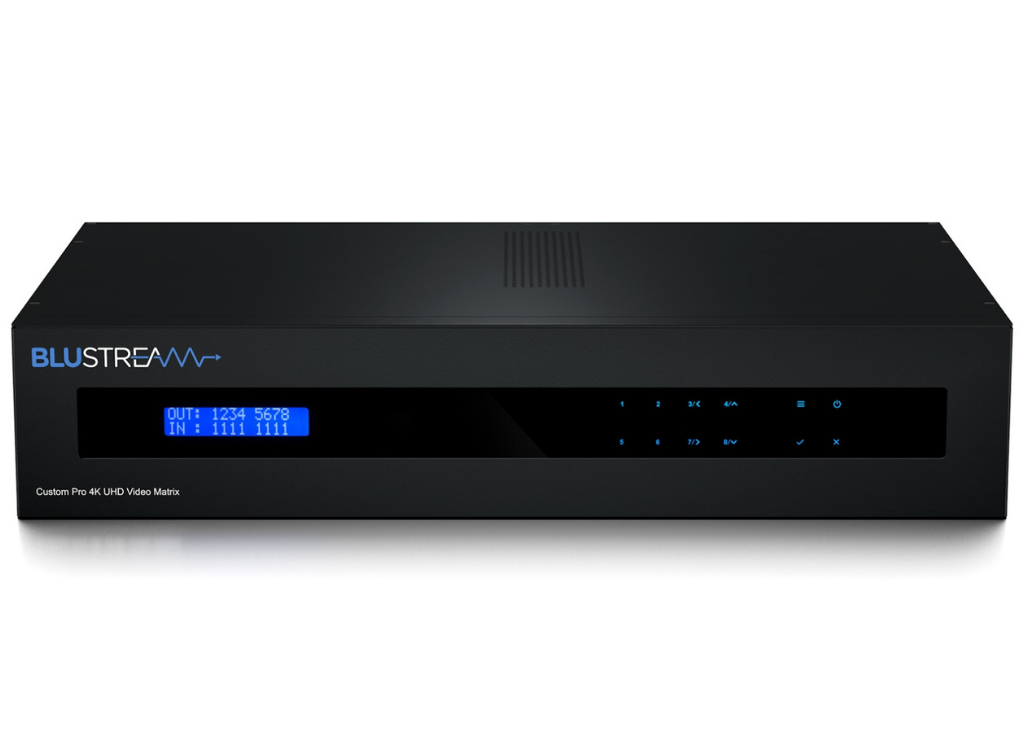

BluStream Custom Pro 8x8 HDBaseT™ CSC Matrix | CUSTOMPRO-HUB
The Custom Pro 4K Matrix achieves new levels of both performance and flexibility. AV installers can now easily specify their desired I/O structure and choose the additional control features required for a specific AV project. The Custom Pro Matrix has been specifically designed to operate in challenging AV environments. Its robust housing and interlocking board configuration make both installation and maintenance a seamless experience. Advanced optional features include audio breakout, simultaneous HDBaseT™ / HDMI outputs, RS-232 pass through, and a web browser interface module for enhanced control and configuration.
Key Features
• Custom Pro Matrix Hub with 8 x modular bays for population of control & input / output boards
• Up to 8 x video inputs and 8 x video outputs can be achieved using Custom Pro boards
• 8 x analogue L/R audio inputs which can be embedded onto corresponding HDMI / HDBaseT™ zone outputs
• Control of Matrix via front panel, IR, RS-232, TCP/IP and Web GUI / App
• Supports PoC (Power over Cable) when used with compatible HDBaseT™ input / output cards
• Web interface module for control and configuration of Matrix
• 3rd Party drivers available for major home control brands
• Advanced EDID management
• HDCP 2.2 Compliant
| Feature | Specification |
|---|---|
| Audio Input Connectors | 8 x 3.5mm stereo jack (L/R) |
| RS-232 Serial Ports | 1 x 9-pin RS-232 connector |
| TCP/IP Control | 1 x RJ45, female |
| Rack Mountable | 2U rack height, rack ears included |
| Casing Dimensions (W x H x D) | 440mm x 87mm x 282mm (without feet) |
| Dimensions w/ Connections | 440mm x 94mm x 288mm (with feet/connections) |
| Shipping Weight | 5.0kg |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Storage Temperature | -4°F to 140°F (-20°C to 60°C) |
| Power Supply | 24V/8A DC |
| Description | Downloads |
|---|---|
| Datasheet | Downloads |
| User Manual | Downloads |
