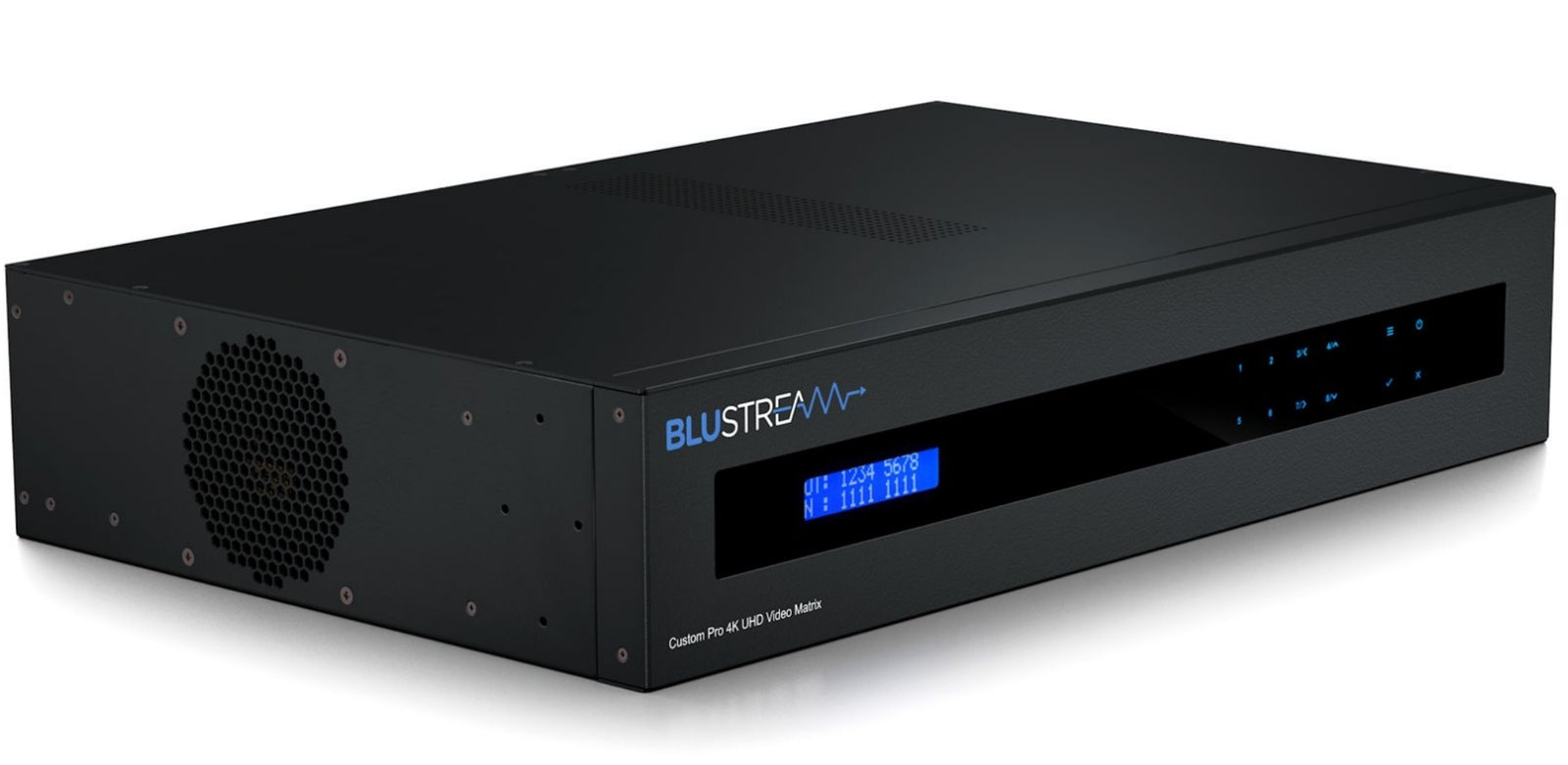

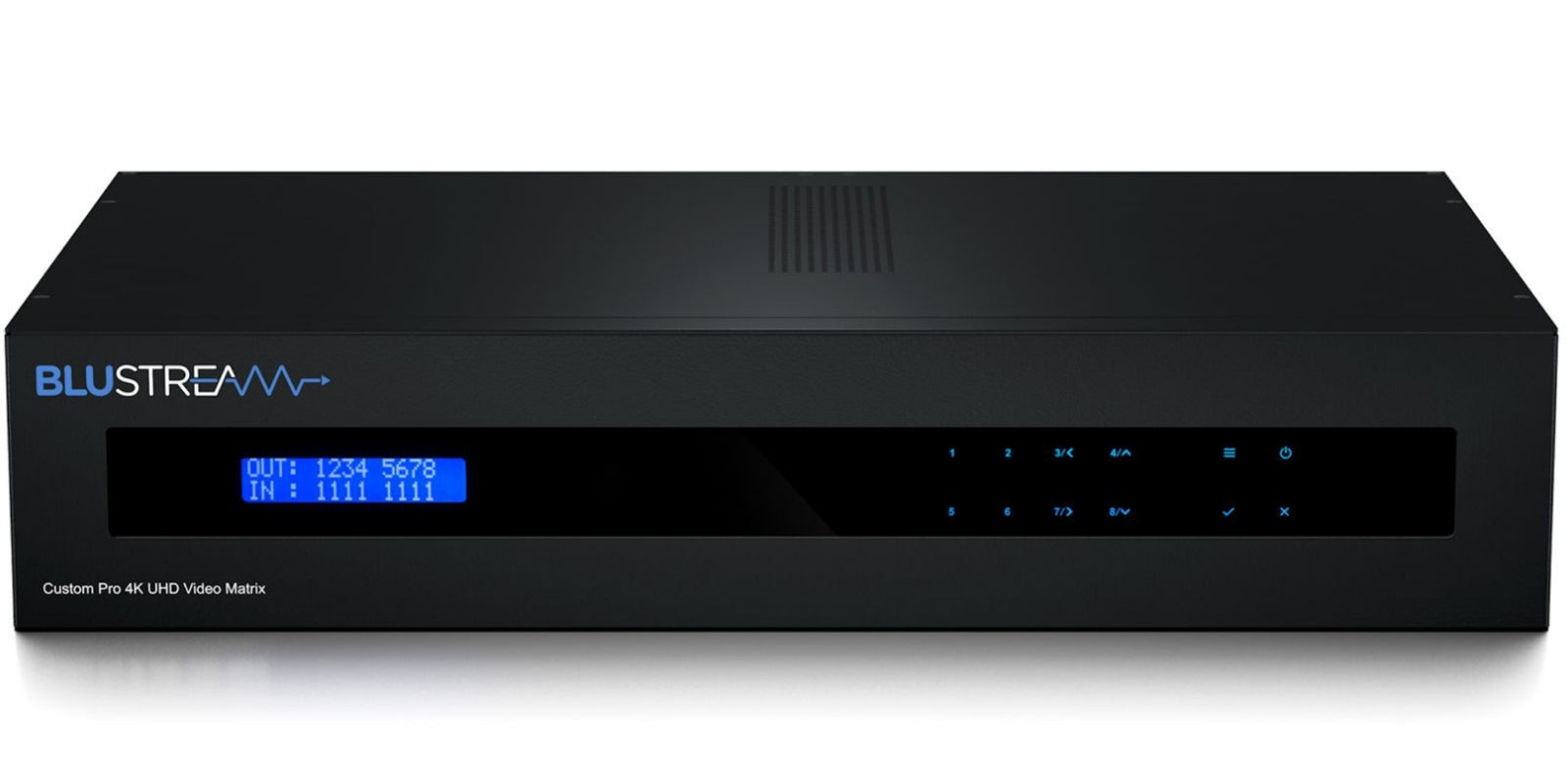

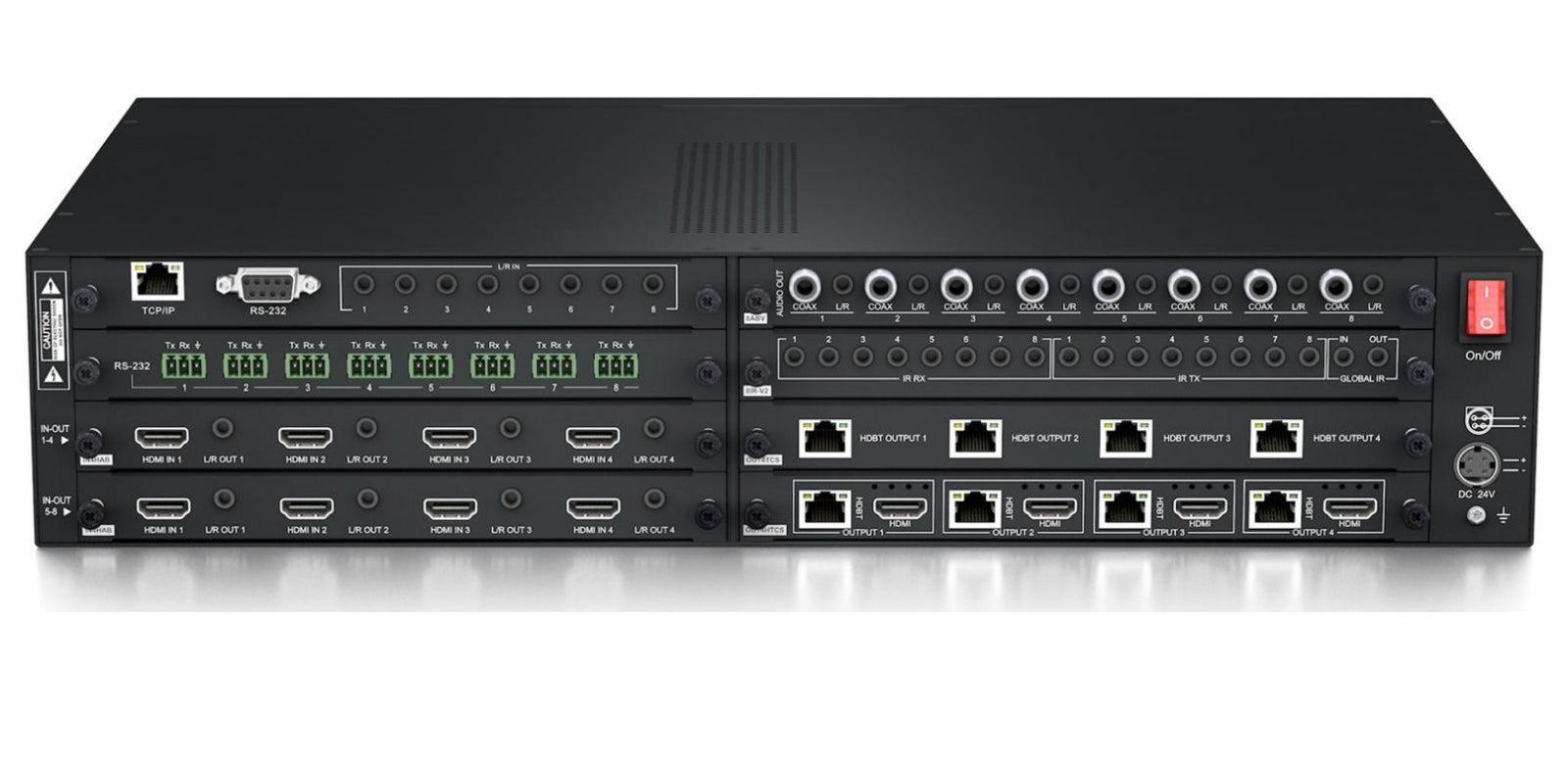

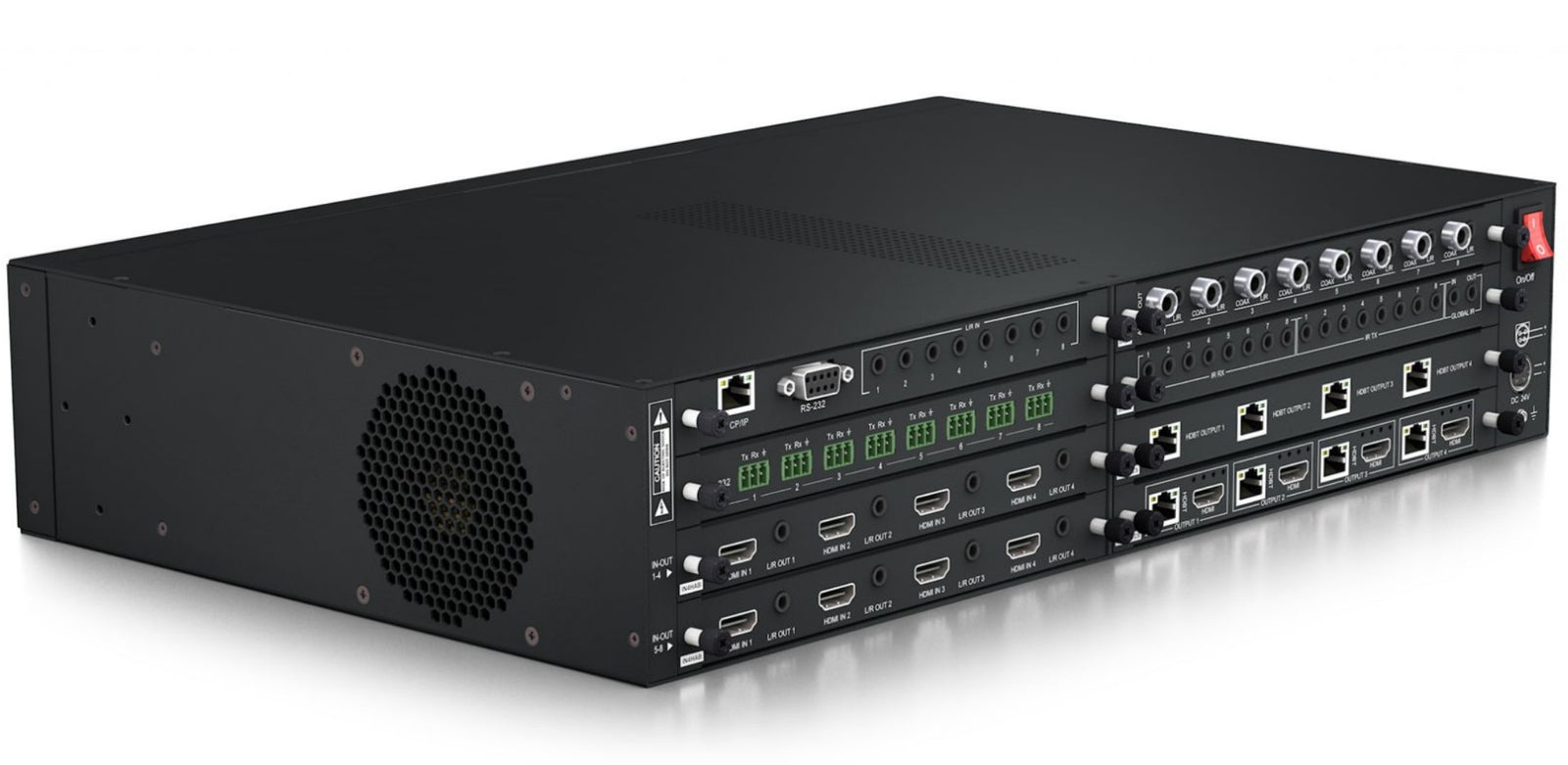

BluStream Custom Pro 8x8 HDBaseT™ CSC Matrix - 100m | PRO88HBT100CS

Our 100m Custom Pro 8x8 HDBaseT™ CSC Matrix offers unprecedented 4K HDR performance for the custom installation market.
The PRO88HBT100CS is a HDMI 2.0 4K 60Hz 4:4:4 HDCP 2.2 Matrix utilising CSC technology to deliver HDMI, Bi-directional IR, PoC up to lengths of 100m over a single CAT cable (4K HDR up to 70m) with independent down-scaling of 4K video inputs on the CSC HDBaseT™ outputs to allow displays only capable of supporting lower video resolutions to receive 4K video while still showing maximum original 4K UHD resolution on the higher-definition displays.
The Matrix also provides advanced features including 4 x simultaneous HDMI outputs, audio breakout with line level pre amp volume control and a web browser interface module for control and configuration of the matrix.


Key Features
 HDBaseT™ technology offering distribution of video and audio over a single CAT cable
 Advanced Colour Space Conversion (CSC) supports HDMI2.0 18Gbps specification including HDR
 Features 8 x HDMI inputs which can be independently routed to 8 x HDBaseT™ outputs
 Supports 4K 60Hz 4:4:4 UHD video up to 70m
 Independent down-scaling of resolutions up to 4K 60Hz 4:4:4 video input to the following formats:
    1080p 60Hz (for screens that do not support 4K)
    4K 60Hz 4:2:0 (for screens that do not support full 4K 60Hz 4:4:4)
 Supports 4K with HDR
 Extends HDMI 1080p video up to 100m
 4 x Simultaneous HDMI Outputs
 Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K HDR
 Supports all known digital HDMI audio formats including Dolby TrueHD, Atmos; DTS-HD Master Audio and DTS:X transmissions
 8 x simultaneous coaxial digital and variable line level analogue L/R audio outputs
 Analogue audio input can be embedded onto any HDMI input
 Web interface module for control and configuration of matrix
 Supports bi-directional IR / RS-232
 Supplied with Blustream IR receivers and emitters
 Control via front panel, IR, RS-232 and TCP/IP
 Supports PoC (Power over Cable) to power compatible HDBaseT™ receivers
 3rd Party drivers available for major control brands
 2U Design for 19" rack mount integration - Mounting kit included
 Advanced EDID management
 HDCP 2.2 compliant
 To be used with the HEX100CS-RX receivers

Box Contents
1 x Custom Pro Hub Matrix
1 x PRO-8RS232
2 x PRO-IN4HAB
1 x PRO-8ABV
1 x PRO-8IR-V2
1 x PRO-OUT4TCS
1 x PRO-OUT4HTCS
1 x 24V/8A Power Supply
1 x Remote Control
1 x Rack Mounting Kit
1 x Quick Reference Guide
