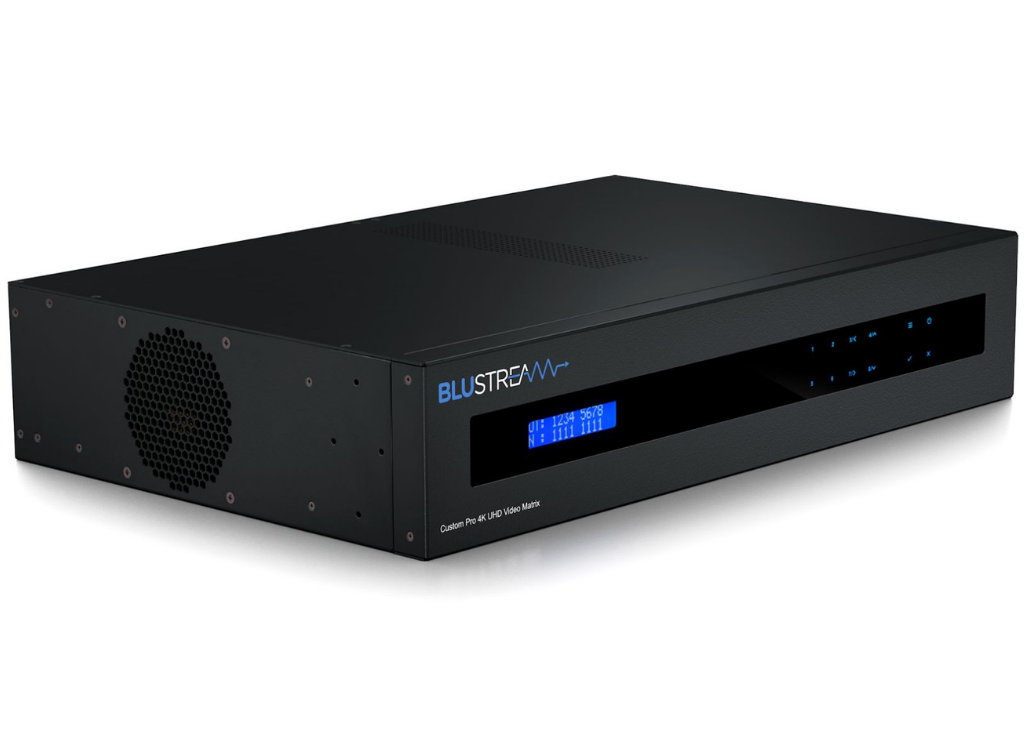

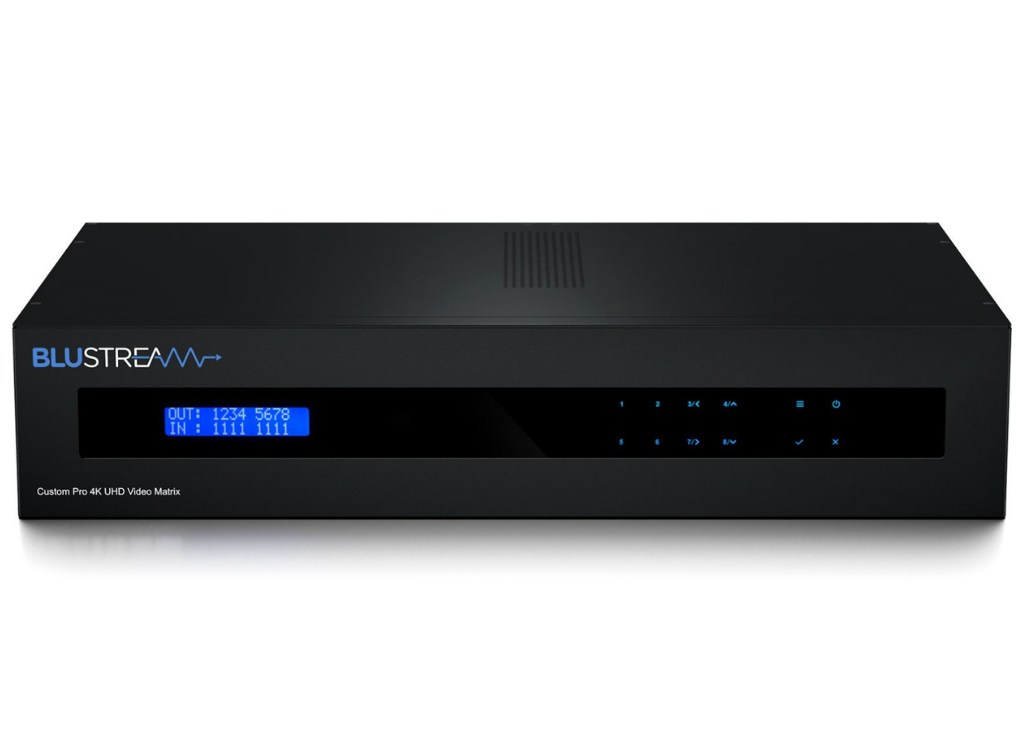

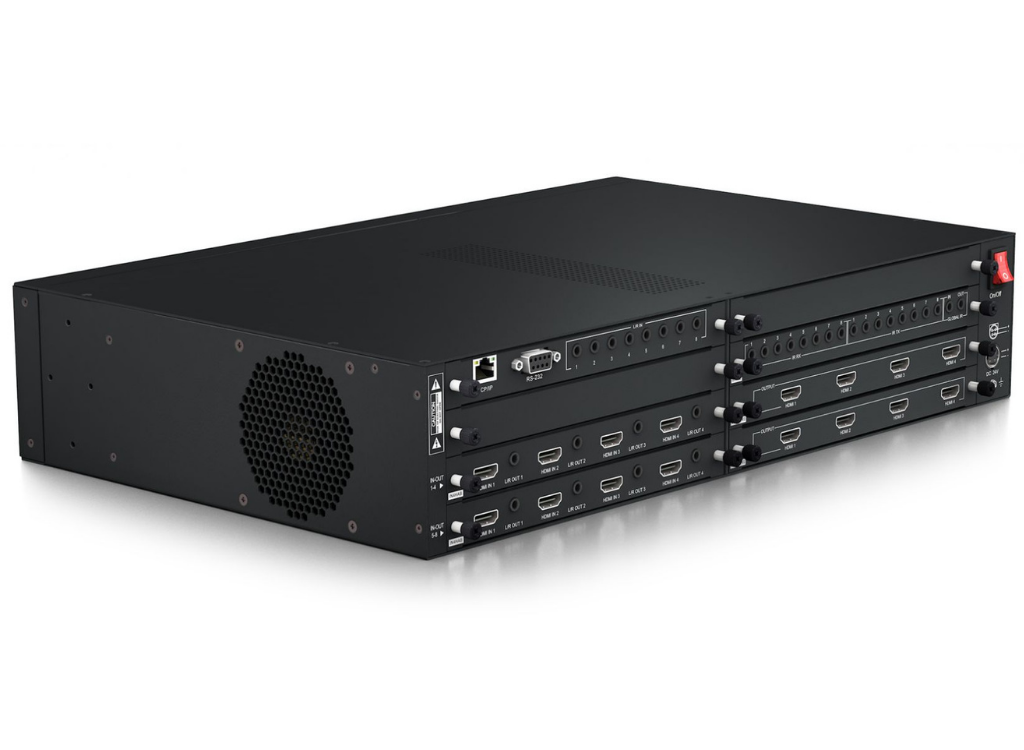

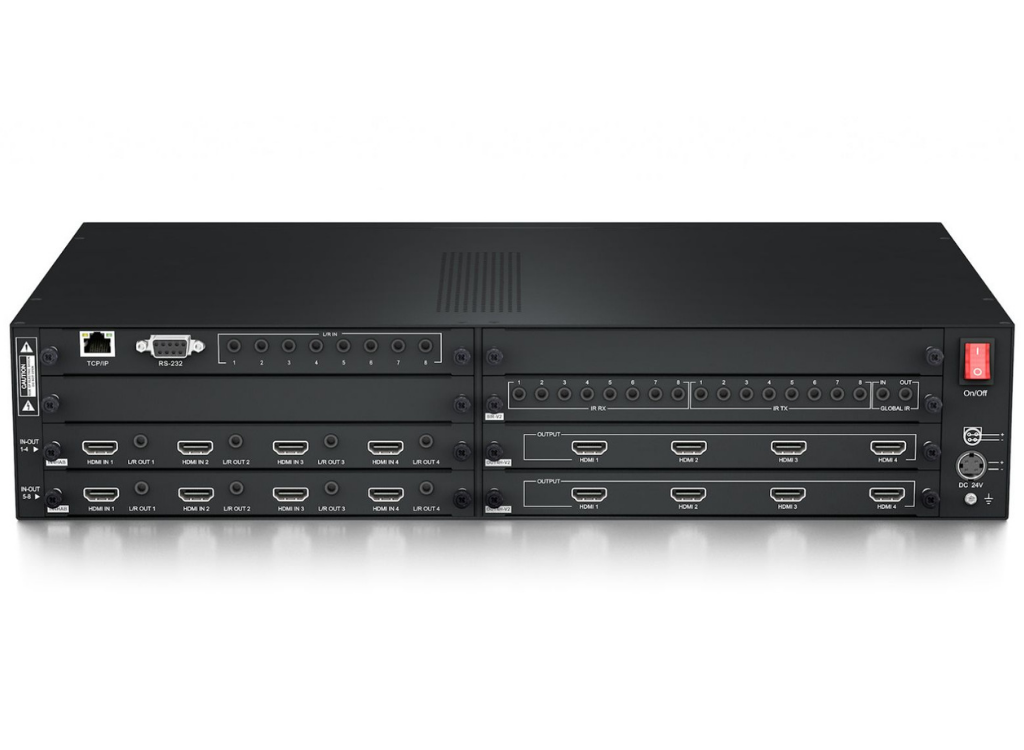

BluStream Custom Pro 8x8 HDMI Matrix | PRO88HDMI-V2
Our Custom Pro 8x8 HDMI Matrix delivers 4K 18Gbps HDR performance for the custom installation market.
The PRO88HDMI-V2 is a HDMI 2.0 4K 60Hz 4:4:4 HDCP 2.2 matrix featuring Bi-directional IR and a web browser interface module for control and configuration of the matrix.
Key Features
• Features 8 x HDMI inputs which can be independently routed to 8 x HDMI outputs
• Supports 18 Gbps 4K UHD video including HDR, HDR10+ and Dolby Vision
• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
• Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
• Control via front panel, IR, RS-232 & TCP/IP
• 3rd Party drivers available for major control brands
• Advanced EDID management
• HDCP 2.2 compliant
Box Contents
1 x Custom Pro Hub Matrix
2 x PRO-IN4HAB
1 x PRO-8IR-V2
2 x PRO-OUT4H-V2
*Individual boards dispatched separately for assembly by installer
1 x 24V/8A Power Supply
1 x Remote Control
1 x Rack Mounting Kit
1 x Quick Reference Guide
| Feature | Specification |
|---|---|
| Video Input Connectors | 8 x HDMI Type A, 19-pin, female |
| Video Output Connectors | 8 x HDMI Type A, 19-pin, female |
| Audio Input Connectors | 8 x 3.5mm stereo jack (L/R) |
| TCP/IP Control | 1 x RJ45, female |
| Ethernet / Network | 1 x RJ45, female |
| RS-232 Serial Port | DB-9, female |
| Rack-Mountable | 2U rack height, rack ears included |
| Casing Dimensions (W x H x D) | 440mm x 87mm x 282mm (without feet) |
| Dimensions w/ Connections | 440mm x 94mm x 288mm (with feet) |
| Shipping Weight | 5kg |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Storage Temperature | -4°F to 140°F (-20°C to 60°C) |
| Power Supply | 24V/8A DC |
| Description | Downloads |
|---|---|
| Datasheet | Downloads |
| User Manual | Downloads |
