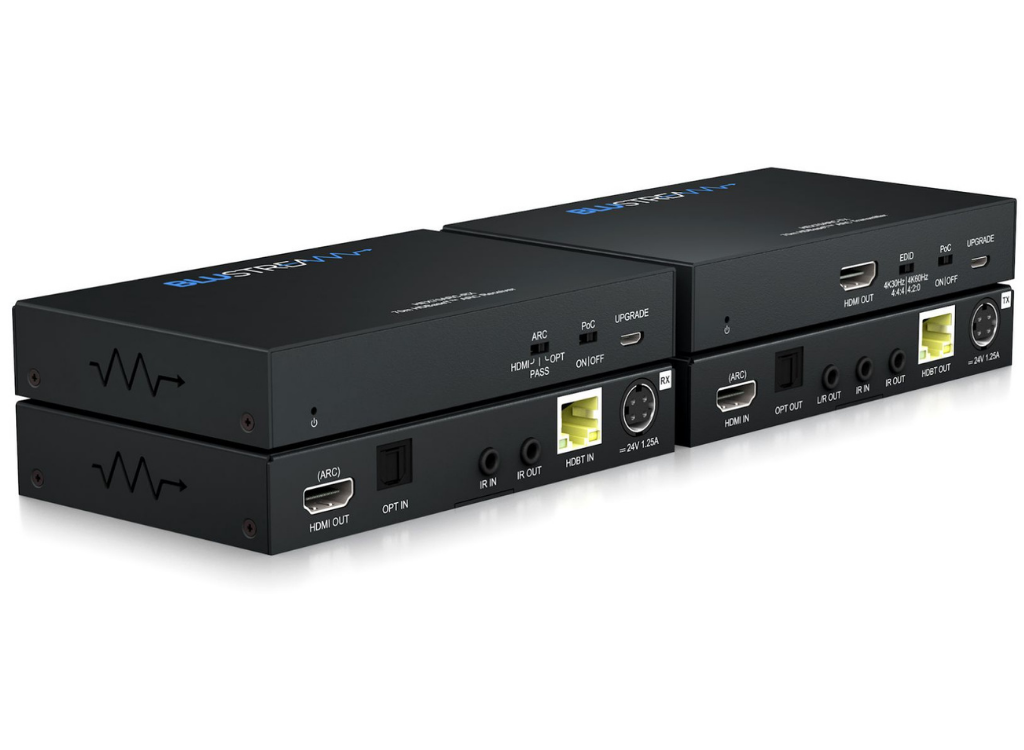

The HEX70ARC-KIT 4K HDBaseT™ ARC extender set offers market leading features for the custom installation industry.
The product delivers HDMI, ARC, Optical Audio Return, Bi-directional IR and Bi-directional PoC (Power over Cable) up to lengths of 70m (40m at 4K 60Hz 4:2:0).
Key Features
• Advanced HDBaseT™ technology offering uncompressed video and audio with zero latency
• Extends HDMI 1080p up to a distance of 70m over a single CAT cable
• Supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
• Supports ARC (Audio Return Channel) from connected display via HDMI ARC or optical digital input
• Features 1 x HDMI loop-out on HEX70ARC-TX for integrating local displays or cascading to multiple devices
• Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission (TX to RX)
• Bi-directional IR pass-through
• Supplied with Blustream IR receiver and emitter
• Supports bi-directional PoC (Power over Cable) to power extenders from either transmitter or receiver end
• HDCP 2.2 compliant with smart EDID management
*Please note: Optical and L/R audio breakout on the HEX70ARC-TX are for audio return channel use only. HDMI source audio cannot be broken out from these connections.
Box Contents
1 x HEX70ARC-TX
1 x HEX70ARC-RX
1 x 24V/1.25A DC Power Supply
1 x IR Emitter
1 x IR Receiver
2 x Mounting Bracket Sets
1 x Quick Reference Guide

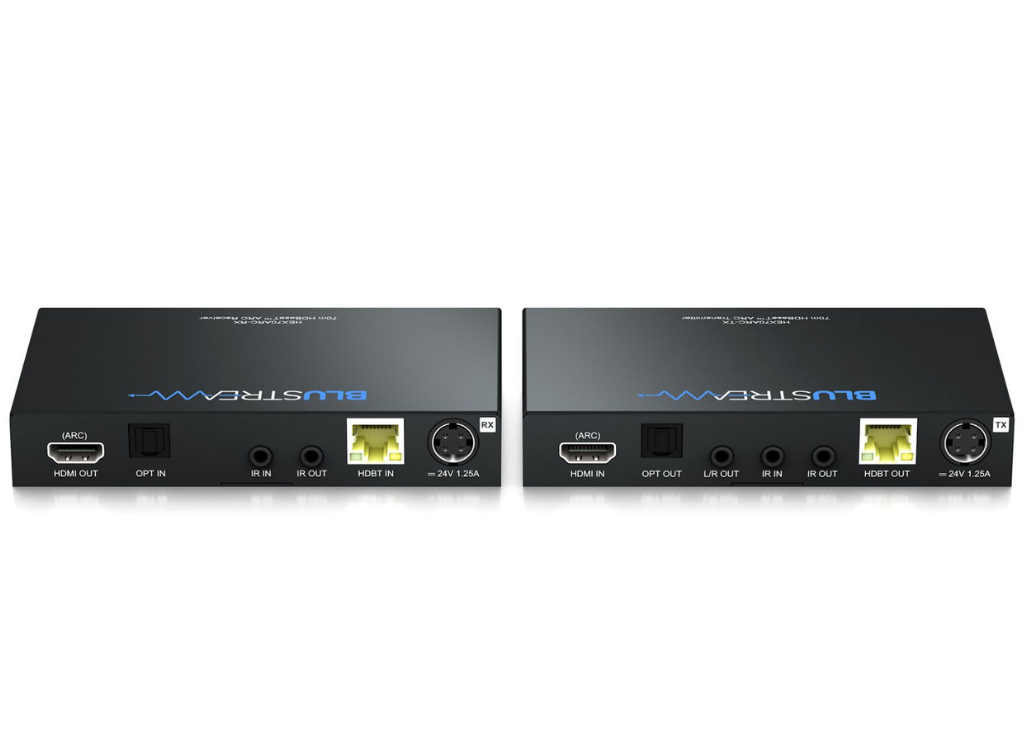

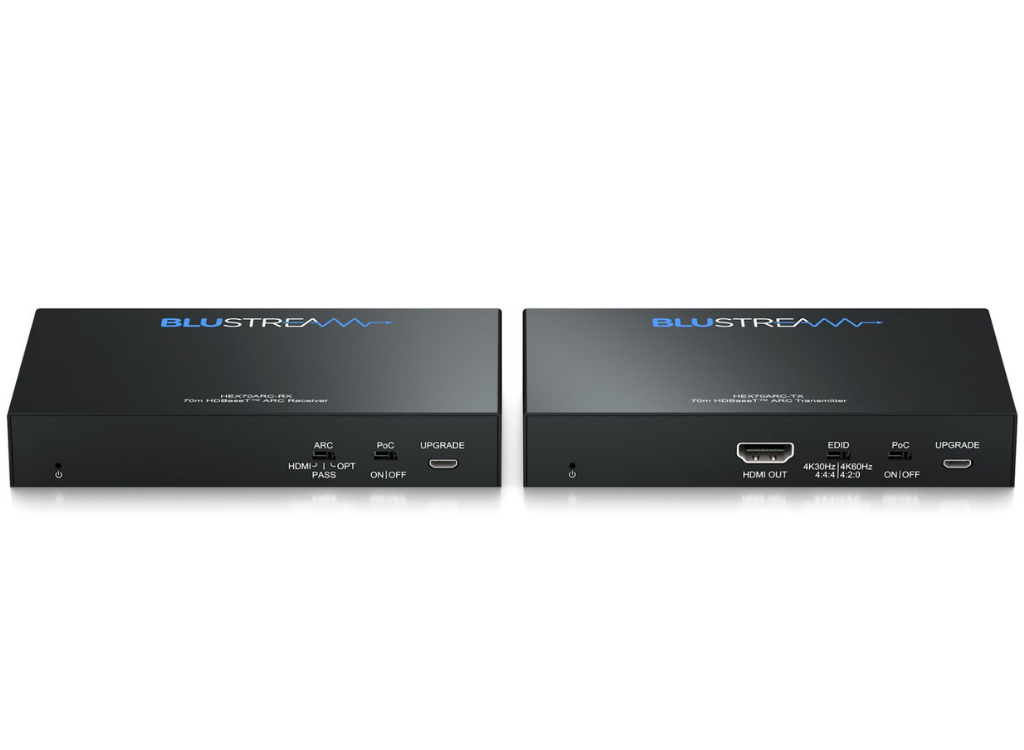

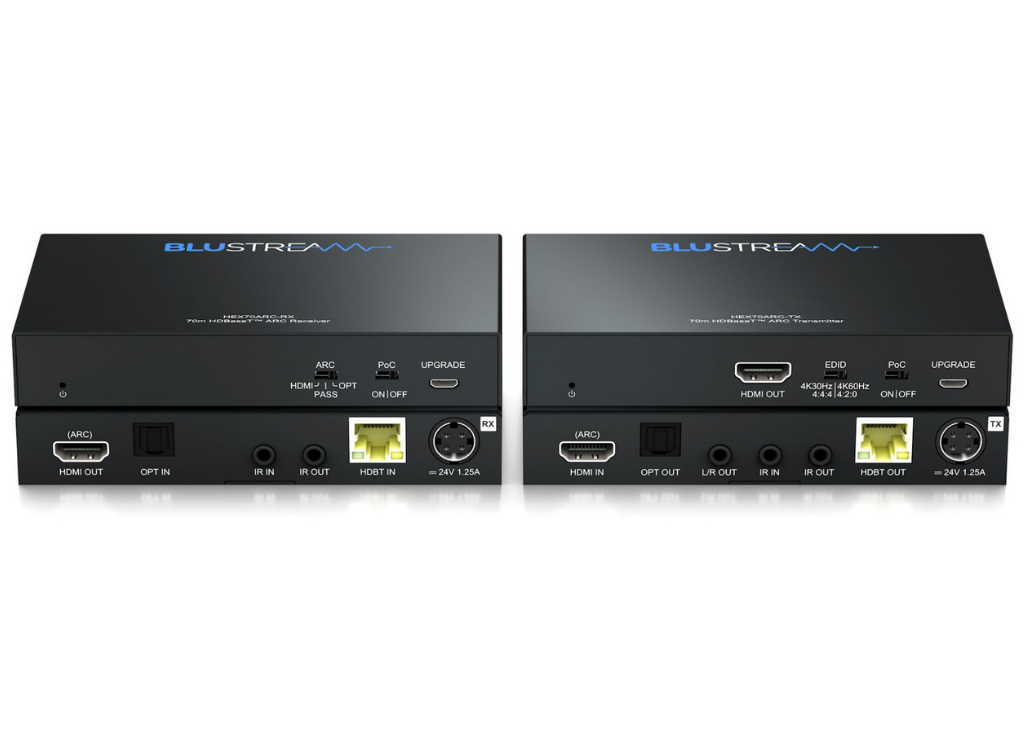

| Feature | HEX70ARC-TX | HEX70ARC-RX |
|---|---|---|
| Video Input Connectors | 1 x HDMI Type A, female | 1 x HDBaseT™ RJ45 connector |
| Video Output Connectors | 1 x HDBaseT™ RJ45 connector, 1 x HDMI Type A, female | 1 x HDMI Type A, female |
| Audio Output Ports | 1 x Optical (S/PDIF), 1 x 3.5mm L/R analogue audio (audio return only) | N/A |
| Audio Input Port | N/A | 1 x Optical (S/PDIF) |
| IR Input Port | 1 x 3.5mm stereo jack | 1 x 3.5mm stereo jack |
| IR Output Port | 1 x 3.5mm mono jack | 1 x 3.5mm mono jack |
| Product Upgrade | 1 x Micro-USB, female | 1 x Micro-USB, female |
| Casing Dimensions (W x D x H) | 135 x 84 x 21mm | 135 x 84 x 21mm |
| Power Supply | 1 x 24V/1.25A DC, 4-pin DIN connector | 1 x 24V/1.25A DC, 4-pin DIN connector |
| Box Dimensions (W x D x H) | 248 x 151 x 103mm | 248 x 151 x 103mm |
| Shipping Weight | 1kg | 1kg |
| Operating Temperature | 32°F to 104°F (-5°C to +55°C) | 32°F to 104°F (-5°C to +55°C) |
| Storage Temperature | -4°F to 140°F (-25°C to +70°C) | -4°F to 140°F (-25°C to +70°C) |
