Our Platinum Range of HDBaseT™ products offer the very best in performance and flexibility.

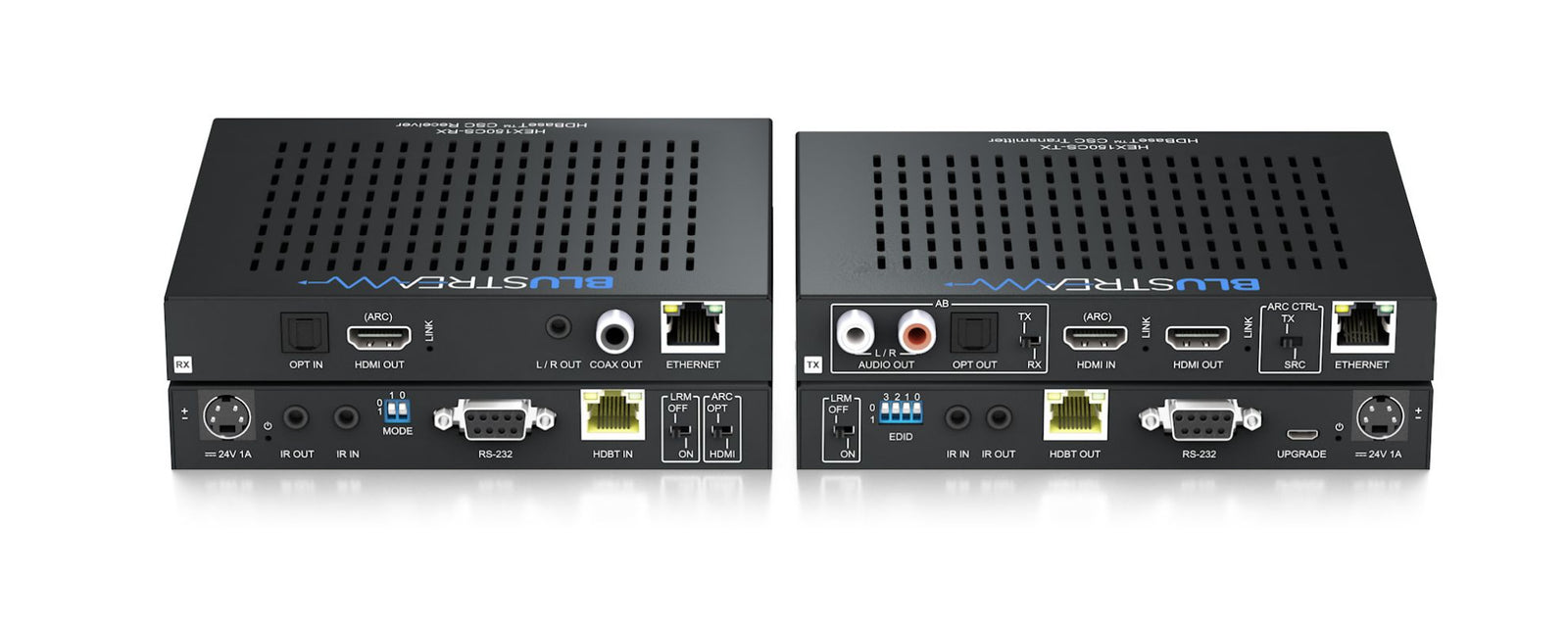

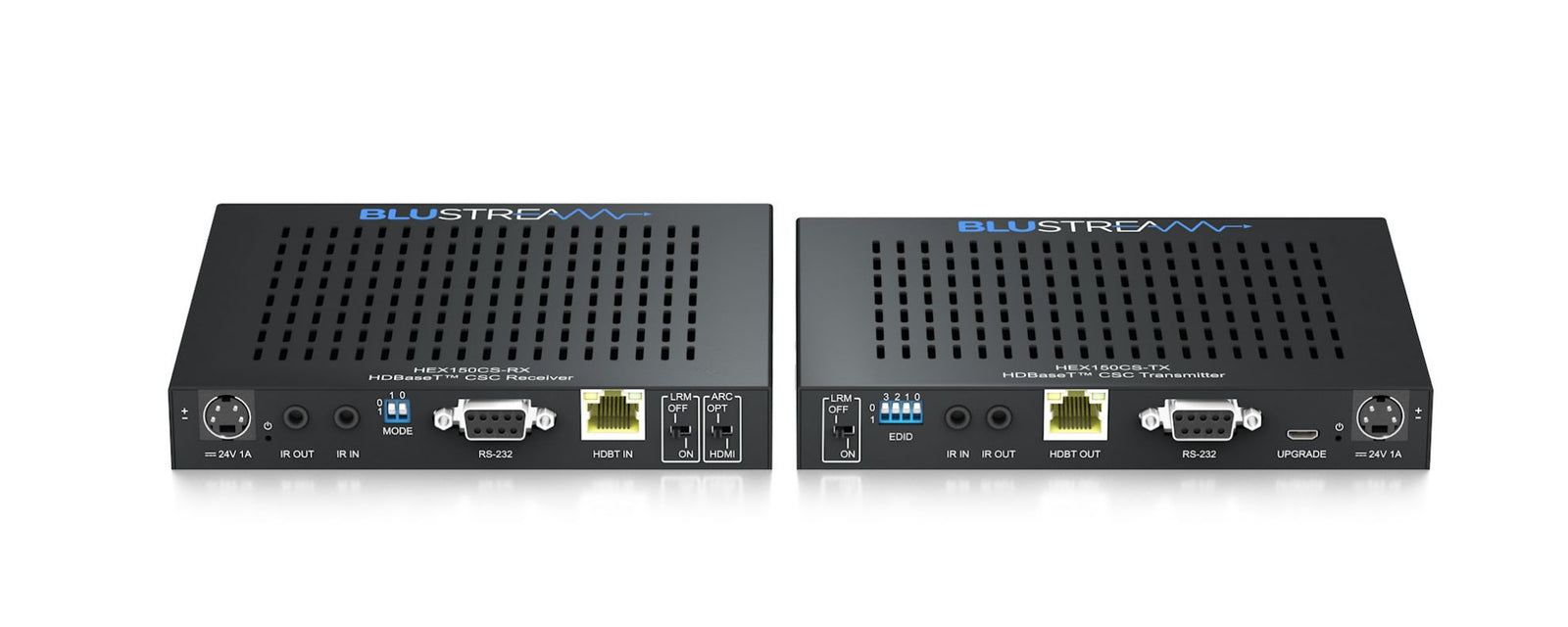

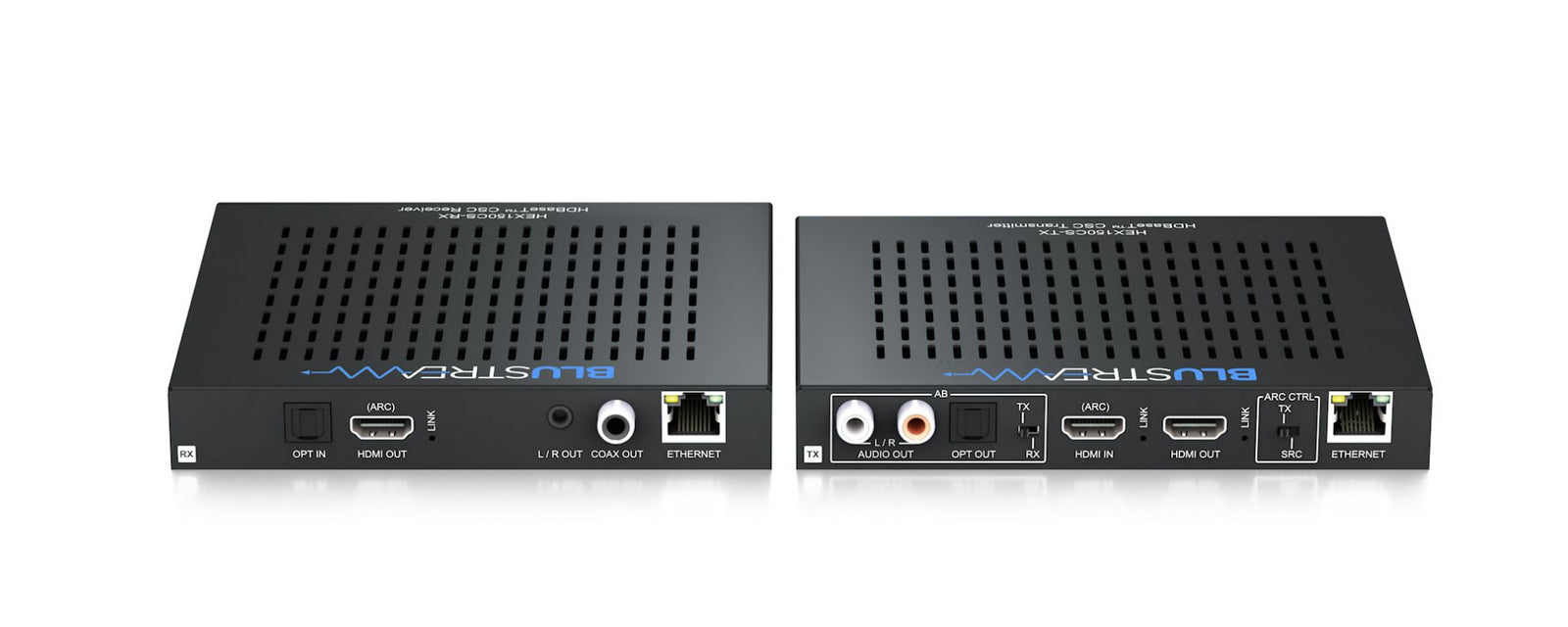

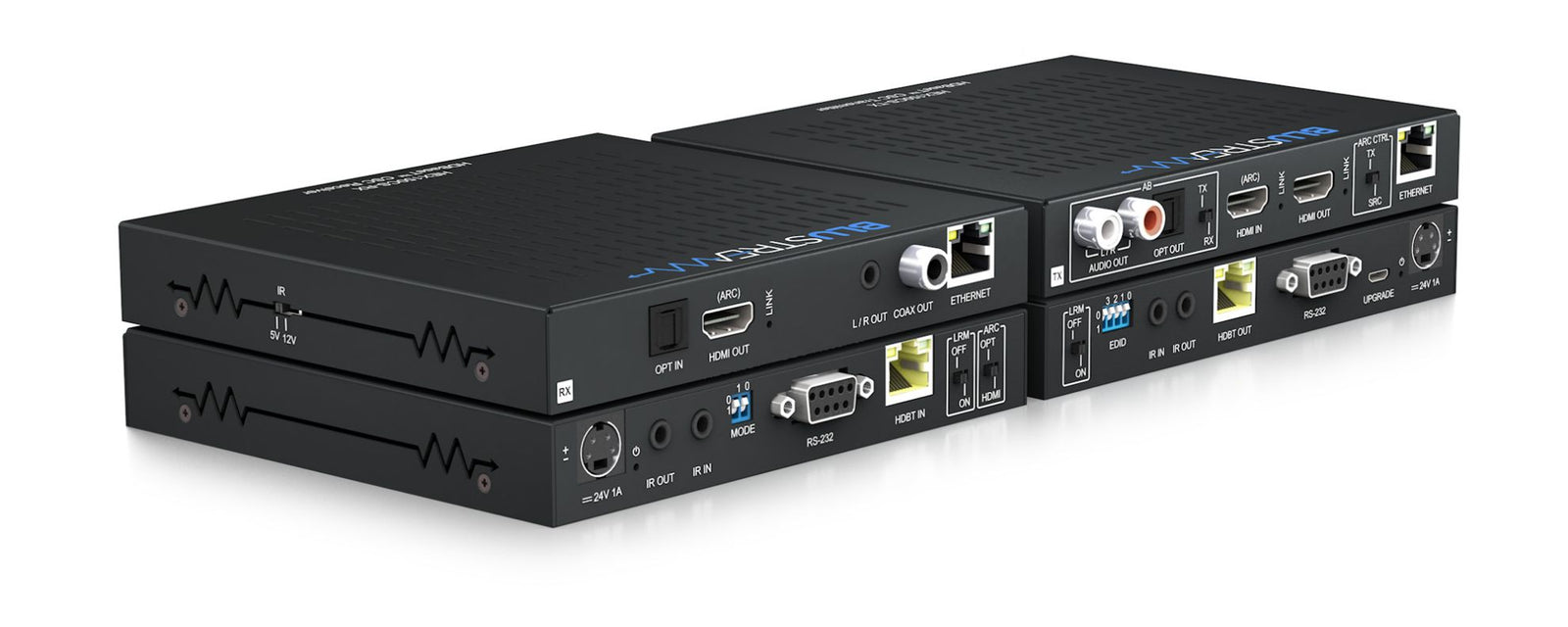

The HEX150CS-KIT extender set is an industry leading HDMI 2.0 4K 60Hz 4:4:4 HDCP 2.2 HDBaseT™ solution utilising CSC technology with video down conversion.
The HEX150CS-KIT supports HDMI, bi-directional IR, RS-232 and PoC up to lengths of 150m over a single CAT cable. The HEX150CS-KIT also provides enhanced features including ARC via HDMI or optical (S/PDIF) and Ethernet pass through.
Key Features
• Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
• Advanced Colour Space Conversion (CSC) supports HDMI2.0 18Gbps specification including HDR support
• Video down-conversion on outputs allowing a display only capable of supporting lower video resolutions (4K 60Hz 4:2:0 or 1080p) to receive 4K 60Hz 4:4:4 or 4K 60Hz 4:2:0 video content while still showing maximum original 4K UHD resolution on remaining video outputs
• Supports 4K @ 60Hz 4:4:4 UHD video up to 100m
• Extends HDMI 1080p video up to 150m (HDBaseT™ long-reach mode)
• HDMI loop out on Transmitter
• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
• HDMI re-clocking on the HDBaseT™ receiver to help solve HDMI HDCP, compatibility, and handshaking issues
• Supports ARC (Audio Return Channel) from display via HDMI and optical digital inputs
• Supports audio return to HDMI, optical digital, and analogue L/R audio outputs (analogue output supports 2ch PCM only)
• Supports all known HDMI audio formats including Dolby TrueHD, Atmos and DTS-HD Master Audio transmission
• Bi-directional 10/100BaseT Ethernet pass-through
• Bi-directional IR & RS-232 pass-through
• Supplied with Blustream 5V IR receiver and emitter
• Bi-directional PoC (Power over Cable) to power extenders from either transmitter or receiver end
• Advanced EDID management
• HDCP 2.2 support
Box Contents
1 x HEX150CS-TX
1 x HEX150CS-RX
1 x 24V/1A DC Power Supply
1 x IR Receiver
1 x IR Emitter
2 x Mounting Brackets
1 x Quick Reference Guide
| Feature | HEX150CS-TX | HEX150CS-RX |
|---|---|---|
| Video Input Connectors | 1 x HDMI Type A, female | 1 x HDBaseT™ RJ45 connector |
| Video Output Connectors | 1 x HDBaseT™ RJ45 connector | 1 x HDMI Type A, female |
| Audio Input Connectors | N/A | 1 x Optical (SPDIF) |
| Audio Output Connectors | 2 x RCA (L/R), 1 x optical (SPDIF) | 1 x 3.5mm stereo jack (L/R), 1 x RCA Coaxial Digital |
| Ethernet Port | 1 x RJ45 connector | 1 x RJ45 connector |
| RS-232 Serial Port | 1 x DB-9 female | 1 x DB-9 female |
| IR Input Ports | 1 x 3.5mm stereo jack | 1 x 3.5mm stereo jack |
| IR Output Ports | 1 x 3.5mm mono jack | 1 x 3.5mm mono jack |
| EDID | 4-pin DIP switch | N/A |
| Power Supply | 1 x 24V/1A DC, 4-pin DIN connector | 1 x 24V/1A DC, screw connector |
| Casing Dimensions (WxDxH) | 156mm x 123mm x 23mm | 148mm x 134mm x 22mm |
| Dimensions with Connections | 156mm x 135mm x 23mm (TX) | 148mm x 153mm x 22mm (RX) |
| Shipping Weight (Kit) | N/A | 1.6kg |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) | 32°F to 104°F (0°C to 40°C) |
| Storage Temperature | -4°F to 140°F (-20°C to 60°C) | -4°F to 140°F (-20°C to 60°C) |
| Mounting Kits Included | Yes | Yes |
