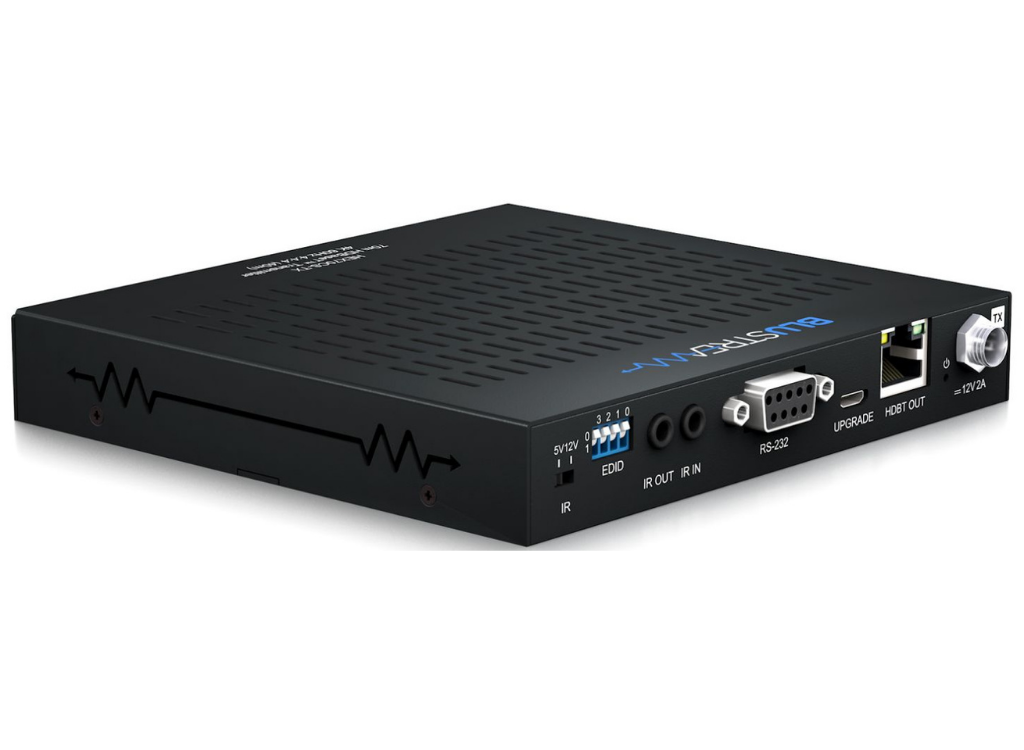

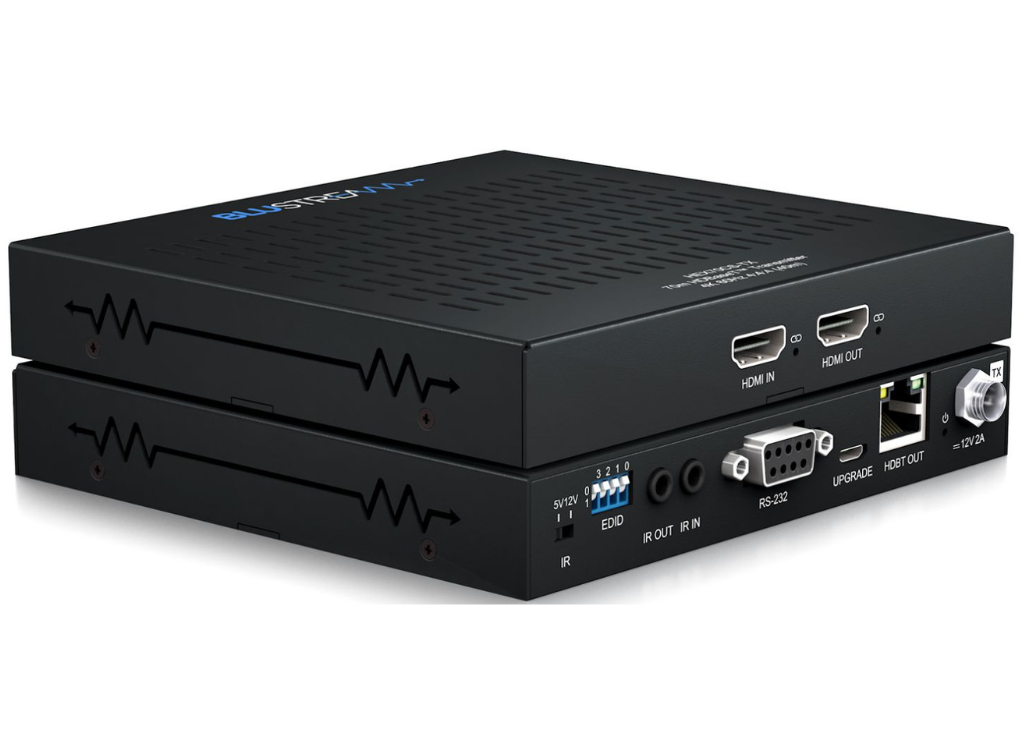

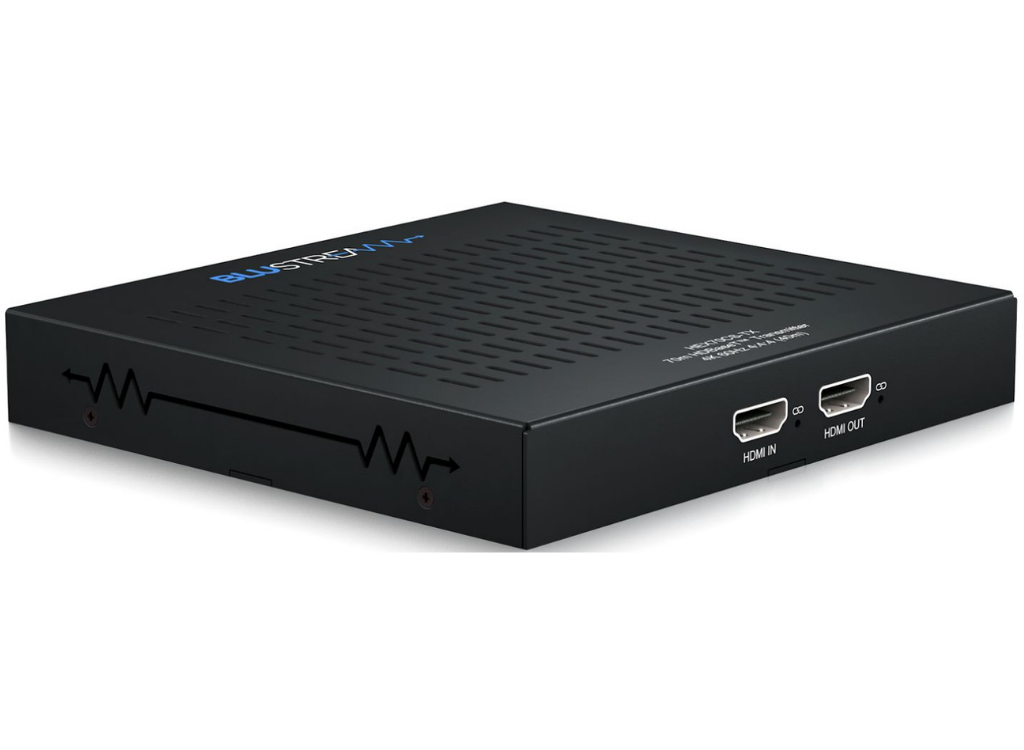

Our HEX70CS-TX HDMI 2.0 4K @ 60Hz 4:4:4 (18Gbps) HDCP 2.2 HDBaseT™ transmitter offers market leading features and outstanding value utilising CSC technology with video down conversion.
The product extends HDMI, bi-directional IR & RS-232, and bi-directional PoC (Power over Cable) up to lengths of 70m (4K 40m) to a compatible receiver or matrix.
The Transmitter includes a HDMI loop-out for integrating local displays or cascading to multiple devices.
Key Features
• Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
• Advanced Colour Space Conversion (CSC)
• Supports HDMI 2.0 18Gbps specification including HDR
• Supports 4K 60Hz 4:4:4 UHD video up to 40m
• Extends HDMI 1080p video up to 70m
• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
• Supports all known HDMI audio formats including Dolby TrueHD, Atmos and DTS-HD Master Audio transmission
• Features 1 x HDMI loop-out on HEX70CS-TX for integrating local displays or cascading to multiple devices
• Supports bi-directional RS-232 pass-through
• Supports bi-directional IR pass-through
• Supports bi-directional IR pass-through with switchable
• 5V/12V IR hardware support
• HDCP 2.2 support
Box Contents
1 x HEX70CS-TX
1 x Mounting Kit
| Feature | Specification |
|---|---|

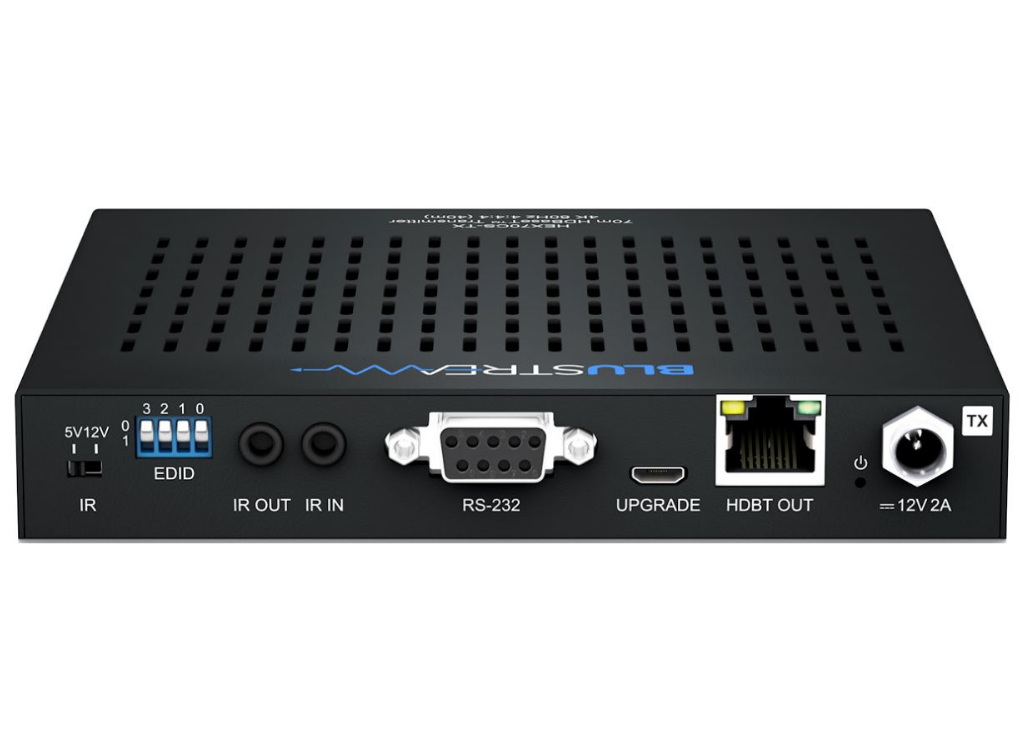

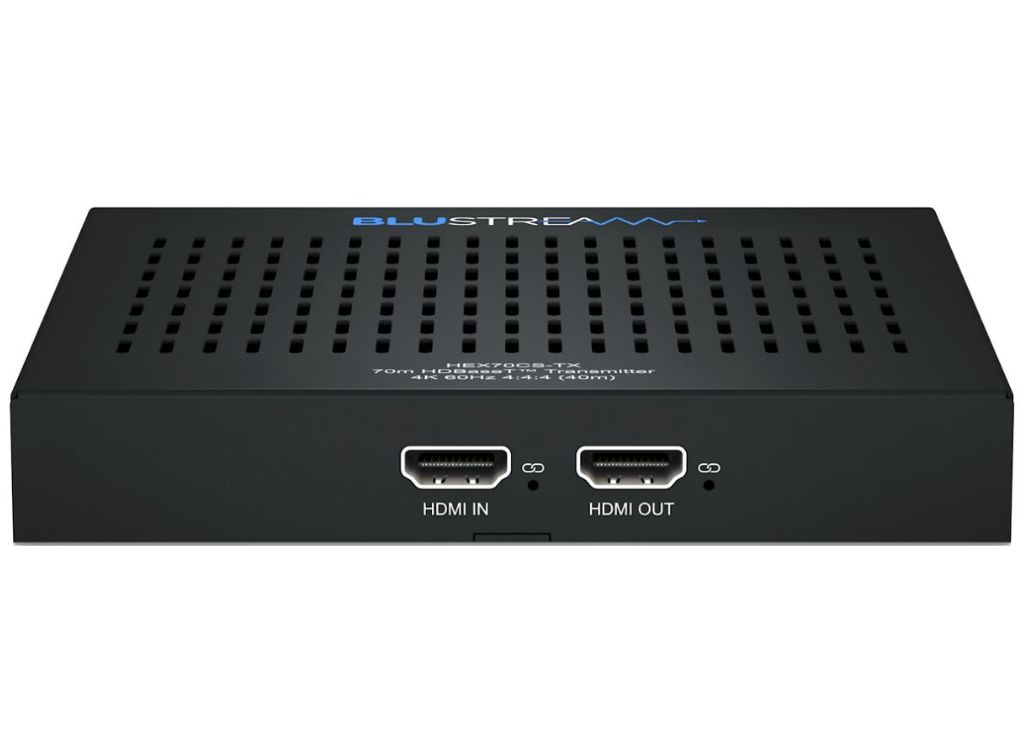

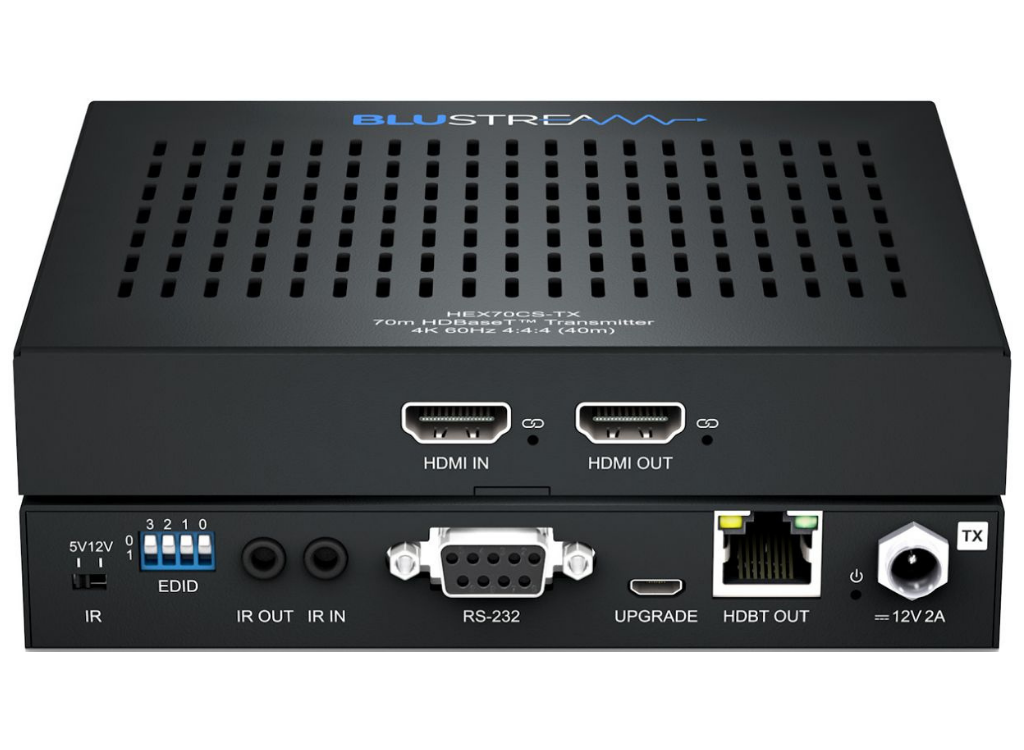

| Video Input Connectors | 1 x HDMI Type A, female |
| Video Output Connectors | 1 x HDBaseT™ RJ45, 1 x HDMI Type A, female |
| RS-232 Serial Port | 1 x DB-9 female |
| IR Input Ports | 1 x 3.5mm stereo jack |
| IR Output Ports | 1 x 3.5mm mono jack |
| EDID DIP Switch | 4-pin |
| Power Supply | 12V/2A DC, screw type connector |
| Power Consumption | 12.7W |
| Transmitter Dimensions (without connections) | 143 x 134 x 22mm |
| Transmitter Dimensions (with connections) | 143 x 141 x 22mm |
| Individual Extender Weight | 0.35kg (excluding accessories) |
| Shipping Weight | 1.4kg |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Storage Temperature | -4°F to 140°F (-20°C to 60°C) |
| Mounting Kit | Included |
| Document | Link |
|---|---|
| Datasheet | Downloads |
| User Manual | Downloads |
