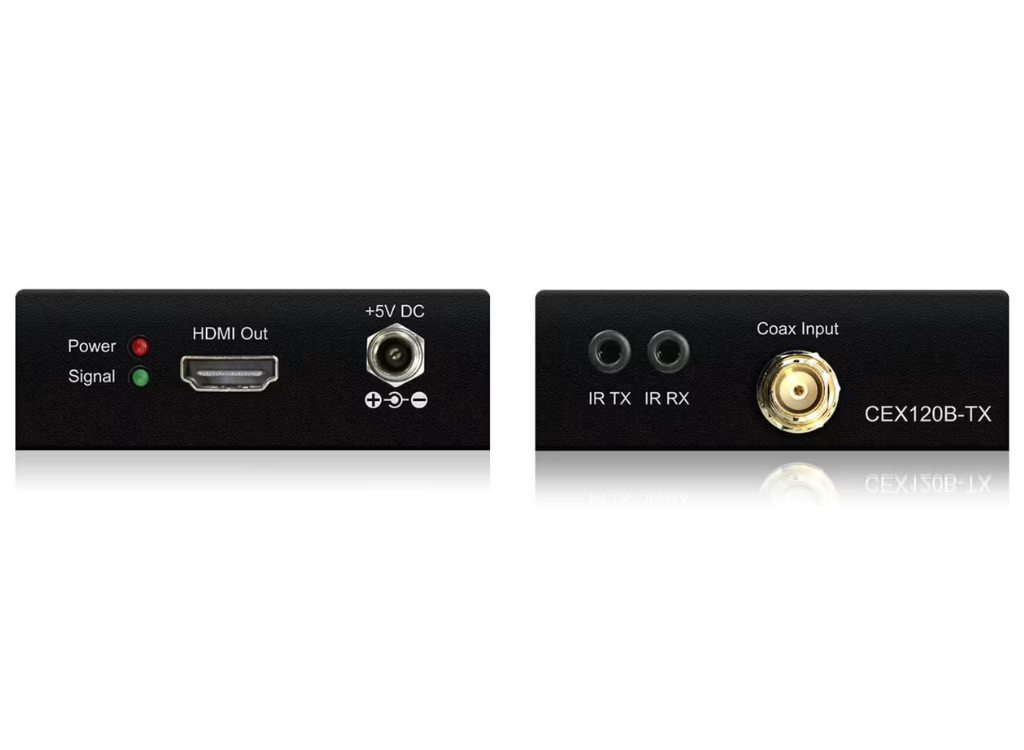

Our CEX120B-KIT HDMI™ extender set offers HDMI distribution over a single Coaxial cable.
The product delivers HDMI & Bi-directional IR up to lengths of 120m @ 1080p.
Key Features
• Extends HDMI 1080p up to a distances of 120m over a single Coaxial cable
• Supports the following video resolutions: 480i, 576i, 720p, 1080i and 1080p
• Supports Bi-directional IR from input and output locations
• Supports audio formats up to 7.1ch
• Supplied with Blustream IR receiver and emitter
• Requires local power at both transmitter and receiver
• Smart EDID management
• HDCP 1.4 compliant
Box Contents
1 x CEX120B-TX
1 x CEX120B-RX
2 x 5V/1.2A DC Power Supply
1 x IR1 Emitter
1 x IRR Receiver
2 x Mounting Brackets
2 x F-type to BNC Adaptor
1 x User Manual
| Feature | CEX120B-TX | CEX120B-RX |
|---|---|---|
| Video Input Connectors | 1 x HDMI Type A | 1 x BNC connector |
| Video Output Connectors | 1 x BNC connector | 1 x HDMI Type A |
| IR Input Ports | 1 x 3.5mm stereo jack | 1 x 3.5mm stereo jack |
| IR Output Ports | 1 x 3.5mm mono jack | 1 x 3.5mm mono jack |
| Dimensions (W x D x H) | 79mm x 84mm x 28mm | 79mm x 84mm x 28mm |
| Additional Specifications | |
|---|---|
| Supported Video Resolutions | 480i 30Hz, 576i 25Hz, 720p 50/60Hz, 1080i 25/30Hz, 1080p 24/30/60Hz |
| Note | 4K, 3D, and 480i/p Video not supported |
| Supported Audio Resolutions | Dolby Digital (up to 7.1CH), DTS ES (up to 7.1CH), 2CH PCM |
| Unit Weight | 2 x 0.25kg |
| Shipping Weight | 1.1kg |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Storage Temperature | -4°F to 140°F (-20°C to 60°C) |
