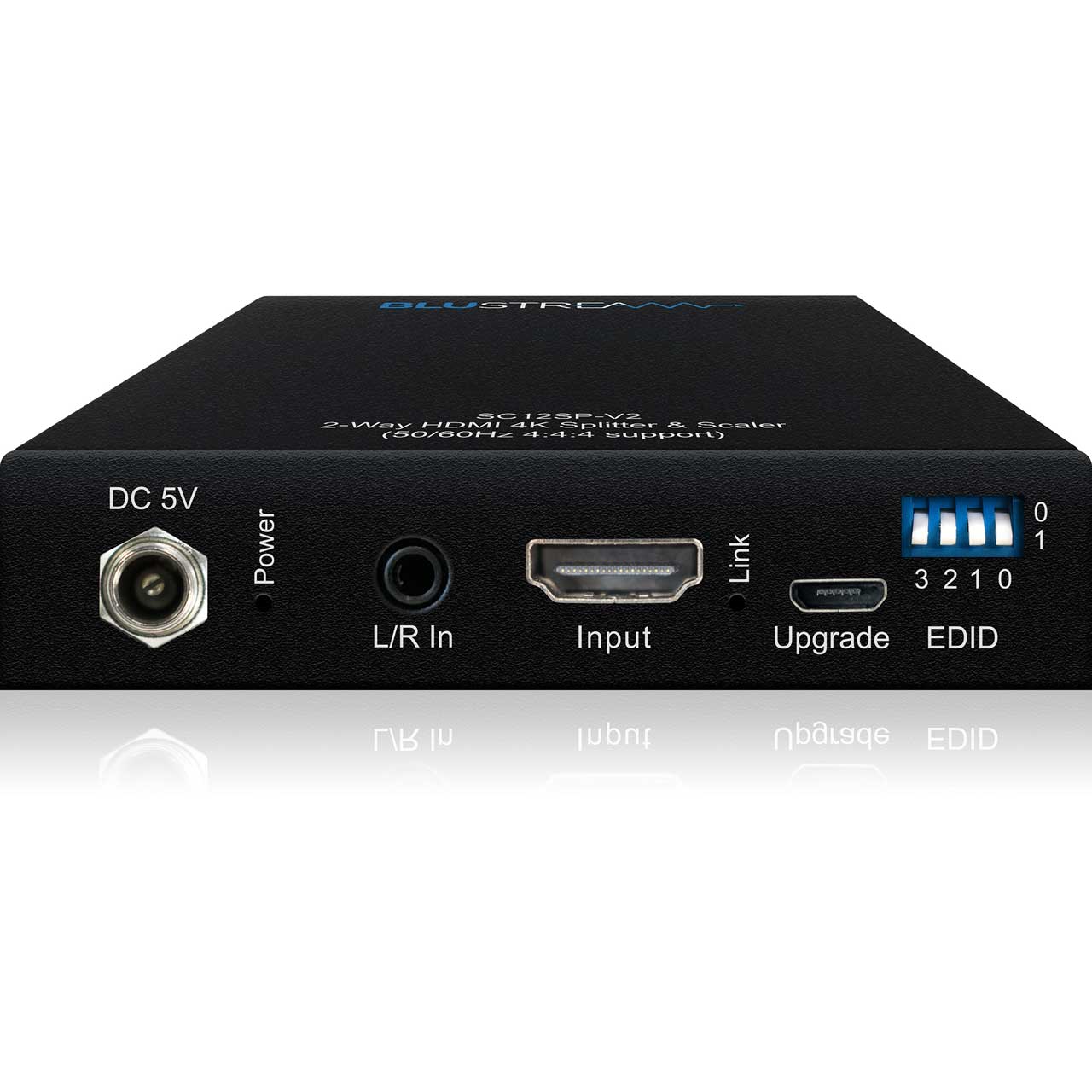

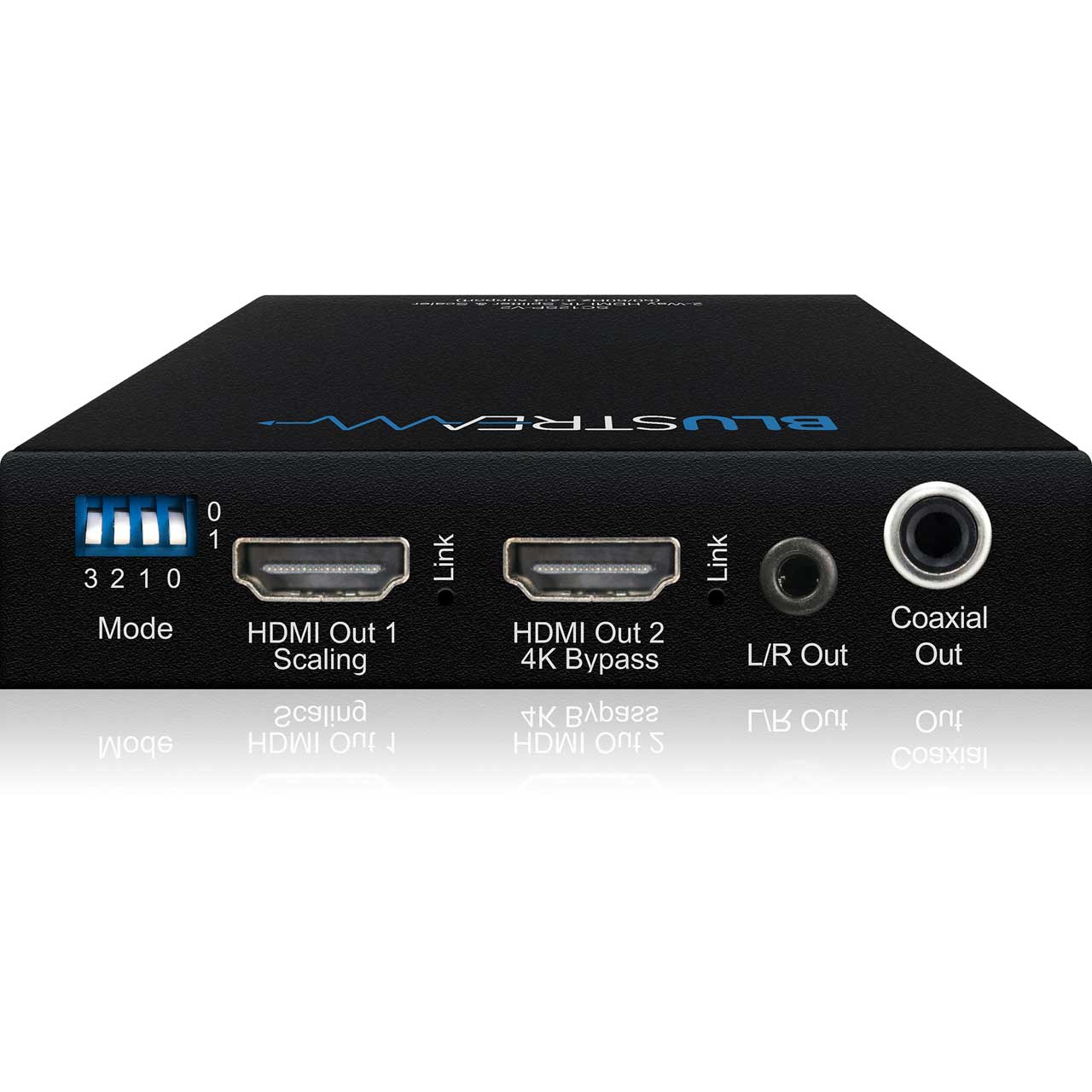

BluStream HDMI Splitter with In-Built Video Down-Scaler
The Blustream SC12SP-V2 is a 4K HDMI 2.0 splitter with in-built scaler, designed for installations in which a single 4K video source needs to be distributed to multiple displays that support different maximum video resolutions.
The SC12SP-V2 supports down-scaling of up to 4K 60Hz 4:4:4 video to various lower resolution video formats.
The SC12SP-V2 also includes audio breakout, advanced EDID management and supports HDCP 2.2.
Features 1 x HDMI input that is replicated to 2 x HDMI outputs
Supports HDMI 2.0 18 Gbps specification including HDR
Supports up to 4K UHD 60Hz 4:4:4
HDMI output 2 supports 4K UHD video pass-through
HDMI output 1 will down-scale the video input to the following formats:
1080p @24/25/30/50/60Hz* (for screens that do not support 4K)
4K @50/60Hz 4:2:0 (for screens that do not support full 4K 60Hz 4:4:4)
Supports all known HDMI audio formats including Dolby TrueHD, Atmos and DTS-HD
Master Audio transmission
HDMI audio breakout to analogue L/R audio and coaxial digital outputs concurrently
Advanced EDID management
HDCP 2.2 support
Box Contents
1 x SC12SP-V2
1 x 5V/1A DC power supply
1 x Mounting kit
1 x Quick Reference Guide
| Specifications | Details |
|---|---|
| Video Input Connectors | 1 x HDMI Type A, 19-pin, female |
| Video Output Connectors | 2 x HDMI Type A, 19-pin, female |
| Audio Output Connectors | 1 x RCA (SPDIF), 1 x 3.5mm stereo jack (L/R) |
| EDID | 4-pin DIP switch |
| Product Upgrade | 1 x 3-Pin Phoenix connector & 1 x Type A USB female |
| Dimensions (W x H x D) | 122mm x 23mm x 135mm |
| Shipping Weight | 0.8kg |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Storage Temperature | -4°F to 140°F (-20°C to 60°C) |
| Power Supply | 5V/1A DC |
| Description | Downloads |
|---|---|
| BluStream HDMI Splitter with In-Built Video Down-Scaler | SC12SP-V2 DataSheet | Downloads |
| BluStream HDMI Splitter with In-Built Video Down-Scaler | SC12SP-V2 Schematic | Downloads |
| BluStream HDMI Splitter with In-Built Video Down-Scaler | SC12SP-V2 Quick Reference Guide | Downloads |
